Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-0

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 3500-5500usd
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Supply Ability: 10SET PER MON
Contact Now
Detailed Product Description
Material: SS316 Service: Technion Avaliable
Warantee: 1 Year Control: PLC
Size: 580*600 Shape: Net

CE ISO9001 Tumble Dryer For Softgel / Soft Capsule / Paintball



Quick Detail



Product Name

 Tumble Drying Machine/ Tumble Dryer

Power consumption

0.2kw

Drying fan Motor(KW)

0.25KW

Basket per section

At least 1

Application

Drying softgel/paintball or pills or fish oils,etc







Product Description

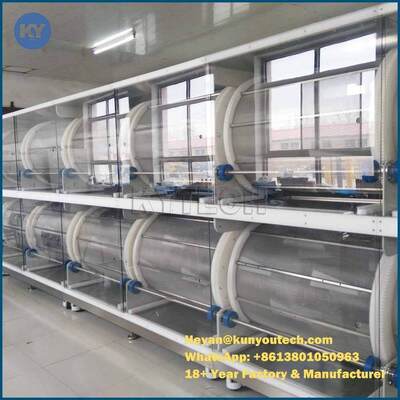

Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-0 Soft Capsule (Softgel) Tumble dryer is suitable for small scale production. The simple structure makes it much easier to maintain.TD-0 is very easy to disassemble and install. The number of tumble dryer is not fixed. You can decide the number of tumble dryer according to your production scale.Besides, each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better.



Application



1. TD-0 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.

2. It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises.

Specification


Model

TD-0

Basket diameter(mm)

420

Basket length(mm)

620

Drying fan(kw)

0.25

Motor Power(kw)

0.2

Basket per section

1



Paintball Tumble Drying Machine Feature and Advantage

We pay great attention to the combination of design and application, and focus on improvement of production efficiency and stability. The major advantages of our tumble dryer are as below:

1. Basket:

1.1 Basket is the most important part of tumble dryer, net of basket is made from SS316 wire, meet GMP requirement. The special fabrication processing ensures the inner wall of basket is smooth and burrs free. Capsules will not be damaged or turn into black color.

1.2 The inside guide plates are designed as unsymmetrical construction to ensure capsules be dispersed evenly. To compare with conventional slanted guide plate design, this design effectively avoid capsules be cumulated on one side of basket.

1.3 With both manual and auto control modes. Under auto control mode, each basket will rotate forwardly or backwardly according to the time set by operator.

1.4 The angle and arc of guide plates are precisely calculated, and the plates are molded in customized special mold. Capsules fall down after being lifted by the guide plates to a certain height. The time of capsules being dried in wind is longer, drying effect is obviously better than other brand product.

1.5 The outlet of tumble dryer adopts bevel angle and arc transitional streamlined design, and is molded by customized mold too. Capsules will come out smoothly and will not stick on it.

1.6The end part and gear of the basket are made from FDA approved supra polymer material, the friction coefficient is super low, thus avoid adhesion with capsules, this is superior to normal nylon materials very much.

1.7 The frame of basket is in compact design, rigidity is high, the construction is stable.



580*900 mms Big Volume Paintball Tumble rotary Drying Machine with high capacity

2. Electrical Parts

2.1 All the contactors, relays, breakers, switches and knobs are Schneider brand. Control system adopts PLC control.

2.2 There’s a static electricity guiding device on each basket.

2.3 The safe protection function will ensure basket stop rolling when the cover is open, and back to rotate after close the cover.

2.4 There is a discharge alarm lamp on the last section of tumble drying machine, it flickers 12 seconds before discharge to remind operators.

2.5 Each basket equipped with an independent drying fan.

2.6 Each basket equipped with frequency convertor, running smoothly and speed can be adjusted independently.

2.7 Our machine has an unique full-start function, this function is very useful when need to restart the machine in case of accidental power cut.



Drying Machine for softgel/capsule/paintball, Tumble Dryer


CE ISO9001 Tumble Dryer For Softgel / Soft Capsule / Paintball

CE ISO9001 Tumble Dryer For Softgel / Soft Capsule / Paintball

What is the advantages of Automatic encapsulation machine?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use a large number of 316 stainless steel;

6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.

7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.

Packing&Shipping



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes. We ship the whole line of macine by ocean through the freight agent.

CE ISO9001 Tumble Dryer For Softgel / Soft Capsule / Paintball

Our services



We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.



Company Information



Beijing KUN YOU Pharmatech Co., Ltd is a professional supplier for softgel making machine and paintball making machine. What we provide is the complete line for softgel making and paintball making, including the gelatin melting system, fill material system, softgel / paintball encapsulation machine, tumbler drying machine.



Besides, we also provide the die roll / mold for softgel and paintball, and plastic drying trays.
