Compact Smart Softgel Paintball Drying Equipment With 6 Baskets

Compact Smart Softgel Paintball Drying Equipment With 6 Baskets

Compact Smart Softgel Paintball Drying Equipment With 6 Baskets
video
Compact Smart Softgel Paintball Drying Equipment With 6 Baskets
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
High Light:

softgel tumbler dryer

,

soft gelatin tumbler dryer







Compact / Smart Softgel / Paintball Drying Equipment With 6 Baskets





Quick Detail



Product Name

 Soft capsule Tumble Drying Machine

Power consumption

1.5kw

Drying fan Motor(KW)

2KW

Basket per section

6

Application

Drying softgel/paintball or pills or fish oils,etc







Product Description



TD-4 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-4 Soft Capsule (Softgel) and paintball Tumble dryer adopts a new rolling cage type dryer. The rotary cage inside diameter is ∮580 mm. Each section can accommodate 20-25kg.  Its compact and smart outlook and easy to load and unload only with one hand make it more in line with the requirements of GMP. The drying cycle is controlled by PLC unified. Users can adjust the cycle time conveniently. As the dryer and fan adopts modular interface, users can regulate air flow according to your needs.



Application



1. TD-4 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.

2. It’s for softgel and paintball making enterprises and pharmaceutical enterprises

Specification


Model

TD-4

Basket diameter(mm)

526

Basket length(mm)

282

Drying fan(kw)

2

Motor Power(kw)

1.5

Basket per section

6



Competitive Advantage



1. The new rolling cage type dryer

2. Compact and smart

3. Easy to clean and be assembled and disassembled



drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule /softgel drying machine

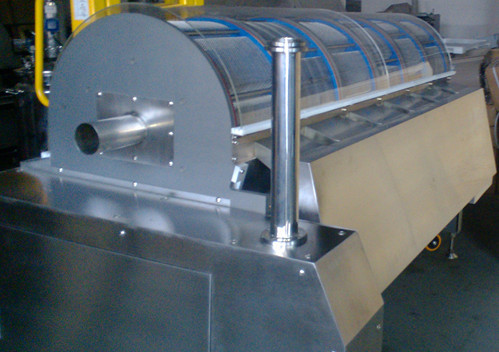

Compact Smart Softgel Paintball Drying Equipment With 6 Baskets 0

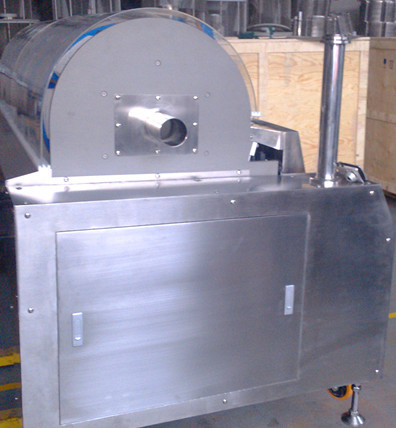

Compact Smart Softgel Paintball Drying Equipment With 6 Baskets 1

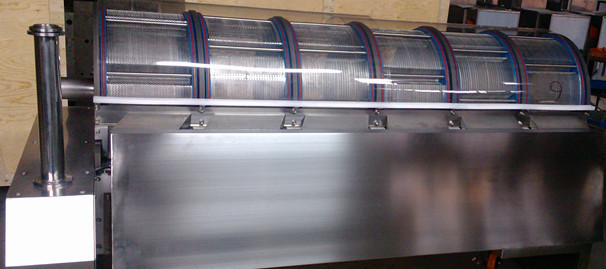

Compact Smart Softgel Paintball Drying Equipment With 6 Baskets 2
