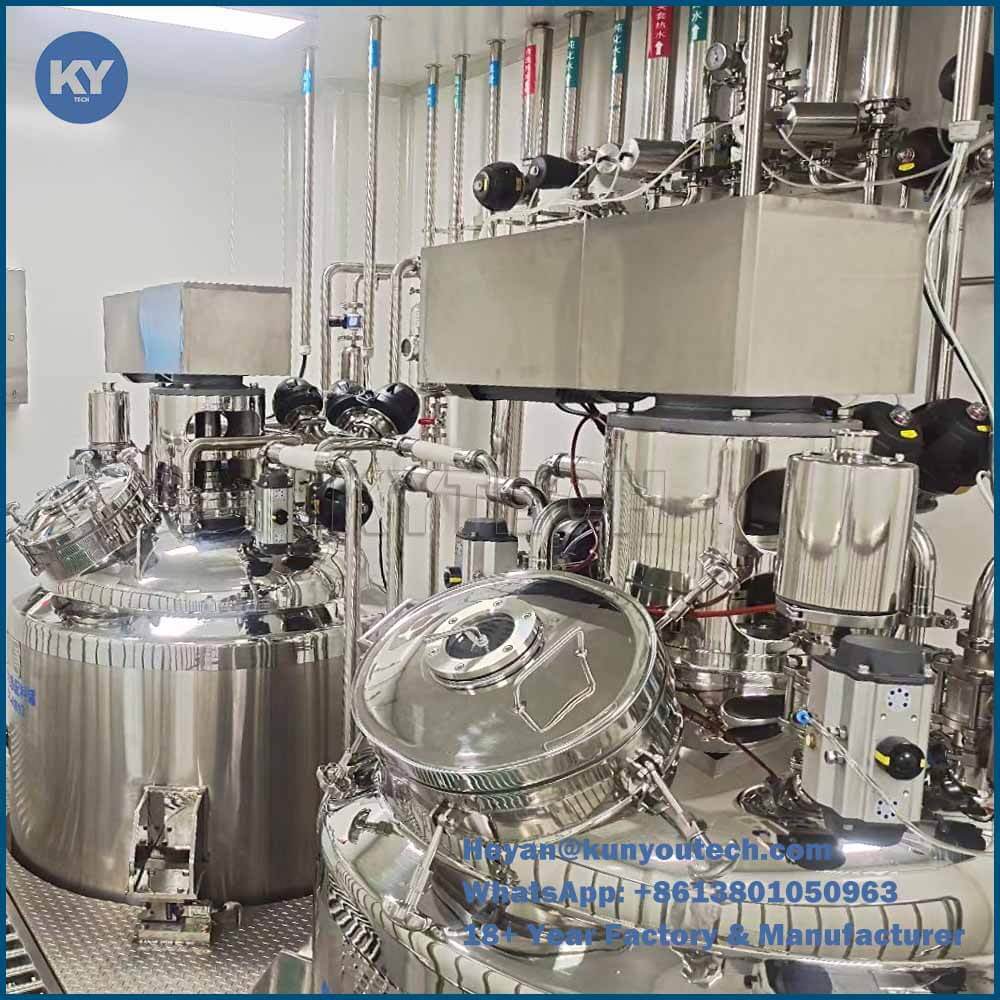

450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump

China 450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump supplier
450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump supplier 450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump supplier 450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump supplier

Large Image :  450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per month
Contact Now
Detailed Product Description

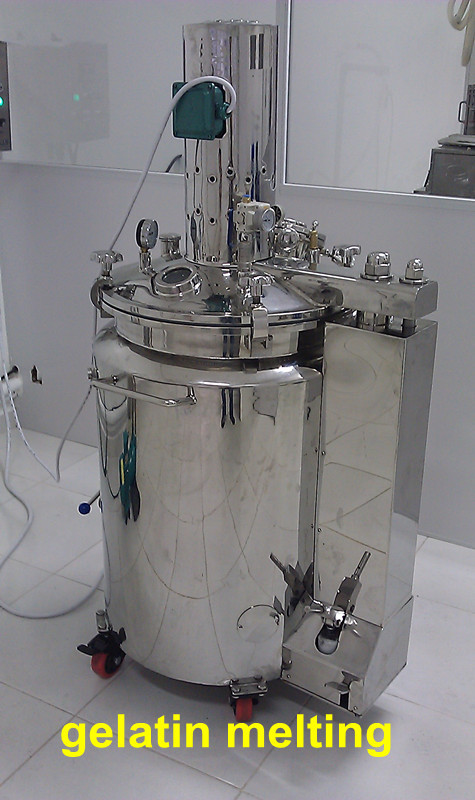

450L - 1000L Stainless Steel Gelatin Melting Tank / Water Sealed Vacuum Pump





Quick Detail



Product Name

Gelatin Melting Tank

Heating type

Water-bath heating

Application

Paintball /Soft capsule manufacturers

Brand name

KUN YOU

Material

304 SUS

Capacity

1370L / MAX



Product Description

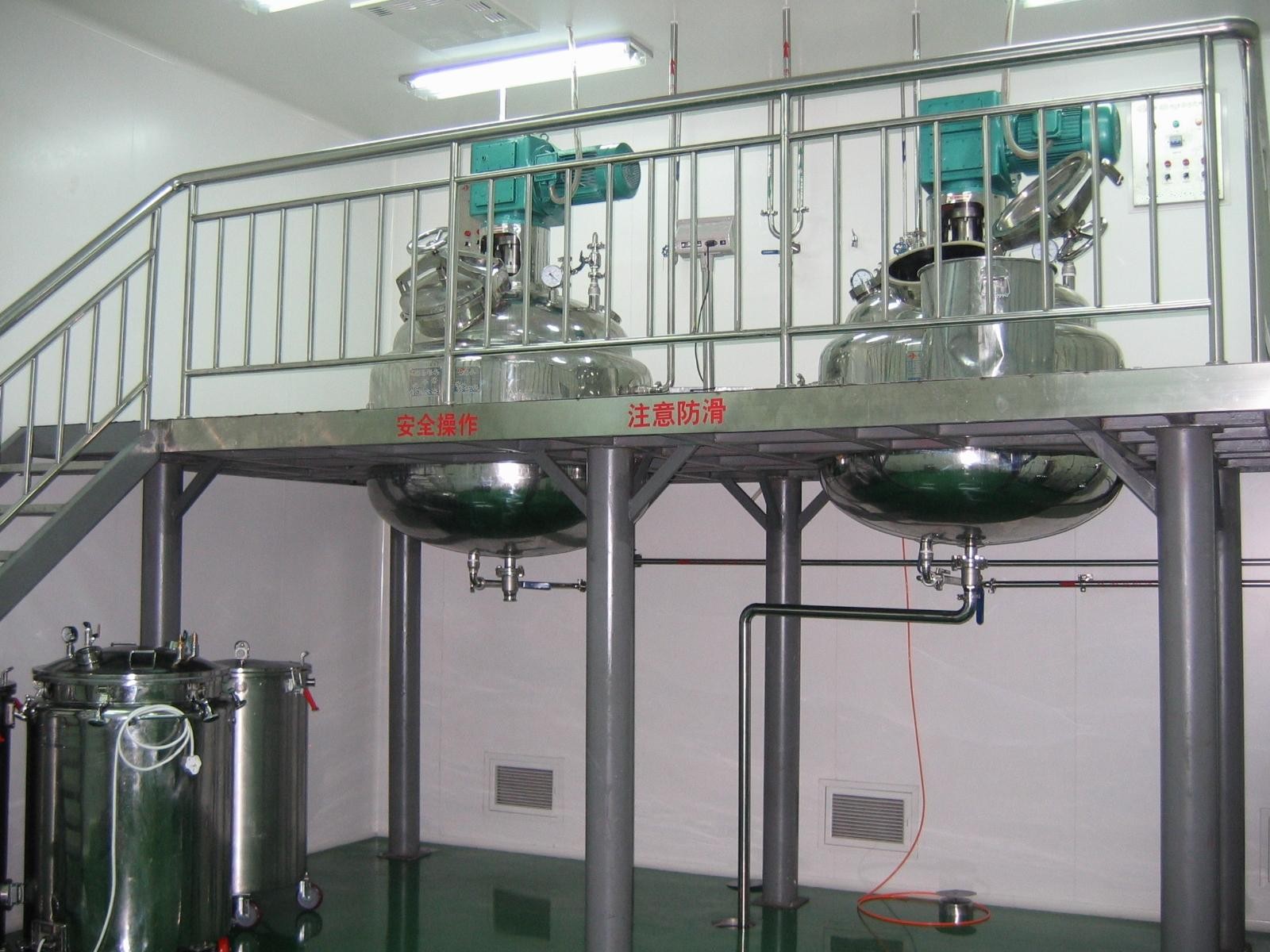

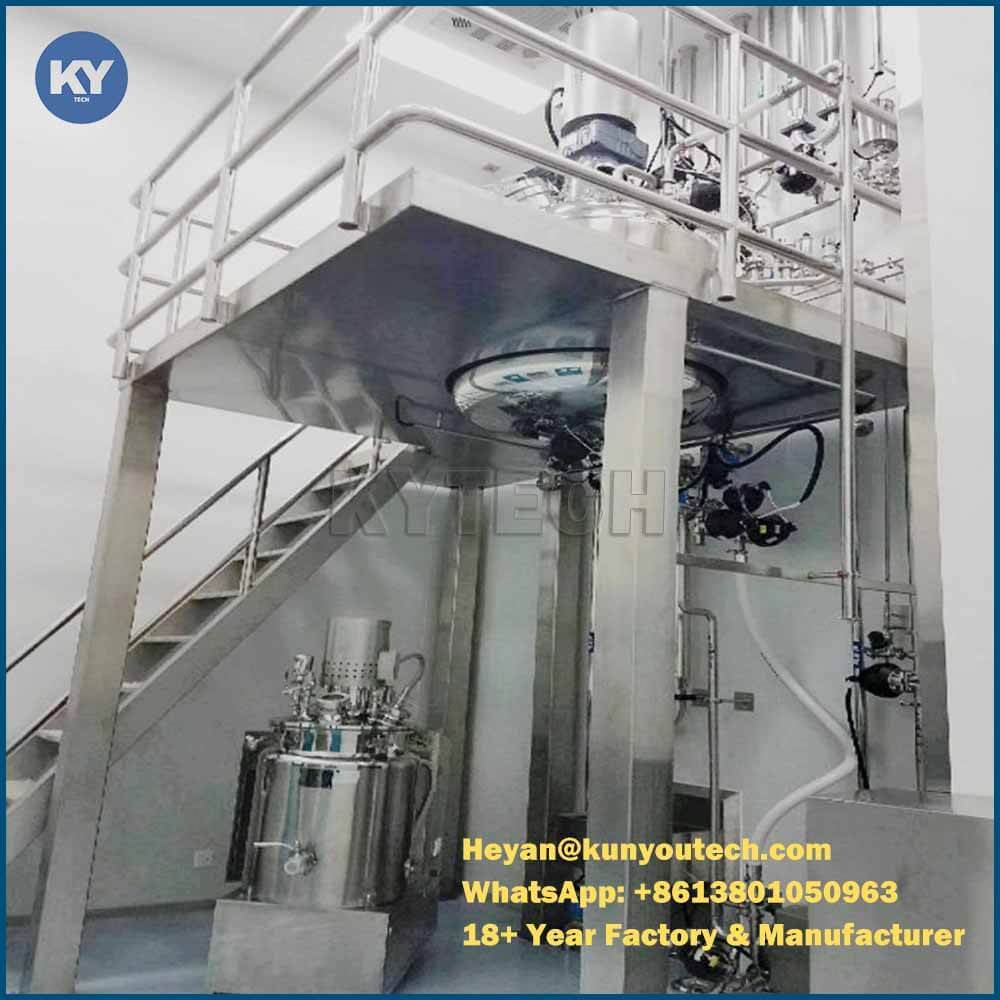

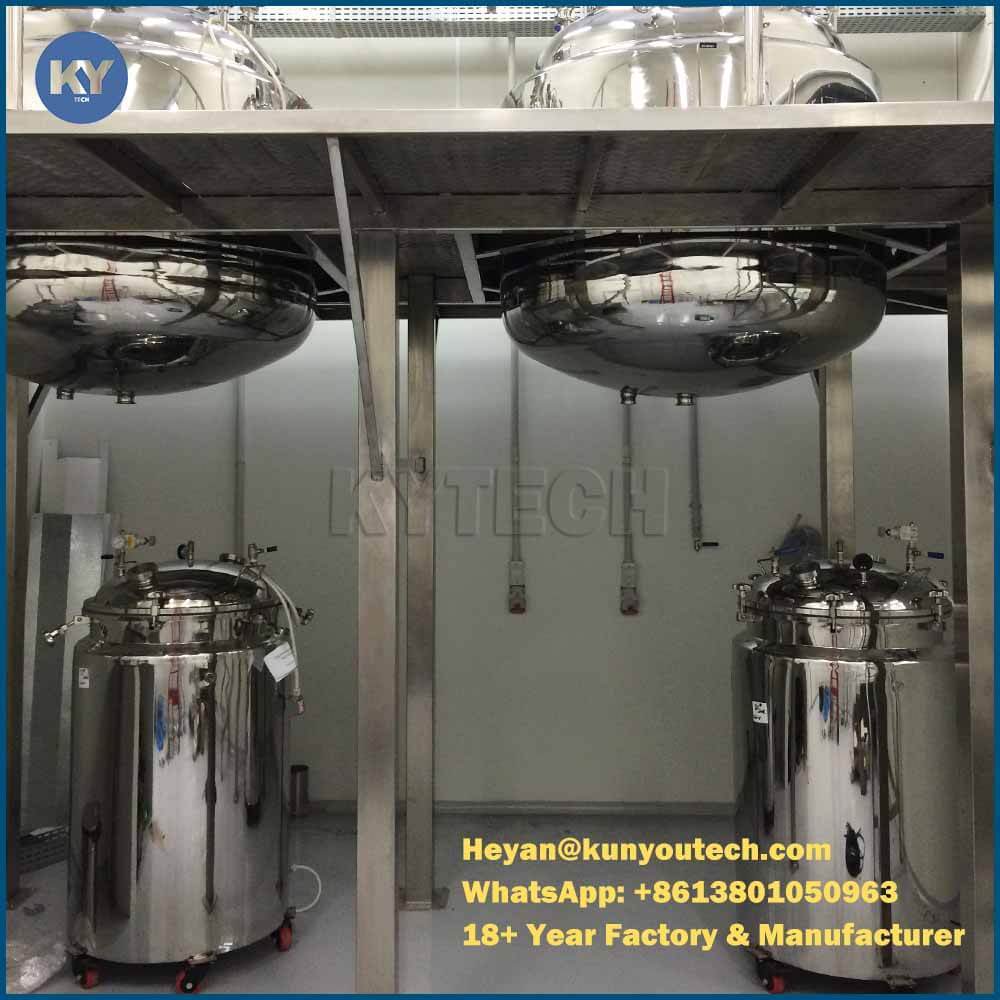

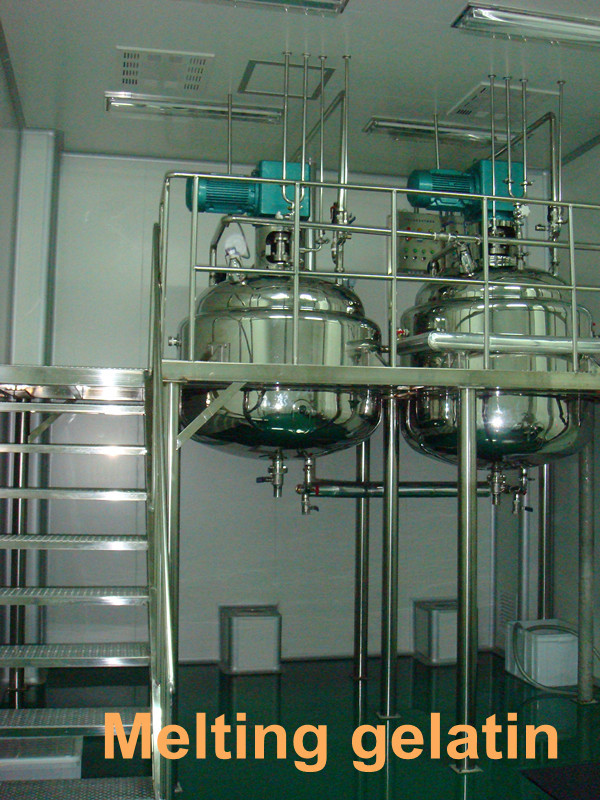

The Series of gelatin reactor is the essential equipment in gelatin preparation.

The Capacity is from 450L to 1000L

Main technical data

Vacuum degree in the vessel: 0.02-0.09 Mpa.
Working pressure in the vessel: 0.03-0.05 Mpa.
Examining Pressure in the vessel: 0.Gelatin Melting Tan3-0.4 Mpa.
Working pressure in the jacket: 0.03-0.098 Mpa
Working temperature in tank: 50-100 °C
Conveyor granule: 30 CP
Sealing parts and ring can used more than 3,000 hours continuously.
Insulating layer use super-fine glass cotton.
Inner vessel and insulation layer (covered layer) of the Tank, those sections exposed to raw material are made of 1Cr18Ni9Ti stainless steel.


Application



It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.



Specification



 Model

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130



Competitive Advantage



1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. Typically designed paddle ensure agitating quickly and mixing uniformly.
6.It’s convenient in installation and cleaning.

Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank
