4 inch Encapsulation Machine For Making Pharmaceutical Softgel / Capsules

China 4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier
4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier 4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier 4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier 4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier 4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules supplier

Large Image :  4 inch Encapsulation Machine For Making Pharmaceutical Softgel / Capsules

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description





Full Automatic Encapsulation Machine For Making Pharmaceutical Softgel / Capsule



Quick Detail



Dimension(mm)

1250×400×2300mm

Power consumption

3kw

Pump type

4 plungers

Dosage Tolerance

± 2%

Advantage

With economic price and lower using cost

Packing Material

Gelatin



Product Description

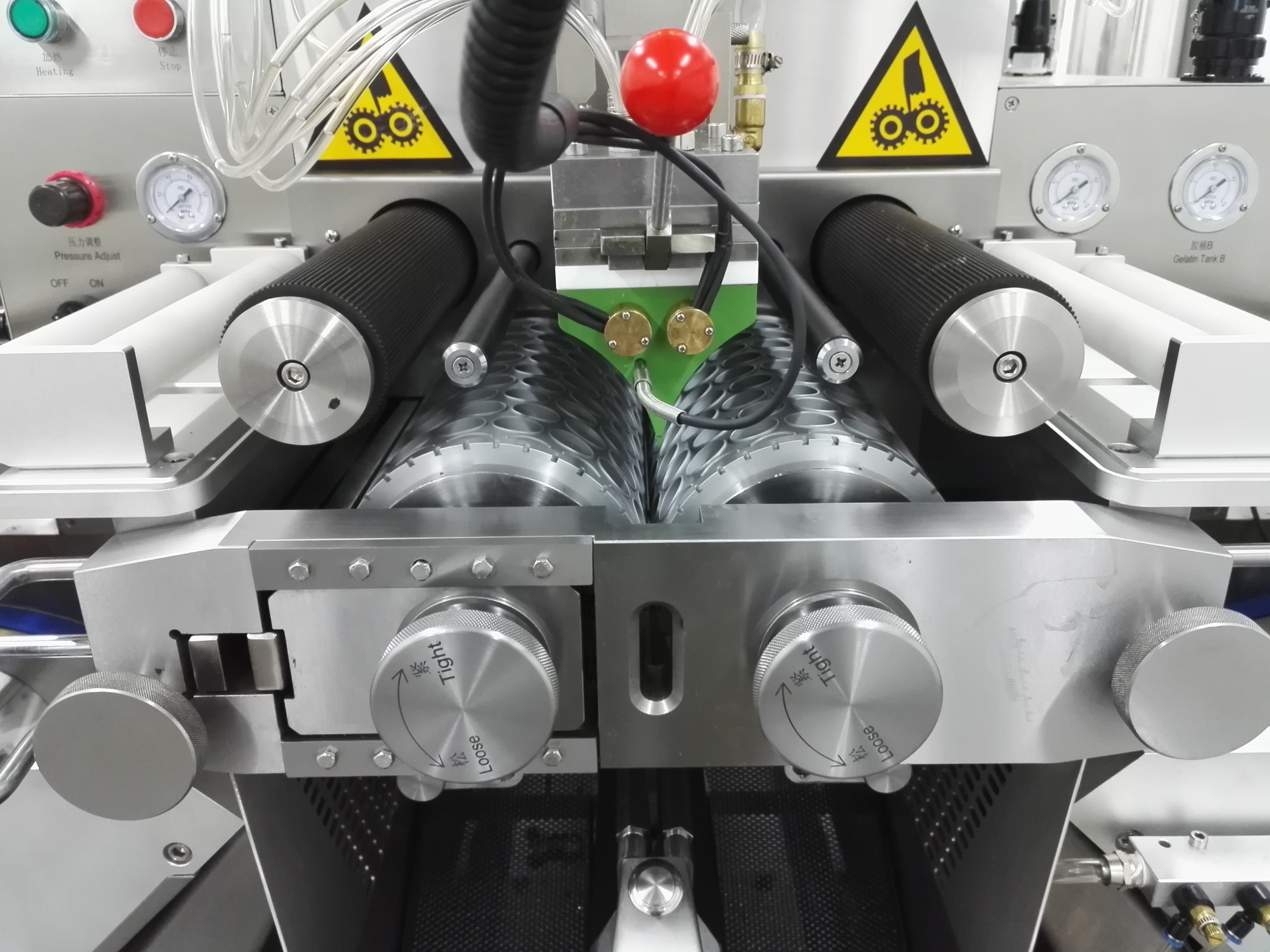

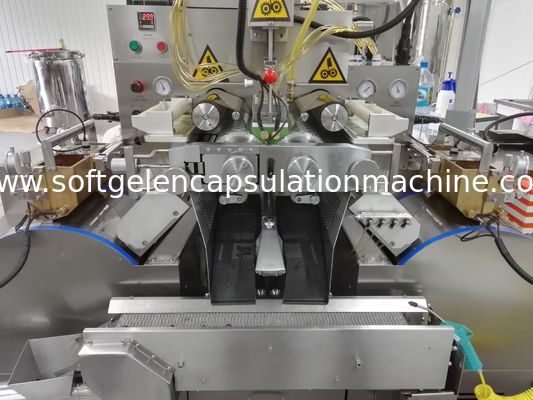

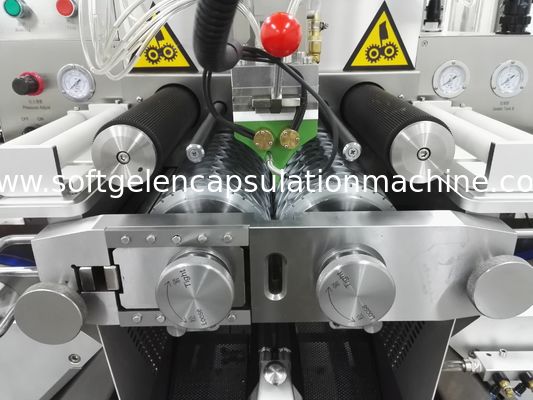

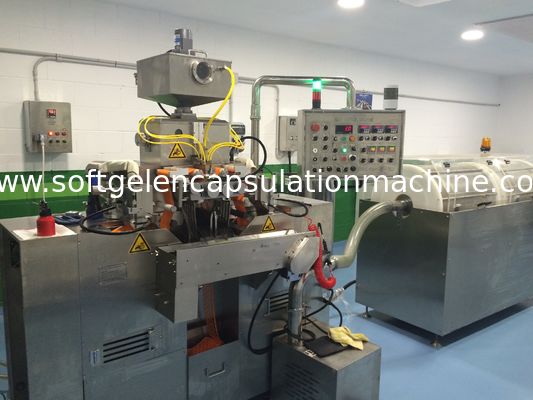

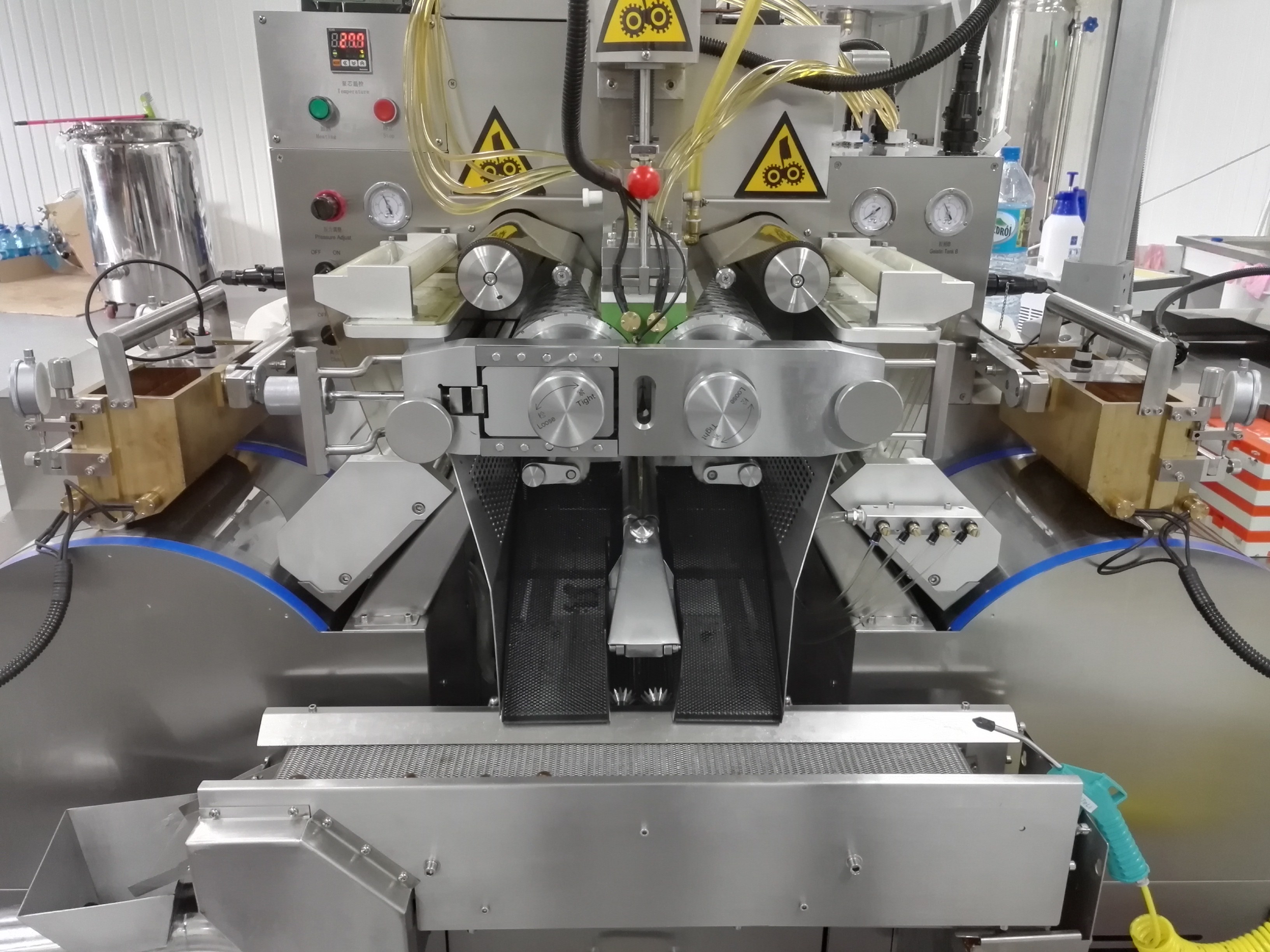

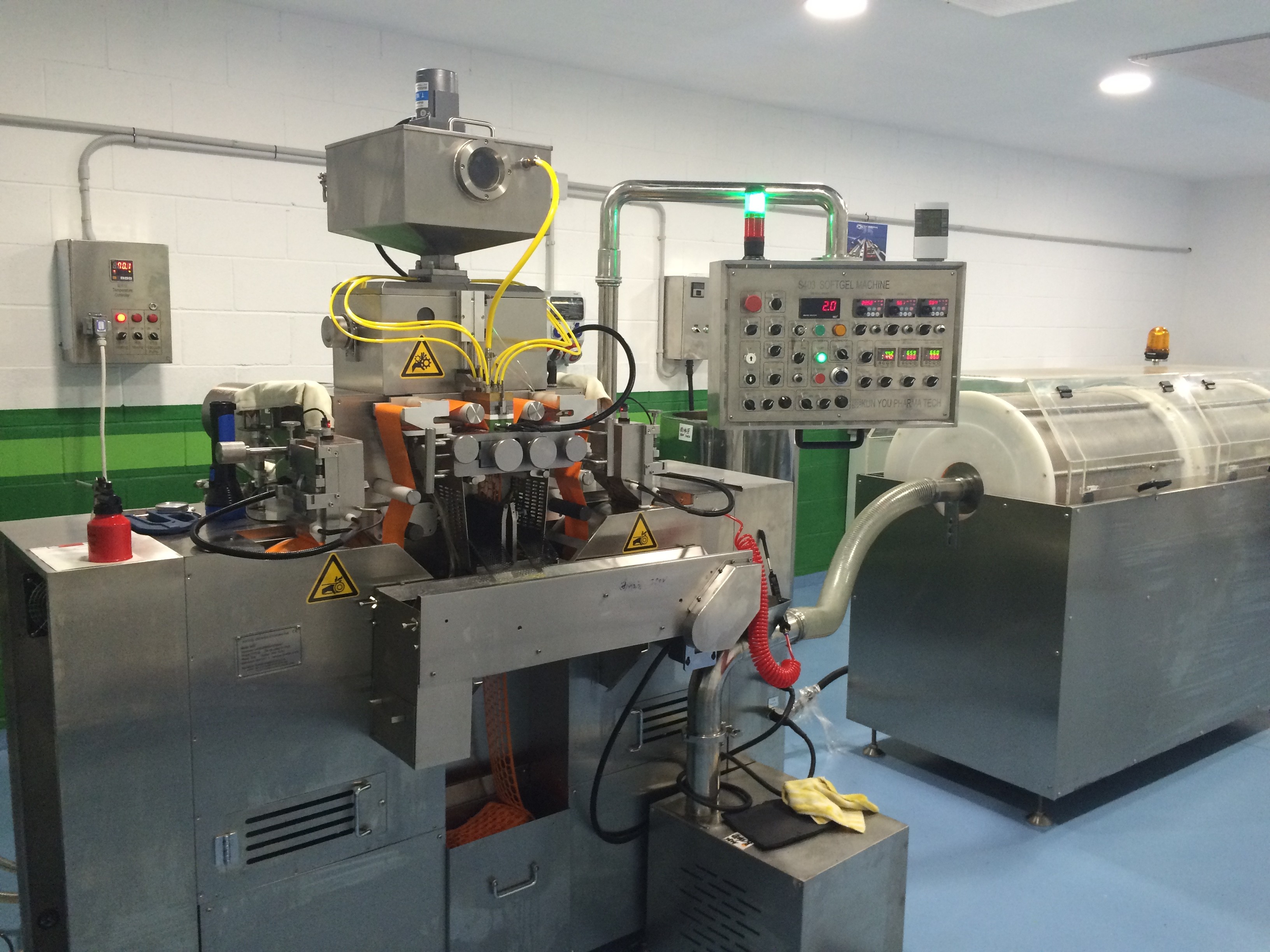

S403 Softgel Automatic Encapsulation Machine is specially designed for R&D department of laboratories and pharmaceutical factories. The softgel manufacturing line is mainly including the main machine(Encapsulation System), Gelatin melting  and service tank, Mixing tank and then drying system.

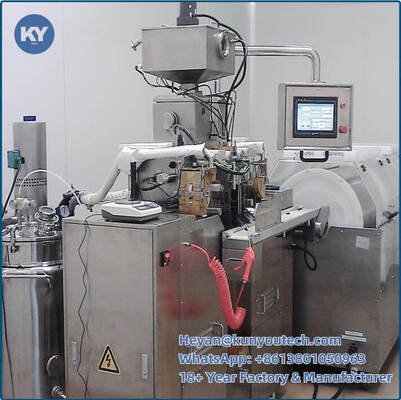

4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules

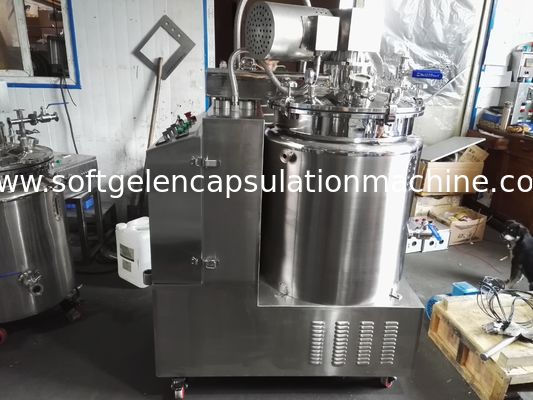

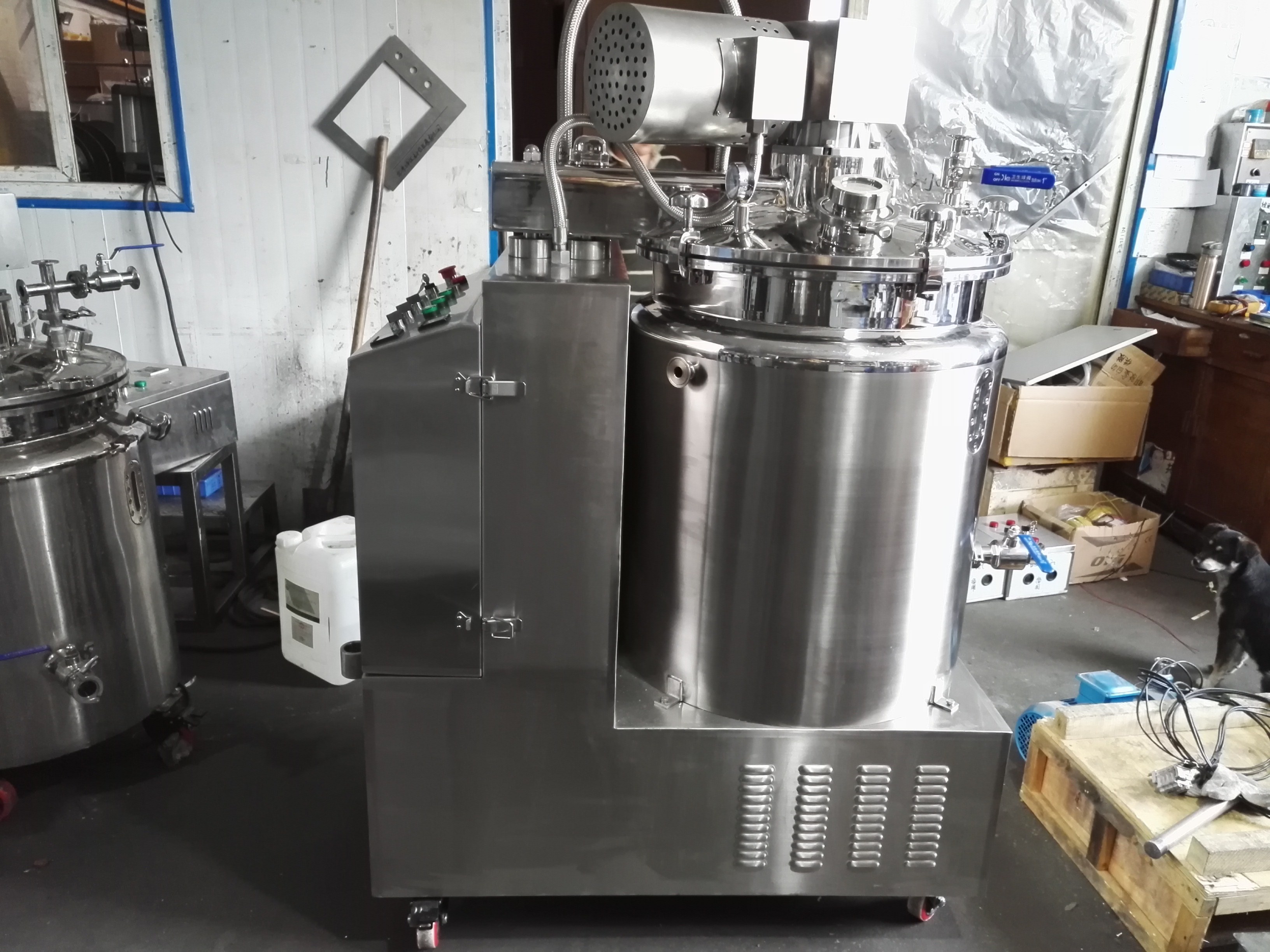

Gelatin Melting



Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules



Drying System



TD-2 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. Each section can be of variable frequency of speed regulation. There should be two tumble dryers at least, we call it one group. In other words, your making machine should be equipped with one group of tumble dryer(two sections) at least. Each section is equipped with an independent fan to make softgels and paintballs distribute evenly, thus making the drying effect much better. Each dryer can be easily removed and easy to clean, it’s more in line with the requirements of GMP. Each dryer is equipped with electrostatic guiding device and safety production device. The operator can conveniently make the dryer stop just in the tumble dryer position. TD2 has advanced structure and stable material, making its drying effect much better than other models of domestic and Korean machine.



4 inch  Encapsulation Machine For Making Pharmaceutical Softgel / Capsules



Application



1. TD-2 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs.

2. It’s for pharmaceutical enterprises, health care products, cosmetics and paintball production.


Specification of Main machine



Model

S403

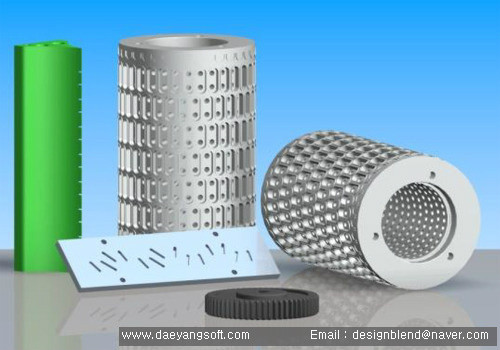

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw

S403 R&D Softgel Encapsulation Machine

Shape

Capsules/hour

2r/min

3r/min

4r/min

5#OV

12600

18900

25200

8#OV

11400

17100

22800

10#OV

8640

12960

17280

11#OB

7200

10800

14400

16#OB

6840

10260

13680

20#OB

6480

9720

12960

24#OB

6120

9180

12240

Paintball

7200

10800

14400

6#round

14280

21420

28560



Competitive Advantage



1. You can increase or reduce the number of section of the tumble dryer according to your production scale
2. Simple structure
3. Easy to maintain

Specification of Gelatin Melting Tank



 Model

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130



Specification of Tumble Dryer


Model

TD-2

Basket diameter(mm)

580

Basket length(mm)

900

Weight(ton)

1.5t

Drying fan(kw)

0.32

Motor Power(kw)

0.4

Basket per section

2


Beijing Kun You Pharmatech Co., Ltd sells the softgel manufacturing line, including drying machine and gelatin melting. And we can also sell the gelatin tank and tumble dryer seperately.Welcome to inquire!
