Auto Pre-washing, cleaning, rinsing, flushing, and drying process tumble dryer basket cleaning machine

Auto tumble deyer basket cleaning machine for the softgel capsule and gummy production

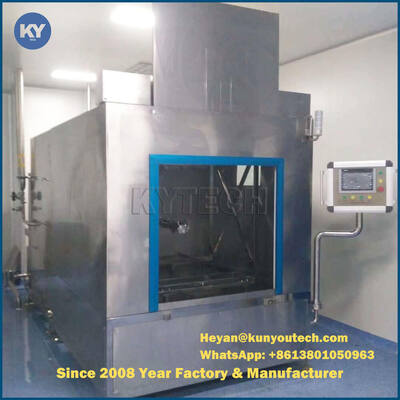

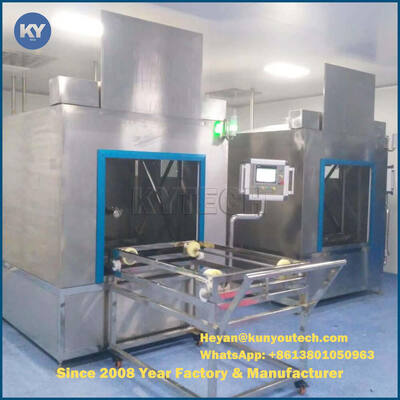

1) This machine is 792X1120mm transfer basket cleaning machine, model: QXZL-792X1120

• Cleaning beat: 15-20min;
• 3) Production: corresponding to the beat, the yield depends on the degree of contamination and beat time after the actual use of the basket.
• Cleaning process
•

QXZL-792X1120 basket washing machine is dedicated for cleaning, removal of 792X1120 basket in the work of the residual surface oil, impurities and other dirt cleaning system, using 316L material pipe, water pump, cleaning nozzle, rinsing nozzle spray, and the wind knife drying process, conductivity detection device to detect the cleaning effect, cleaning more efficient. The whole cleaning process is automatically completed by the equipment, after effective cleaning, rinsing and blow drying, to achieve the required high cleanliness.

The first step is pre-washing: pre-wash the basket, melt the remaining balls inside, forcefully flush off the oil above, the waste liquid is directly emptied, to create conditions for the back fine washing.

The second step of cleaning: the cleaning nozzle evenly sprayed to the basket, after a period of cycle spraying, impregnation, erosion, to achieve the purpose of removing oil pollution.

The third step is rinsing: rinse the basket with softening water circulation to remove the remaining cleaning solution on the basket.

The fourth step is flushing:use the rinsing water pump, pipe and rinse nozzle, and measure the conductivity of the discharged water on the drainage pipe. To be qualified.

The fifth air drying: fan blower, through the wind knife quickly blow dry turn basket.

Equipment workflow:

Safety door rise basket car positioning basket along with the rail along the rail propulsion ,cleaning housing fixed pin insertion basket rotating motor ,low speed start basket car exit safety, door down basket rotating motor ,high speed start rinsing pump start ,basket pre-wash (self-priming pump start, Lotion straight discharge) rinsing pump stop, cleaning pump start spray cleaning liquid (cleaning liquid recycling) cleaning pump stop pump, rinsing pump start water spray (rinsing water recycling) change valve switch rinsing water tank to pure water pipe, Pure water washing (pure water straight row) conductivity meter detection cleaning qualified rinsing pump stop pump fan start blower blow dry basket turn basket rotating motor stop safety door rise basket car position basket with the slide frame pull out to the basket car basket car remove the safety door down.

Advantage of the clean machine

1. Setting method and operation process of various variable parameters,All parameter settings are completed by the touch screen screen

2. With servo motor .the Valve control also by the touch screen.

3. Specially design in the pre-washing, rinsing and washing system .

4. Automatic operation., from the the basket in and out the machine .

5. Efficient operation. Each basket need about 5mins from cleaning to drying.

6. With of historical trends records ,easy to operation ,just one key press to wash the basket.

7. With the Real-time alarm record ,easy to analysis the deal with the problem of the machine.

8. Famous brands of the PLC control system.

9. with Formulation ,Instrument range,Electric heating temperature parameter setting,User Management Settings, it is flex to adjust for different baskets .

10. USer protection , for management and worker use.
