Vegetable Gelatin Softgel Machine For 50000-70000 Capsules

Vegetable Gelatin Softgel Machine For 50000-70000 Capsules

  • Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules
Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S407
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 60-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
High Light:

capsule manufacturing machine


soft gelatin capsule machine



Vegetable Gelatin Softgel Encapsulation Machine For 50000 - 70000 Capsules / H


Quick Detail


Product Name

Soft capsule Filling Machine

Power consumption

13 kw

Control Mode

PLC+Touch screen

Plunger Numbers




Dosage deviation

< ±2%





Product Description


S407 Softgel Encapsulation Machine is developed based on Model S406 softgel encapsulation machine. The die roll length is 20mm longer. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.There are following features besides S406’s. S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.

Specifically speaking, it has the following characteristics:
Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled water.
The running parameters can be stored and recalled with a finger tip touch if necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.
Chute & Mangle Roller Encapsulated capsule separation from die roll and gelatin net pulling tension Adjust devices and speed for the mangle roller Chute mini-conveyor
It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.



Die roll


Die roll speed


Plunger numbers


Overall dimension




Power consumption


Control mode

PLC+Touch Screen

Output rate

8#OV 50000-70000 pcs/hour


Competitive Advantage


1. PLC operation
2. Improve the efficiency of production largely
3. Adjustable rotation rate during 0-7rpm
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Reduce the oil consumption
7. Adjustable separately or automatically
8. The control system has a counting function to make operators get the number of pills clearly
9. Store and apply operating data
10. Lengthen the life of die roll by using pneumatic
11. Reminding and diagnosing faults function
12. Can realize the function of statistical statements and printing
13. The cable plug has good waterproof and oil proof function
14.Pinch Valve Gelatin supplying control device Gelatin supplying control by gel level sensor on spreader box hute mini-conveyor
Soft capsule/softgel making machine, paintball making machine, Tumble drying machine, gelatin melting tank
Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules 0                            Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules 1

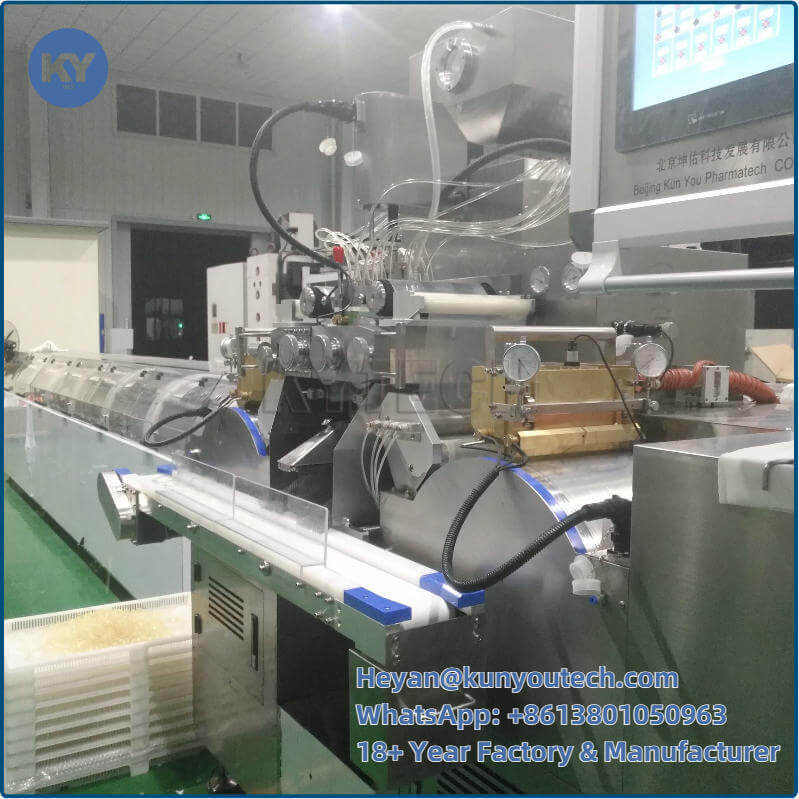

Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules 2

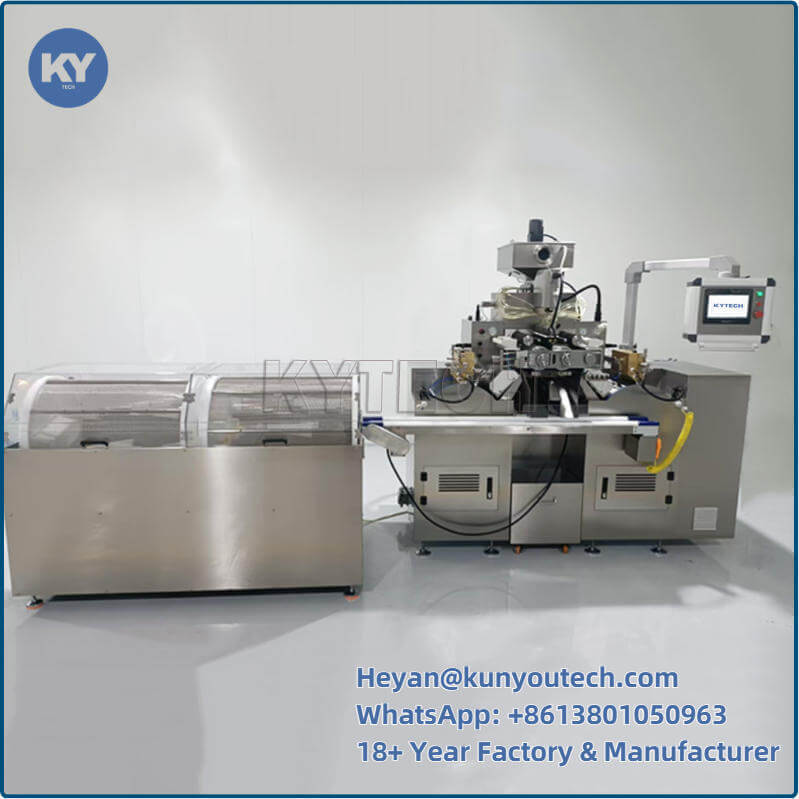

Vegetable Gelatin Softgel  Machine For 50000-70000 Capsules 3
