Movable gelatin melter and service tank, material gelatin melting machine

Gelatin service tank

The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.

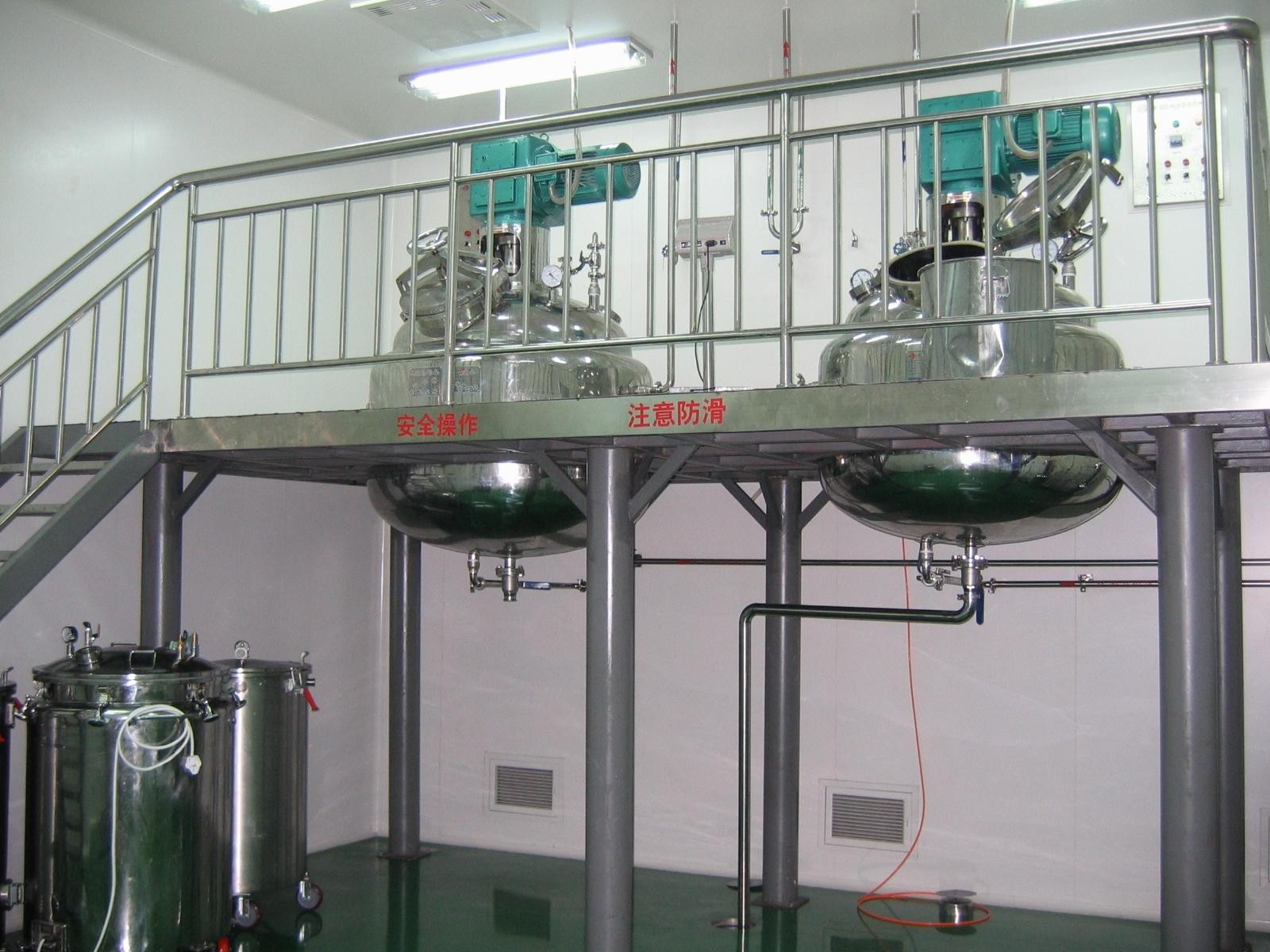

Stationed gelatin melter

Movable gelatin melter and service tank

Advantage Description

a) The GMT800 is manufactured and examined in compliance with JB2880-81

b) . Standard of Welded steel Normal Pressure Container’.

Vacuum degree in the vessel: 0.02-0.09 Mpa.

c) Working pressure in the vessel: 0.03-0.05 Mpa.

d) Examining Pressure in the vessel: 0.3-0.4 Mpa.

e) Working pressure in the jacket: 0.03-0.098 Mpa

f) Working temperature in tank: 50-100 ℃

g) Conveyor granule: 30 CP

h) Sealing parts and ring can used more than 3,000 hours continuous

i) Insulating layer use super-fine glass cotton.

j) Inner vessel and insulation layer (covered layer) of the tank, those sections exposed to raw material are made Of 1Cr18Ni9Ti stainless steel.

k) The GMT and all stainless steel parts are well-polished

Main Specification

The heater is manufacture and examined according to JB2880-81 Standard.

Hot water volume: 2,000 kgs/h

Working temperature: 85-100 ℃

Weight: 350 Kgs

Dimension: External Dia. 800 x H 2,100 mm
