Seamless Softgel Machine 40-800kg/h Capacity 380V Pulsant Cutting

1 set
MOQ
Seamless Softgel Machine 40-800kg/h Capacity 380V Pulsant Cutting
Features Gallery Product Description Request A Quote
Features
Specifications
Power Consumption: 1.5kw
POWER SUPPLY: 380V/50Hz
Mold: No Mold
Application: Capsule
Type: Encapsulation Machine
Capacity: 40-800kg/h
Highlight:

Soft Capsule Making Machine

,

Soft Gelatin Encapsulation Machine
Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: MD-3
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 3 WEEKS
Payment Terms: T/T， L/C
Supply Ability: 1000 SETS PER YEAR
Product Description

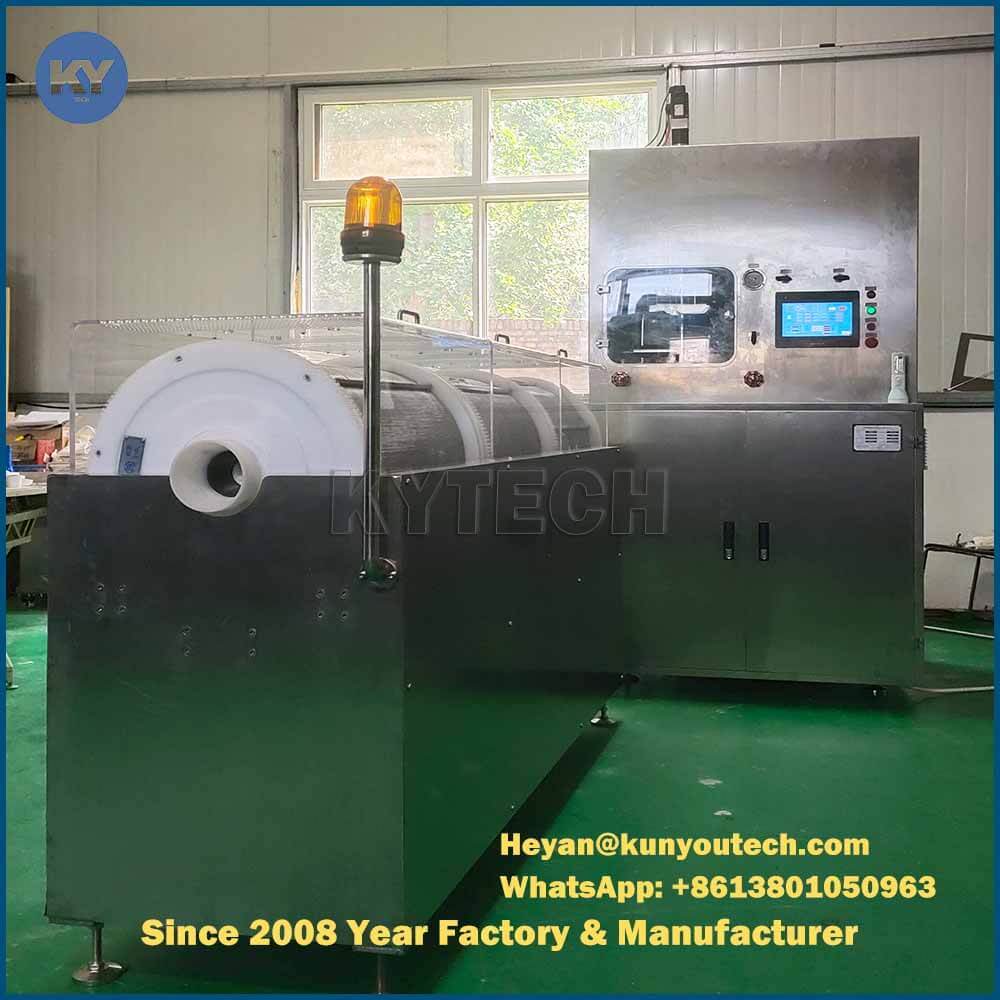

Pulsant Cutting Seamless Softgel Machine
The MD-3 Pulsant-cutting type seamless softgel machine produces round-shaped capsules without requiring expensive molds. This advanced system includes medicine supply, gelatin preparation, pulsant cutting, cooling oil circulation, refrigerating, and capsule shaping components.
Key Advantages
  • Eliminates gelatin waste compared to conventional softgel machines
  • High dosing accuracy and superior capsule quality through pulsant cutting technology
  • Increased production capacity up to 54,000 capsules/hour
  • Versatile capsule sizing from 2-10mm diameter
  • Consistent dosage range of 5-20mg with minimal variation
  • Exceptional quality yield exceeding 98%
Technical Specifications
Parameter Specification
Softgel Diameter 2-10 mm
Production Capacity (capsules/hour) MD-3 Model:
43,200 (5-20mg)
36,000 (20-50mg)
28,800 (50-100mg)
21,600 (100-180mg)
14,400 (180-270mg)
7,200 (500mg)
Fill Quantity Difference ≤±3%
Dynamic Stability (8hr operation) ≤0.5
Power Requirements 380V/50Hz (3 Phase)
Power Consumption Average: 1.5KW / Max: 6.0KW
Dimensions 1080 * 800 * 2060 mm
Weight 450 kg
Seamless Softgel Machine 40-800kg/h Capacity 380V Pulsant Cutting 0
New Generation Seamless Softgel Technology
Our advanced impulse cutting technology, refined over 20+ years of production experience, delivers significant improvements over conventional softgel machines:
  • Enhanced productivity: Higher output speeds with superior finished product ratios
  • Flexible sizing: Accommodates more capsule sizes with easy adjustments
  • Reliable operation: Dropper system prevents blockages for smooth production flow
  • Precision dosing: Fill quantity variation below pharmacopeia requirements with minimal fluctuation
  • Advanced automation: Integrated drying and shaping process eliminates secondary handling
  • Cost efficiency: Utilizes residual gelatin and eliminates need for expensive die rolls
  • Optimal formulation: Produces thinner-walled capsules that are easier to swallow
  • Specialized capability: Superior performance for small diameter softgel production
