ointment emulisifier,vacuum emulsifying mixer, blending machine for cream

China ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier
ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier ointment emulisifier,vacuum emulsifying mixer, blending machine for cream supplier

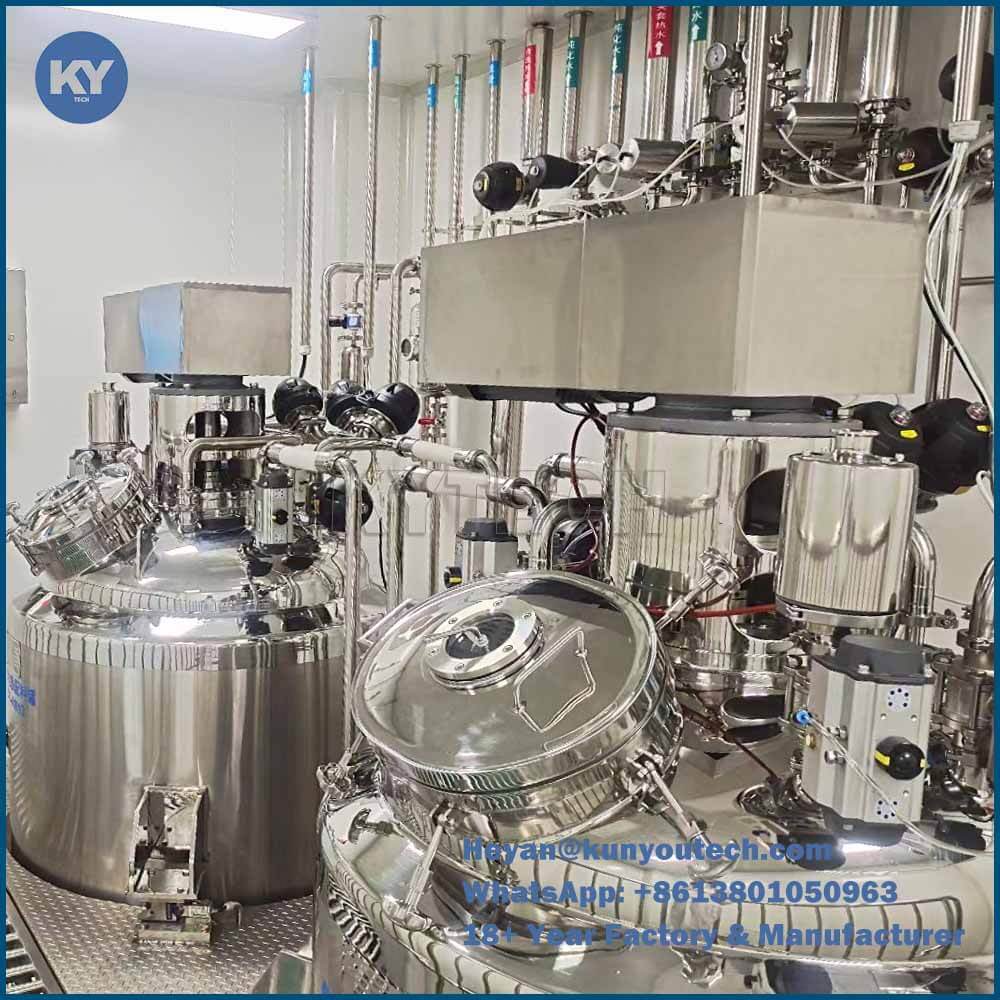

Large Image :  ointment emulisifier,vacuum emulsifying mixer, blending machine for cream

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: GMT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 10000USD
Packaging Details: Wood cages
Delivery Time: 35 days
Payment Terms: T/T, L/C
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Material: SS304/316 Vaccum: Avaliable
Water Jacket: Avaliable Size: 100-1500L
Electric Contric: Avaliable Electric: Seimens

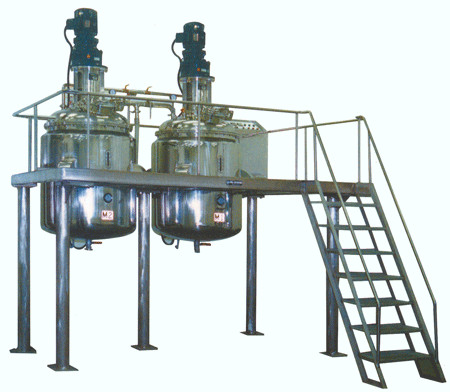

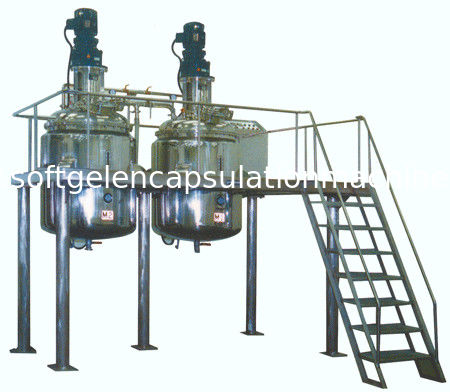

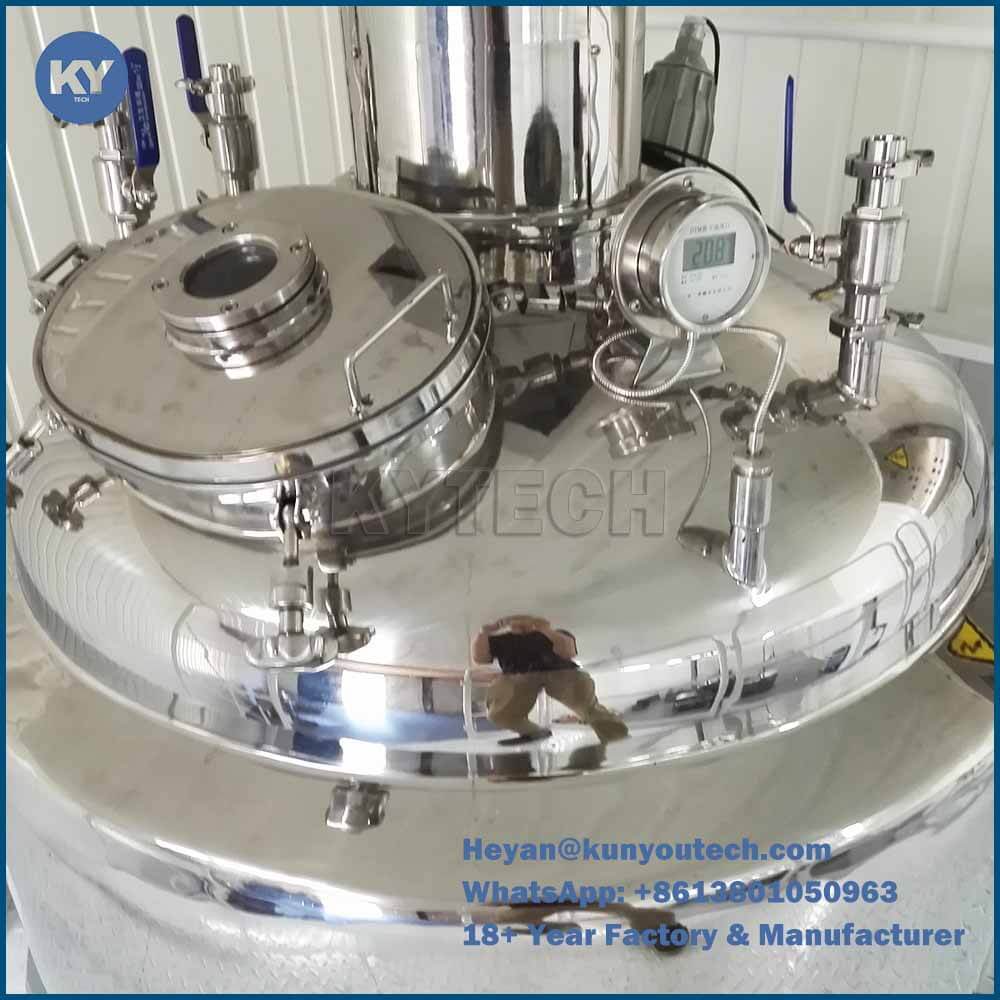

Big Volume Gelatin Melting Tank

ointment emulisifier,vacuum emulsifying mixer, blending machine for cream



Product Description



1.Water bath type gelatin tank is a special equipment for melting gelatin and production process.



2.The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance.



3.The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel.



4.The body include three layers, including the tank liner, heating jacket and heat preservation layer.



5.Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time.



6.The liner is closed totally with very good vacuum performance.



7.The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body.



8.During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



ointment emulisifier,vacuum emulsifying mixer, blending machine for cream



ointment emulisifier,vacuum emulsifying mixer, blending machine for cream

Specification



Model 450L 600L 800L 1000L
Capacity(L) 650 900 1120 1370
Melting gelatin(L) 100-450 150-600 200-800 300-1000
Heating area(M2) 3.2 4 4.8 5.5
Max degree of Vacuum(Mpa) 0.09 0.09 0.09 0.09
Max Temperature(°C) -100 -100 -100 -100
Motor Power (KW) 4 5.5 7.5 7.5
Stirring speed (r/min) 50 50 50 50
Dimension (mm) Φ1210X1880 Φ1310X1980 Φ1410X2080 Φ1510X2130



Our company can also provide the complete line for softgel making and paintball making, softgel die roll and paintball die roll, plastic drying trays and trolley.

ointment emulisifier,vacuum emulsifying mixer, blending machine for cream
