Automatic Capsule Filling Machine for food-fish oil, Vitamin, and Bee Honey

USD 1-70000 per set
Automatic Capsule Filling Machine for food-fish oil, Vitamin, and Bee Honey
Features Gallery Product Description Request A Quote
Material: Stainless Steel
Application: Softgel Capsule Making
Usge: Capsule Filling Machine
Type: Automatic Packing Machine
Size: 2100*980*1200
Weight: 1900kG
Packaging Type: Capsule
High Light:

fully automatic capsule filling machine


capsule filling equipment

Basic Infomation
Place of Origin: Beijing
Brand Name: Kun You
Certification: ISO9001 CE
Model Number: S610
Payment & Shipping Terms
Packaging Details: wooden boxes
Delivery Time: 7 weeks
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per year
Product Description

Gelatinous Capsule Filling Machine


Product Description

FDA proved Pharmaceutial Softgel Gelatinous Capsule Filling Machine For large scale production

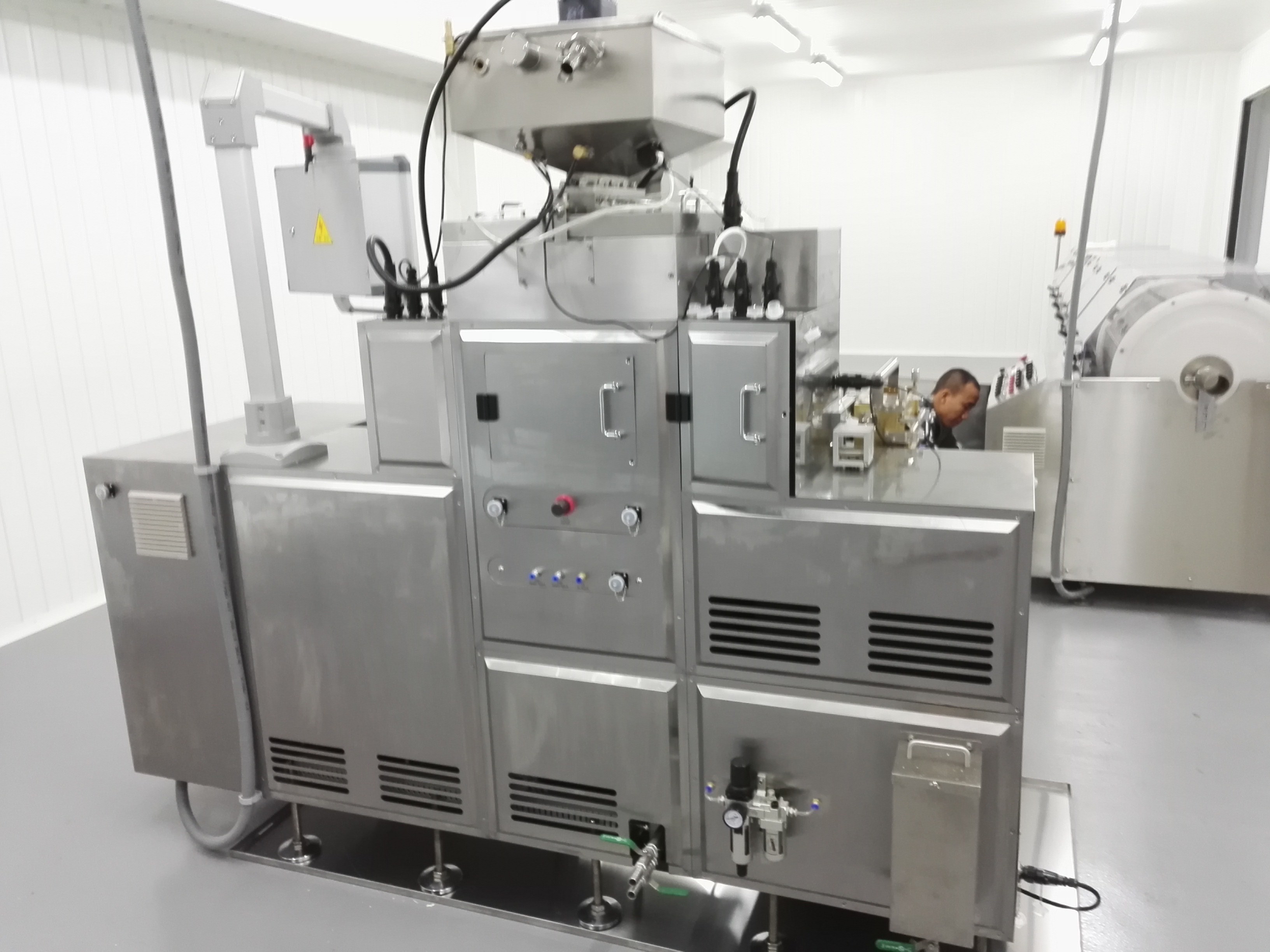

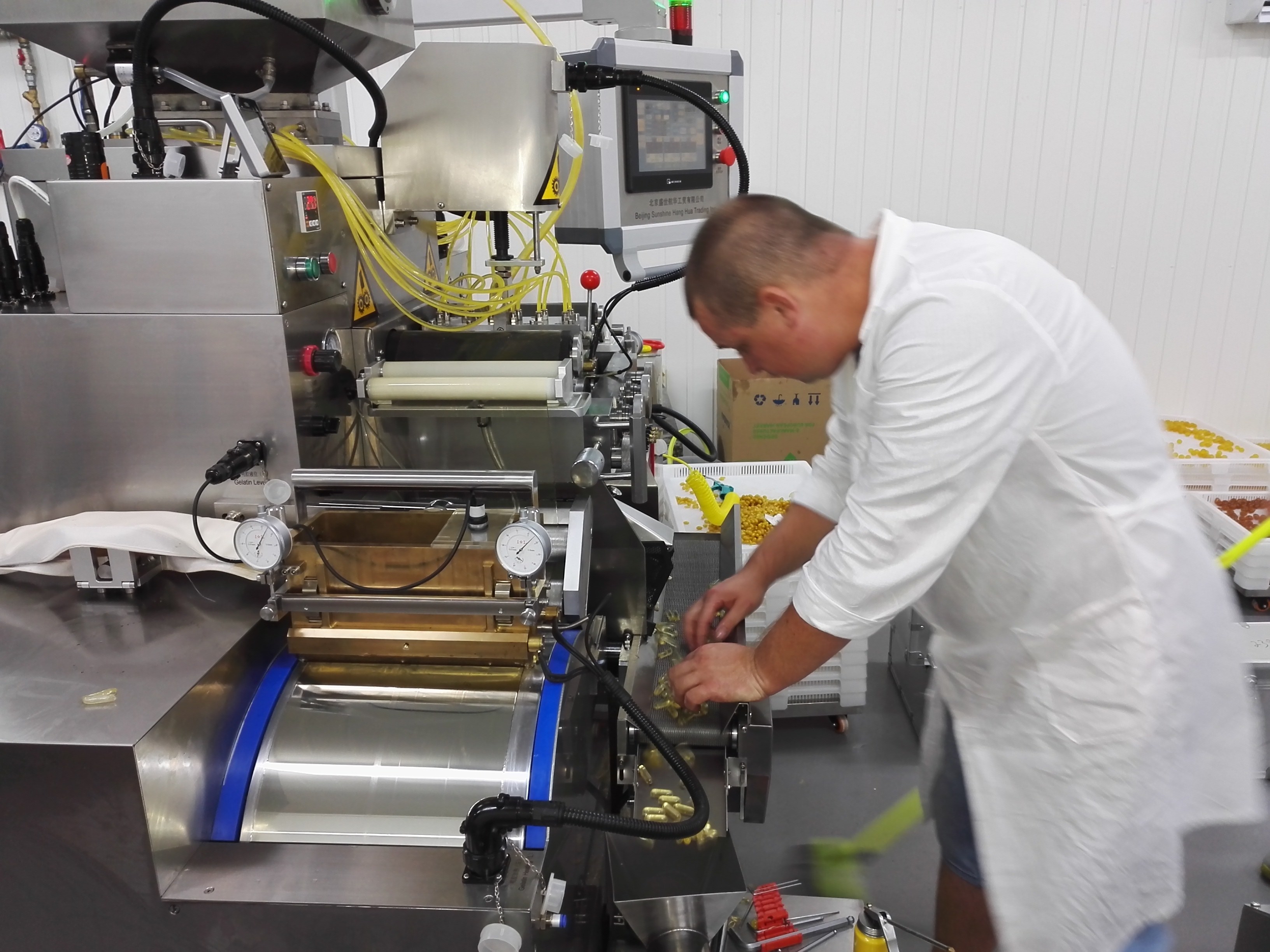

S610 roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roll automatically and synchronously, it’s very convenient to adjust the spraying time. S610 adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP. S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Specifically speaking, it has the following characteristics:


Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.





Model S610
Die roll size 150×250mm
Die roll speed 0~5rpm
Max plunging volume per stroke 0~2ml
Plunger numbers 20/24
Overall dimension 2050×1200×1850
Weight of main machine 1900kg
Power consumption 13.5kw
Control mode PLC+Touch Screen
output 8#OV120000 pcs/hour




We can not only provide the softgel manufacture line and paintball manufacture line, but also the softgel die roll and paintball die roll, and plastic drying trays and stainless trolley. We are looking forward to your inquiry.


What is the advantages of Automatic encapsulation machine ?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use a large number of 316 stainless steel;

6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.

7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.

We ship the whole line of macine by ocean through the freight agent.


Our services


We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.


If you are interested in our products, please feel free to contact us. Welcome!


Product samples.
