Capsule and paintball Encapsulation Tumbler Dryer Energy saving

Capsule and paintball Encapsulation Tumbler Dryer Energy saving

  • Capsule and paintball Encapsulation Tumbler Dryer Energy saving
  • Capsule and paintball Encapsulation Tumbler Dryer Energy saving
  • Capsule and paintball Encapsulation Tumbler Dryer Energy saving
  • Capsule and paintball Encapsulation Tumbler Dryer Energy saving
Capsule and paintball Encapsulation Tumbler Dryer Energy saving
Product Details:
Contact Now
Detailed Product Description
High Light:

softgel tumbler dryer


capsule tumbler dryer

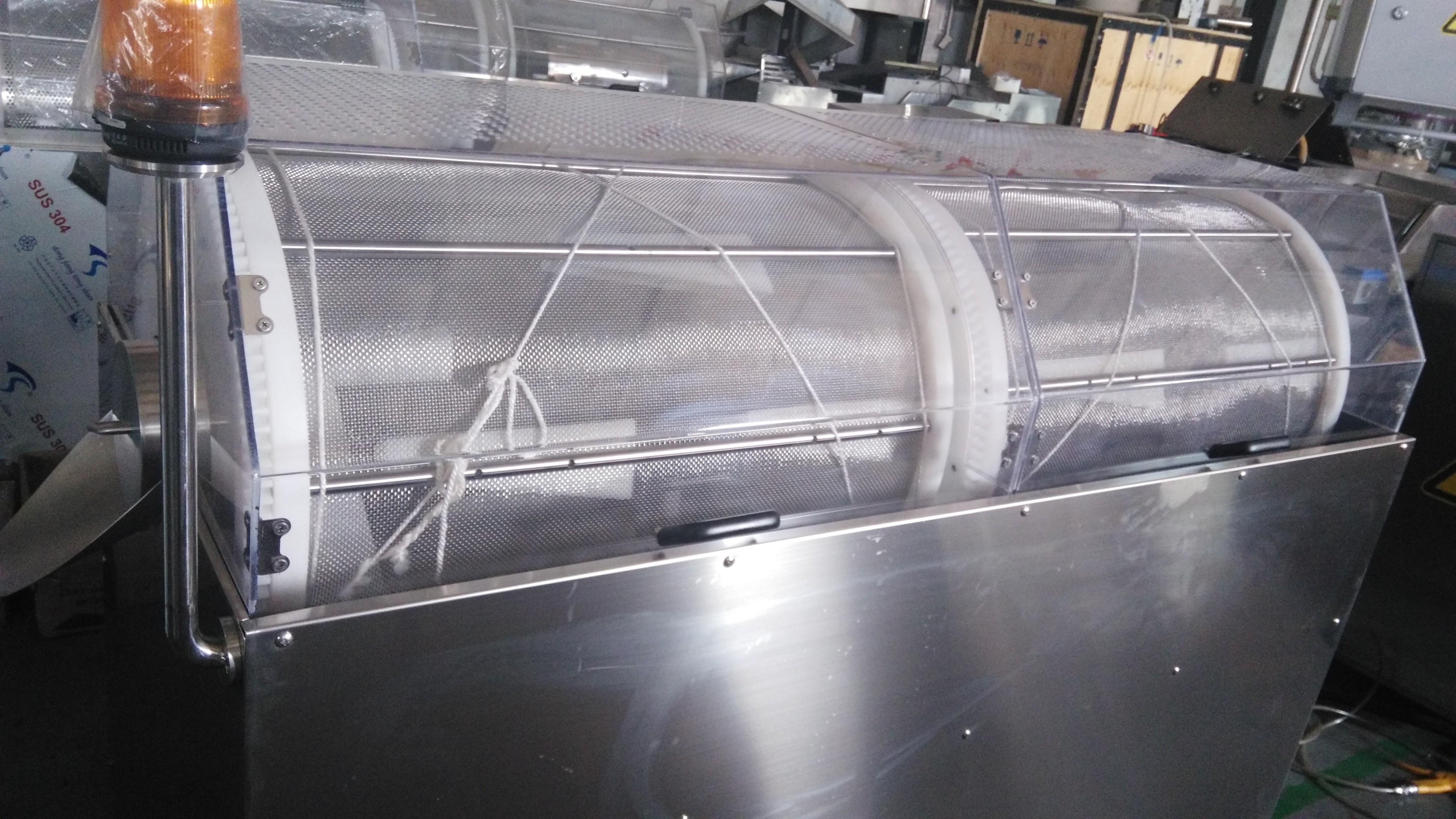

Capsule and paintball Encapsulation Tumbler Dryer Energy saving


TD-1 intelligent softgel tumbler dryer combines the working principle of common tumbler dryers in the market and the rotery dehumidifier This product was designed,developed and tested 5 years ago. It is a totally new opimized and designed intelligent dryer This machine is the combination of shaping, drying and polishing.
There is a checking nternet of Things---which is combined with load cell, humidity sensor and temperature sensor inside the machine,so the wight, temperature and humidity of each cage can be controlled by PLC touch screen The working principle of the machine is. the air inside the cage blows to the surface of the softgel via circulating fun, and takes away the water inside the gelatin film, And then, dehumidify by the first grade surface air cooler(the condensate water wi be drained out through internal pipelines) and then dehumidify the cage again by the rotary dehumidifier, and at last, the return air produced by the sencond grade surface air cooler will cool the cage, forming a circulation inside the cage.Because it is a circulation inside the cage, the effective curve control of the softgel by PLC can be guaranteed.

Capsule and paintball Encapsulation Tumbler Dryer Energy saving 0

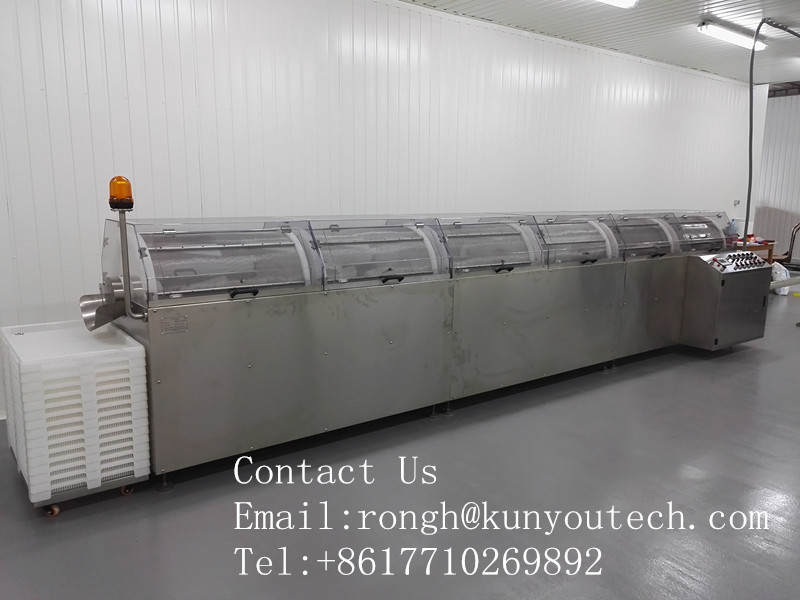

1.Energy saving: This machine is composed by 3 units(6 cages) and the total power is 30KW The average power consumption is 60%-70% and the average electricity consumption is around 20 kws. And about34times power can be saved compared with conventional tumbler dryers.

2.Reduction of labors, softgel drying trays should be used after 1.5~2hours drying inside the tumbler dryer and during the first 5 hours,the softgel should be turned manually every half an hour By using this.

3.TD-1 inteligent softgel tumbler dryer four labors can be save in 24 hours(3 shifts).Reduction of floor space: TD-1 intelligent softgel tumbler dryer can do the shaping and drying work at the same time,and it just needs 6*11m floor space,so, compared with conventional drying process, 50-100 m2 space can be saved. By using this machine, the problem can be solved that plant extension can not meet the production increasing requests for many old factories.

4.Reduction of drying time effectively It needs 16-22 drying hours in conventional drying process. TD-1 inteligent softgel tumbler dryer installed rotary dehumidifier units itselffimported from Sweden) the humidifying space is relatively small. And the interaction of the softgel from different cages can be avoided, because the humidity and temperature control in each cage is relatively independent. So, by this way the drying time can be decreased to 8-12 hours.

5.Humidity and temperature and mateiral weight can be controlled on line: During the production, the humidity and temperature can be adjusted according to the products,and the weight of the material in each cage can be adjusted, and the forward and reverse of the cage can be controlled automatically so the weight of the mateial inside each cage can be almost the same in general. The water contant left in side the gelatin film after drying can be observed on line.

6.Reduction of cost of production and investment: Because of the reduction of drying time, the labors and the floor space, the cost of production can be lowered widely.


Technical Parameter

Cooling water unit Concentrated supply
Dehumidification water 24kg/8h
Power AC380v 3P
Compressed air 4kp
Volume of cage 500,000 capsules
Dimension 2400*1280*1670mm


Company Information


We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipment in many varieties. Our main products are softgel production line, paintball production line, , granulators, mixers, verticle fluid bed dryer, pulverizers, tablet presses, packing machines, capsule filling machines, trays and rollers.
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
In Kunyou you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad.



Competitive Advantages

What is the advantages of Automatic encapsulation machine?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use a large number of 316 stainless steel;

6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.

7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes. We ship the whole line of macine by ocean through the freight agent.

Capsule and paintball Encapsulation Tumbler Dryer Energy saving 1

Our services


We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.


Company Information


Beijing KUN YOU Pharmatech Co., Ltd is a professional supplier for softgel making machine and paintball making machine. What we provide is the complete line for softgel making and paintball making, including the gelatin melting system, fill material system, softgel / paintball encapsulation machine, tumbler drying machine.

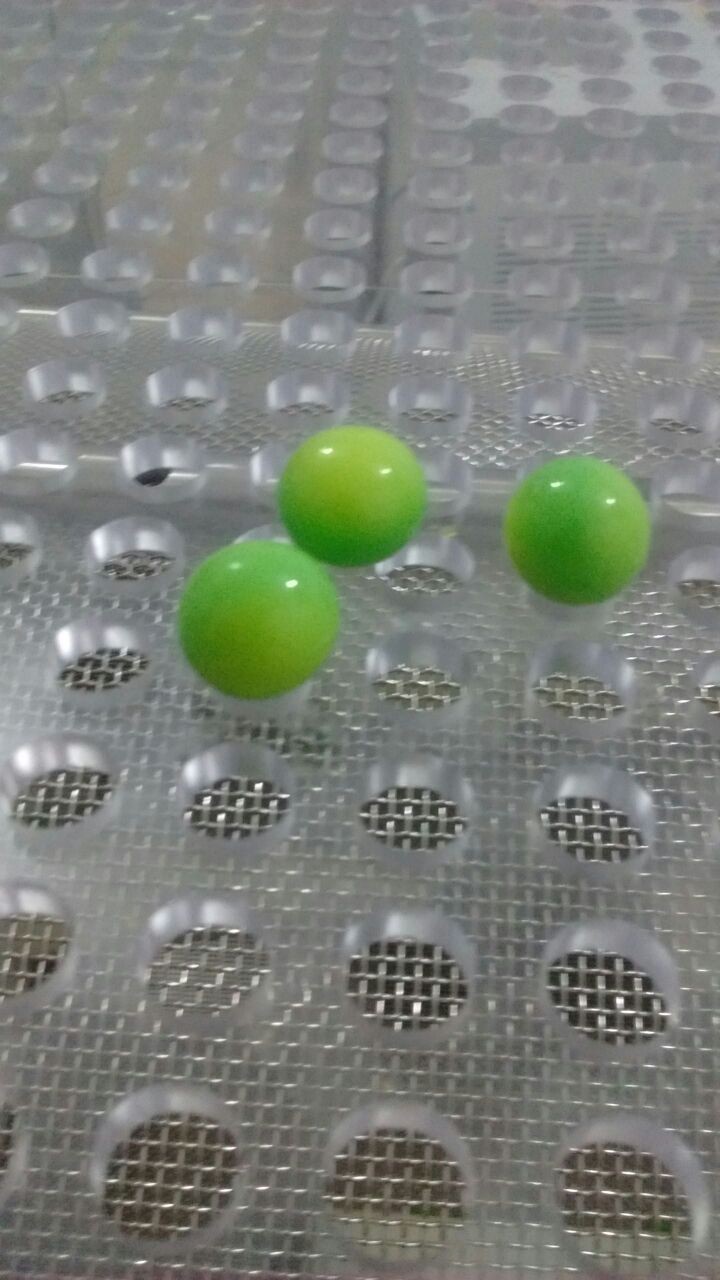

Besides, we also provide the die roll / mold for softgel and paintball, and plastic drying trays.


We are looking forward to your inquiry.



Q1:Are you factory or trading company?

A: We are factory and manufacture.


Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!


Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.


Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.


Q5:How long is the delivery time?

A: About 35- 40 working days.
