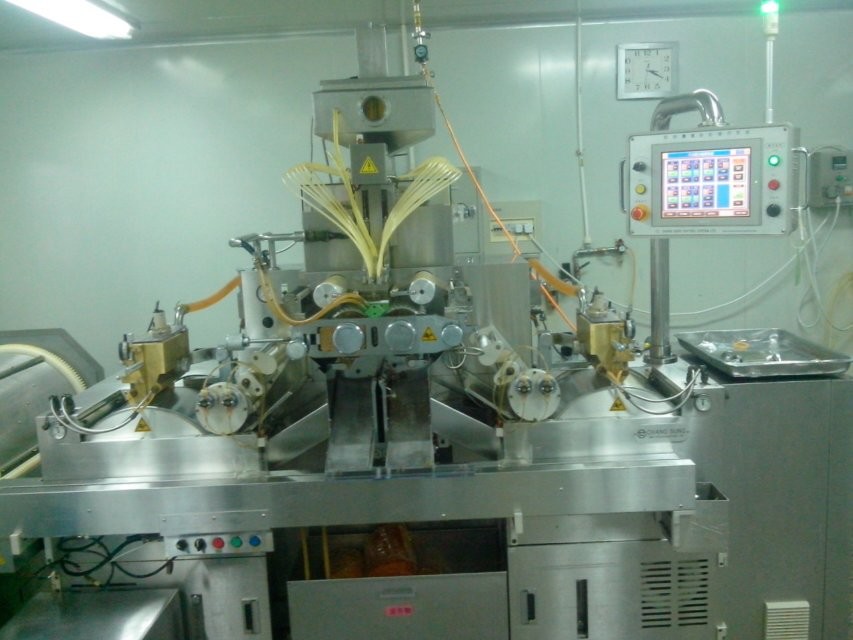

Micro Scale Automatic Encapsulation Machine For Honey Or Cbd Oil Capsule
Quick Detail
Product Name | Soft Capsule Encapsulation Machine | Driven Type | Electric |
Capacity | 22800 pcs/hour, 4r/min | Material | Stinless Steel |
Application | Food, pharmaceutical,softgel making machine | Capsule shape | OV, OB,etc |
Production Description

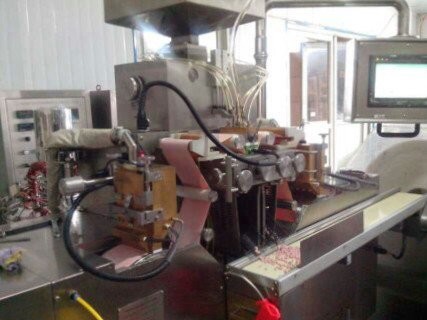

S403 soft capsule making machine is specially for laborotary and small scale production. It's elaborately designed strictly according to the requirements of GMP. The whole set of the manufacturing line is simple but efficient with a small space. In the manufacturing line, including a main machine, control system, water cooling system, lubrication oil saving system, a set of tumble dryer, one set of die roll and KUN YOU gelatin reactor. All the spare parts or other material are selected according to the requirements of GMP.
This machine is the absorption of advanced technologies at home and abroad, based on a combination of soft capsule production process and the characteristics of the use advanced technology and high quality materials.

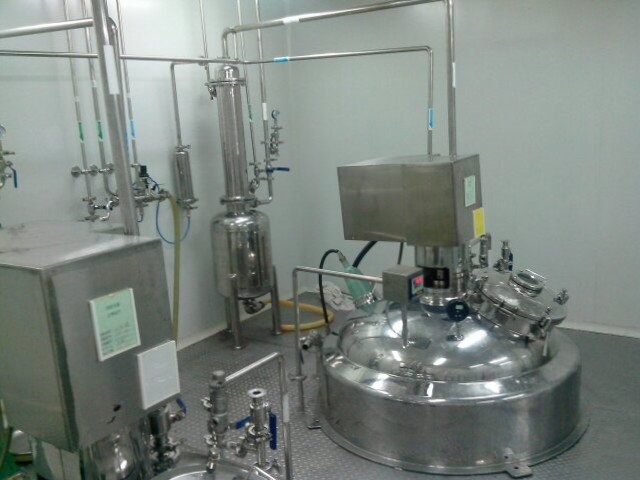

This machine consist of soft capsule machine, sol pot, mould (die roll), capsule conveyor, tumbler dryer, cooling air machine, vacuum pump, drying tray, vacuum mixing barrel and electrical control system and other ancillary equipment.
This machine cans all kinds of drugs, food, cosmetics, oils and hydrophobic substances in the quantitative suspension or paste injection pressure and encapsulated in gelatin membrane, the formation of various sizes in sealing the soft capsules.
This machine is widely used in laboratory, and small scale production.
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
Specification
Model | S403 |
Die roll size | Ф80X100mm |
Die roll speed | 0~5rpm |
Overall dimension | 1250×400×2300mm |
weight | 600kg |
Power supply | 380V/240V,50/60HZ |
Power of the main motor | 1.1kw |
Power of the main machine | 3kw |
S403 R&D softgel encapsulation machine | |||
Shape | Capsules/hour | ||
2r/min | 3r/min | 4r/min | |
5#OV | 12600 | 18900 | 25200 |
8#OV | 11400 | 17100 | 22800 |
10#OV | 8640 | 12960 | 17280 |
11#OB | 7200 | 10800 | 14400 |
16#OB | 6840 | 10260 | 13680 |
20#OB | 6480 | 9720 | 12960 |
24#OB | 6120 | 9180 | 12240 |
Paintball | 7200 | 10800 | 14400 |
6#round | 14280 | 21420 | 28560 |
Competitive Advantage:
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision
4. Small load space
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment
Competitive Advantages
What is the advantages of Automatic encapsulation machine?
1)We are factory, direct sales with competive price;
2)More than 20 years experience;
3)Professional designer and worker to serve you;
4)This machine with a strict inspection before out of storage;
5)This machine use a large number of 316 stainless steel;
6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.
7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.
Packing&Shipping
We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes. We ship the whole line of macine by ocean through the freight agent.
Our services
We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.
Company Information
Beijing KUN YOU Pharmatech Co., Ltd is a professional supplier for softgel making machine and paintball making machine. What we provide is the complete line for softgel making and paintball making, including the gelatin melting system, fill material system, softgel / paintball encapsulation machine, tumbler drying machine.
Besides, we also provide the die roll / mold for softgel and paintball, and plastic drying trays.
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel. Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
