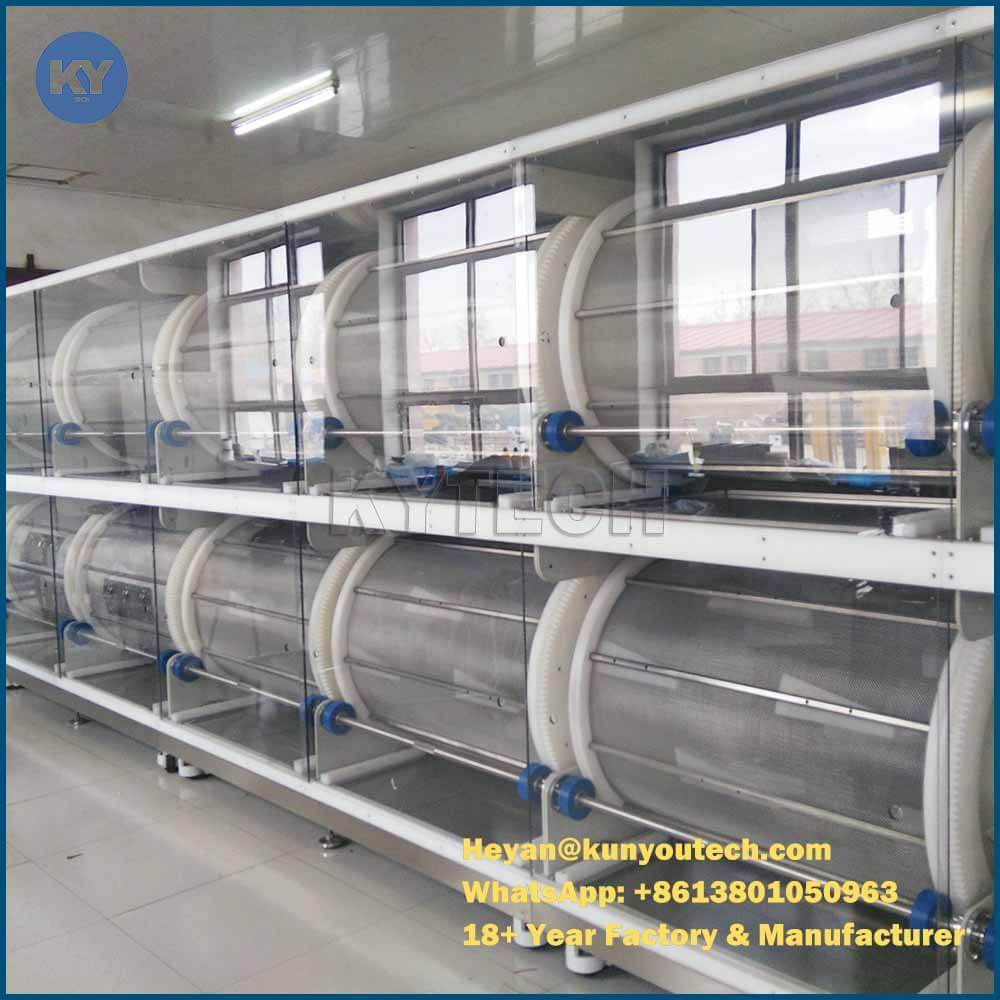

TD-3 Softgel Tumbler Dryer 50kg Capacity SS304/316

1 set
MOQ
TD-3 Softgel Tumbler Dryer 50kg Capacity SS304/316
Features Gallery Product Description Request A Quote
Features
Specifications
Matrial: SS304/316
Capacity: 50kg Each Basket
Warranty: 1 Year Free
Service: Technion Avaliable
Brand: Kunyou
Mode: TD-3
Control: PLC+Touch Screen
Highlight:

Softgel Tumbler Dryer

,

Soft Gelatin Tumbler Dryer
Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: TD-3
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30-60 days
Payment Terms: T/T， L/C,Western Union
Supply Ability: 50 sets per month
Product Description
Fluid Bed 2 Layer Softgel Encapsulation Line Tumbler Dryer
Double Layers Softgel Capsule or Paintball Encapsulation Fluid Bed Tumbler Dryer with Big Air Blowers for efficient drying of paintballs, pills, or softgel capsules.
Quick Specifications
Product Name Softgel Tumble Drying Machine/Tumble Dryer
Power Consumption 0.75kW
Drying Fan Motor 0.55kW
Basket per Section 1
Application Drying softgel/paintball or pills or fish oils, etc.
TD-3 Softgel Tumbler Dryer 50kg Capacity SS304/316 0
Product Description
The TD-3 Soft Capsule (Softgel) and Paintball Tumble Dryer is designed for pre-drying and initial shaping of soft capsules and paintballs. As the largest domestic drying tumbler available, it features:
  • Two large air blowers per section for optimal drying
  • Safety-protected organic glass cover that can be easily opened
  • Standard 8-section configuration with independent fans for even distribution
  • Removable dryers for easy cleaning and GMP compliance
  • Electrostatic guiding and safety production devices
  • Convenient operator controls for precise positioning
Applications
  • Pre-drying and initial shaping of soft capsules (softgels) and paintballs
  • Ideal for pharmaceutical, healthcare, cosmetics, and paintball production lines
TD-3 Softgel Tumbler Dryer 50kg Capacity SS304/316 1
Technical Specifications
Model TD-3
Basket Diameter 730mm
Basket Length 1010mm
Weight 2 tons
Drying Fan 0.55kW
Motor Power 0.75kW
Basket per Section 1
TD-3 Softgel Tumbler Dryer 50kg Capacity SS304/316 2
Competitive Advantages

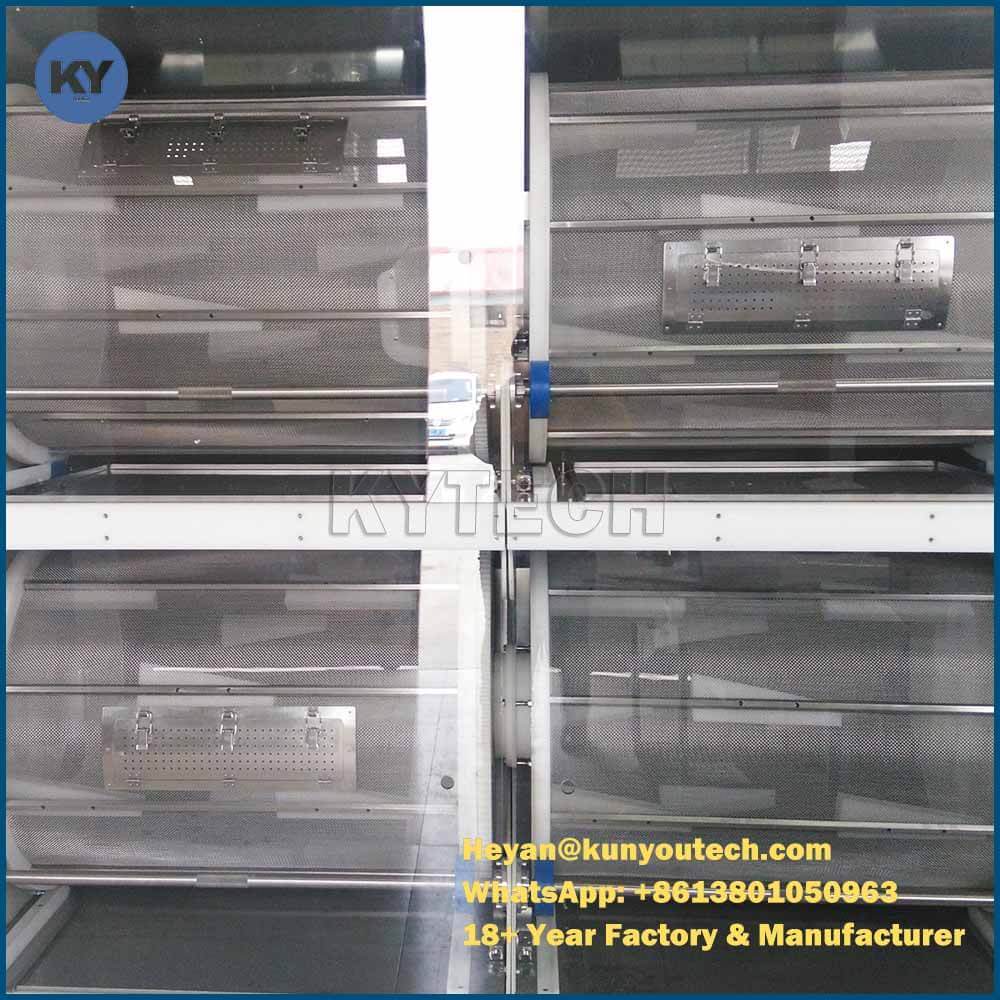

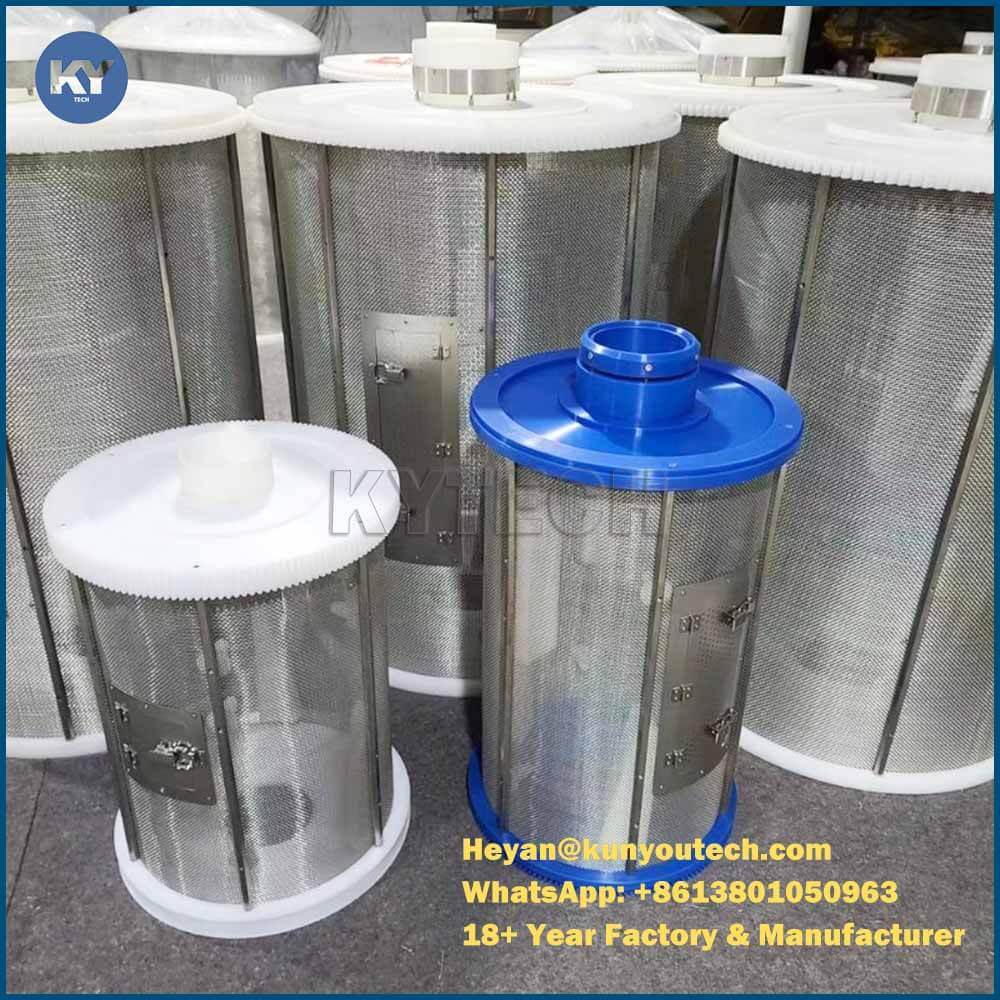

Basket Features:
  • SS316 wire mesh construction meeting GMP requirements
  • Smooth, burr-free inner wall prevents capsule damage/discoloration
  • Asymmetrical guide plate design ensures even capsule distribution
  • Precisely calculated guide plate angles for optimal drying time
  • Beveled, arc-transitional outlet design prevents capsule sticking
  • FDA-approved supra polymer materials for low friction
  • Compact, high-rigidity frame construction
  • Dual manual/auto control modes with programmable rotation
Electrical System:
  • Schneider brand components with PLC control
  • Static electricity guiding device on each basket
  • Safety protection stops rotation when cover is opened
  • Discharge alarm with 12-second warning
  • Independent drying fans and frequency converters per basket
  • Unique full-start function for power interruption recovery
Keywords: drying tumbler for soft capsule, drying tumbler for paintballs, soft capsule dryer, paintball dryer, paintball drying machine, soft capsule/softgel drying machine
