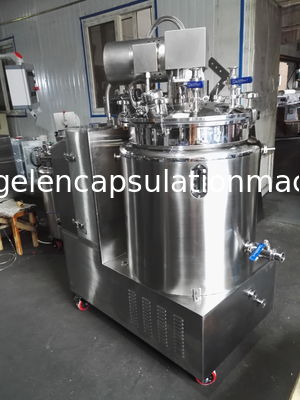

304 SUS 100L Stirring Gelatin Melting And Service Tank With GMP Standard

1 set
5000USD per set
304 SUS 100L Stirring Gelatin Melting And Service Tank With GMP Standard
Features Gallery Product Description Request A Quote
Material: SUS304
Color: Silver
Dischage: Hydrulic
Size: 100-1500L
Water Jacket: Avaliable
Vaccum: Avaliable
High Light:

melting tanks


stainless steel tanks

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: GMT105
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per month
Product Description

100L Gelatin Melting Tank and Storage Tank with Stirring function and Vacuum Pump




1.Gelatin melting tank and Service/Storage tank combined

2. Stable Transmission

3. Good at keeping Temerature

4. Material SUS304 , compliance with GMP standard



Quick Detail


Product Name

Gelatin Melting and Service Tank

Brand Name



Paintball /Soft capsule manufacturers




304 SUS




Product Description


Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.

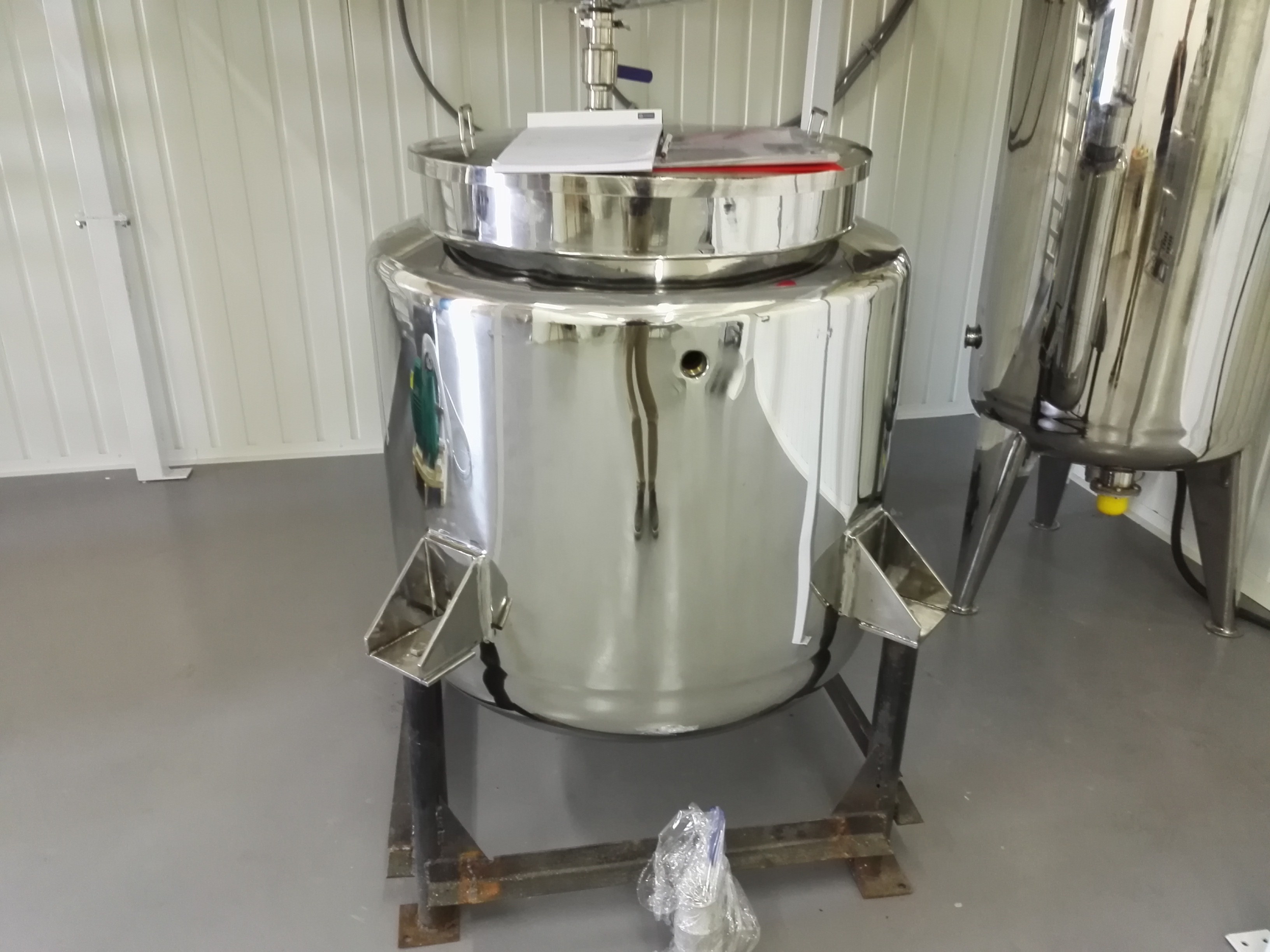

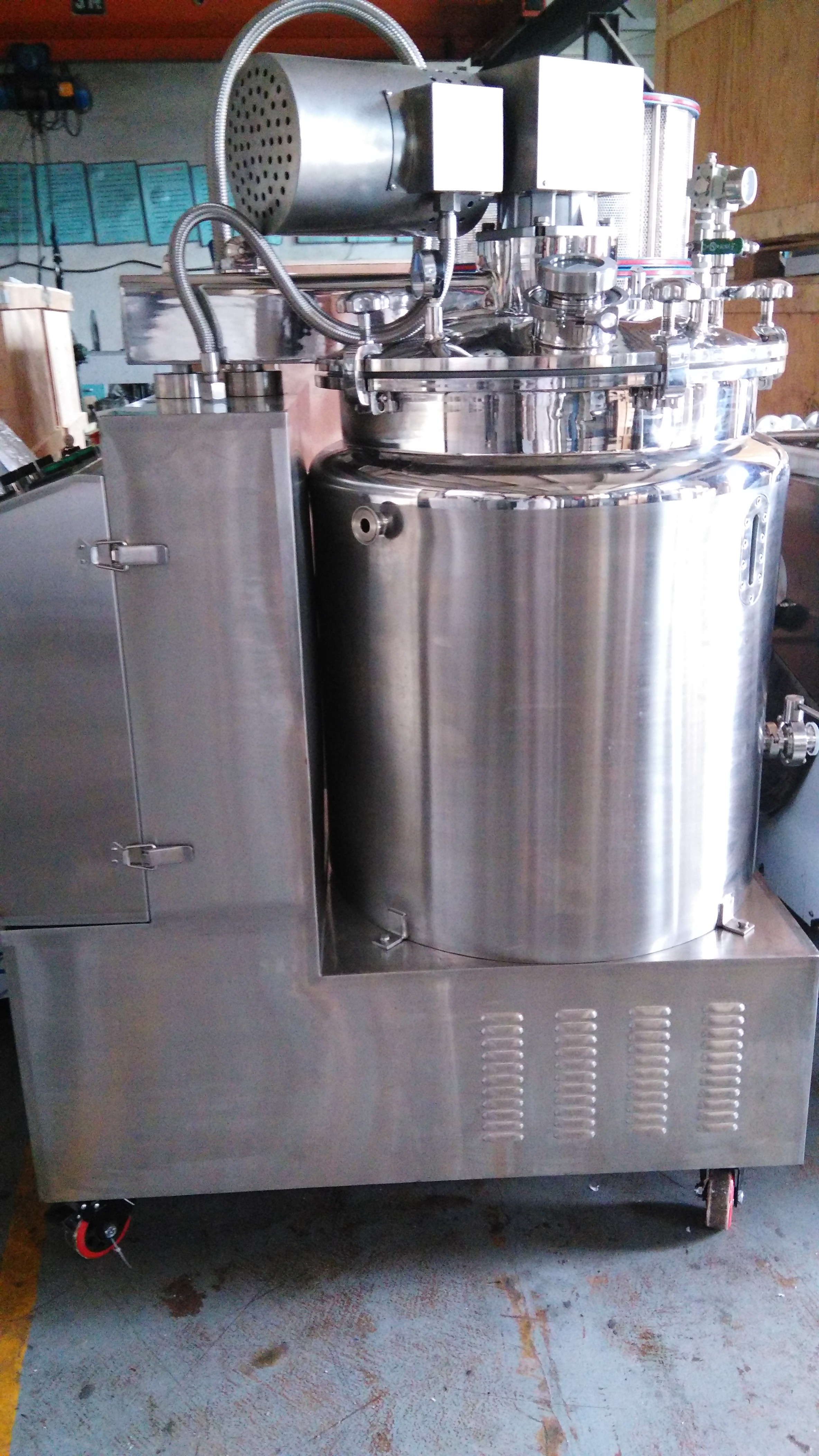

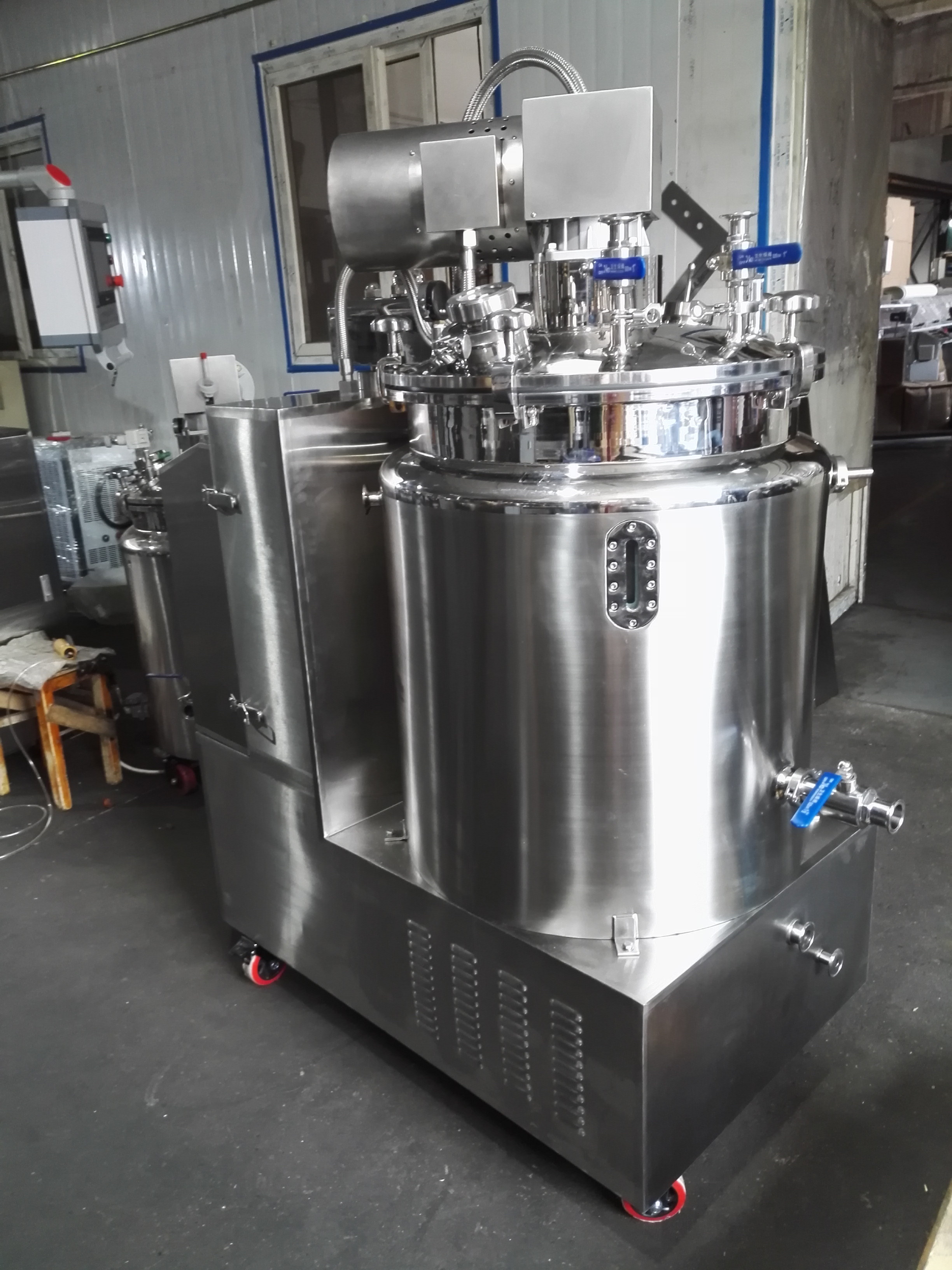

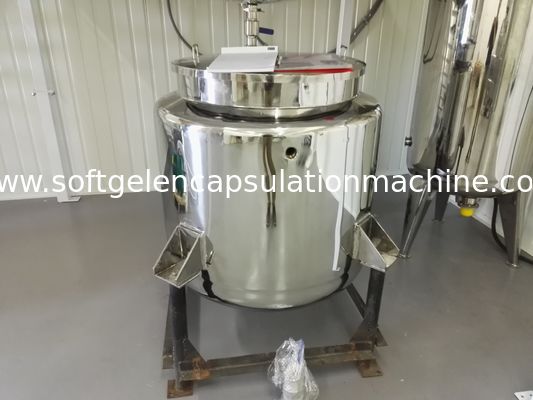

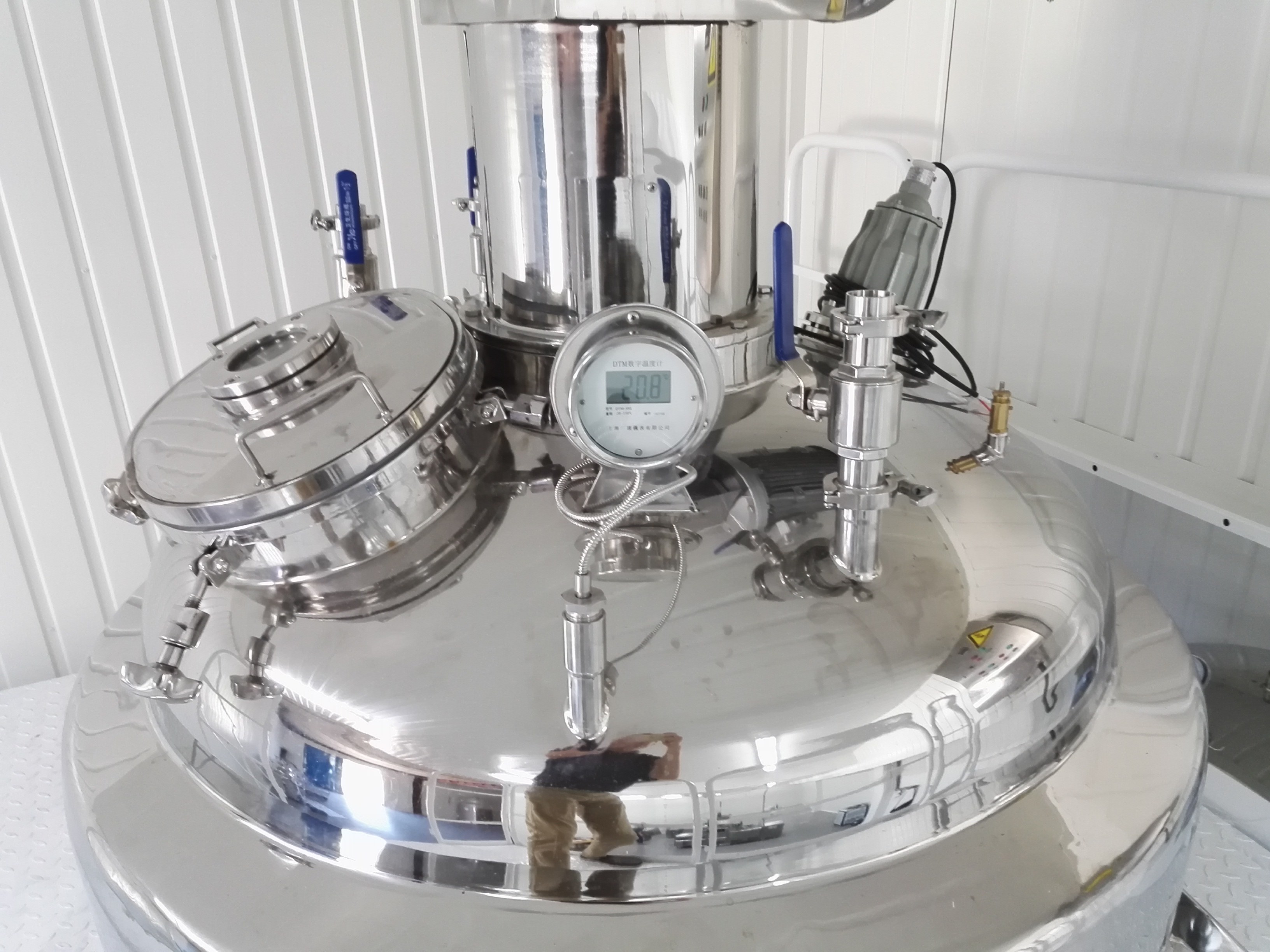

304 SUS 100L Stirring Gelatin Melting And Service Tank With GMP Standard 0



It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.








 Melting gelatin(L)


 Heating power(KW)


 Max degree of Vacuum (Mpa)


 Max Temperature(℃)


 Motor Power (KW)


 Stirring speed (r/min)

21.6 rpm

 Dimension (mm)



Competitive Advantage


1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. Typically designed paddle ensure agitating quickly and mixing uniformly.
6.It’s convenient in installation and cleaning.
Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank

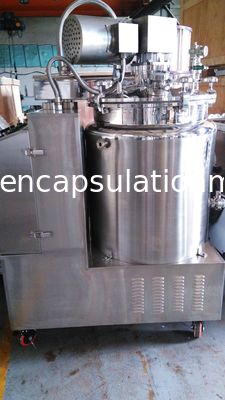

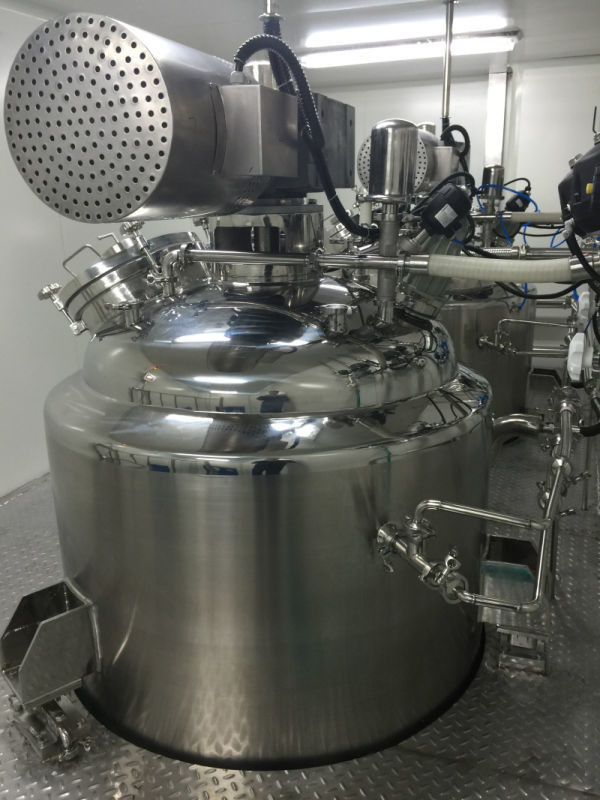

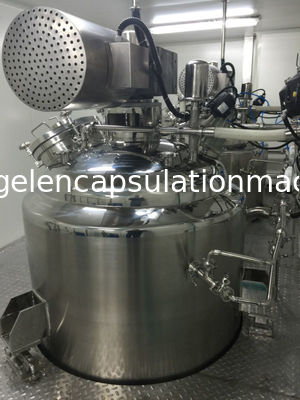

304 SUS 100L Stirring Gelatin Melting And Service Tank With GMP Standard 1
