Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum

China Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier
Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum supplier

Large Image :  Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: 450L

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per month
Contact Now
Detailed Product Description
Material: SS304/316 Structure: Jacket
Jacket Work Pressure: Atmospheric Mixer Type: Paddle+Waller Screper
Power: 220V/380V Warantee: 1 Year Free





450-1000L Gelatin Melting Tank For Health Products Care Maker / Fish Oil Maker





Quick Detail



Product Name

Gelatin Melting Tank

Brand Name

KUN YOU

Application

Paintball /Soft capsule manufacturers

Model

450L

Material

304 SUS

Capacity

650L



Product Description

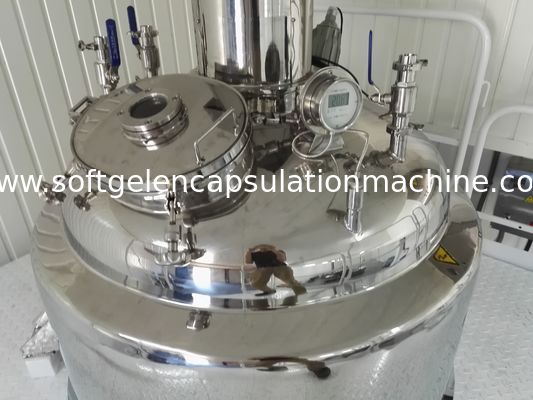

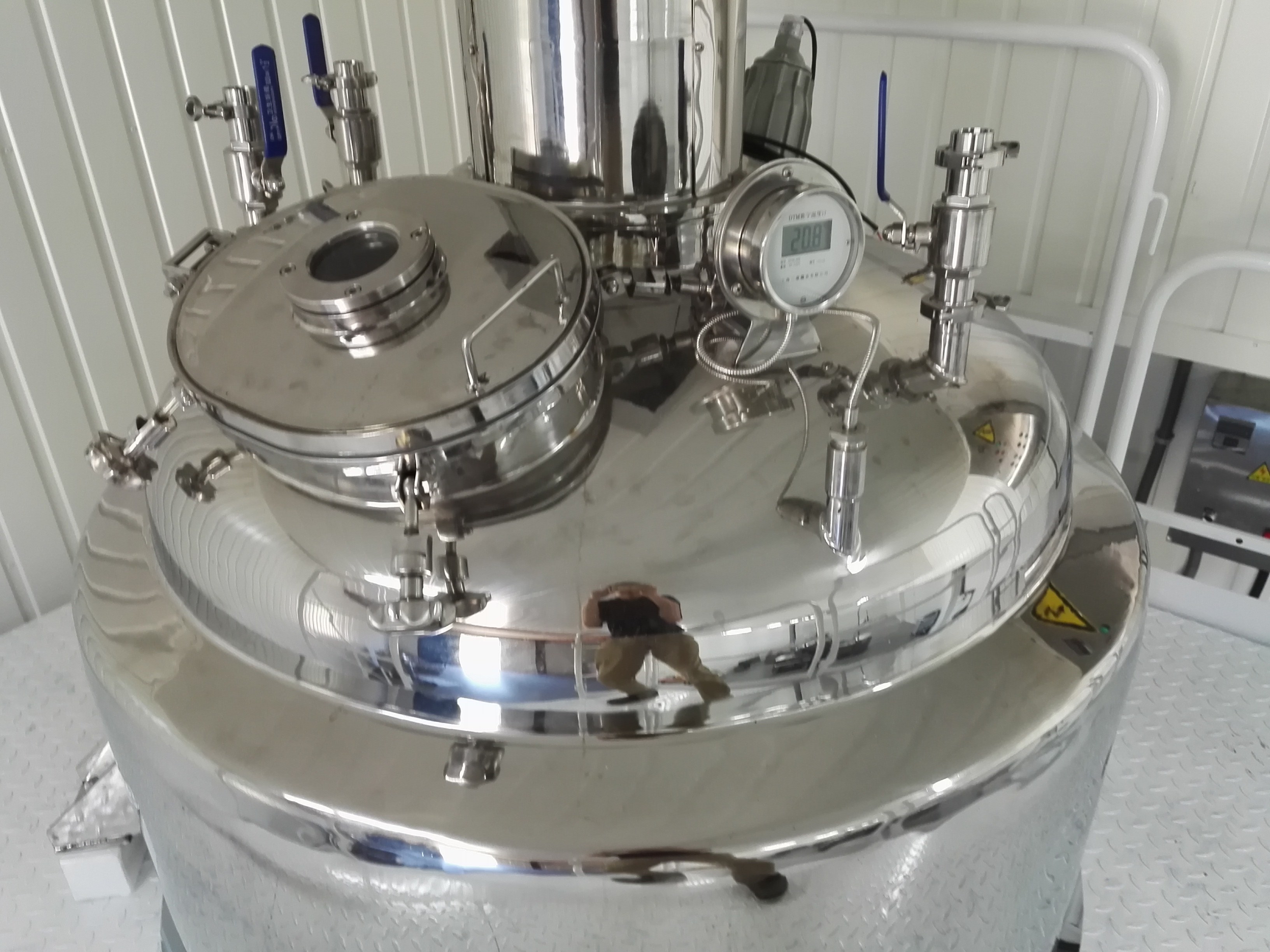

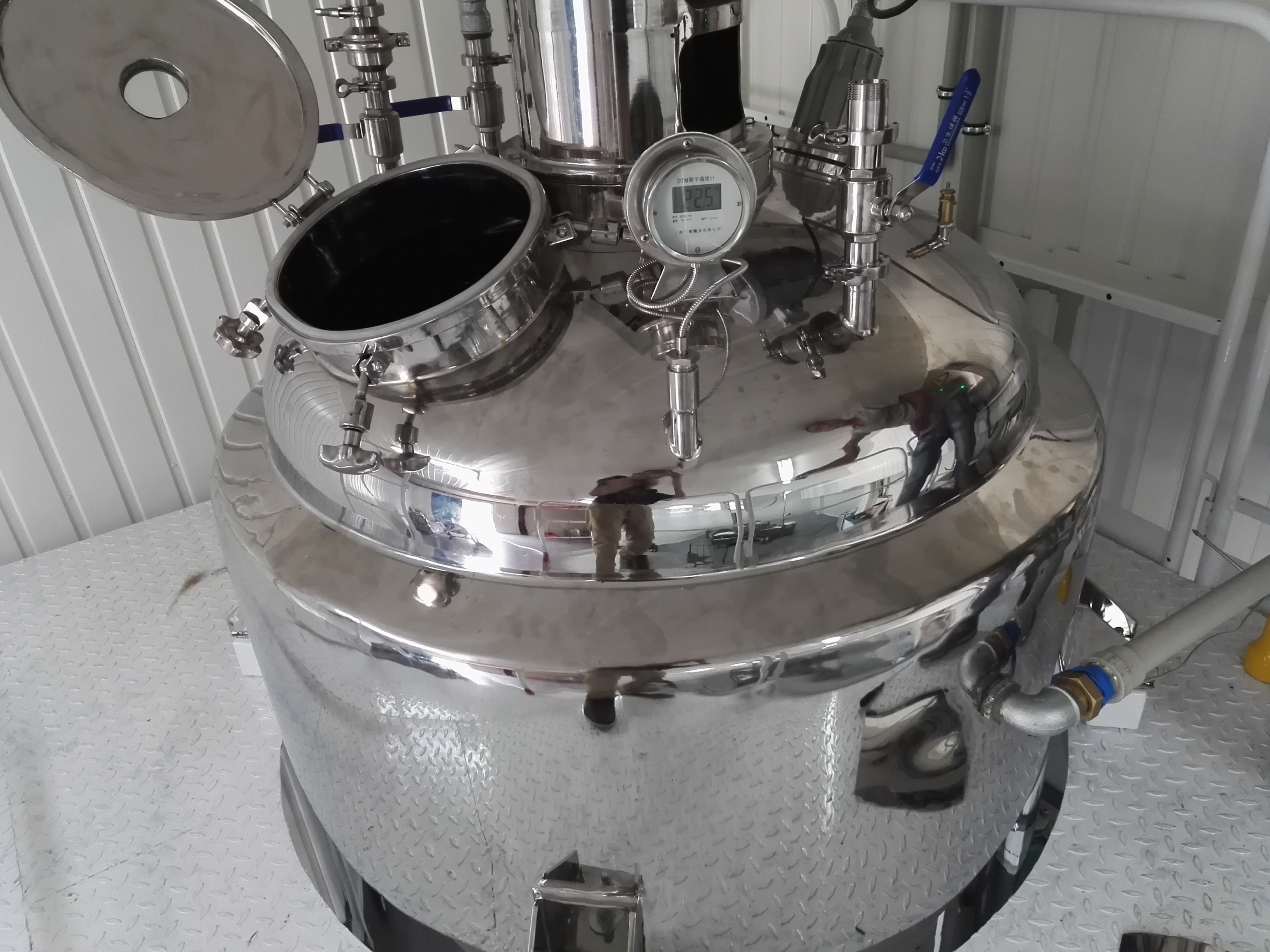

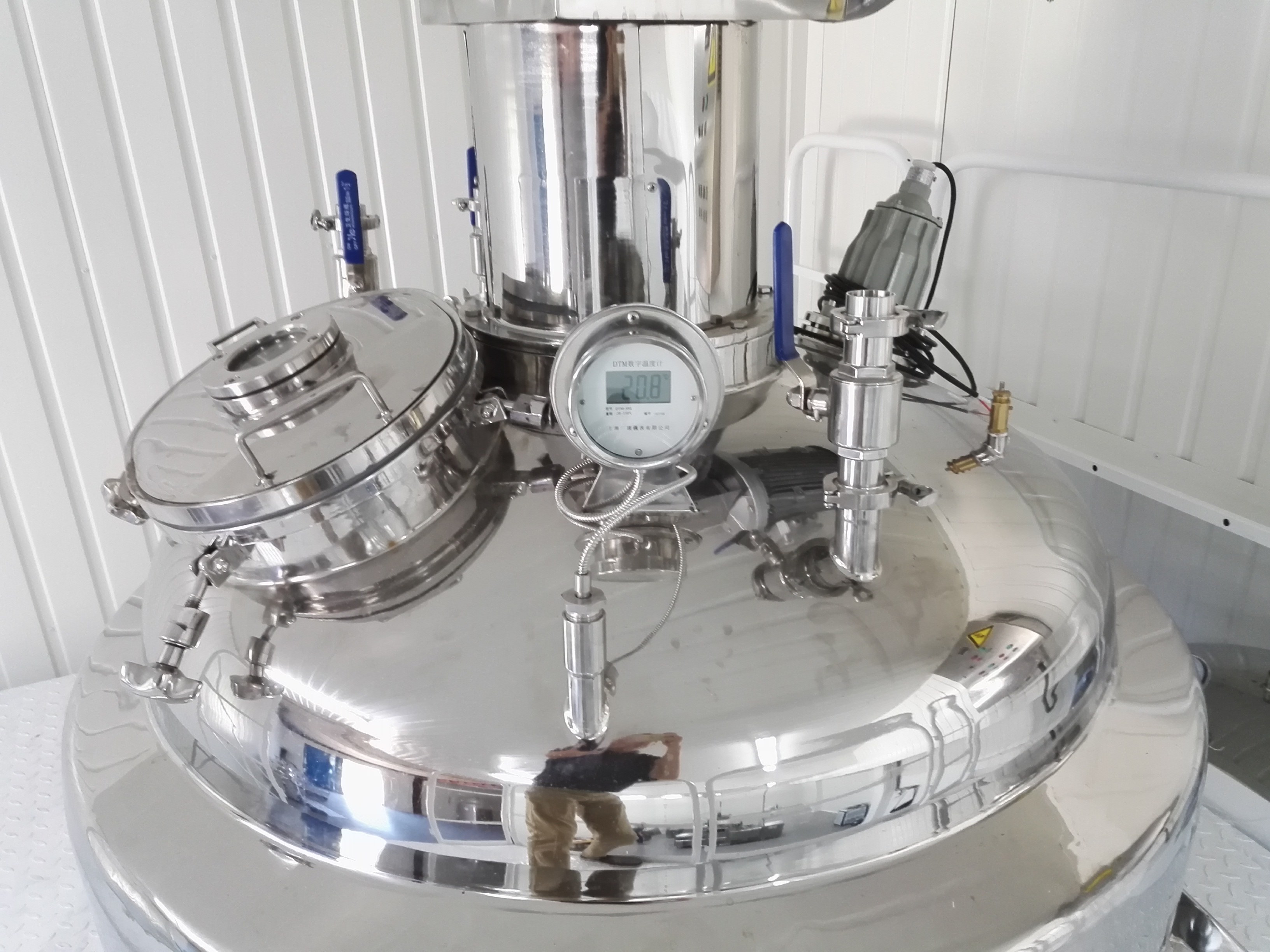

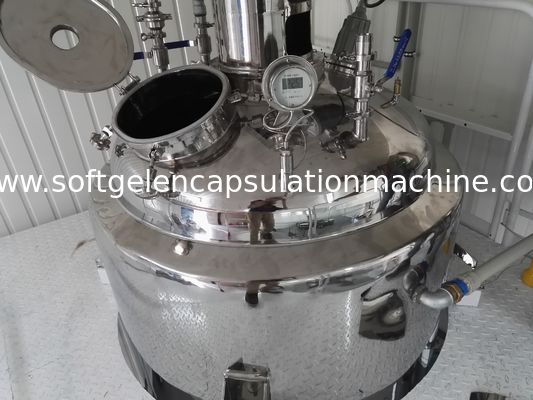

Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



Application



It’s mainly for softgel making and paintball making enterprises. Besides, the cosmetic manufacturer also needs this to make cosmetics, such as bath beads. And health products manufacturers also need this to make different softgels for the different needs.

Water Heating Electric Control 1000L Veg Starch Gelatin Melting Tank With Vacuum

Specification



 Model

500L

600L 800L 1000L

material

SS304/316 SS304/316 SS304/316 SS304/316

 Melting gelatin(L)

100-450

100-550 100-700 100-850

 Heating area(M2)

3.2



 Max degree of Vacuum(Mpa)

0.09

0.09 0.09 0.09

 Surface

Inner mirror polish Outer matte polish Inner mirror polish Outer matte polish

 Motor Power (KW)

7

8 10 13.5

 Stirring speed (r/min)

31

31 31 31

 Dimension (mm)

Φ1100X1880

1100*2120 1200*2220 1300*2340



Competitive Advantage



1. Stainless steel construction, multi-layer stirrer.

2. Soft capsule gelatin melting tank, heated by circulated hot water.
3. Water sealed vacuum pump is adopted.
4. Designed with three stainless steel interlayer it, helps for accurate control of the temperature of medicine liquid.
5. Typically designed paddle ensure agitating quickly and mixing uniformly.
6.It’s convenient in installation and cleaning.
7.Mix speed can be as 31rpm
8. Jacket work pressure canbe atmospheric
9. Jacket SS tank with insulation and hot water circulation
10.Horizontal motor design to save space for customer
11.Can bear positive/nrgative pressure

Softgel Gelatin Melting Tank, Gelatin Service Tank, Paintball Gelatin Melting Tank
