Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control

Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control

Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control
video
Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S406PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 20-60 days
Payment Terms: T/T， L/C, Western Union
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Application: Paintball Production Type: Paintball Production Line
After-sales Service Provided: Engineers Available To Service Machinery Overseas Capacity: 100L-20T
Material: SUS304/316L Control: Full Automatic
High Light:

paintball manufacturing machine

,

paintball making machine





Automatic Paintball Making Equipment With PID Temperature Control / 18000 Paintball / H





Quick Detail



Rotation Rate

0~5 rpm

Material

304 SUS

Port

FOB Tianjin

Power Consumption

7 kw

Scale

Medium Scale Production

Capacity

18000pcs/hour



Product Description



Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also percisionly improved. The ancillay are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.

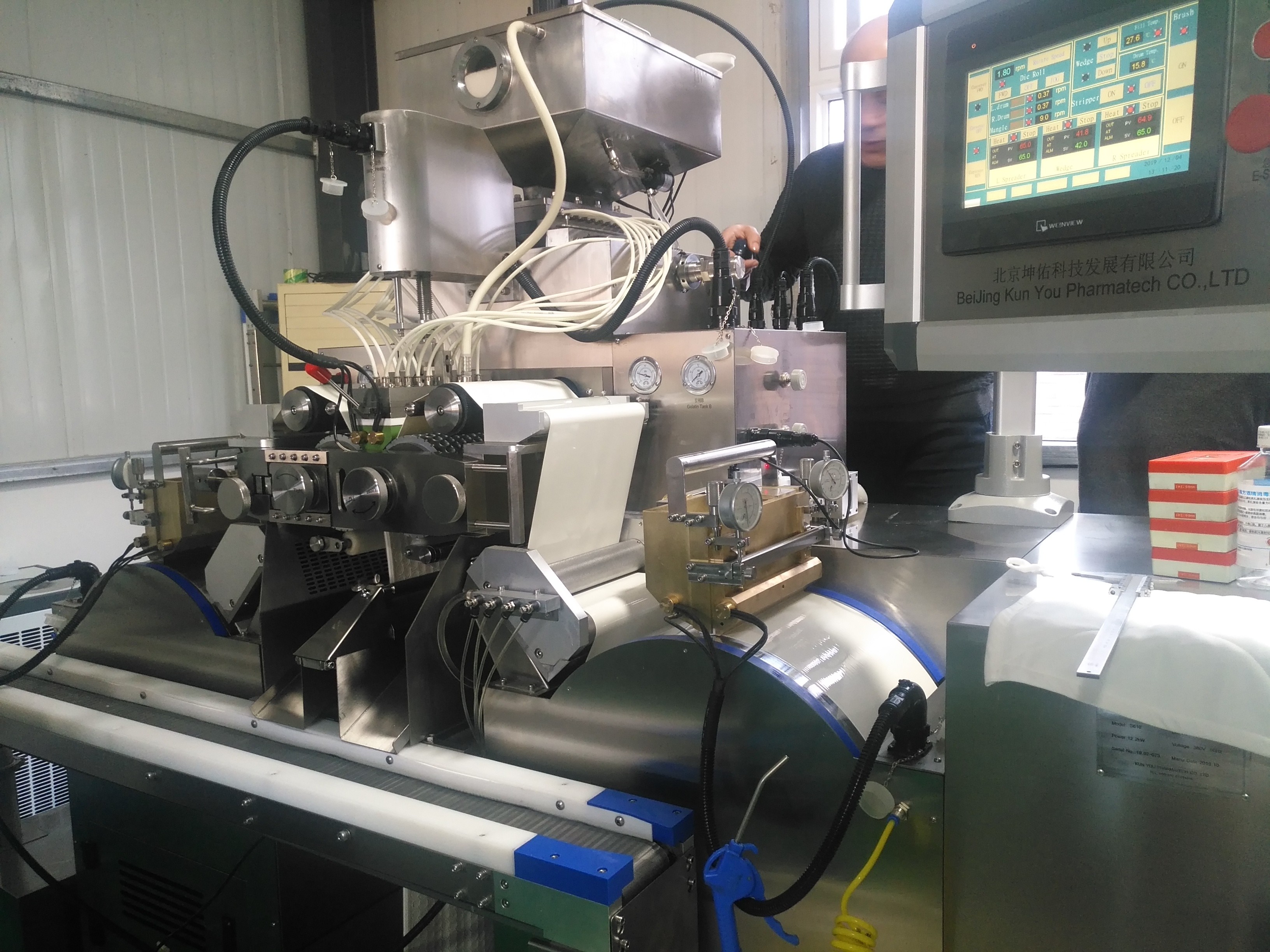

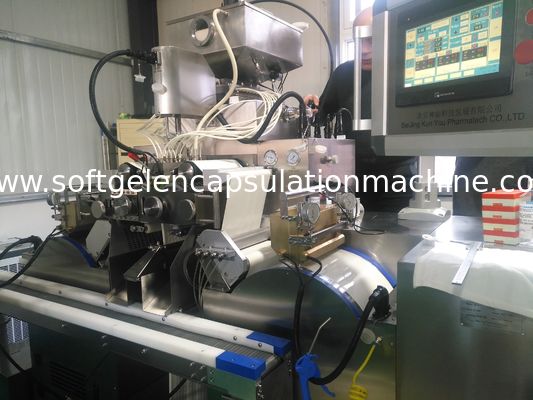

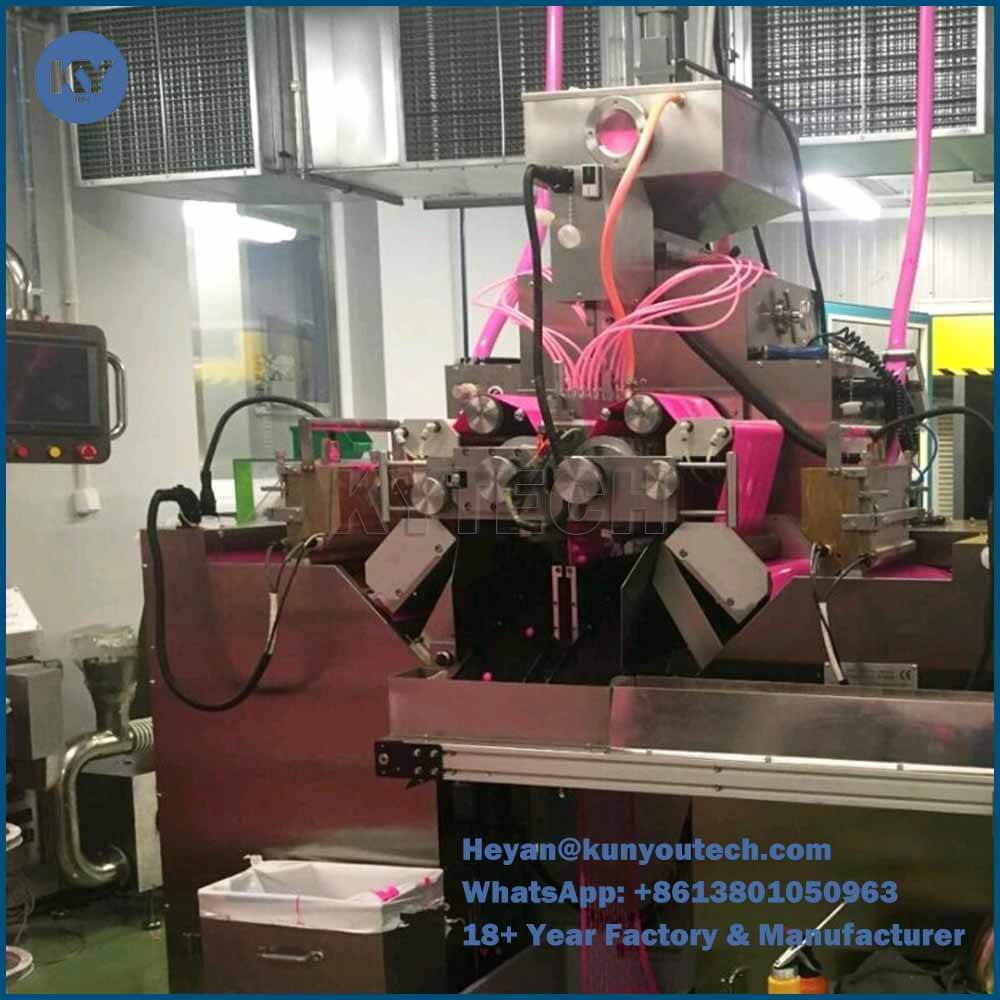

1. The Main Encapsulation Machine

S406PB paintball Encapsulation Machine considers the need and the biggest benefits of customers as start point, combining advantages of foreign equipment and requirements of customers. S406 Paintball Encapsulation Machine’s die roll is 152 mm long. The die roll’s rotation rate can be regulated within 0 to 5 rpm, so users can choose the most appropriate speed according to different materials and process parameters. S406 Paintball Encapsulation Machine improves the bearing spindle supporting way of die roll, thus making the spindle more accuracy and much easier to repair. In addition, the machine further improves the machining precision. More helical gears are used in the process of gear moving, which improve the gear coincidence degree and transmission stability. The split structure of cooling fan reduces the thermal effect to the pressure pill. Besides, gelatin barrel is added with wheel which can be moved more conveniently and easily. The machine is provided with stirring or insulation optional hopper, using ground automatic feeding method. The paintball machine’s oil roller is made of stainless steel material, so it’s more in line with the requirements of GMP.

Specification


Model

S406PB

Die roll diameter

Ф103mm

Die roll length

152mm

Die roll speed

0~5rpm

Plunger numbers

10

dimension

880X640X1900mm

weight

900kg

Power consumption

7 kw

Control mode

PLC+HMI Switch/buttons

Output rate

18000 pcs/hour

Competitive Advantages


1. Good stability
2. Adjustable rotation rate during 0-5rpm
3. Easy to operate and clean, conforming to GMP
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Big air flow
7. Reduce the oil consumption
8. The cable plug has good waterproof and oil proof function
9. High technical loading capacity
10. High precision
11. Easy to move and operate
12. Drum design to prevent gelatin wrinkling and sideship
13. Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.
Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control 0

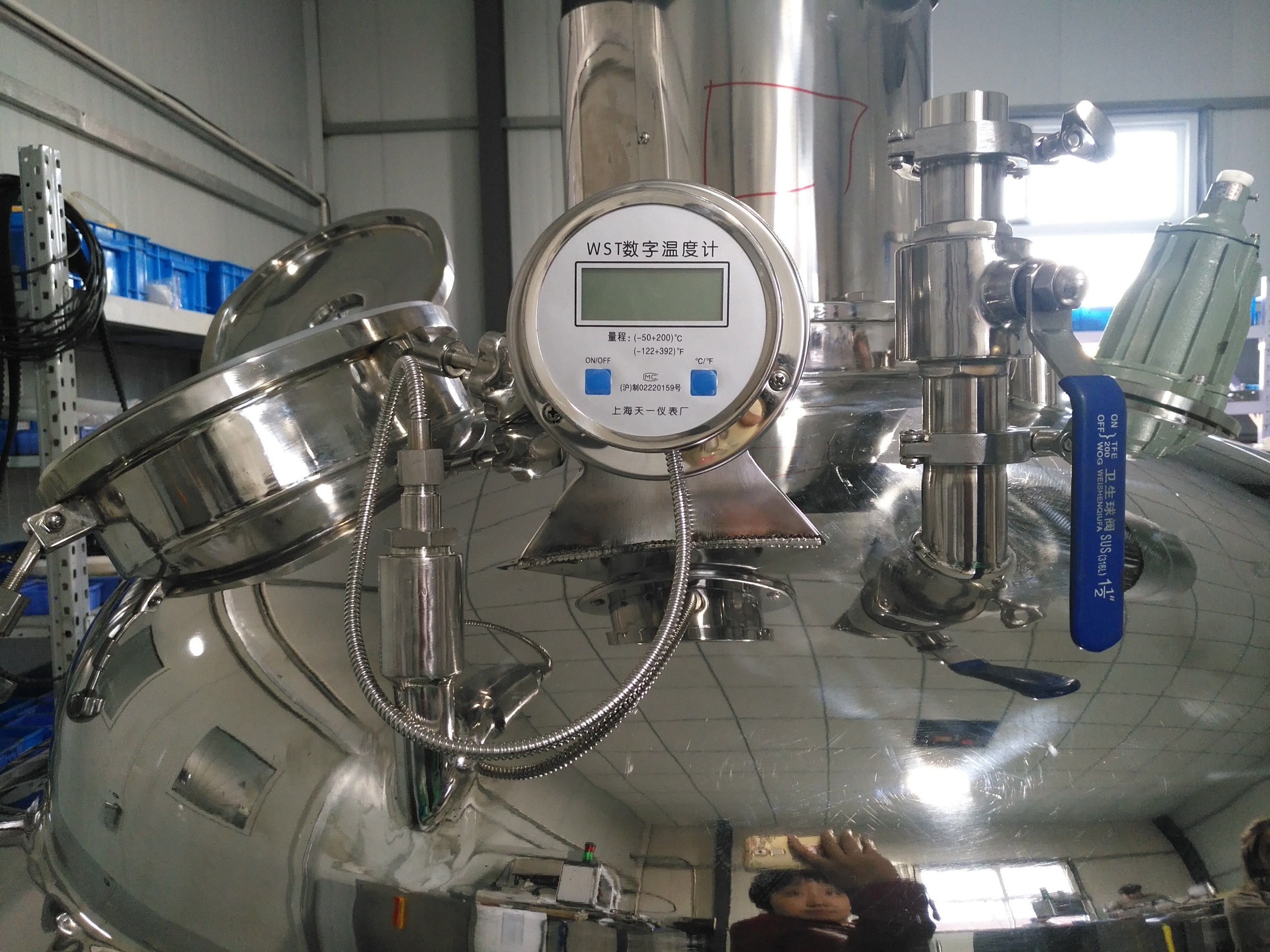

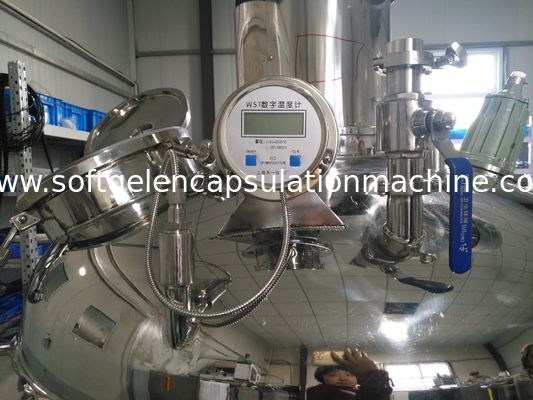

2. Gelatin Melting System

Water bath type gelatin tank is a special equipment for melting gelatin and production process. The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance. The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel. The body include three layers, including the tank liner, heating jacket and heat preservation layer. Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time. The liner is closed totally with very good vacuum performance. The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body. During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



 Model of the gelatin tank

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130

Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control 1

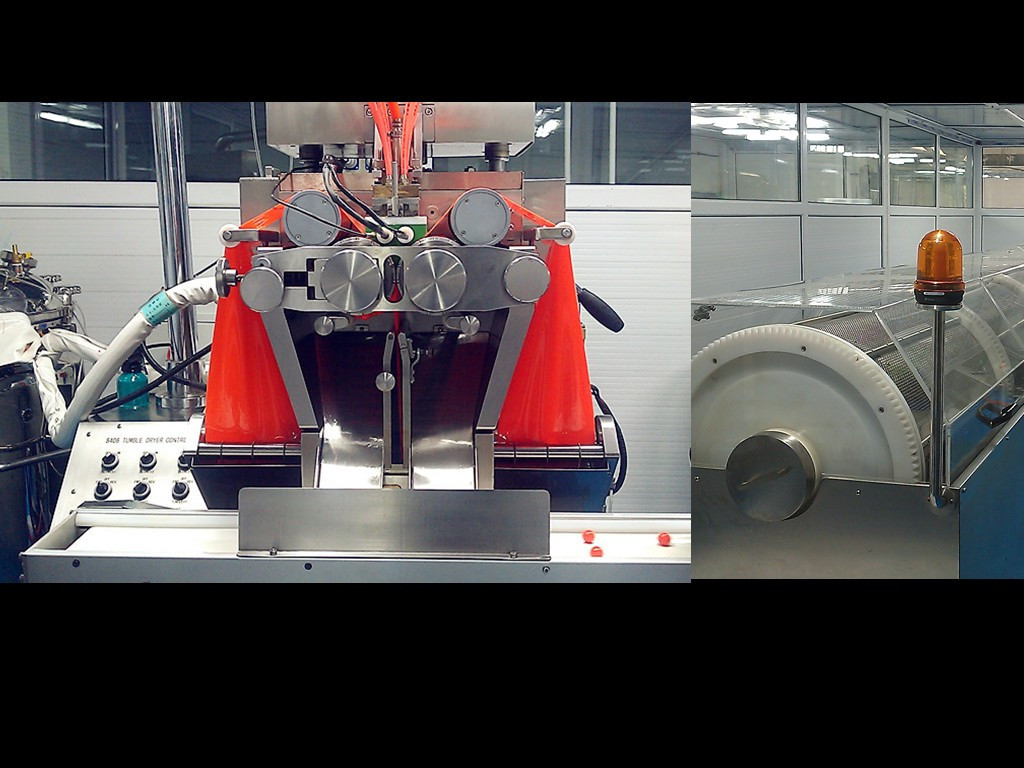

3. Tumble Drying System

TD-4 Soft Capsule (Softgel) and paintball Tumble dryer is used to predry and initial shaping of soft capsule (softgel) and paintballs. TD-4 Soft Capsule (Softgel) and paintball Tumble dryer adopts a new rolling cage type dryer. The rotary cage inside diameter is ∮580 mm. Each section can accommodate 20-25kg.  Its compact and smart outlook and easy to load and unload only with one hand make it more in line with the requirements of GMP. The drying cycle is controlled by PLC unified. Users can adjust the cycle time conveniently. As the dryer and fan adopts modular interface, users can regulate air flow according to your needs.



Model

TD-0

TD-1

TD-2

TD-3

TD-4

Basket diameter(mm)

420

580

580

730

526

Basket length(mm)

620

600

900

1010

282

Drying fan(kw)

0.25

0.32

0.32

0.55

2

Motor Power(kw)

0.2

0.4

0.4

0.75

1.5

Basket per section

1

2

2

1

6

Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control 2

Paintball Making Equipment, Paintball Manufacturing Line, Various Model Die Roll For Soft capsule and Paintball and All kinds of spare parts for softgel making machine and paintball making machine. Professional Technicians and years of operation, welcome to inquire!



Large Capacity Paintball Making Machine Full Automatic With PID Temperature Control 3
