CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved

CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved

  • CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved
  • CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved
  • CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved
  • CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved
CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: Customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 5000 per set
Packaging Details: Wood cages
Delivery Time: 8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets per year
Contact Now
Detailed Product Description
Material: Stainless Steel Style: Stable
Model: Heatable Application: Softgel Capsule
Function: Disperse Filling Material Type: Softgel Encapsulation
Capacity: 4 Inch Die Roll Or 8 Inch Die Roll Roller Die Size: 103mm*180mm
High Light:

capsule filling equipment

,

automatic capsule machine

egetable Gelatin Softgel Encapsulation Machine For 50000 - 70000 Capsules / H




Quick Detail



Product Name Soft capsule Filling Machine Power consumption 13 kw
Control Mode PLC+Touch screen Plunger Numbers 12
Dimension 880X2200X2000mm Dosage deviation < ±2%





SS316 Softgel Capsule Machine / Automatic Capsule Machine For Pharmaceutical Enterprises



Product Description

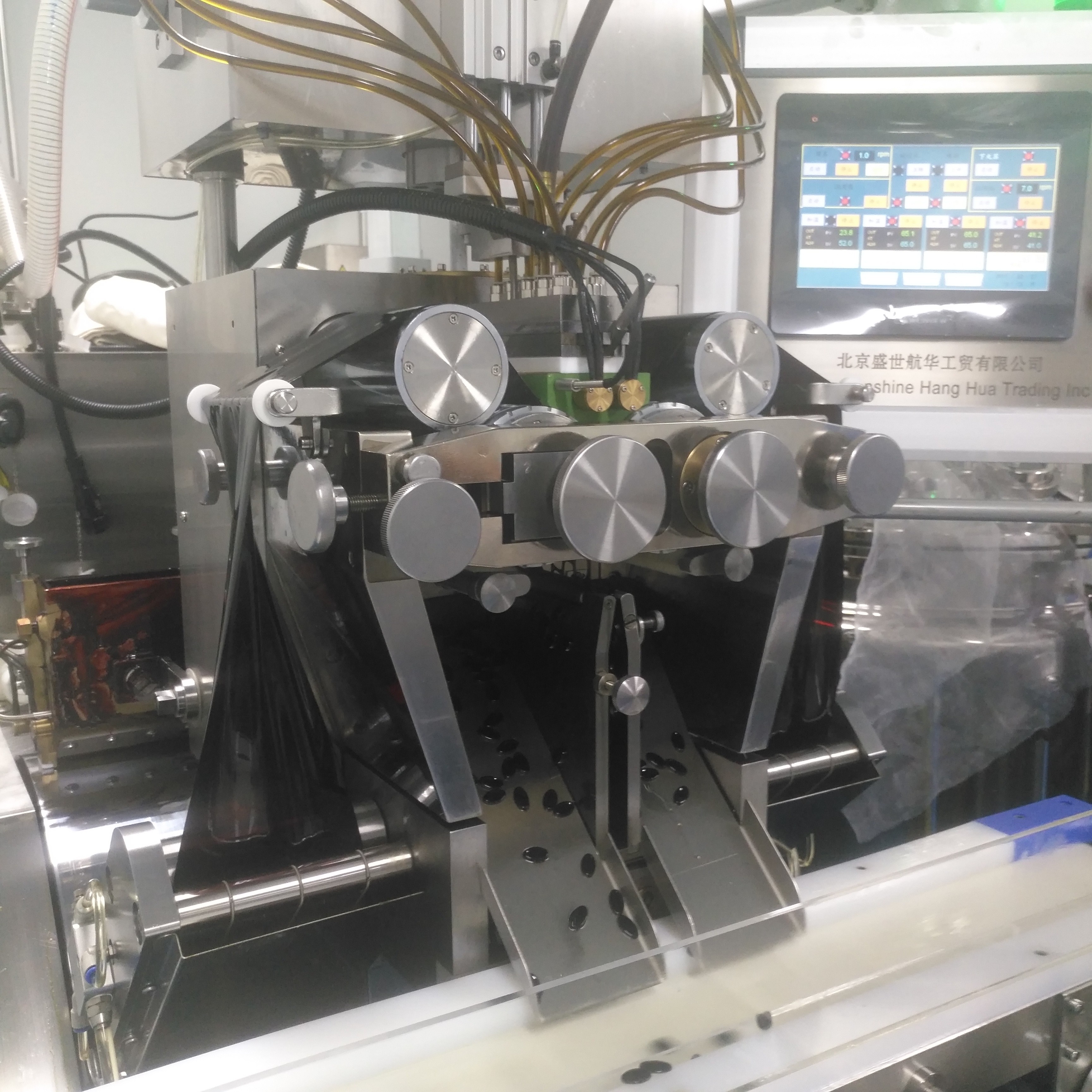

S407 Softgel Encapsulation Machine is developed based on Model S406 softgel encapsulation machine. The die roll length is 20mm longer. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.There are following features besides S406’s. S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.


Specifically speaking, it has the following characteristics:

Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled water.
The running parameters can be stored and recalled with a finger tip touch if necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.

Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.

Specification


Model S407
Die roll Ф103X172mm
Die roll speed 0~7rpm
Plunger numbers 12
Overall dimension 880X2200X2000mm
weight 1200kg
Power consumption 13kw
Control mode PLC+Touch Screen
Output rate

8#OV 50000-70000 pcs/hour for animal gelatin



8#OV 30000-50000 pcs/hour for animal free gelatin

CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved 1

Competitive Advantage



1. PLC operation
2. Improve the efficiency of production largely
3. Adjustable rotation rate during 0-7rpm
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Reduce the oil consumption
7. Adjustable separately or automatically
8. The control system has a counting function to make operators get the number of pills clearly
9. Store and apply operating data
10. Lengthen the life of die roll by using pneumatic
11. Reminding and diagnosing faults function
12. Can realize the function of statistical statements and printing
13. More safety
14. The cable plug has good waterproof and oil proof function

Soft capsule/softgel making machine, paintball making machine, Tumble drying machine, gelatin melting tank

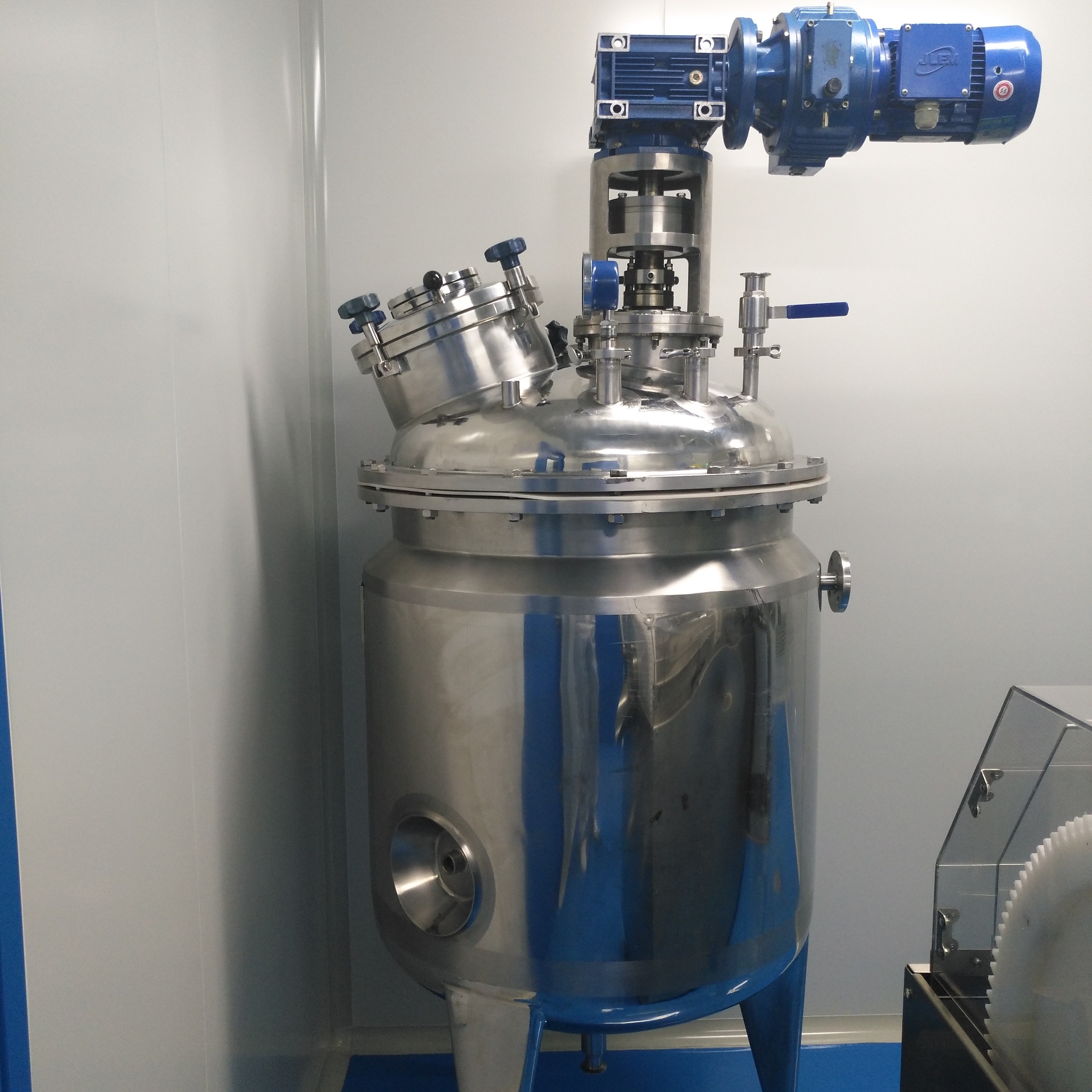

The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation. We

have both gravity feeding tank and pressure feeding tank. The plug and the socket is IP65 grade make the tank easier to be cleaned.



Gelatin tank

Structure: Three layered water bathe

Material: SUS304,Medicine contacting parts SUS316

Standard: GB150-1998 and GMP

Max vaccum: <-0.09 MPa

Opening : Gel inlet 160*130mm, View glass φ60mm

Hydraulic lift range: 500mm

Gelatin discharge: Upper outlet

Temperature sensor: bottom RTD sensor

Power: 380V/240V 50/60Hz 7.5kW

CBD Oil Softgel Capsule Encapsulation Machine With Bottom RTD Sensor FDA Approved 2
