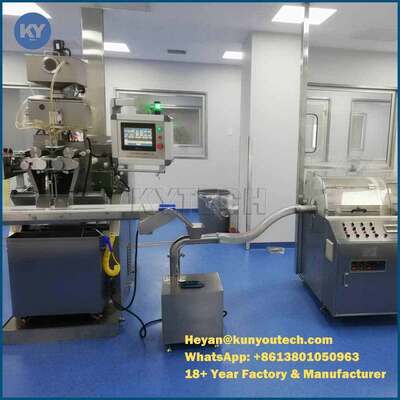

20kw Large Scale Medical Softgel Encapsulation Machine For softgel and painball production With PLC And Touch Screen

China 20kw Large Scale Medical Softgel Encapsulation Machine  For softgel and painball production With PLC And Touch Screen supplier
20kw Large Scale Medical Softgel Encapsulation Machine  For softgel and painball production With PLC And Touch Screen supplier 20kw Large Scale Medical Softgel Encapsulation Machine  For softgel and painball production With PLC And Touch Screen supplier 20kw Large Scale Medical Softgel Encapsulation Machine  For softgel and painball production With PLC And Touch Screen supplier

Large Image :  20kw Large Scale Medical Softgel Encapsulation Machine For softgel and painball production With PLC And Touch Screen

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description





Medical Softgel Encapsulation Machine For Large Scale / 20kw / PLC + Touch Screen





Quick Detail



Pump Type

20/24 Plungers

Driven Type

Electric

Capacity

120000pcs /hour, 8#OV

Dosage deviation

<±1.5%

Application

Medical,Food, Pharmaceutical

Control

PLC



Product Description

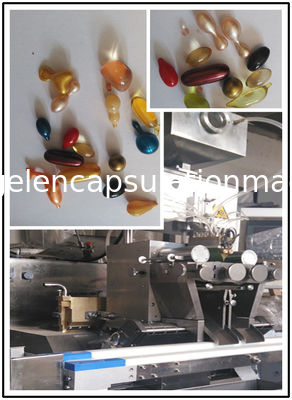

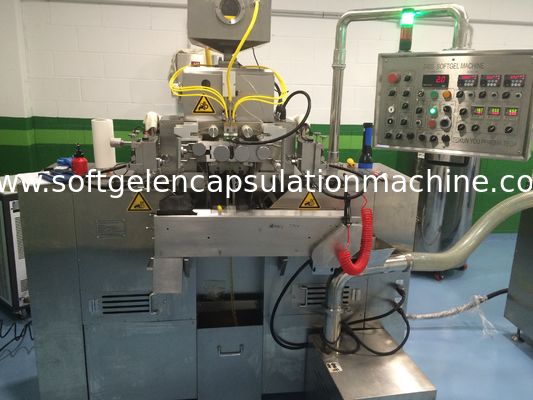

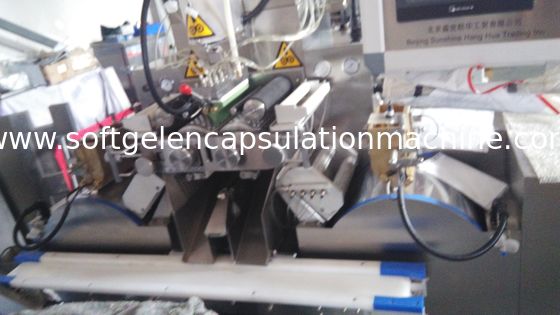

KUN YOU S610 fully automatic softgel making machine is a new generation of soft gelatin encapsulation machine. The machine is integrated the latest global encapsulation technology and our gelatin encapsulation experience. The new softgel encapsulation manufacturing facility features leading technology, simple but beautiful appearance. Advanced technology and reliable performance provide high effective operation and save user's operational cost. S610 softgel encapsulation machine has a high production rate. It can produce about 120000 pcs softgels per hour.


It includes the following features:



1. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.

2. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.

3. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.
4. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider

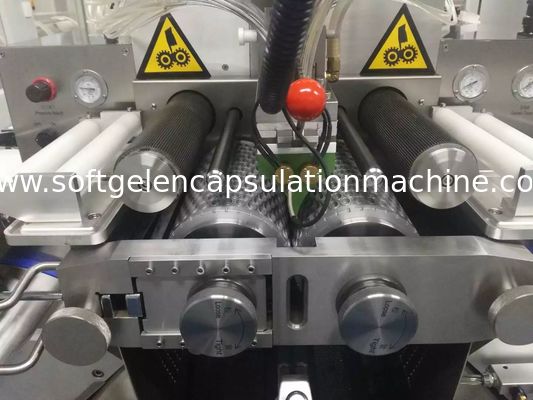

5. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
6. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
7. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
8. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.
9. Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.

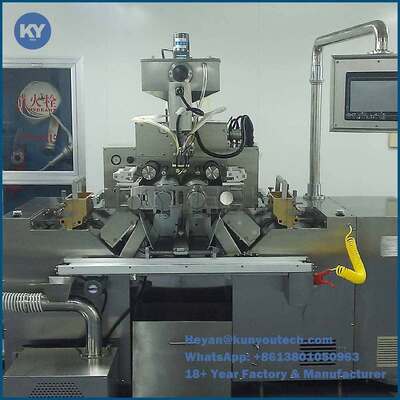

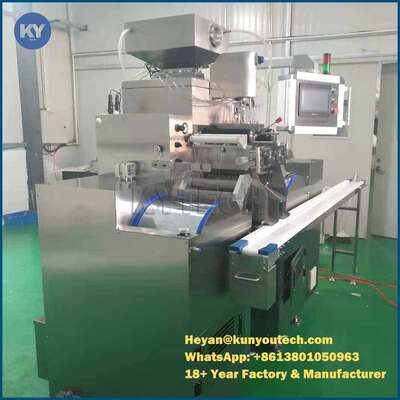

20kw Large Scale Medical Softgel Encapsulation Machine  For softgel and painball production With PLC And Touch Screen

Specification


Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

8#OV115,440 pcs/hour



Competitive Advantages

1. Full automatic.
2. Siemens constrol system.
3. Precisional machine & Hi-steady.
4. Best machine from China.
5. Conforming to GMP.

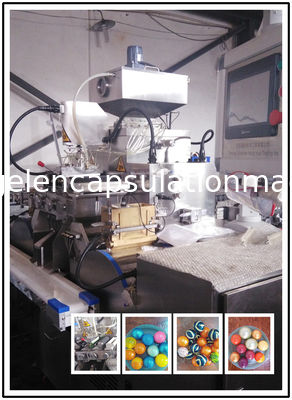

Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine
