Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-100,000 SET
Packaging Details: Wood cages
Delivery Time: 30 DAYS AFTER PAYMENT
Payment Terms: T/T, L/C
Supply Ability: 30SETS PER YEAR
Contact Now
Detailed Product Description
MATERIAL: STAINLESS STELL Size: 100-15000L
Service: Technology Support Fuction: Bervage, Gelatin
Power: 7.5-15Kw Electricity: 220/380/415V

Movable gelatin melter and service tank, gelatin melting tank gelatin melter gelatin melting machine





Gelatin service tank

The gelatin service tank is used to keep the gelatin mass at a desired temperature and supply the gelatin to the encapsulation machine. We have both gravity feeding tank and pressure feeding tank. The plug and socket is IP65 grade make it easier to clean the tank.



Stationed gelatin melter



Mounting Four feet support.on platform
Structure Three layered water bathe
Material SUS304.Medicine contacting partsSUS316
Standard GB 150-1998 and GMP
Max vacuum <-0.09MPa
Opening View glass DN100.Man hole Φ450×Φ350
Temperature sensor Bottom RTD sensor
Power 380V/240V 50/60Hz 7.5Kw

Movable gelatin melter and service tank

Structure Three layered water bathe
Material SUS304.Medicine contacting partsSUS316
Standard GB 150-1998 and GMP
Max vacuum <-0.09MPa
Opening Gel inlet 160×130mm. View glass Φ60mm
Hydraulic lift range 500mm
Temperature sensor Bottom RTD sensor
Gelatin discharge Upper outlet
Power 380V/240V 50/60Hz 7.5Kw

Product Description



1.Water bath type gelatin tank is a special equipment for melting gelatin and production process.



2.The gelatin melting tank has the advantage of compact structure, stable transmission and stable running performance.



3.The mixing/stirring process is operated through connecting loop coupling and is composed of plurality of split agitator with stable transmission and better homogenization effect. The whole body of the tank is made of stainless steel.



4.The body include three layers, including the tank liner, heating jacket and heat preservation layer.



5.Heating the inner of the tank with the circulation hot water, it will be featured by fast heating, good thermal insulation performance, improving the quality of gelatin, accelerating the gelatin melting and shorten the melting time.



6.The liner is closed totally with very good vacuum performance.



7.The feeding mouth is convenient o assemble and repair. The whole tank is very smooth and bright with features of convenient cleaning, anti-corrosion and anti-acid, etc. Gelatin melting tank adopts stainless steel construction for its whole body.



8.During its working process, the machine will suck moisture from inside of the tank, leaving the vacuum. All these are in accordance with the requirement of GMP. So the gelatin melting tank is an ideal equipment for the soft capsule pharmaceutical line.



Detail

Gelatin Capsule Machine With Movable Gelatin Melter / Service TankGelatin Capsule Machine With Movable Gelatin Melter / Service Tank

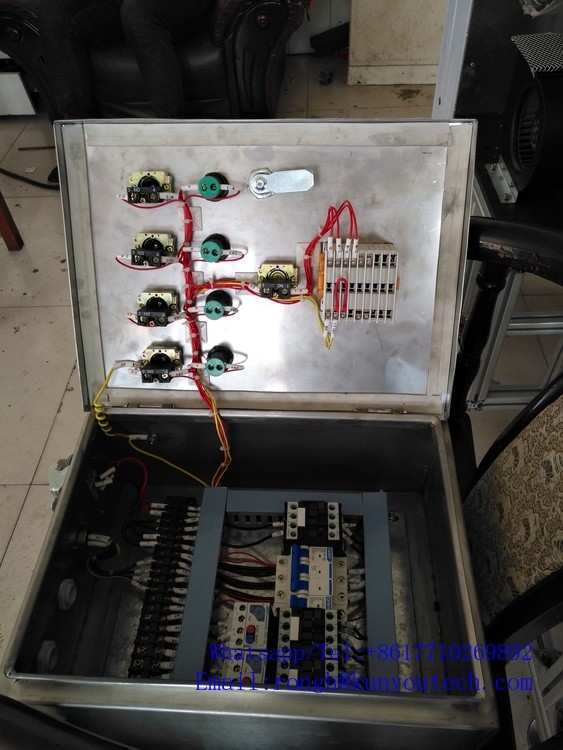

Control system



Gelatin Capsule Machine With Movable Gelatin Melter / Service Tank



FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!



Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.



Q5:How long is the delivery time?

A: About 3-7 working days.
