Professional Paintball Encapsulation Machine with Large capacity

China Professional Paintball Encapsulation Machine with Large capacity supplier
Professional Paintball Encapsulation Machine with Large capacity supplier Professional Paintball Encapsulation Machine with Large capacity supplier Professional Paintball Encapsulation Machine with Large capacity supplier Professional Paintball Encapsulation Machine with Large capacity supplier Professional Paintball Encapsulation Machine with Large capacity supplier

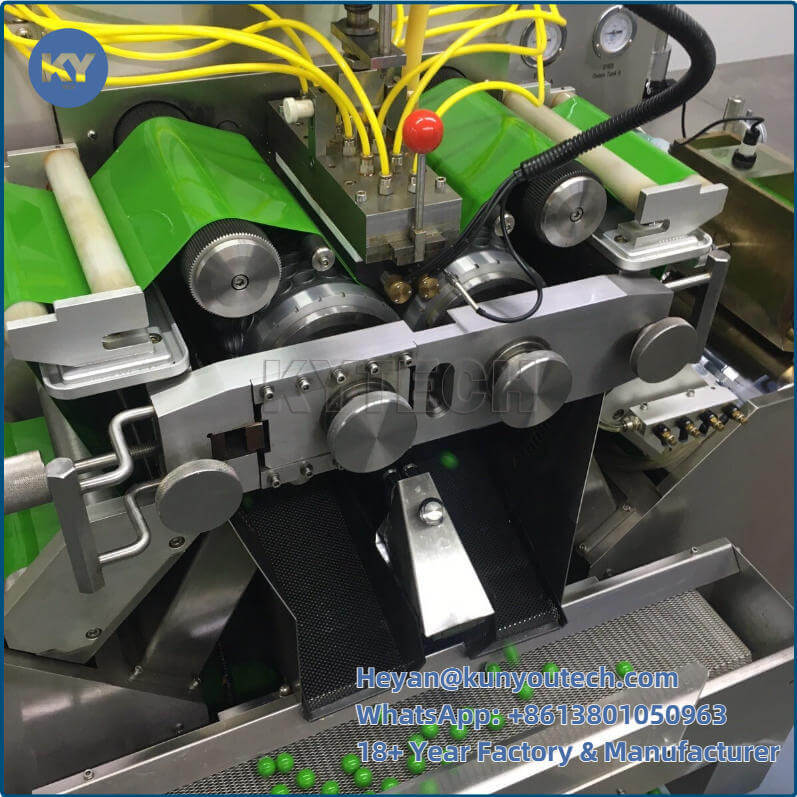

Large Image :  Professional Paintball Encapsulation Machine with Large capacity

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S407

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 60-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: SS304 Capacity: 30,000 Per Hour
Online Printing: Avaliable Formula: Avaliable
Technion: Avaliable Company: Factory

Large capacity paintball production with professenal grade formula provide

Product Description



S610 Softgel Encapsulation Machine is developed based on Model S403 softgel encapsulation machine. It combines advantages of foreign equipment and requirements of customers,considering the needs and the biggest benefits of customers as start point.The machine adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques.



Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S610 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.

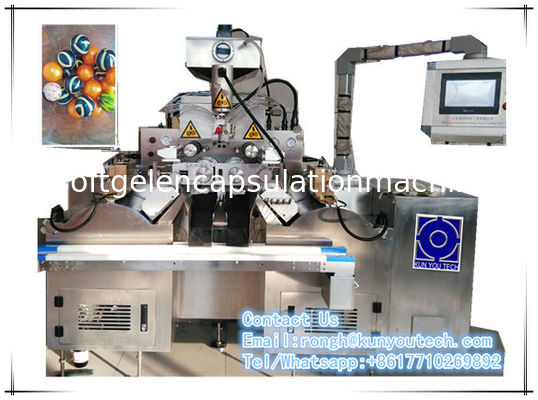

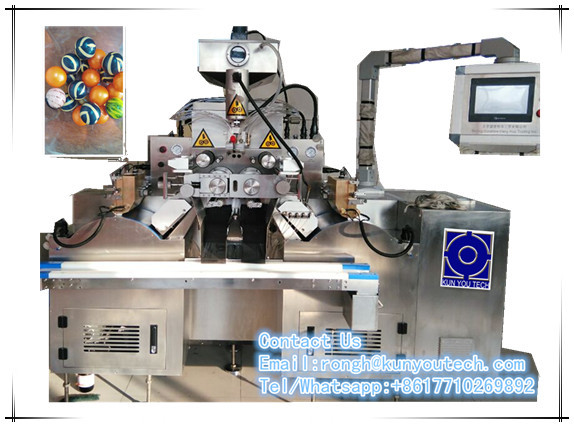

Professional Paintball Encapsulation Machine with Large capacity

What is the specifications of Automatic paintball encapsulation machine ?

1)According to client's sepcial requirements, provides the special design such as oxgency pretection;

2)So many optional devices for clients to choose from R&D to big scale production.

3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.

4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

5)Automatic checking: with servo motor ,the machine can run at 7rpm

6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.

7)Main shaft parallelism is in 0.02mm

8)The die roll adjust and changment with clitch control ,save gelatin and time, easily operate

8)Use the Germany bearing; .

9)The shaft of the 2 rollers for die roll deviation is in 1.5%.

10)With Worm gear, the gear and shaft adopt special material with high accurary and long service life

11) Medicine hopper adopts thermial insulation design

12) Local language input in machine avaliable.

13)Micro lubrication


14). High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.

15) The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

16) Air-cooling system is adopted at the output of paintball, that make paintballs amazing

17).Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.

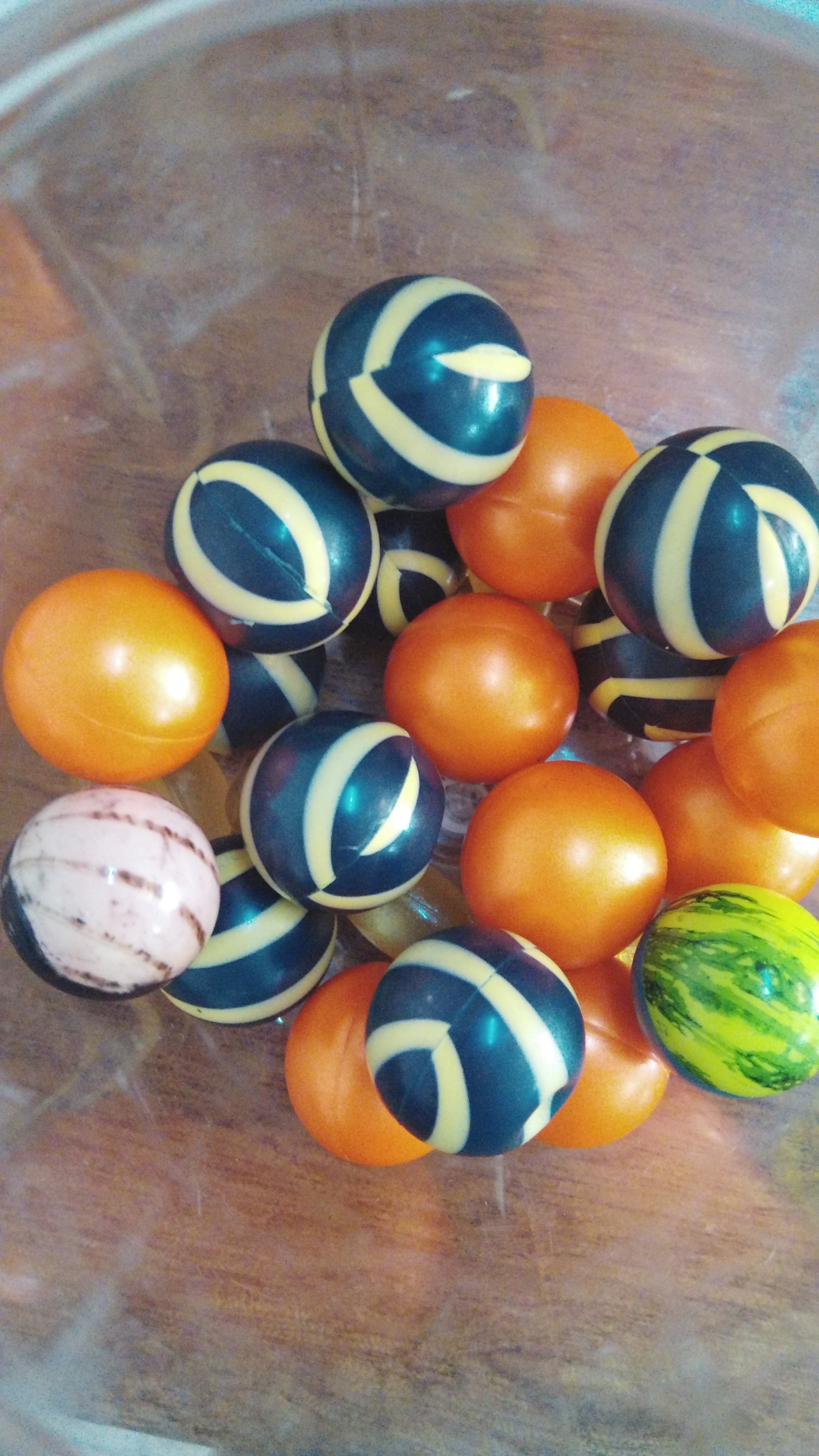

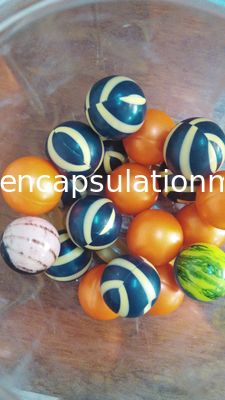

Product samples.

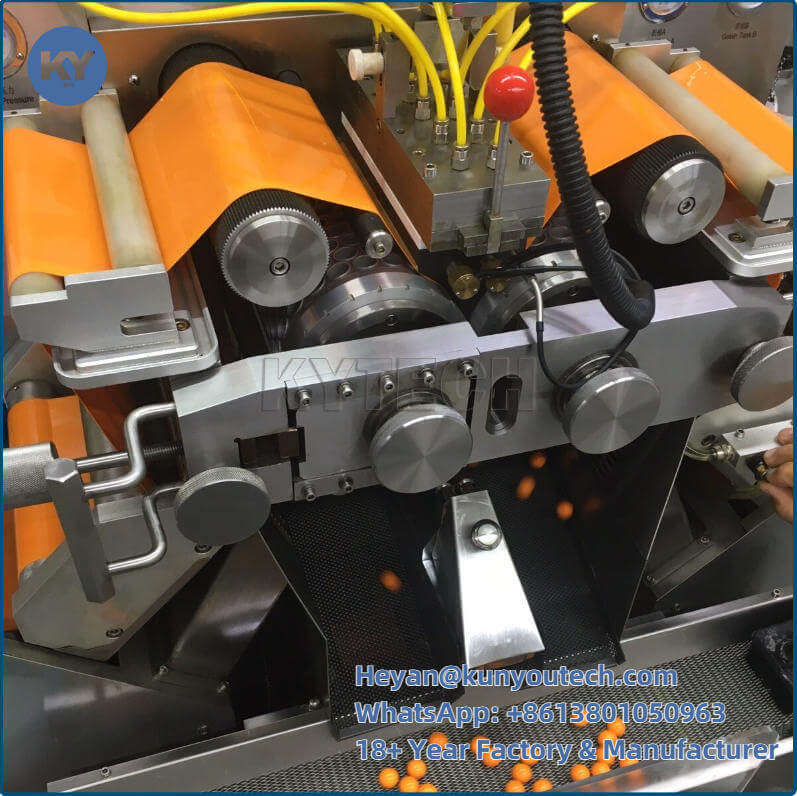

Professional Paintball Encapsulation Machine with Large capacity

Specifically speaking, it has the following characteristics:


Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled water.
The running parameters can be stored and recalled with a finger tip touch if necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.


Application

It’s mainly for softgel making enterprises and CS game enterprises and universities.

Specification



Model

S610

Die roll

Ф150X250mm

Die roll speed

0~7rpm

Plunger numbers

20

Overall dimension

880X2500X1800mm

weight

1600kg

Power consumption

15 kw

Control mode

PLC+Touch Screen

Output rate

30000 pcs@3.5rpm/hour





Packing&Shipping



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes. Professional Paintball Encapsulation Machine with Large capacity

We ship the whole line of macine by ocean through the freight agent.



Our services



We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.



Professional Paintball Encapsulation Machine with Large capacity

Company Information

Beijing KUN YOU Pharmatech Co., Ltd., which is established in 2008, has been focusing on designing, manufacturing and selling pharmaceutical machinery, food machinery and paintball machinery.
KUN YOU Pharmatech provides various models of Softgel Encapsulation Machines (soft capsule encapsulation machine, paintball machine, soft gelatin capsule machine), such as S406 with 6" dies, the medium size S407 with 7.5" dies and the latest and largest S610 with 10"dies. Here, you can find whatever paintballs and soft capsules that you need. Welcome to Beijing KUN YOU Pharmatech Co., Ltd. We look forward to cooperating with you!



After more than ten years of unremitting efforts, our continuing research and cooperation with many domestic and foreign pharmaceutical factory, plant health products and paintball production factory, not only enable us to make a lot of technical innovation in soft capsule equipment, but also to accumulate rich experience in the production process of soft capsule. We also have rich experience in softgel formulation and manufacturing process. We have three sets of high accuracy CNC milling machine, together with lathe, grinding machine, EDM machine, wire cutting machine, we can make state-of-the-art equipments and softgel die roll.





FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!



Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.



Q5:How long is the delivery time?

A: About 35- 40 working days.
