Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

Certification
Good quality Paintball Encapsulation Machine for sales
Good quality Paintball Encapsulation Machine for sales
I'm Online Chat Now

Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

China Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing supplier
Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing supplier Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing supplier Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing supplier Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing supplier

Large Image :  Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: MD-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-100000 PER SET
Packaging Details: Wood cages
Delivery Time: 3 WEEKS
Payment Terms: T/T, L/C
Supply Ability: 1000 SETS PER YEAR
Contact Now
Detailed Product Description
POWER SUPPLY: 380V/220V Power Consumption: 1.5kw
Mold: No Mold Service: Technion Avaliable
Certificate: ISO9001 Warantee: 1 Year

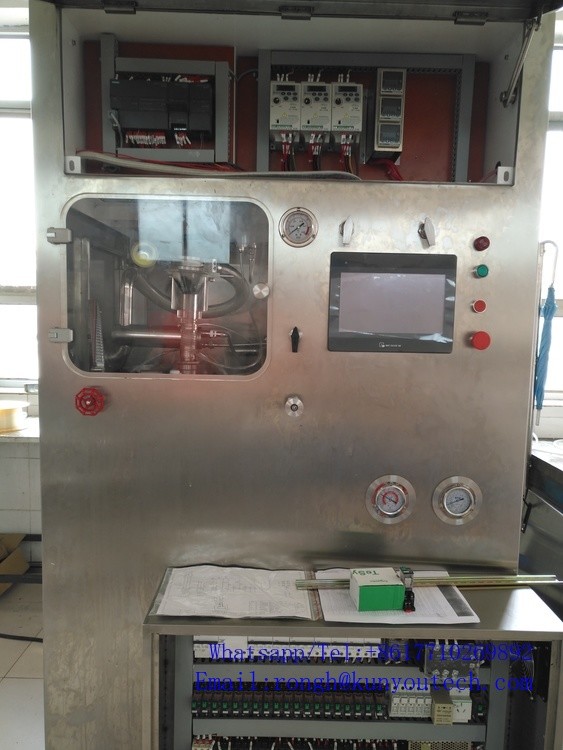

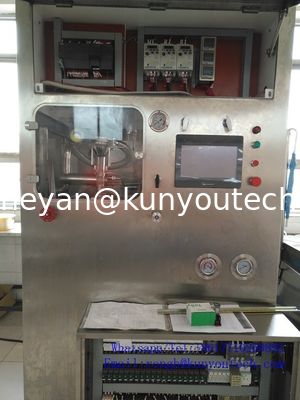

Oil packing encapsulation equipment , Pulsant Cutting Seamless Softgel Machine



Model MD-3 seamless softgel machine consist of medicine supply,gelatin preparation,pulsnat cutting,cooling oil circulation,refrigerating,capsule shaping system. By adoption of advanced pulsant cutting technology,high dosing accuracy and capsule quality are quaranteed. Compared with normal soft capsule encapsulation machine,this machine can produce round shape capsule without expensive mold. Besides, there is no waste of gelatin.
Model MD-3 seamless softgel machine is developed based on advanced pulsant-cutting type soft capsule dripping machine,embraced with latest technologies. The output rate is higher,up to 54000 pics/hour in the term of capsule diameter varies from 2-10, and capsule dosage around 5-20 mg. The good quality yield no less than 98%.

Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

Diameter of Softgel2~10 mm
ProductivitySoftgel Fill Quantity(mg)pc/h
MD-3
5~2043200
>20~5036000
>50~10028800
>100~18021600
>180~27014400
5007200
Fill Quantity Difference≦±3%
Dynamic Stability of Fill Quantity≦0.5 (8 hours continuous working)
Power (3 Phases)380V/50Hz or as your requirement
Average/Max Power Consumption1.5KW/6.0KW
Overall Dimension1080X800X2060 mm
Weight450kg

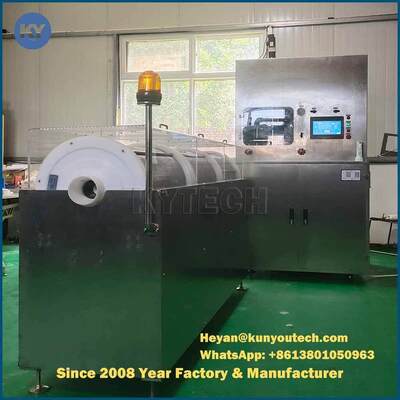

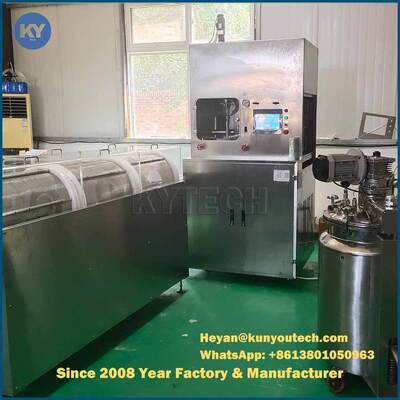

Tumble Drying Machine

Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

Multifunction tumble drying machine is mainly applied to shaping and second time drying and appearance beautification of softgel. Our company is the only company can produce large scale drying machine. Rely on the production experience of international tournament grade paintball machine, our current models can meet the need of both large, medium and small scale softgel production.

Picture just for reference, real product shall prevail.

Parameter of Tumble Dryer:

ModelFor MD-3
Basket Diameter (inside)420 mm
Basket Length620 mm
Fan Power0.25 kw
Motor Power0.2 kw
Basket per Section2
Fan Capacity2300 m³/h
Loading Capacity of Softgel20 kg

Feature:

a. Feed hopper is attached with tumble dryer.

  1. Each drying machine is composed of 3 sections of basket. (more or less according to production quantity.)
  2. Each basket equipped with frequency convertor, running smoothly and speed can be adjusted independently. Rotary speed: 0-30 rpm.

d. If choose basket without frequency convertor, rotary speed is 20 rpm.

e. Each basket equipped with an independent drying fan, fan power: 0.25kW.

  1. End part and gear of the basket are made from FDA approved supra polymer material, the friction coefficient is super low, thus avoid adhesion with softgel.
  2. The inside guide plats are specially designed into dissymmetrical structure (refer to picture), which ensure softgel will be dispersed evenly in the basket when the basket rotary forwardly.
  3. With both manual and auto control modes. Under auto control mode, each basket will rotate forwardly or backwardly according to the time set by operator.
  4. There is a discharge alarm lamp on the last section of tumble drying machine, it flickers 12 seconds before discharge to remind operators.
  5. Each section of tumble drying machine is equipped with a stainless steel oil drawer, to contain the oil leaked from broken softgel. Easy for cleaning and comply with GMP requirement.

k. Control cabinets are on the side of drying machine, and on the opposite side of oil drawers, will not interfer movement of oil drawers.

l. Height of the truckles of drying machine is adjustable, adjustment and movement is conveniently.

  1. Control system adopt rely and switch control method. Each section can be manually controlled or be automatically controlled by program according to forward/backward rotation time setting. Our machine has an unique full-start function, this function is very useful when need to restart the machine in case of accidental power cut.



Gelatin Melting and Fill Material Preparation System



Feature: Convenient and flexible movement.

Waterproof jack plug, easy for cleaning.

Stirrer is on topside.

Pressure feeding.

Hydraulic lifting and descending.

Equipped with observation window.



Vacuum Gelatin Melting Tank (GST-50)ParameterPicture
Effective Volume of Tank50L
Effective Volume of Water Jacket2L
Heating Power2kW~4kW
Power of Stirrer Motor0.55kW
Stirring Speed21.6 rpm
Working Temperature90℃
Allowed Internal Pressure-0.04Mpa-0.09Mpa
Overall DimensionФ500×1200 mm
Net Weight120kg

Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing

Drying Tray and Racket

Drying trays are applied to re-dry and store softgels after second time drying.

This product is in strict accordance with national food hygienic standard, construction is sturdy, durable in use. Work with trolley, move conveniently.

Material: SS304 Overall dimension: 765*500*55mm

Seamless Soft Gel Capsule Machine 1.5kw Power Consumption Oil Packing
