1.5kw Soft Capsule Making Machine Pulsant - Cutting 22000 Balls Per Hour

1.5kw Soft Capsule Making Machine Pulsant - Cutting 22000 Balls Per Hour

1.5kw Soft Capsule Making Machine Pulsant - Cutting 22000 Balls Per Hour
1.5kw Soft Capsule Making Machine Pulsant - Cutting 22000 Balls Per Hour
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: MD-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 1-100000 PER SET
Packaging Details: Wood cages
Delivery Time: 3 WEEKS
Payment Terms: T/T, L/C
Supply Ability: 1000 SETS PER YEAR
Contact Now
Detailed Product Description
Power Consumption: 1.5kw POWER SUPPLY: 380V/50Hz Or 220V/60Hz
Mold: No Mold Size: 3-6mms
Capacity: 22000 Balls Per Hour Service: Technion Avaliable
Electrcity: Schnaider
High Light:

soft gel encapsulation machine


soft gelatin encapsulation machine

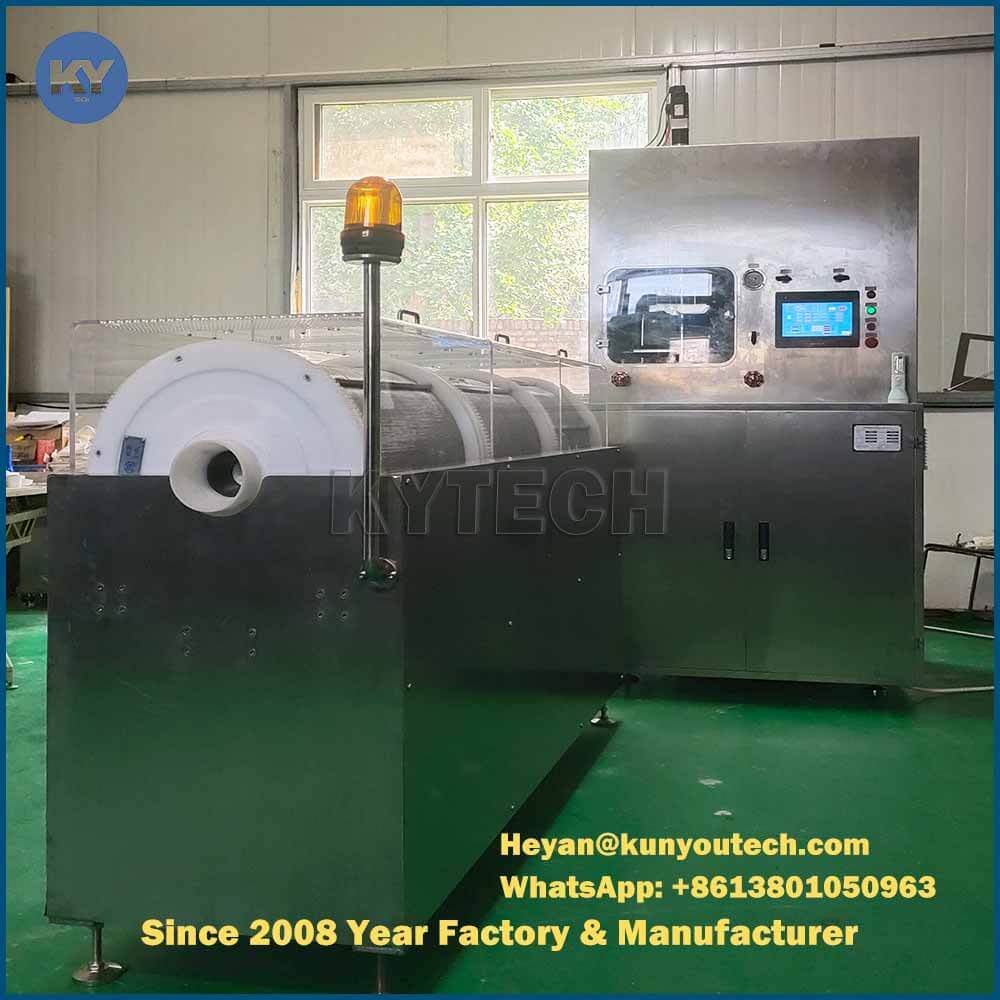

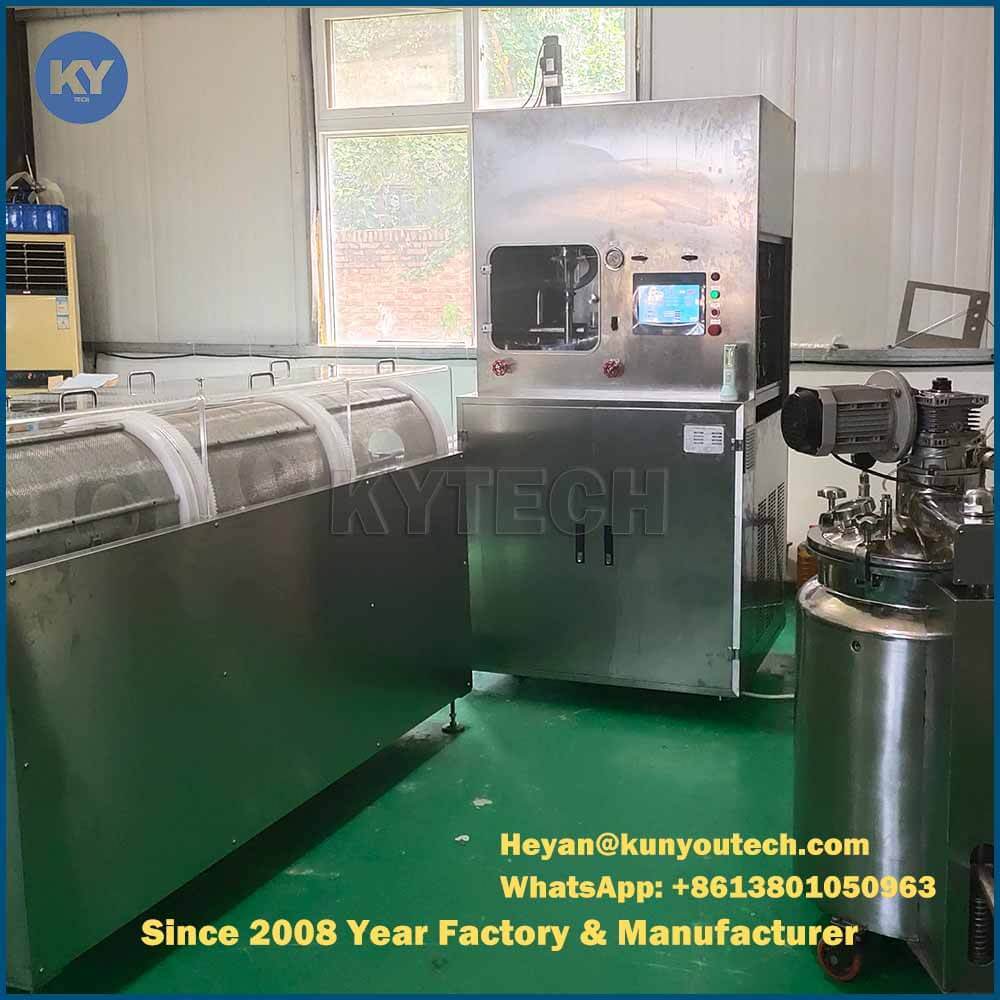

Seamless softgel machine MD3 Pulsant-cutting type soft capsule dripping Round Shape softgel capsule Without mold



Model MD-3 seamless softgel machine consist of medicine supply,gelatin preparation,pulsnat cutting,cooling oil circulation,refrigerating,capsule shaping system. By adoption of advanced pulsant cutting technology,high dosing accuracy and capsule quality are quaranteed. Compared with normal soft capsule encapsulation machine,this machine can produce round shape capsule without expensive mold. Besides, there is no waste of gelatin.

Model MD-3 seamless softgel machine is developed based on advanced pulsant-cutting type soft capsule dripping machine,embraced with latest technologies. The output rate is higher,up to 54000 pics/hour in the term of capsule diameter varies from 2-10, and capsule dosage around 5-20 mg. The good quality yield no less than 98%.




Diameter of Softgel 2~10 mm
Productivity Softgel Fill Quantity(mg) pc/h
5~20 43200
>20~50 36000
>50~100 28800
>100~180 21600
>180~270 14400
500 7200
Fill Quantity Difference ≦±3%
Dynamic Stability of Fill Quantity ≦0.5 (8 hours continuous working)
Power (3 Phases) 380V/50Hz
Average/Max Power Consumption 1.5KW/6.0KW
Overall Dimension 1080X800X2060 mm
Weight 450kg


Introduction about New Generation Seamless Softgel Machine

New generation seamless softgel machine is developed base on imported technology – impulse cutting technology. Its production has been more than 20 years till now. The difference with domestic softgel dropping machine are as below:

  1. High production speed and high finished product ratio.
  2. Can produce softgel with more sizes, size adjustment is convenient.
  3. Dropper will not be blocked, dropping process is smooth.
  4. Fill quantity difference of softgel is lower than requirement of pharmacopeia, steady and fewer fluctuation
  5. On the basis of combining foreign new technology, we have done many improvement and upgrade according to the actual requirement of softgel dropping pill production which push softgel dropping pill production into a phase of high mechanization and automation. As consequence the dropped softgel can be dried and shaped directly in the tumble dryer. This advantage is incomparable for other softgel dropping machines.
  6. To compare with die roll type softgel machine, the product of softgel dropping machine have thinner skin, and the cost is lower because it can use residual gelatin from die roll machine production, and dropping production does not need expensive die rolls. In addition, the softgel dropping pill is easier for swallow.
  7. Has distinct advantage for small diameter softge production.
