10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis

1 set

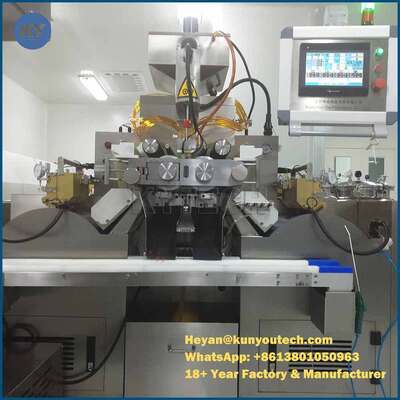

10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis
Features Gallery Product Description Request A Quote
Application: Capsule
Type: Filling Equipment,Encapsulation Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas
Name: Softgel Encapsulation Machine
Material: SUS304/316L
Capacity: 4 Inch Die Roll Or 8 Inch Die Roll
Function: Soft Gelatin Encapsulation
Usage: Pharmaceutical,Cosmetics,softgel Encapsulation Machine,paintball Sorting Machine
High Light:

capsule filling equipment


automatic capsule machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Product Description


R & D Scale Softgel oil packing encapsulation machine With Faults Diagnosis


Small And R&D Scale Soft Capsule Filling Machine With Faults Diagnosis



Quick Detail


Product Name

Large scale Softgel Making machine

Driven Type



120000pcs /hour, 8#OV

Dosage deviation



Food, pharmaceutical,softgel making machine




Product Description


Softgel encapsulation machine can quantificationally inject the oil,mixing suspenion and pasty mass into the capsule to form all kinds of softgel encapsulation with different size ,shape and color .Because of the merits store and take ,the softgel encapsulation is welcomed by more and more custoers.Owing to the high productivity,charging exacl,quality stablilization,high finished product rate,it is favoured by more and more manufactures and used in the fields of hte medicine ,health products,cosmetic and paintball and so on.

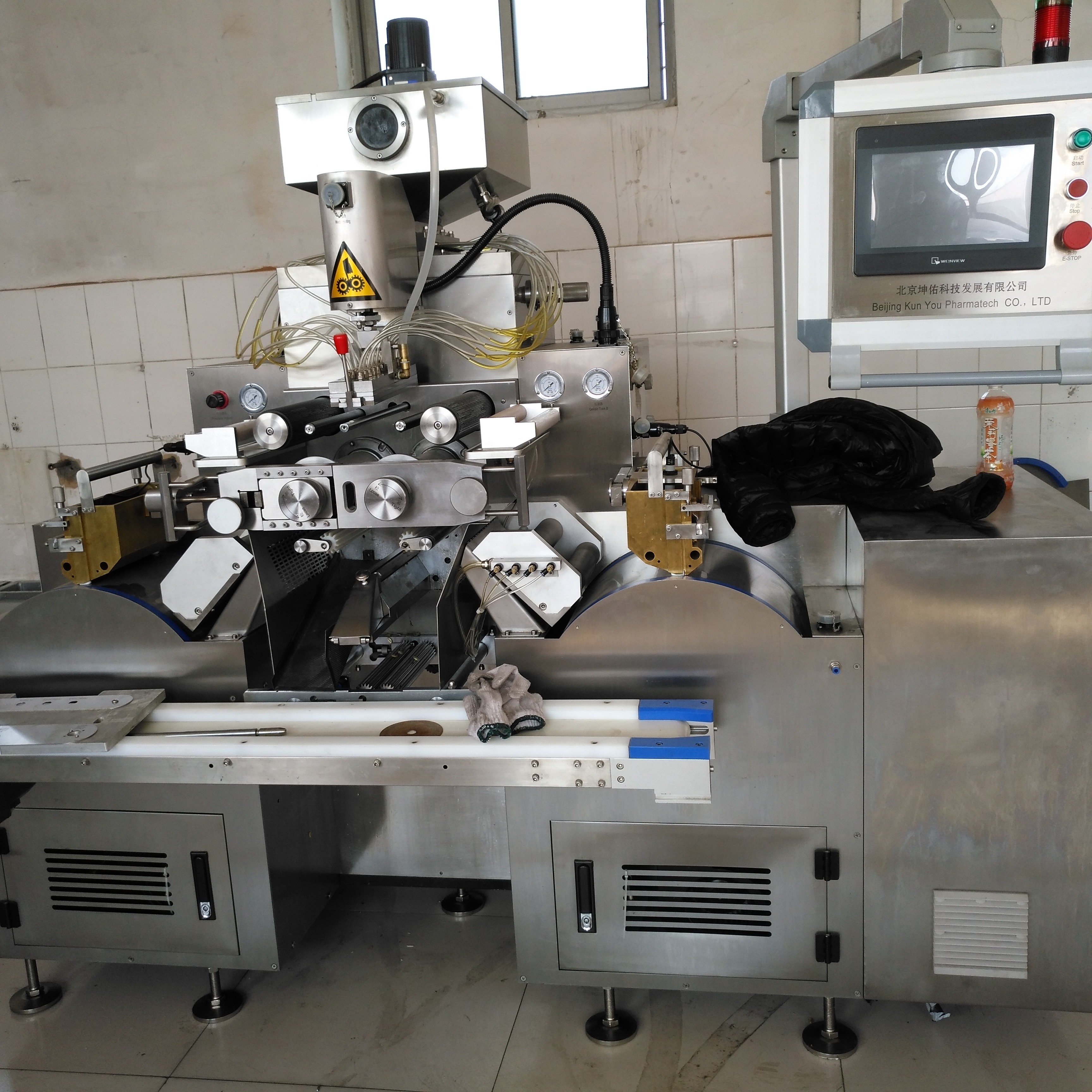

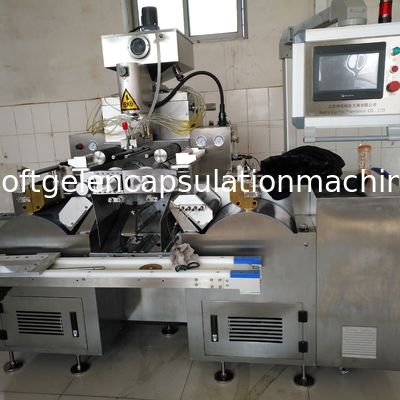

S610 roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roll automatically and synchronously, it’s very convenient to adjust the spraying time. S610 adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP. S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

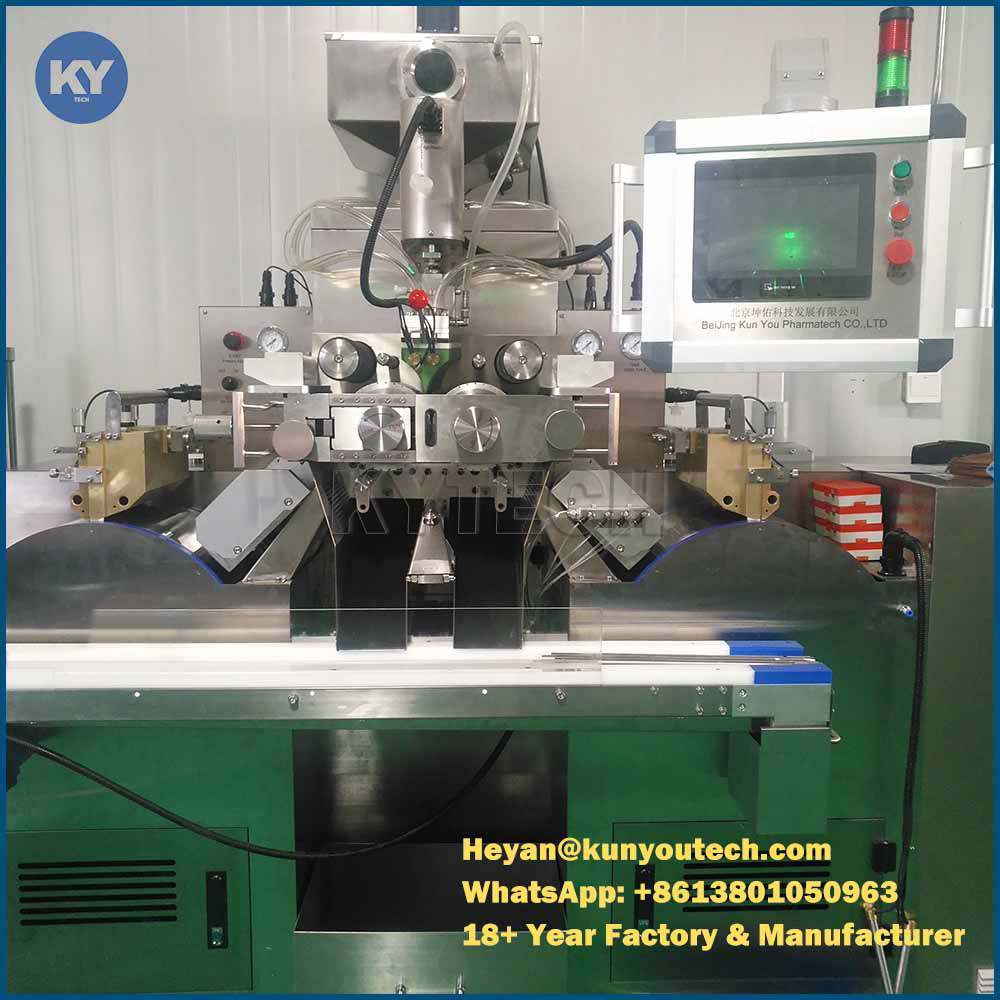

10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis 0


Specifically speaking, it has the following characteristics:


Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of  the 20 plungers are less than 0.005mm.
10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis 1



Die roll size


Die roll speed


Max plunging volume per stroke


Plunger numbers


Overall dimension


Weight of main machine


Power consumption

20 kw

Control mode

PLC+Touch Screen


8#OV115,440 pcs/hour

Competitive Advantages

1. Medicine Hopper Medicine holding hopper Square, Round and Double jacket, various design available Water heating system for the medicine.


2. Medicine Pump & Block Medicine Injection Special coating treatment for injection pump Very precise medicine injection by CAM Linear bearing type injection plunger saddle for high speed.


3. Wedge Medicine injection into pocket Inject medicine into capsule pocket by pump pressure New designed coating Wedge Optional between heater cartridge or water heating design Electric Heater Wedge (Water Circulation Wedge is buyer’s option).


4. Spreader Box Gelatin ribbon forming devices From liquid status into solidified ribbon Pinch valve and automatic gelatin level sensor.8.html in Spreader boxes Thickness adjustment gauge.


5. Casting Drum Gelatin ribbon formation device Enhanced juddering free water cooling casting drum Adjustable casting drum surface temperature TIR flatness 0.03’ (Total Inch Run-out).

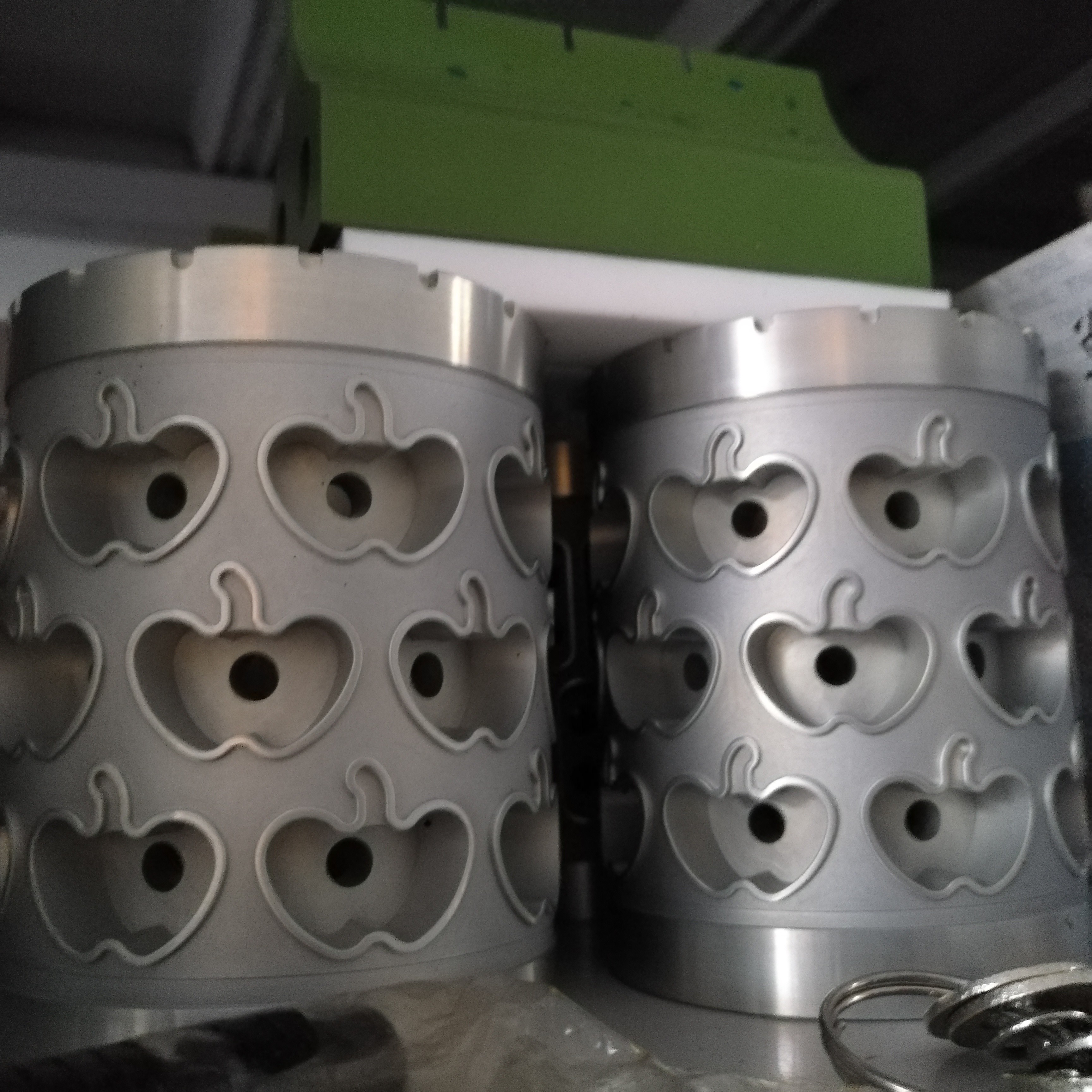

6. Die roll Housing Capsule forming devices Capsule forming with wedge & die roll combination Die roll pressure check system (Load-Cell) Front/Rear free chocking die roll

Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine
10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis 2

What is the advantages of Kunyou machine ?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use a large number of 316 stainless steel;

6)This machine use world famous electrical and pneumatic components,such as Siemens, omorn ,Airtac, Mitsubish, Schneider etc.

7)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.


We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.

We ship the whole line of macine by ocean through the freight agent.


Our services

We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.

Company Information


Beijing KUN YOU Pharmatech Co., Ltd., which is established in 2008, has been focusing on designing, manufacturing and selling pharmaceutical machinery, food machinery and paintball machinery.
KUN YOU Pharmatech provides various models of Softgel Encapsulation Machines (soft capsule encapsulation machine, paintball machine, soft gelatin capsule machine), such as S406 with 6" dies, the medium size S407 with 7.5" dies and the latest and largest S610 with 10"dies. Here, you can find whatever paintballs and soft capsules that you need. Welcome to Beijing KUN YOU Pharmatech Co., Ltd. We look forward to cooperating with you!

Abiding by all efforts for customers’ success and customer first principle, Beijing KUN YOU Pharmatech Co., Ltd. provide top quality products and services. We provide tooling and spare parts for all kinds of softgel main machines. We provide state of the art die rolls for all kinds of softgel machines. We not only offer our clients production equipment and tooling soft capsule, but the complete solution of soft capsule production.


After more than ten years of unremitting efforts, our continuing research and cooperation with many domestic and foreign pharmaceutical factory, plant health products and paintball production factory, not only enable us to make a lot of technical innovation in soft capsule equipment, but also to accumulate rich experience in the production process of soft capsule. After years of great efforts and cooperation with world wide pharmaceutical companies, neutraceutical companies and paintball companies, numerous of improvements were made. We also have rich experience in softgel formulation and manufacturing process. We have three sets of high accuracy CNC milling machine, together with lathe, grinding machine, EDM machine, wire cutting machine, we can make state-of-the-art equipments and softgel die roll.


If you are interested in our products, please feel free to contact us. Welcome!

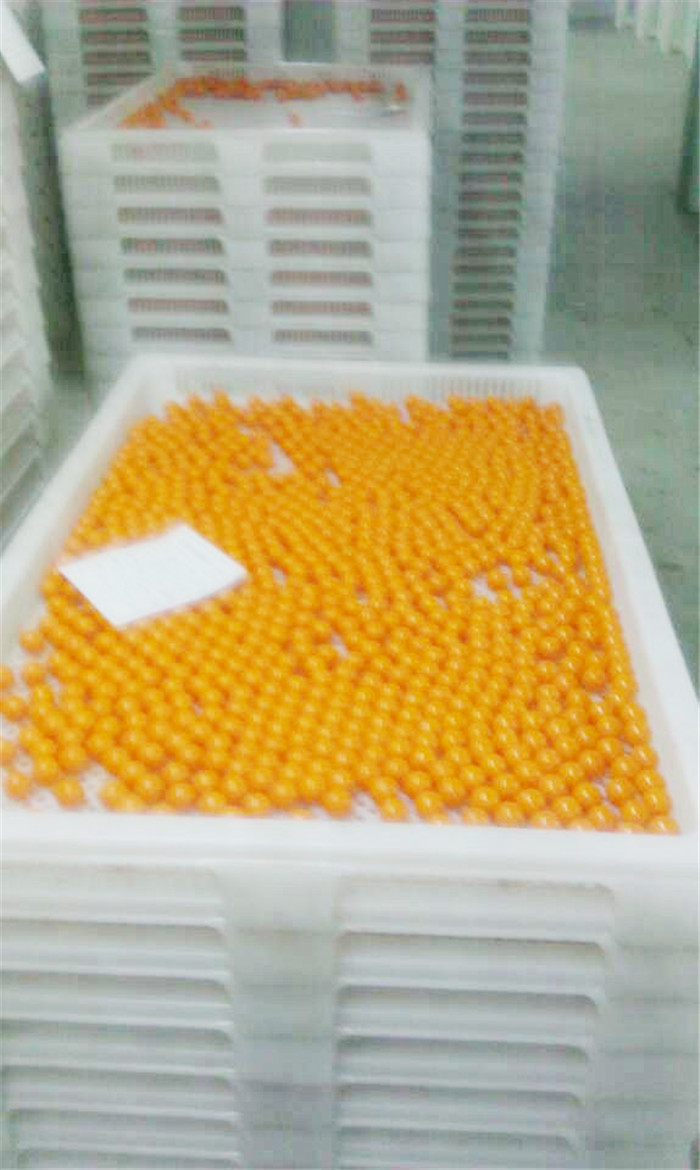

Product samples.10 Inch Scale Oil Packing Softgel Capsule Machine With Faults Diagnosis 3



Q1:Are you factory or trading company?

A: We are factory and manufacture.

Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!

Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.

Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.


Q5:How long is the delivery time?

A: About 35- 40 working days.
