|Place of Origin:||China,Beijing|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wood cages|
|Delivery Time:||20-60 days|
|Payment Terms:||T/T， L/C, Western Union|
|Supply Ability:||30 Set/Sets|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas||Material:||SUS304/316L|
|Capacity:||4 Inch Die Roll Or 8 Inch Die Roll||Dimension:||1990*1040*2100mm|
|Usage:||Pharmaceutical,Cosmetics,softgel Encapsulation Machine,Pharmacy|
capsule filling equipment,
automatic capsule machine
Automatic Softgel Capsule Machine , medicine packaging machine High speed

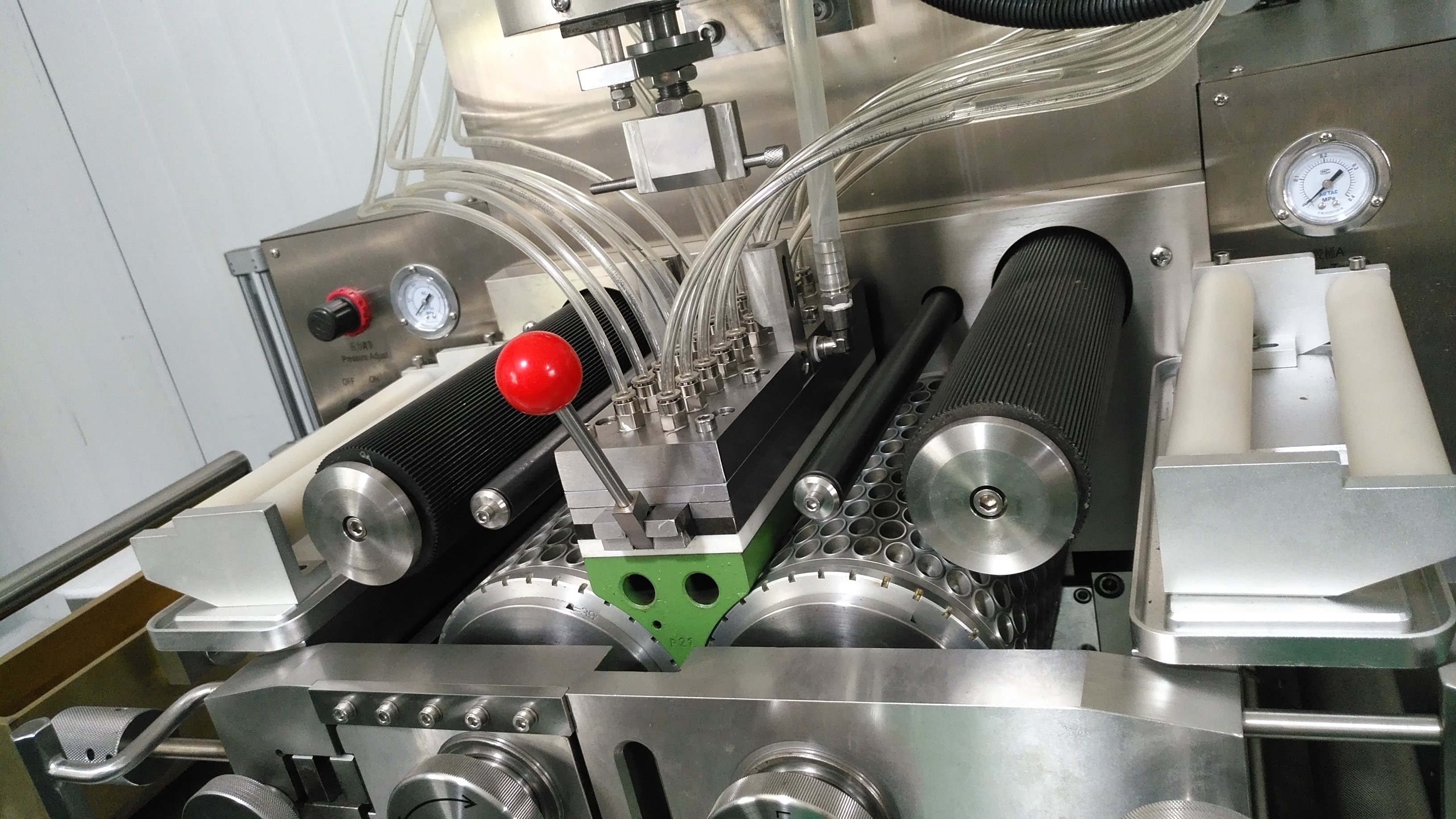

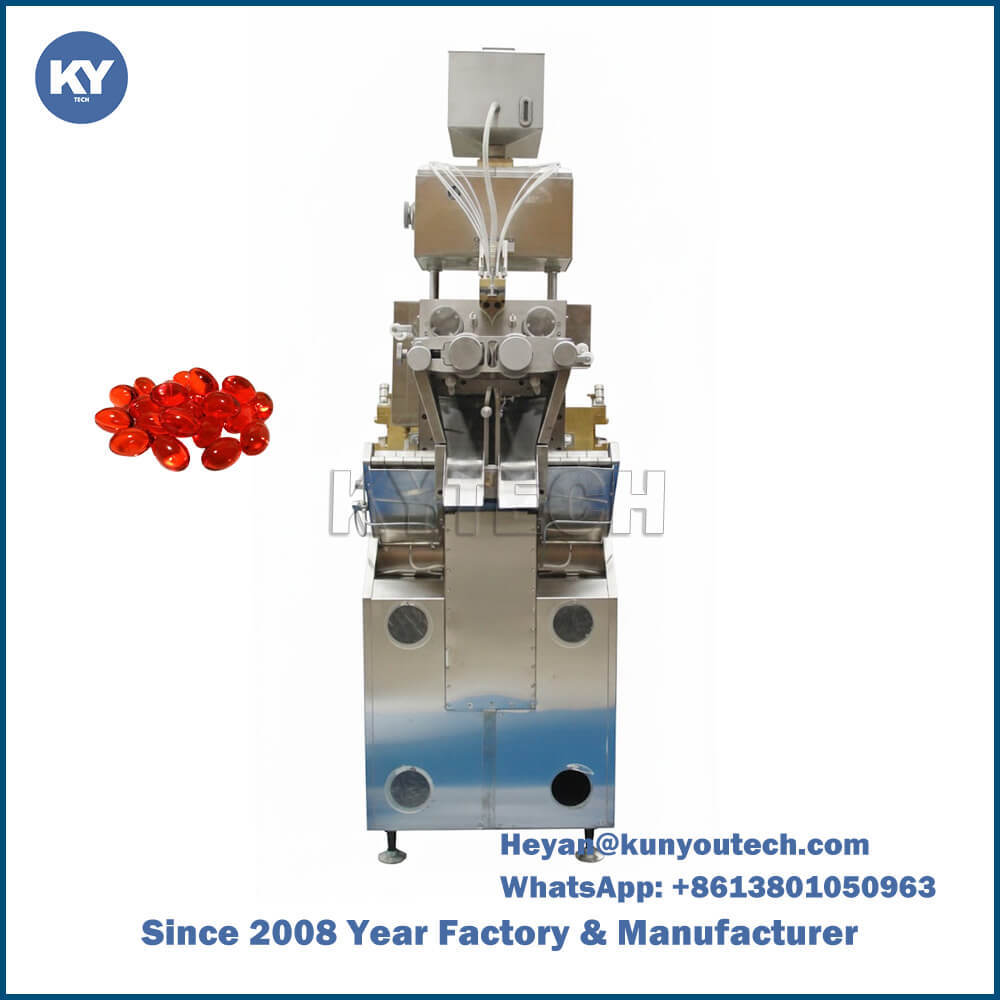

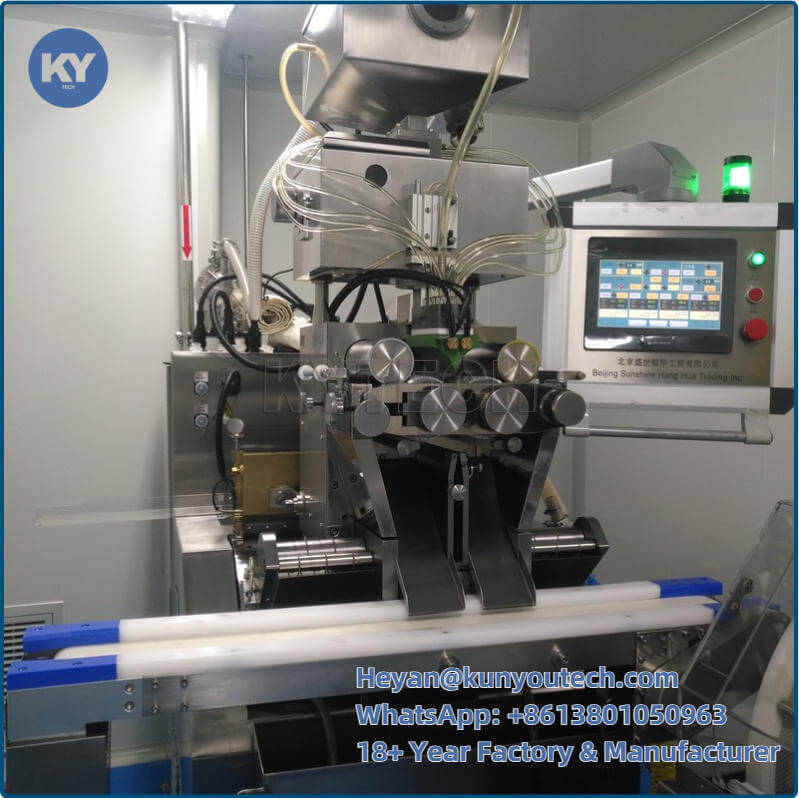

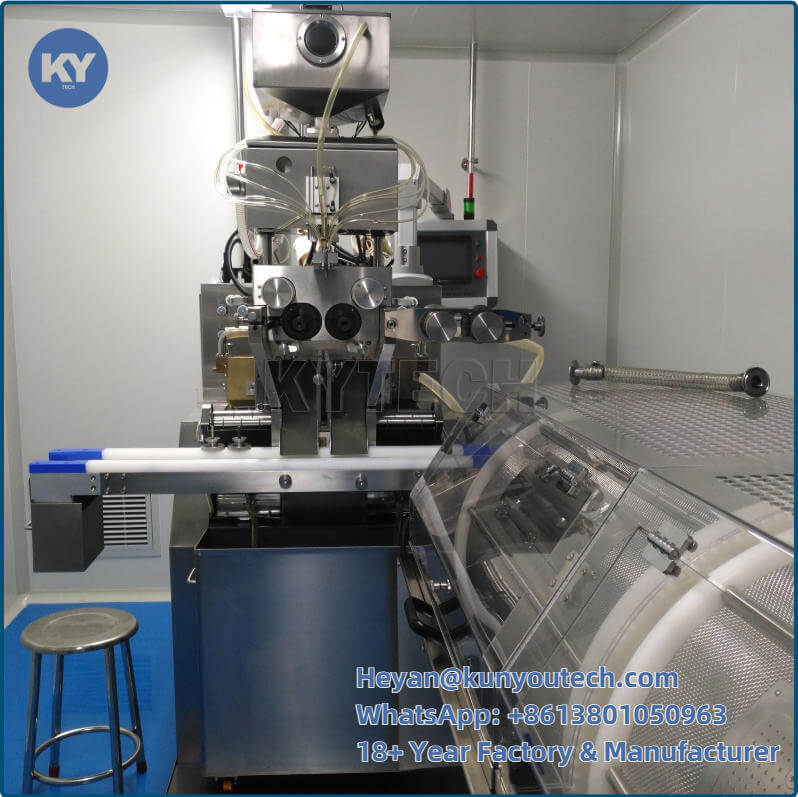

S403 Softgel Encapsulation Machine
Productivity of Machine:
22,800 capsules/hour (8# OV, 4 RPM),
12,960 capsules/hour (20# OB, 4 RPM)
Function of Machine:
1. The gelatin ribbon is lubricated by micro lubricating technology to lower the consumption of
lubrication oil, the capsules are washing free and the drying time can be reduced remarkably.
2. The main moving parts adopt Swiss precise bearings. The gelatin ribbon drum assembly and mangle
roller are driven by independent motors, which are synchronized electronically. The noise is lowered
and it works more stable. By utilizing separate lubrication for medicine pump assembly and die roll
housing assembly, the waring is effectively reduced, which extends the failure-free operation time further.
3. Both medicine pump assembly and die roll are automatic synchronized. It is convenient to adjust the
occasion of injection.
4. Medicine pump adopts the new type of cam to avoid manual timing operation
5. The injection wedge can stop at any positon, making the operation more convenient and quick.
6. The wiring position of heating cables is more reasonable.
7. The frame is of Al ,easy to lift and stedy use.
8. PLC-based control, touch monitor interface or switch button interface can be selected. The control system
can complete trouble diagnosis and reserve interface for remote diagnosis to upgrade.
9. Temperature control material hopper, precise temperature control, auto liquid level control, it is suitable
to various kinds materials requirements.
10. The temperature adjustable material hopper assembly is equipped with the standard configuration. And
it can stir material refill material automatically, alarm for shortage of medicine.
Automatic Gelatin Level Control System:
