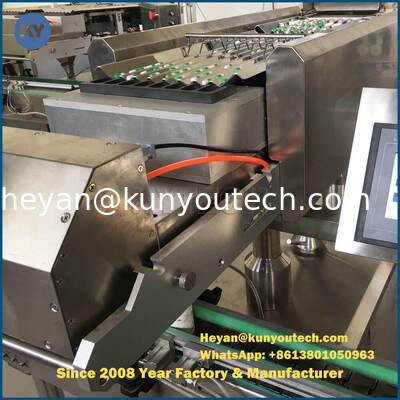

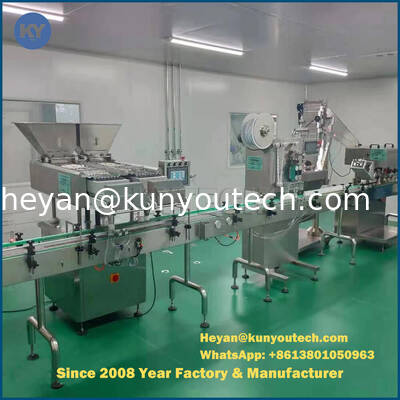

Tablet And Capsule Paintball Counting And Packing Machine 10bag/Min

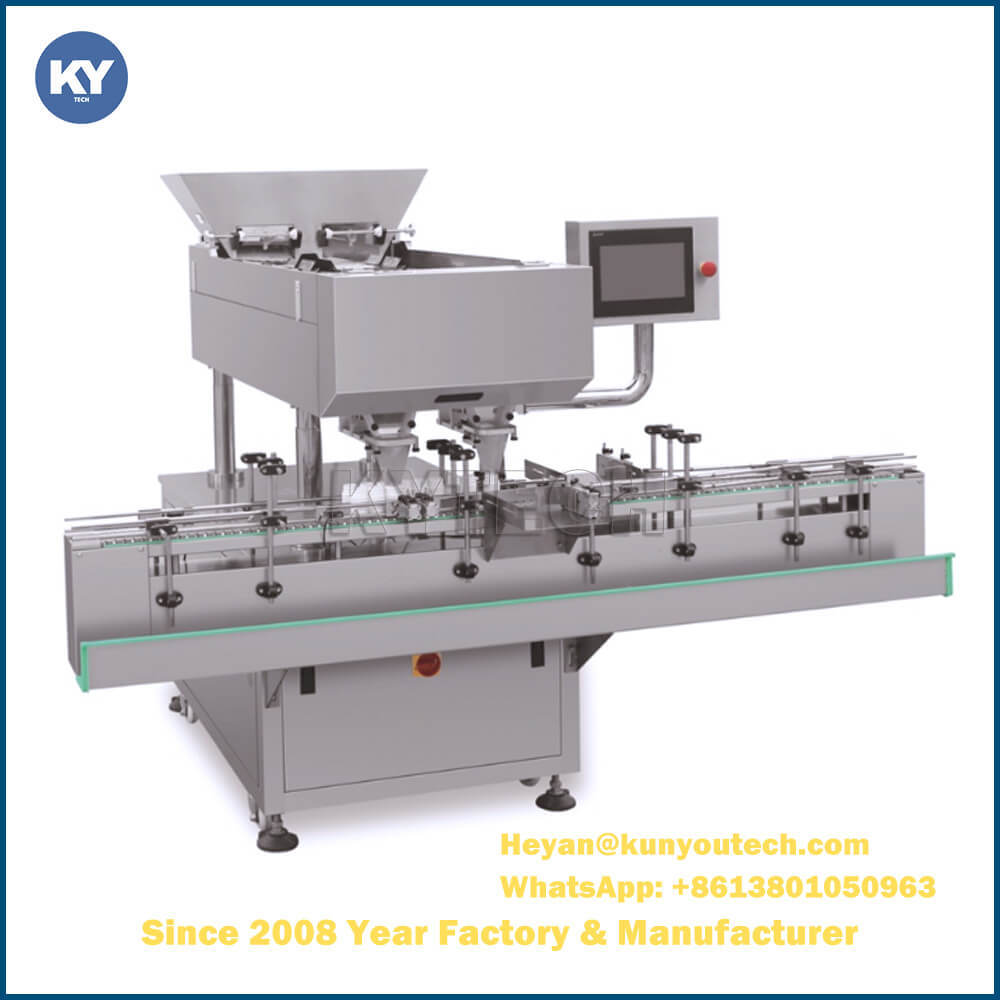

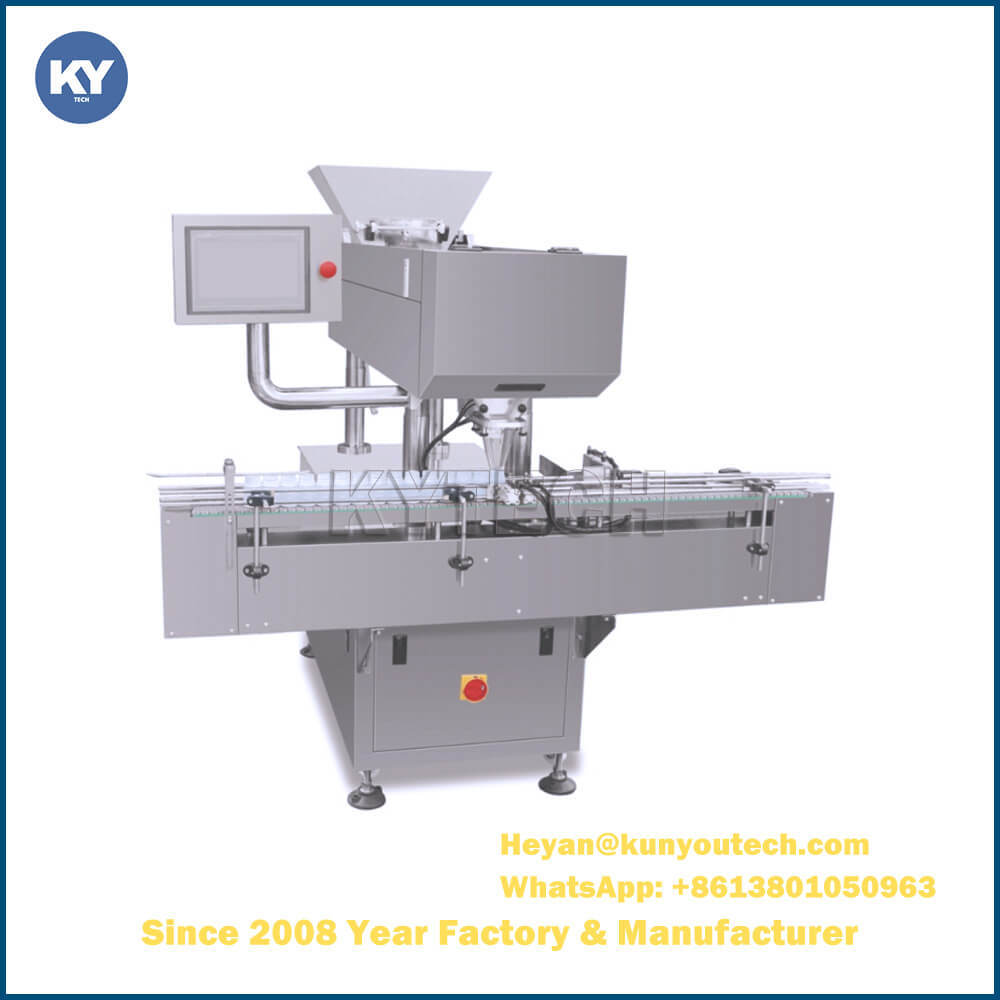

Softgel Counting and packing SL30 Machine for the capsule, tablet

Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.

We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider. Especially in veggie gel capsule.

Kun You is keeping good cooperation relationship with companies from USA, Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.

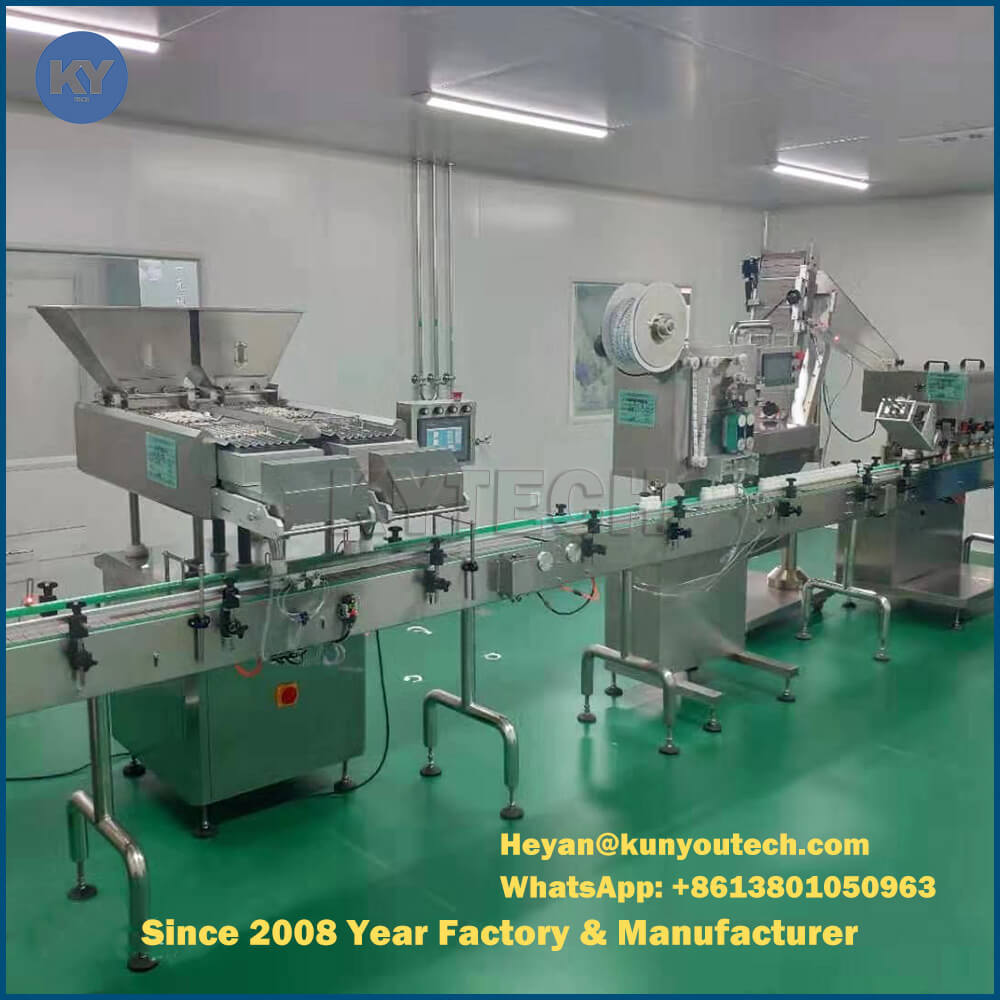

1. Production Line Parameter

• Fixed installation location of machine: Solid preparation department
• Usage: suitable for granule, pellets, hard capsules, soft capsules, tablets (tablets, sugar coated tablets, round tablet, and special-shaped tablets) and other solid products or food which is suitable for counting.

Operating Conditions:

• Environment Temperature(℃): 21±3
• Relative Humidity: 45%-65%
• Power Supply: AC220V, 50HZ
• Measurement Accuracy: beyond national standard
• Operating Noise: ≤65Db

• All Chinese operation menu, easy to learn, easy to operate.
• Adopt country’s most advanced DSP digital display control system: high speed, wide range of application.
• The key components using original components from Europe and America or Japan.
• Perfect quality assurance system.
• Timely and thoughtful after sales service system.
• Electric wire cable supporting in line with the requirements of GMP / air line slot, and the whole line in a workshop is connected with centralized power supply and air supply.

2. Power Source Standard and Parameter of Each Machine

Technical data

Features:

1. Usage: suitable for soft capsules/ softgel, hard capsules, tablets, special-shaped tablets and other solid tablets.
2. According with the GMP standard, the part contact with medicine adopt AISI 304,306 stainless steel.
3. Fastening structure, electrical control parts are sealed, avoiding drug powder affects the working life of electrical components.
4. Automatic detection,when no bottle or bottle fall down automatically shutdown.
5. Infrared scanning electric eye with function of automatic filling, and limit alarm and shutdown.
6. The Matrix type electric arrangement design make sure the detection channel open wide,which is also suitable for small size pills counting. Some counting machine from other factory have gap between the infrared receiving terminals, those gaps may cause the counting is not accurate.
7. 60/120 machine adopts the automatic lifting system, other machine lifting by hand.

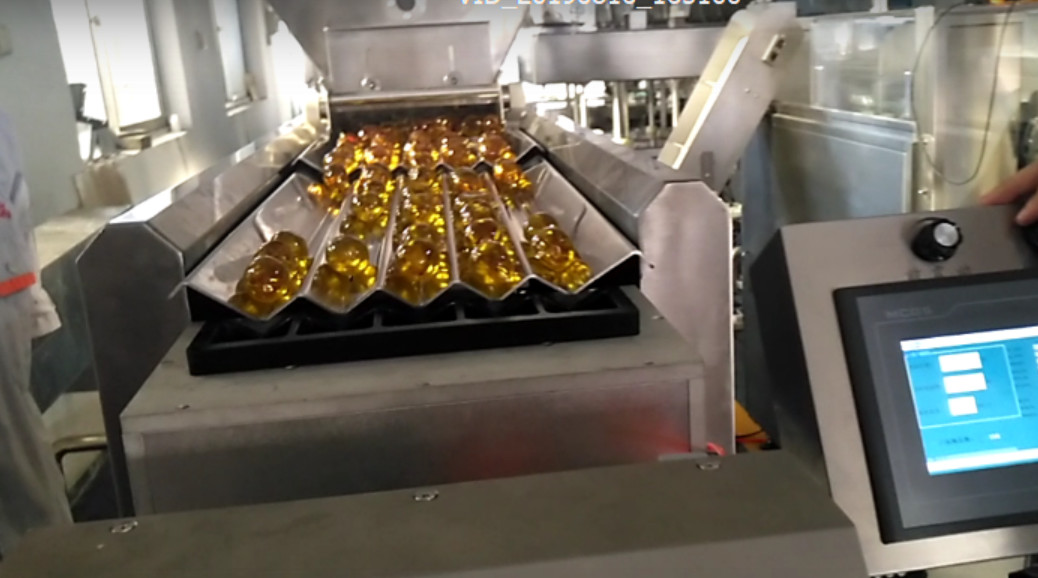

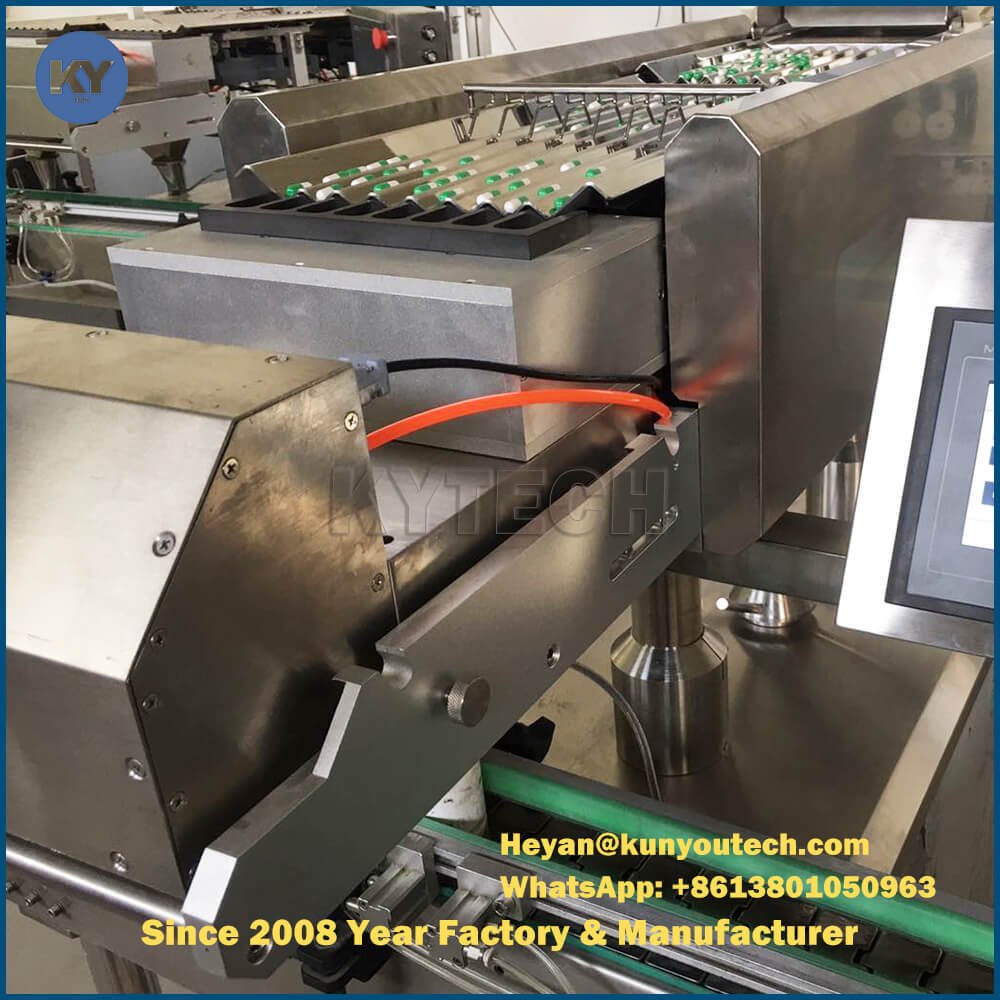

Feeding mechanism:

The original is casting vibration plate, While it is vibration plate instead of sliding in new design. It is much Faster, better stability. Using linear vibrating disc electromagnetic oscillation,so the vibration amplitude can be adjusted. With Higher speed to guarantee that the separating grains faster.

With DC vibrator, Capsule vibration is much stable, It can make the grain (including irregular tablets) move smoothly. Grain sliding orbits adopts two layers of ladder type and lengthened track, grain layer by layer walk down, The distance between grain and grain will be larger thus can avoid them overlaps.

Counting device

It is with full set of original pneumatic components, especially using the electromagnetic valve island integration, to ensure the accuracy of bottling.Special valve cylinder, and solenoid valve control group and other supporting parts, all sealed, avoid drug dusts affect the use of electrical components, prolongs the service life, not easy to damage.

Specially designing suction device

Two vacuum cleaner designing, dust suction holes (groove) on the left tail vibrator of as well as the begining of the tail which powder in it to collection and sucked out by a vacuum cleaner.

The vacuum tube according to aerodynamic principles of scientific design, can reduce the influence of dust.

By controlling the size and position of the wind inlet, air inlet, air volume, the dust is effectively sucked.
