SS304 Softgel Encapsulation Producion Tumble Dryer Machine

SS304 Softgel Encapsulation Producion Tumble Dryer Machine

SS304 Softgel Encapsulation Producion Tumble Dryer Machine
video
SS304 Softgel Encapsulation Producion Tumble Dryer Machine
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description
Material: Metal SS304 Warranty: 12 Months
Suitable For: CS Games Product Name: PIINTBALL GAME MACHINE
Usage: Amusement Parks Game Type: Paintball
High Light:

encapsulation producion tumble dryer machine

,

softgel encapsulation tumble dryer machine

,

SS304 tumble dryer machine





Auto Tumble dryer basket clean machine

Quick Detail



Filling Tolerance

< ±1.5%

Material

304 SUS

Application

Paintball Making for CS real man game

Weight

600kg

basket size

Ф500X1000mm

Capacity

20min/cag



Product Description

SS304 Softgel Encapsulation Producion Tumble Dryer Machine 0

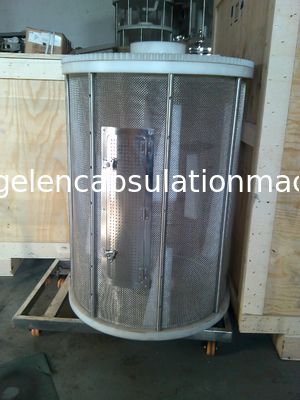

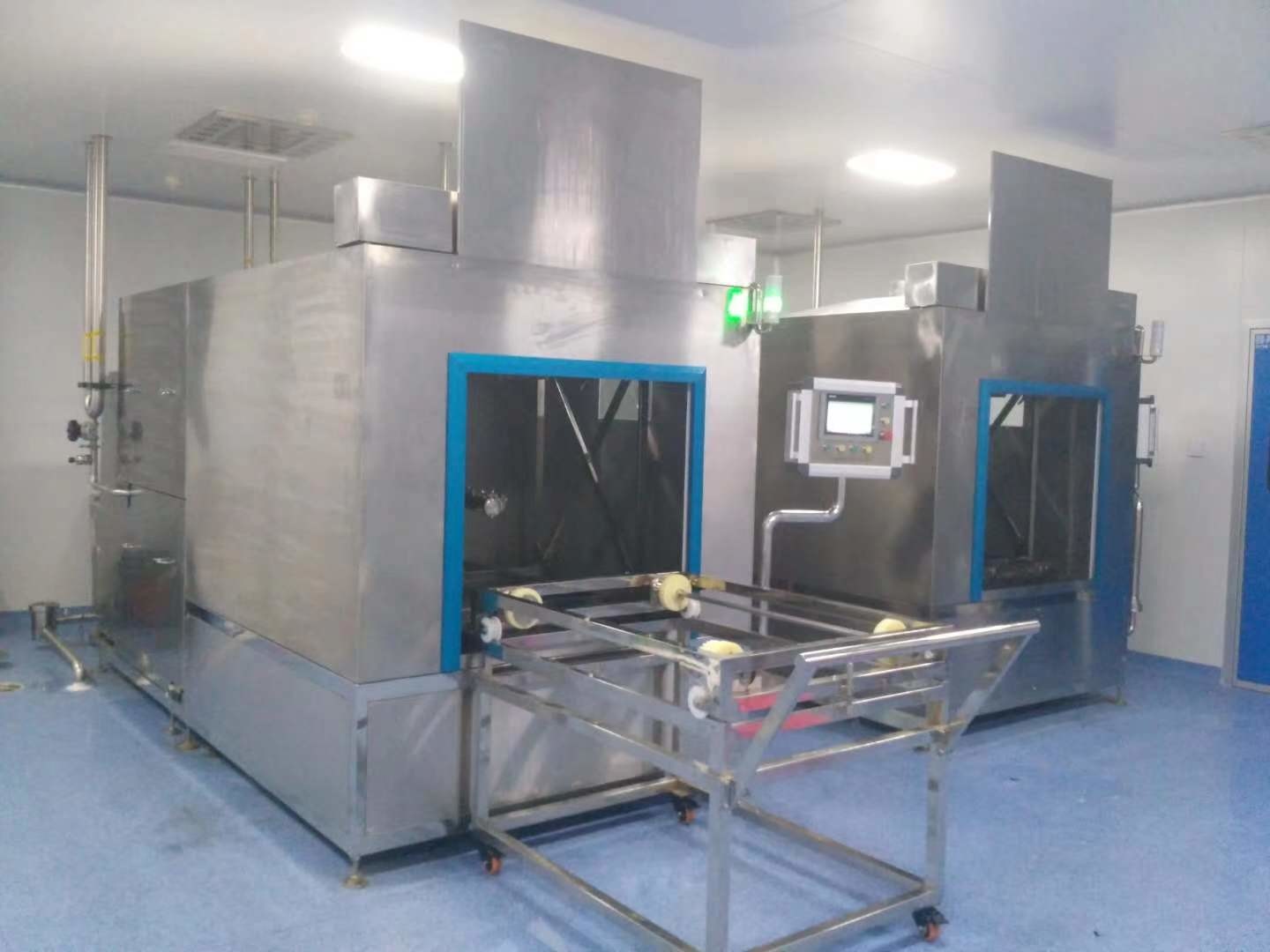

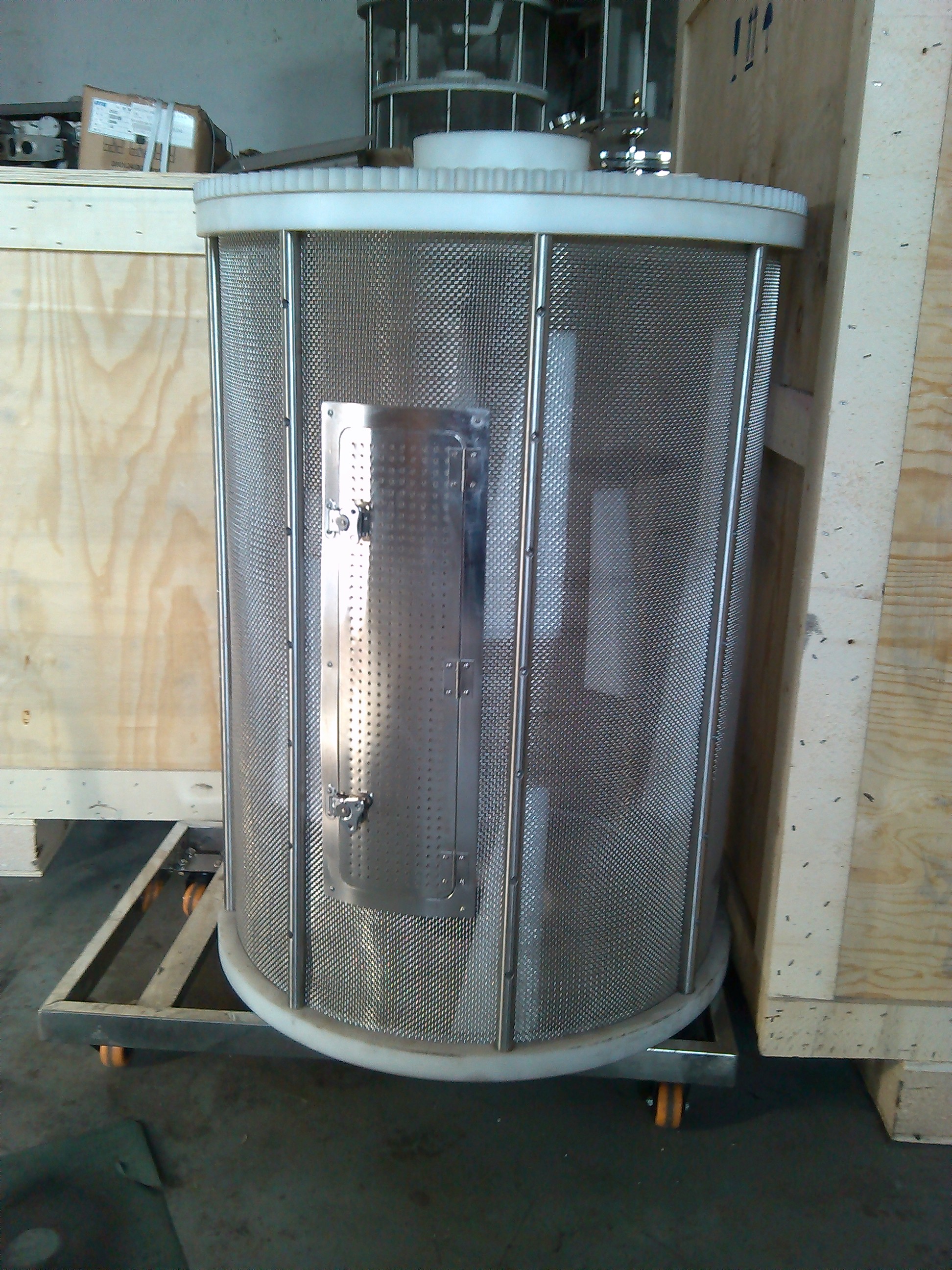

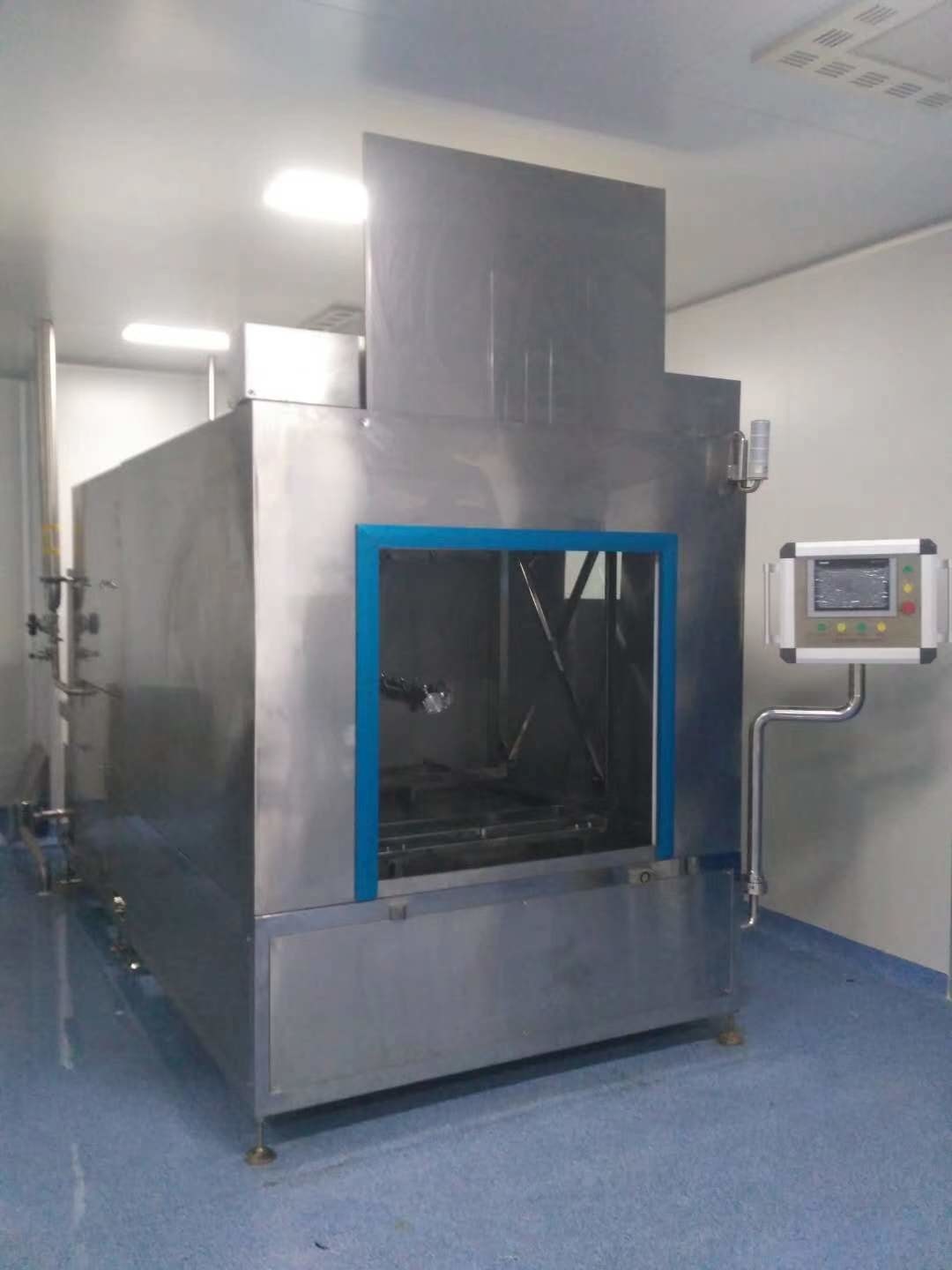

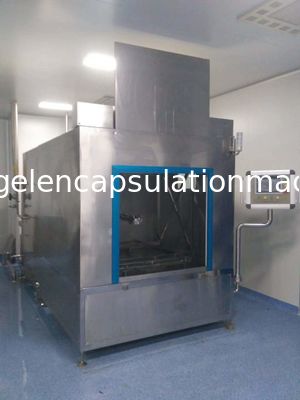

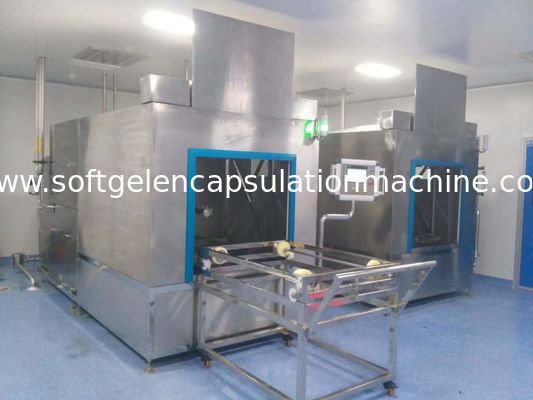

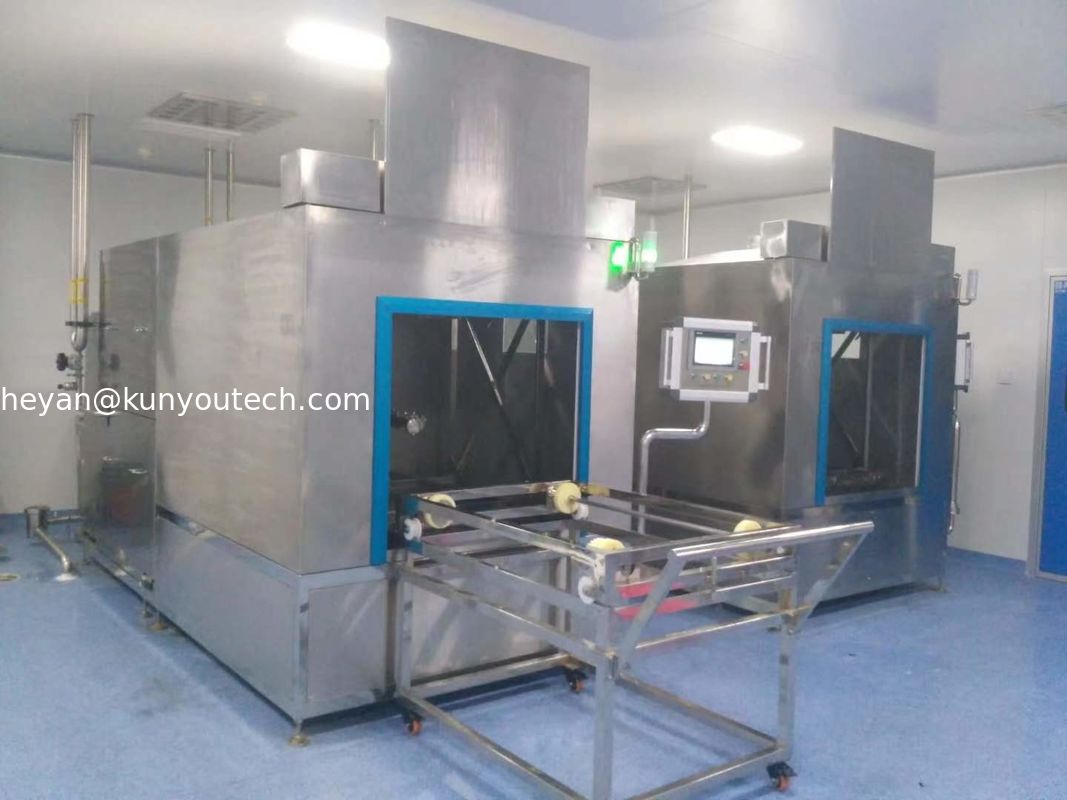

The QXZL-792X1120 rotating basket cleaning machine is a cleaning system which dedicated to cleaning, removing the oil and impurities the surface of the capsule pill rotating basket . With 316L material in pipes, water pumps, cleaning nozzles, and rinsing nozzles for spraying. With the air knife drying process adopted, and the conductivity detection device detects the cleaning effect, so that the cleaning is more efficient. The entire cleaning process is automatically completed by the equipment, The basket can achieve the required high cleanliness and after the cleaning, rinsing and drying,





Device parameters

1) Air knife-material is 304.

2) Cleaning the working chamber-With welding plate of stainless steel. Which thickness 1.5mm on the inner surface of the chamber. Tank size 1770×1640×1335 (height) mm

3) Configure glass windows.

4) Control system-touch screen, PLC automatic control.

5) Cleaning pump-stainless steel 316L material. Power 5.5KW, flow: 8m³/h

6) Rinsing pump-stainless steel 316L material, power 5.5KW, flow 4m³/h

7) Cleaning the water tank-welding on the inner surface of stainless steel. The thickness of the plate is 2mm.

8) Rinsing water tank-stainless steel is 2mm in thinkness plate well welding in the inner surface .

9) Heating-built-in stainless steel heating rods, each heating rod 3.2KW.

10) Piping-The pipeline is made of stainless steel 316L.

11) Exhaust vent-the top of the working chamber is equipped with an exhaust vent to adjust the air pressure of the cleaning working chamber in time.

12) Total heating power-28.8KW

13) Total power of equipment-52KW

14) The overall dimensions of the equipment: 3710X1640X2190 (height), the net height of the equipment installation site is not less than 3m

Product advantages

Machine button operation panel diagram

Schematic diagram of pipeline flow on touch screen

Delay setting of valve control interface

Motor control interface delay setting

Historical trend interface record

Multi-program real-time alarm and alarm history record

Flexible setting of the touch screen parameters

Electric heating temperature can be setting on the touch screen

Multi-level password management

Cleaning fluid tank temperature mileage setting


Installation diagram

Hot sale plastic tray washing machine

Hot sale plastic tray washing machine

The inner tank is slope shaped.

There are slide ways under every water tank.

Every water tank is separated and can be drawn out, which is convenient to clean and operate.

There is a filter device on the side of inlet to collect the impurities on the crate, which is to keep the surrounding clean. Hot sale plastic tray washing machine
Hot sale plastic tray washing machine

The first and second stage uses horizontal stainless steel centrifuge pump,

which is made by Nanfang, one of the best manufacturer in China.

The exhaust vent: moisture made by hot water discharges from the exhaust vent,There are 3 layer high temperature resistant silicone block curtain on the inlet to inhibit the water from splashing to protect the operators. Hot sale plastic tray washing machine
Hot sale plastic tray washing machine

Big flow and small nozzle make a high pressure to make a good cleaning effect.

Clear water rinsing system makes the ideal clean effect.







Application scope and customer caseSS304 Softgel Encapsulation Producion Tumble Dryer Machine 7





Packaging & Shipping

Packaging Details

In wooden box

Delivery Time

Shipped in 30 working days after payment

Hot sale plastic tray washing machine





Our Services



Shipping>>>

For the shipping,you can choose the sea shipping



After-sale service>>>

1.12months guarantee for our machines

2. 24 hours technical support by email,fax or calling.

3. free training in our factory.Also we can dispatch our technician to customers place if customer agree to air ticket,food and hotel.



FAQ

Q1. What's your payment terms?
TT, LC, West Union, by the way ,we usually quoted for FOB tianjin port , and we do CIF or CFR term.
Q2. What's your delivery time?
30 working days after receive downpayment


Q3 how about your after-sale service ?

1.two-year warranty for machine

2.before shipment ,we will test and adjust the equipment ,so you can use it directly after received it .

3.Operating video &English manual can be sent to our clients for better to use the machine .

4.all kinds of requently used parts are supplied from us from all the year round .

Company Information



Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also precisely improved. The ancillaries are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil. a variety of specifications to meet of different customers.
The company has a professional engineering and technical personnel, installation and commissioning engineers in accordance with the needs of customers to provide plant design, process layout, equipment production installment and commissioning of new products and other comprehensive support. The company has won the majority of recognition with high-quality and good after-sales service.
