PLC Controlled Softgel Encapsulation Machine 3kW 220V/380V

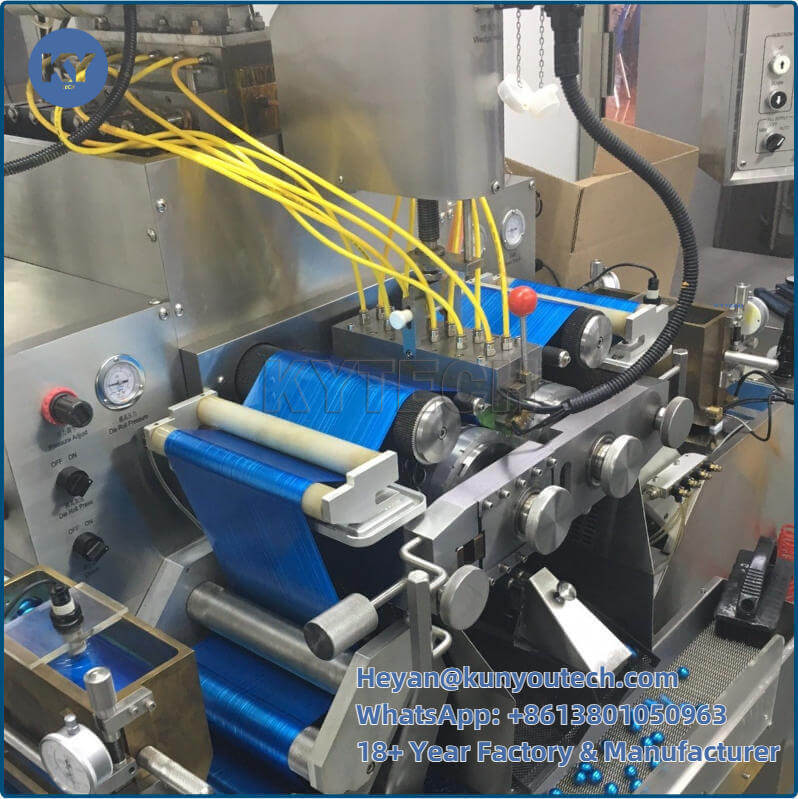

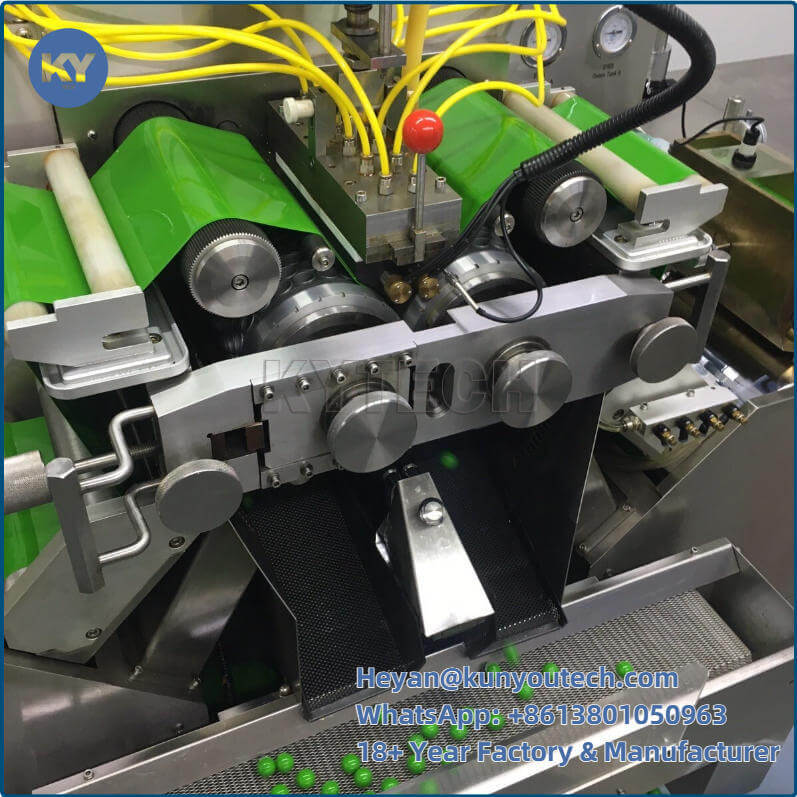

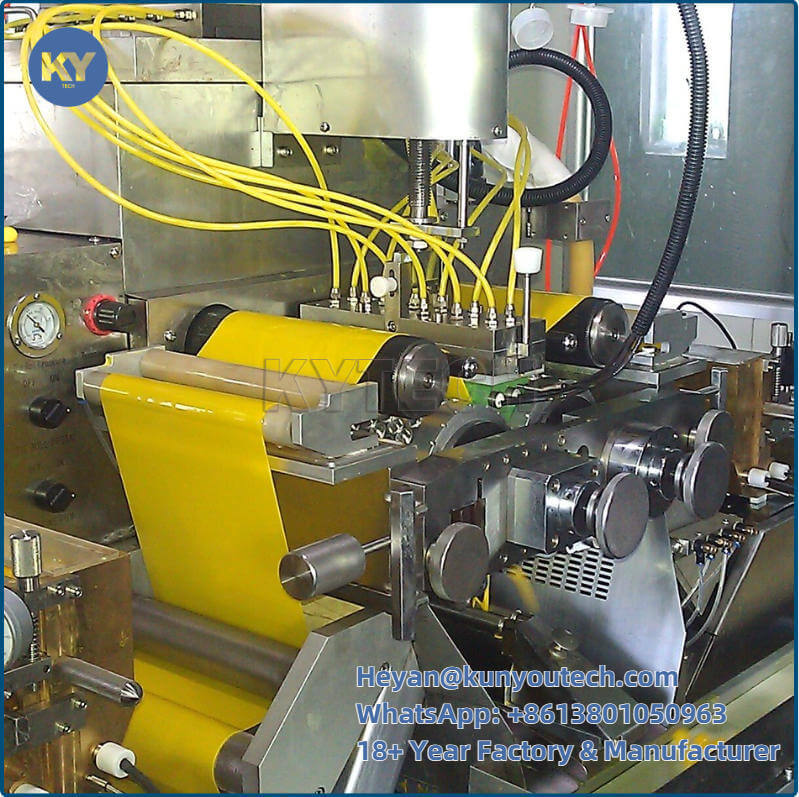

The S403 Roll Type Soft Capsule Automatic Production Line is designed for precise injection and encapsulation of oil liquids, suspension liquids, or pastes within gelatin, producing various sizes and shapes of sealed softgels.

This production line can be adapted for vegetable gelatin capsule production with minor modifications. We have successfully implemented this solution for customers in the USA, Poland, and Denmark.

• Main machine
• Tumbler dryer
• Fill material system
• Pneumatic thermos plastic barrels

• Filling tolerance <±1.5%
• Maximum single plunger dosage: 2ml
• Die roll speed: 0-5rpm, stepless adjustable
• Main motor power: 0.75 Kw
• Main machine power: 3kw
• Power options: 3 Phase 220v/380v/415v, 50hz/60hz
• Cooling drums cooled by both water and air
• Compressed air consumption: 50nl/h
• Gelatin consumption: 2.5l/h (at 3 rpm)
• Material consumption: 4.6l/h (at 3 rpm)

• Lubrication oil consumption: 70g/h (based on 3 rpm)

Original: Germany

• Maximum single plunger dosage: 2ml
• Dosage deviation <±1.5%

Includes wedge, distribution plate, and other components.

• Die rolls made from aviation-grade high hardness aluminum alloy
• Injection wedge made from copper and coated with PTFE
• Meets GMP requirements

Brand: Schneider

• All contactors, relays, breakers, switches and knobs are Schneider brand
• Control system uses PLC control
