| Place of Origin: | China,Beijing |
| Brand Name: | Kunyou |
| Certification: | CE,ISO9001 |
| Model Number: | S403 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | Wood cages |
| Payment Terms: | T/T， L/C, Western Union, MoneyGram |
| Application: | Capsule | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Warranty: | 1 Year | Material: | SUS304/316L |
| Product Name: | Softgel Encapsulating Machine | Control: | PLC Control |
| Name: | Softgel Encapsulation Machine | State: | New |
| High Light: | soft capsule oil paintball encapsulation machine,paintball encapsulation machine plc,paste filling paintball production line |
||

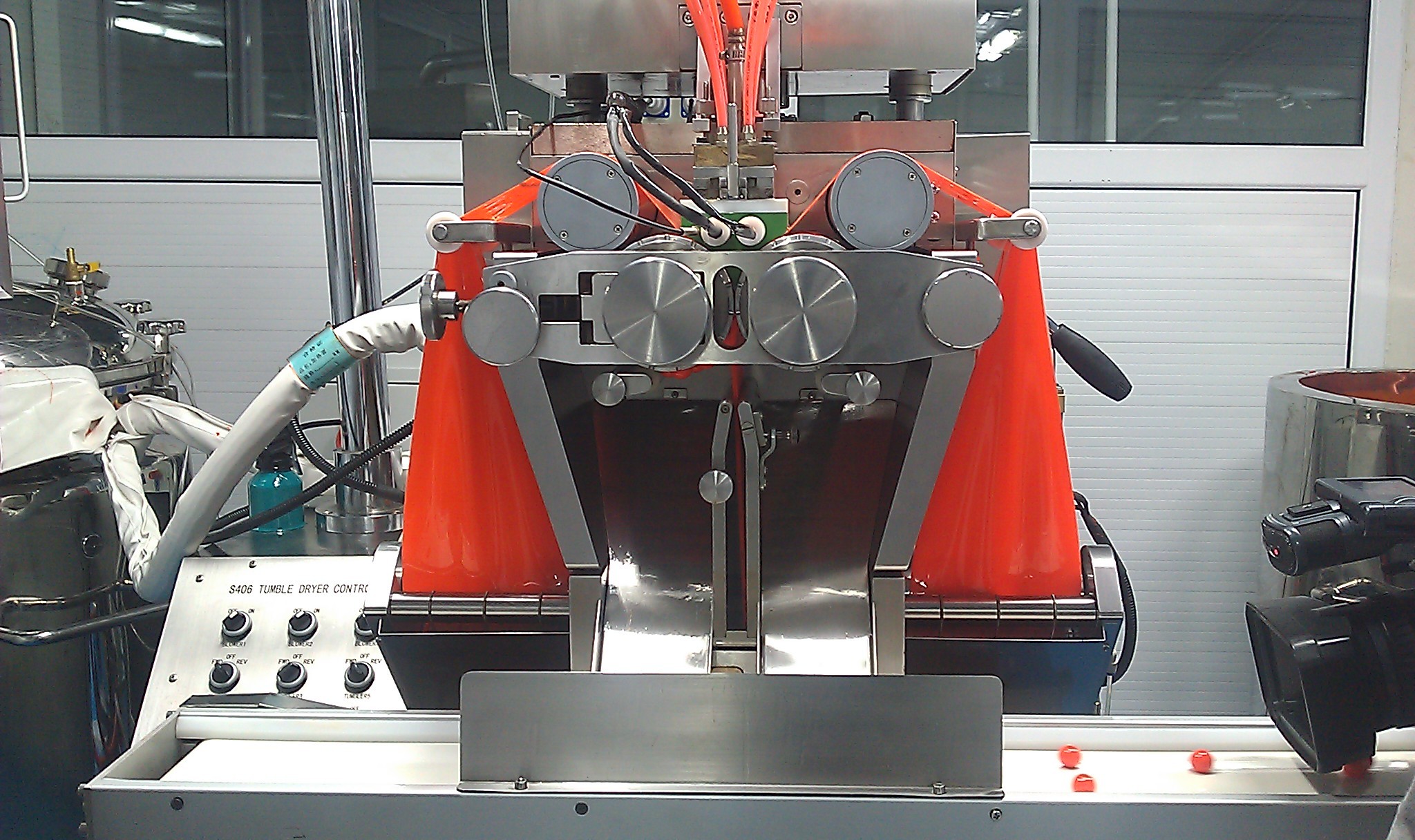

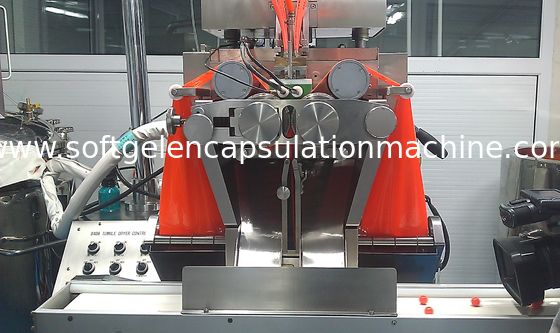

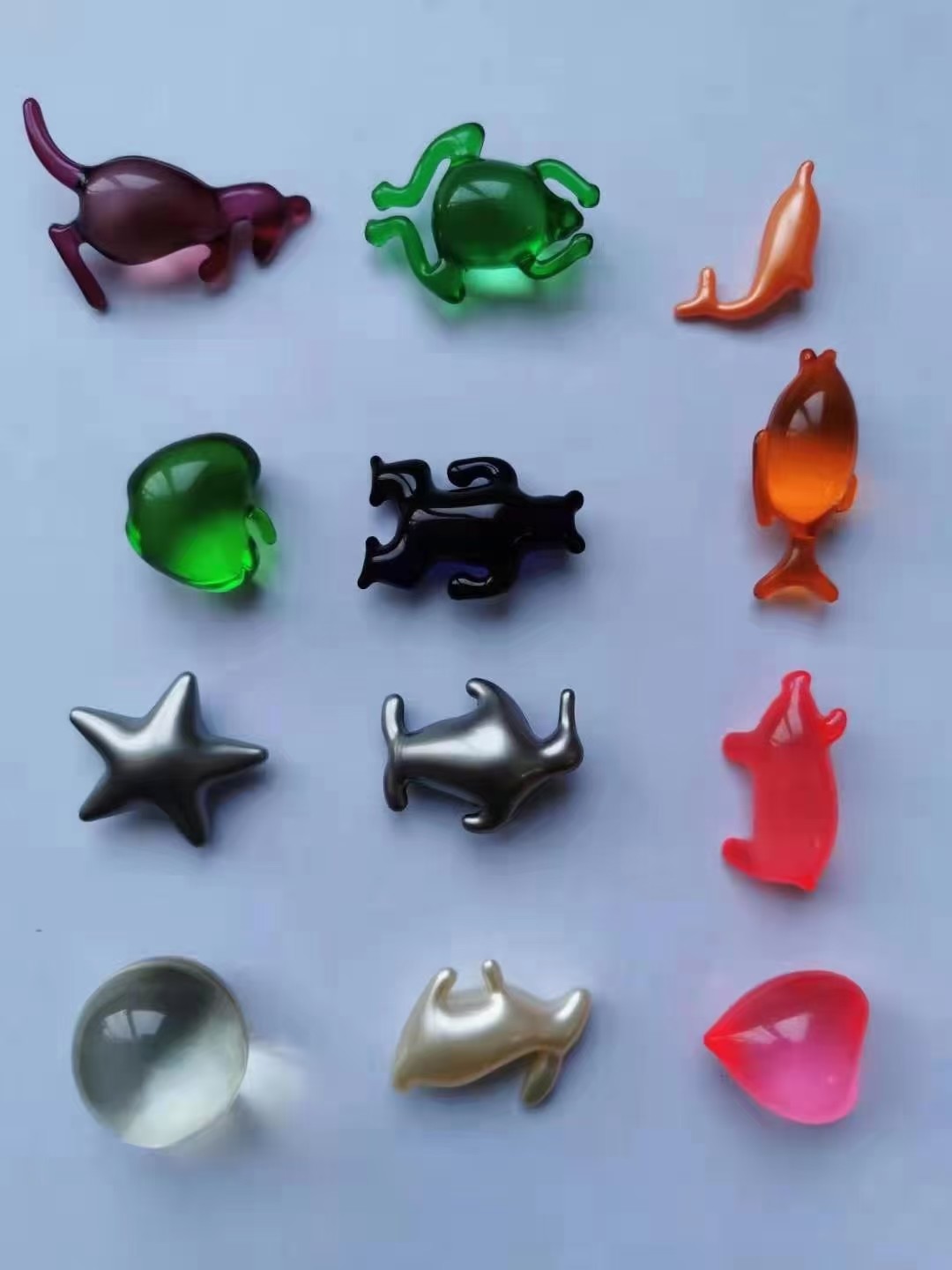

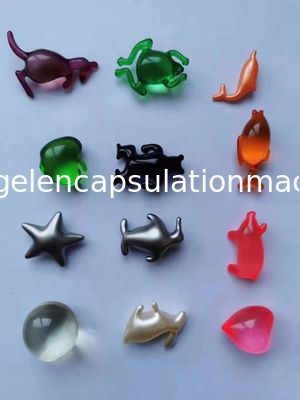

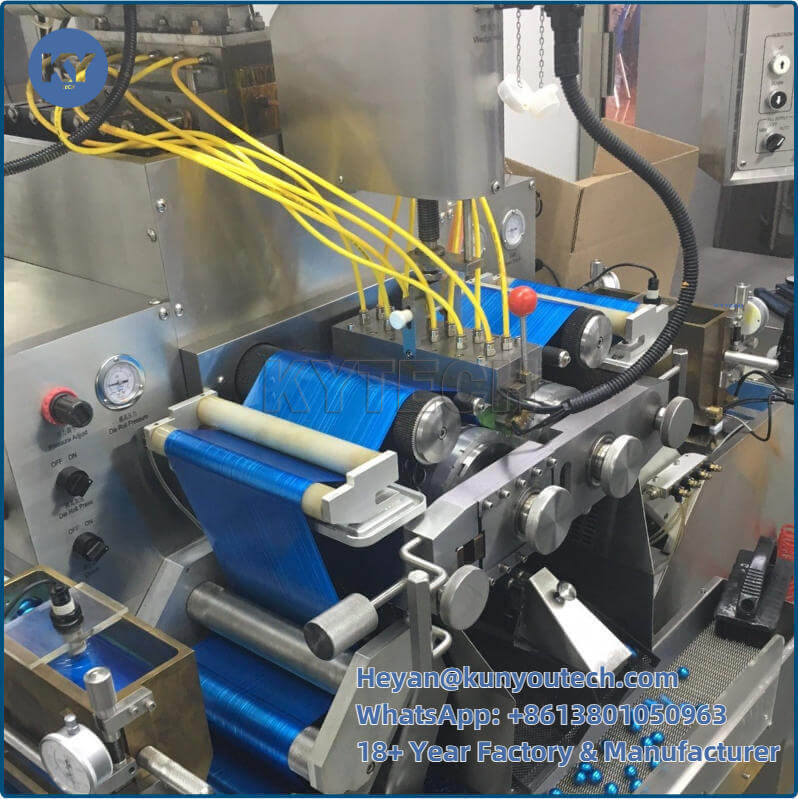

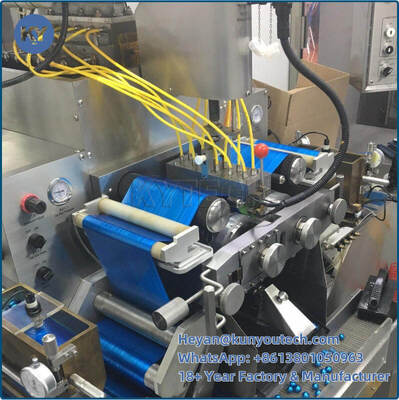

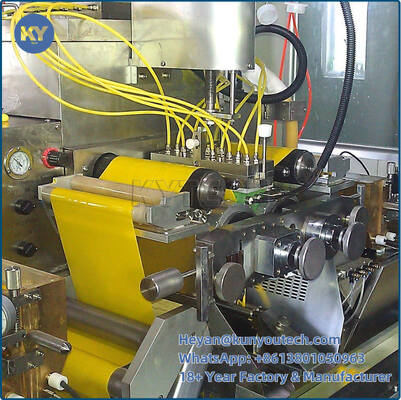

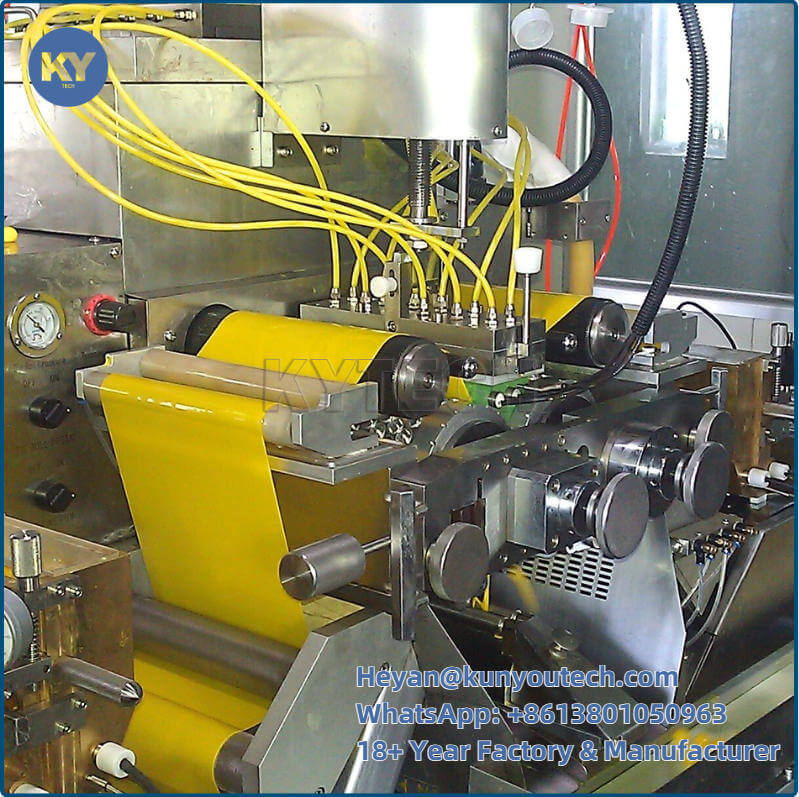

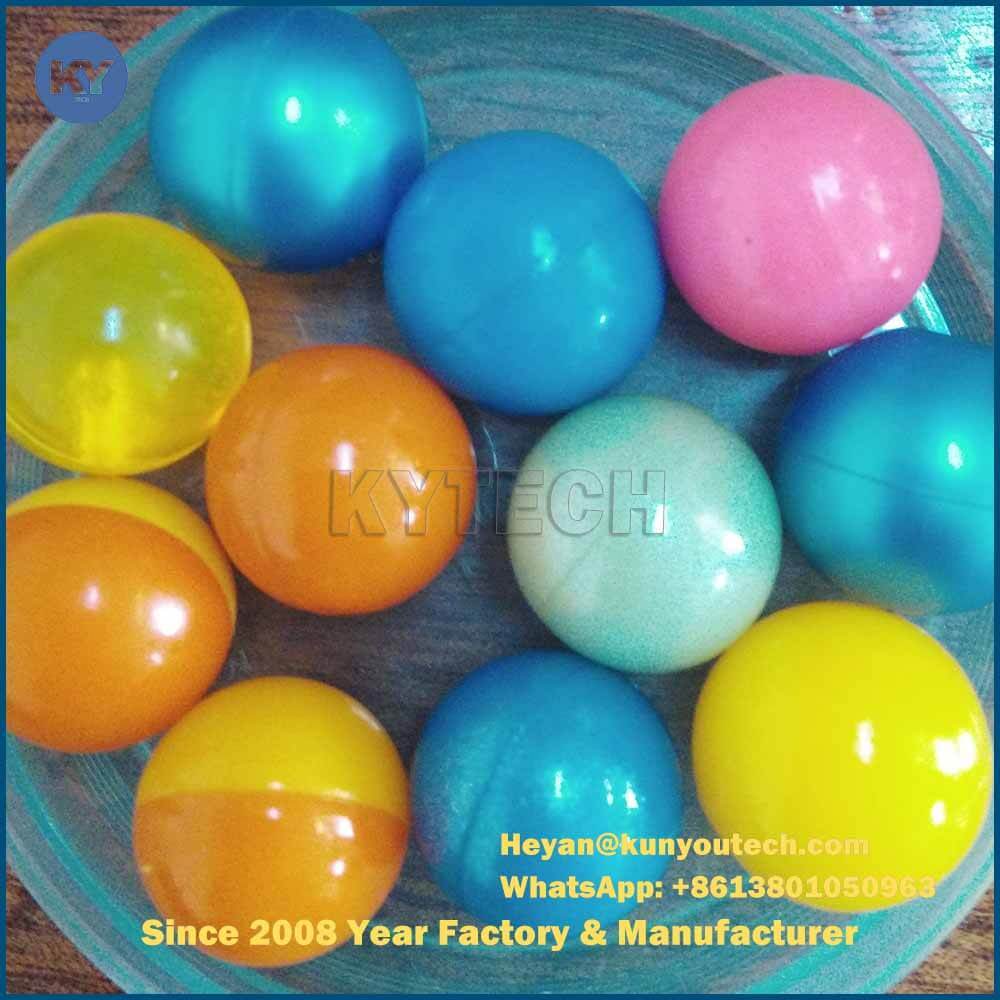

S403 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels.
The production line can be used for Vegetable gelatin capsule production with a little changes. We have helped many customers in USA ,Poland , Demark manufacturing the vegetable gelatin capsule successfully.
The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc. This machine is the most popular model. It used normal scale production.
|
SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
|
|||
|
Engine
|
Engine model
|
Kw/rpm
|
15.5/4
|
|
Capacity
|
22800
|
@4rpm
|
|
|
Die Roll Size
|
φ80mm
|
100mm
|
|
|
Main performance parameters
|
Main performance parameters
|
2050×1200×1850
|
mms
|
|
Weight
|
900kg
|
|
|
|
Plunger numbers
|
10
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Filling tolerance <±1.5%
Maximum single plunger dosage－ 2ml
Die Roll Size — Ф80x100mm
Die Roll Speed — 0~5rpm, stepless adjustable
Main Motor Power— 0.75 kW
Main Machine Power — 3kW
Power — 3 Phase 220V/380V/415V,50Hz/60Hz
Overall Dimensions(L x W x H) — 1650 x 800 x 2050mm
Weight — 600kg
The cooling drums are cooled by both water and air.
Consumption of compressed air — 50NL/h
Consumption of gelatin — 2.5L/h( at 3 rpm)
Material consumption — 4.6L/h(at 3 rpm)
Name: Lubirication
Lubrication oil consumption — 70g/h(Based on 3 rpm
Name: Pump
Original: Germany
Maximum single plunger dosage－ 2ml
Dosage Devation <±1.5%

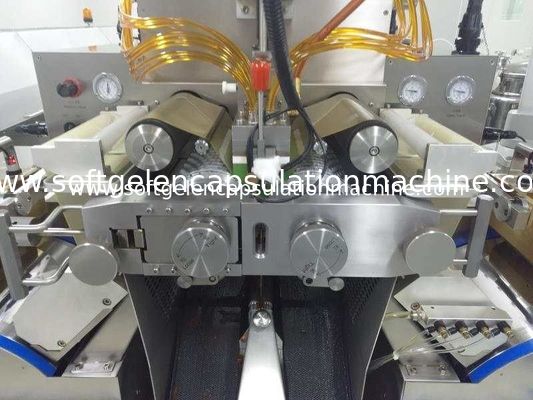

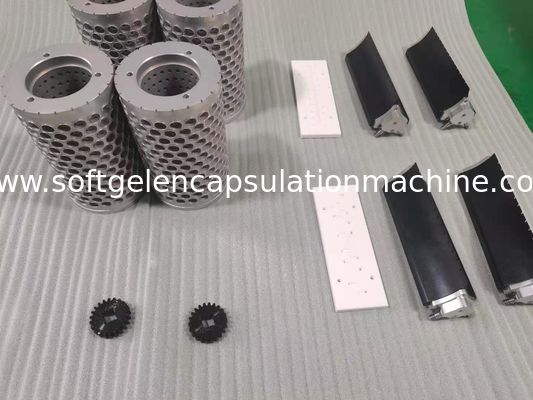

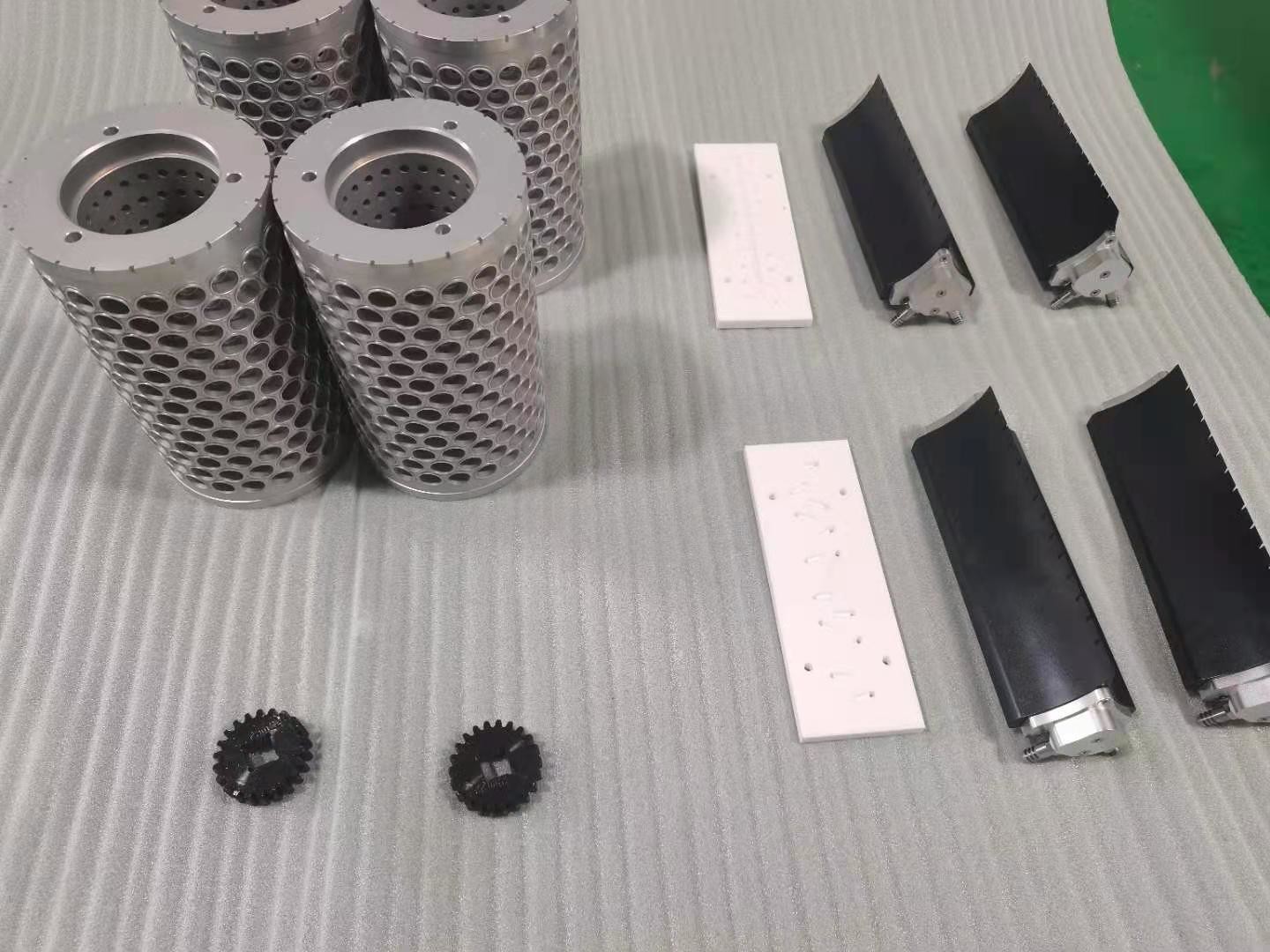

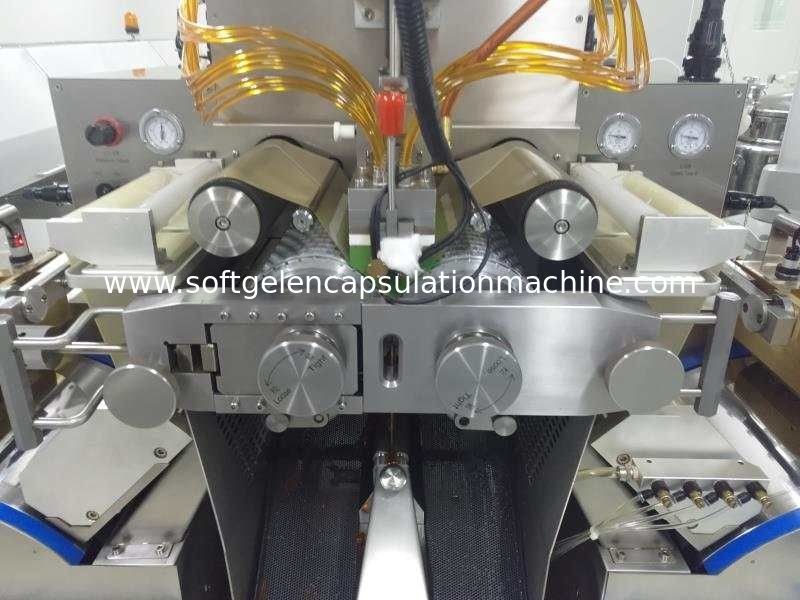

Name: DieRoll
With wedge, distribution plate, etc.
Die rolls are made from aviation high hardness aluminum alloy, injection wedge made from copper and coated with PTFE, meet GMP requirement;
Name: Electricity Part
Brand: Schineider
All the contactors, relays, breakers, switches and knobs are Schneider brand.
Control system adopts PLC control.
|
Packaging
|
|
|
Size
|
2050×1200×1850
|
|
Weight
|
900kg
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
