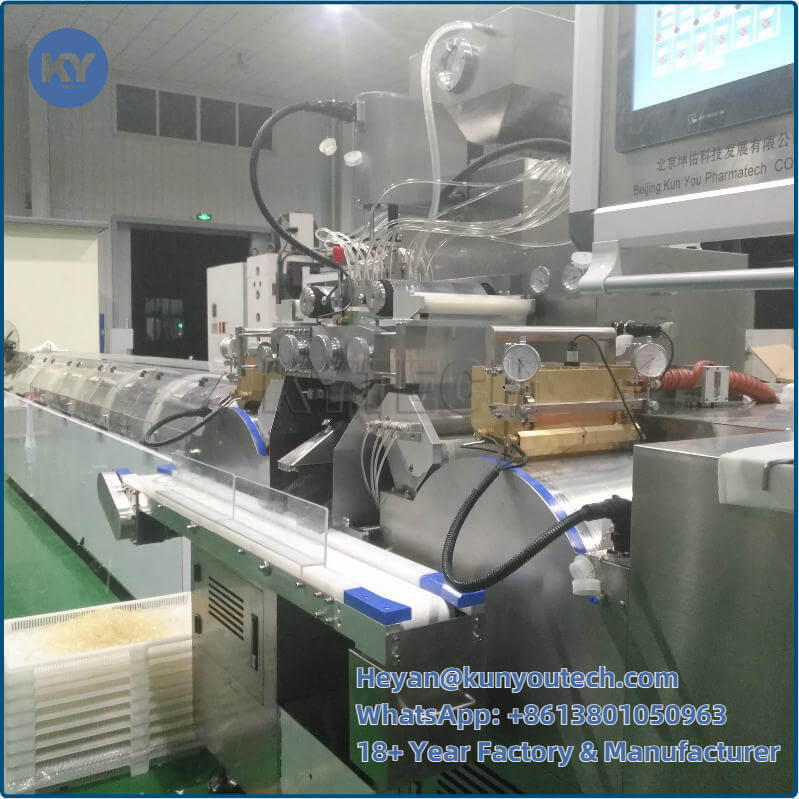

20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication

China 20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication supplier
20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication supplier 20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication supplier 20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication supplier

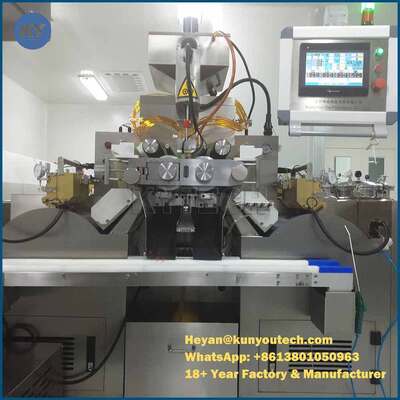

Large Image :  20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610PB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description





20kw Automatic Paintball Encapsulation Machine With Gelatin Ribbon Lubrication





Quick Detail



Product Name

Large scale paintball making machine

Driven Type

Electric

Capacity

32000pcs /hour

shape

round

Application

Food, pharmaceutical, paintballl making machine

Control

PLC



Product Description

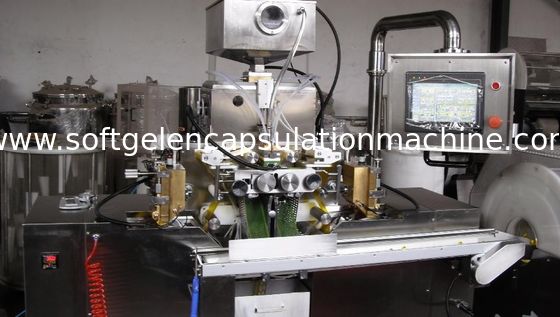

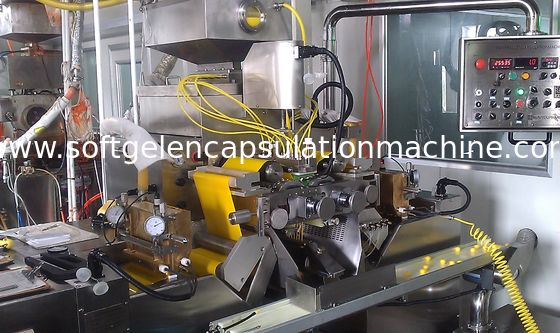

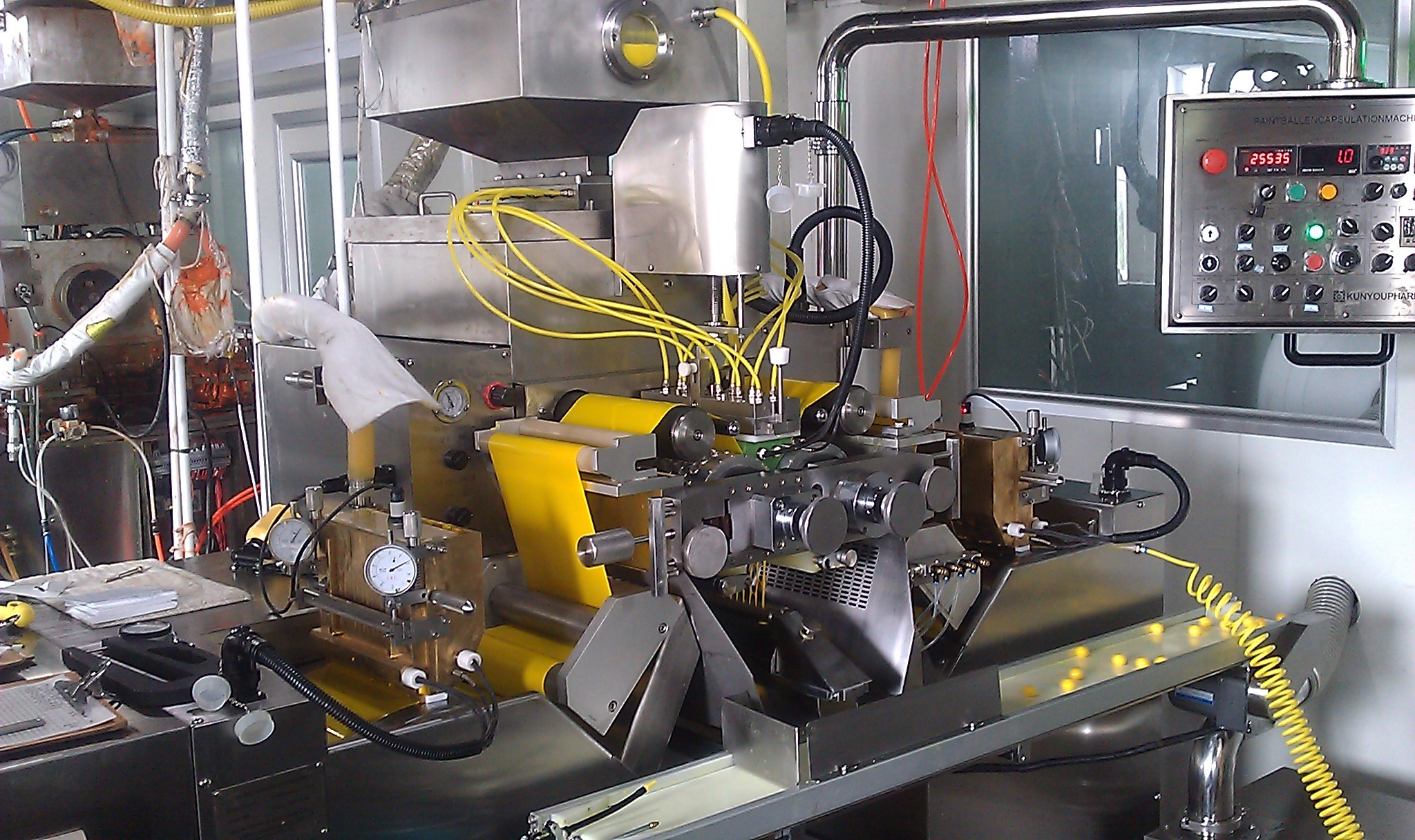

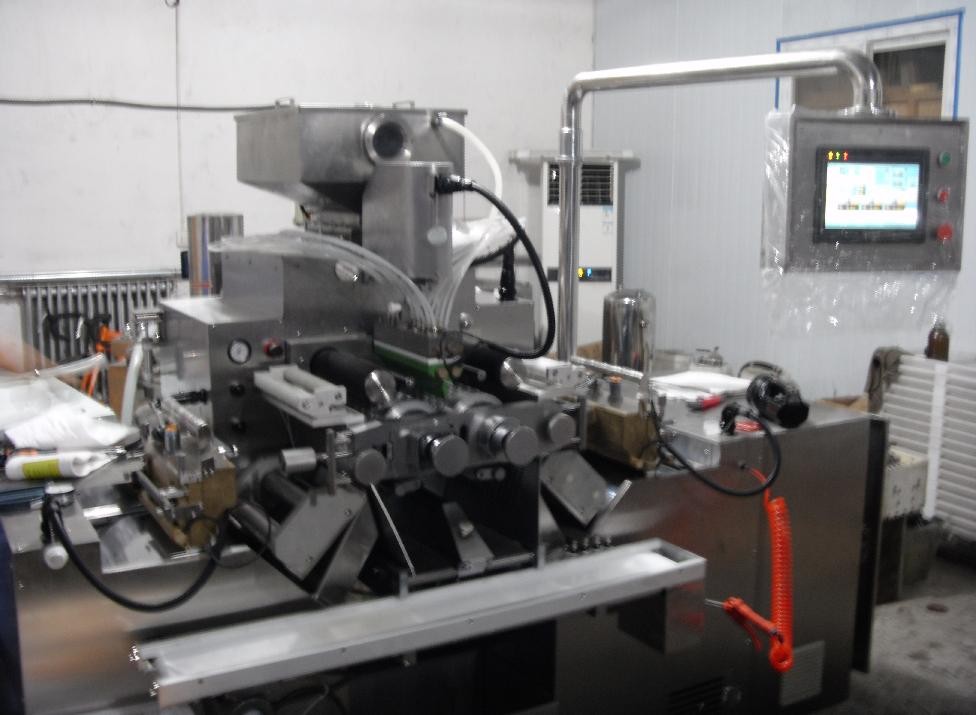

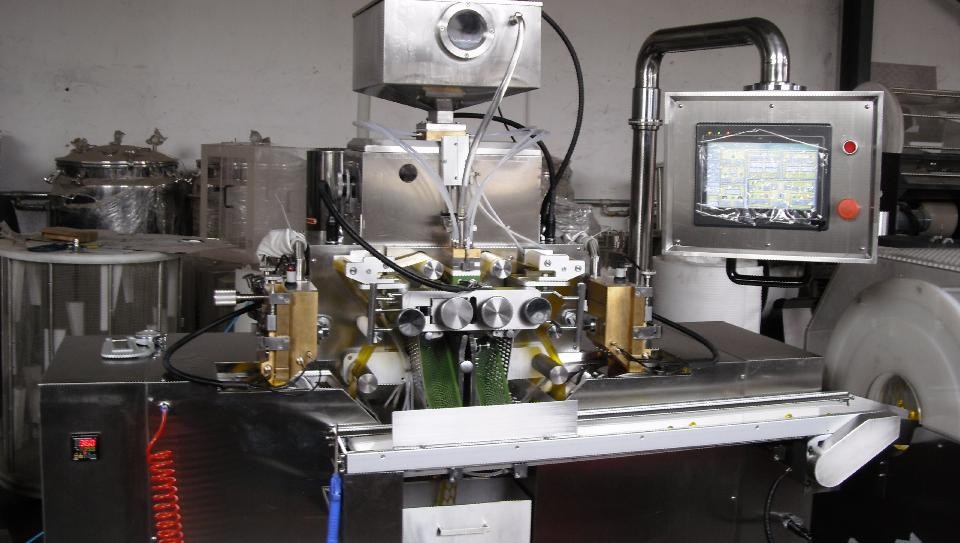

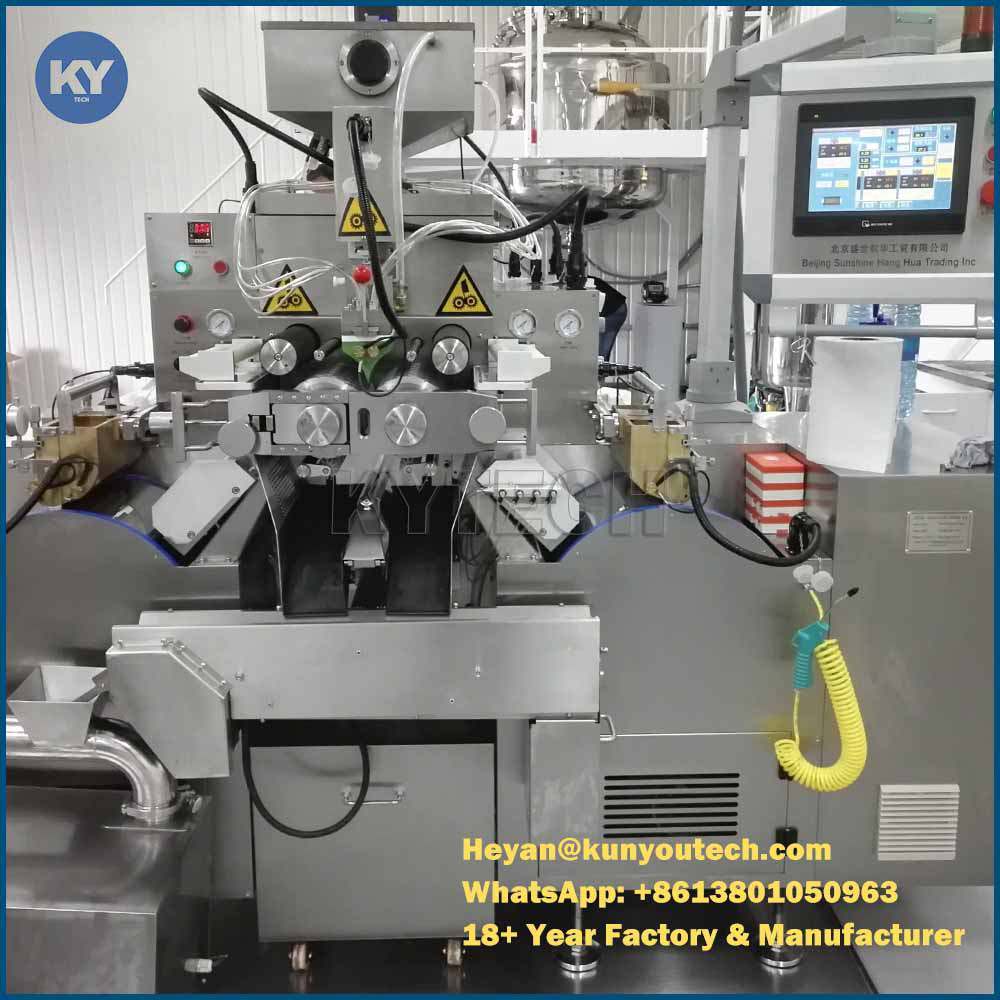

S610PB Paintball making machine is suitable for large scale paintball production. The machine adopts independent lubrication single adjustable lubrication, saving production cost for customers,



Specifically speaking, it has the following characteristics:



Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of  the 20 plungers are less than 0.005mm.


Specification


Model

S610PB

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20 kw

Control mode

PLC+Touch Screen

output

32000 pcs/hour



Competitive Advantages

1. Improve the efficiency of production largely
2. Compact and beautiful
3. Reduce the oil consumption
4. Save money for users
5. Low noise, run more smoothly
6. PLC+touch screen

Fully Automatic paintball making machine, Paintball Encapsulation Machine
