1200 kg Automatic Capsule Filling Machine With Smart Control / 12 Plungers

China 1200 kg Automatic Capsule Filling Machine With Smart Control / 12 Plungers supplier

Large Image :  1200 kg Automatic Capsule Filling Machine With Smart Control / 12 Plungers

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S407

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 60-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description





1200 kg Automatic Capsule Filling Machine With Smart Control / 12 Plungers





Quick Detail



Product Name

Softgel Encapsulation Machine

Power consumption

13 kw

Control Mode

PLC+Touch screen

Plunger Numbers

12

Dimension

880X2200X2000mm

Dosage deviation

<±2%





1200 kg Automatic Capsule Filling Machine With Smart Control / 12 Plungers



Product Description

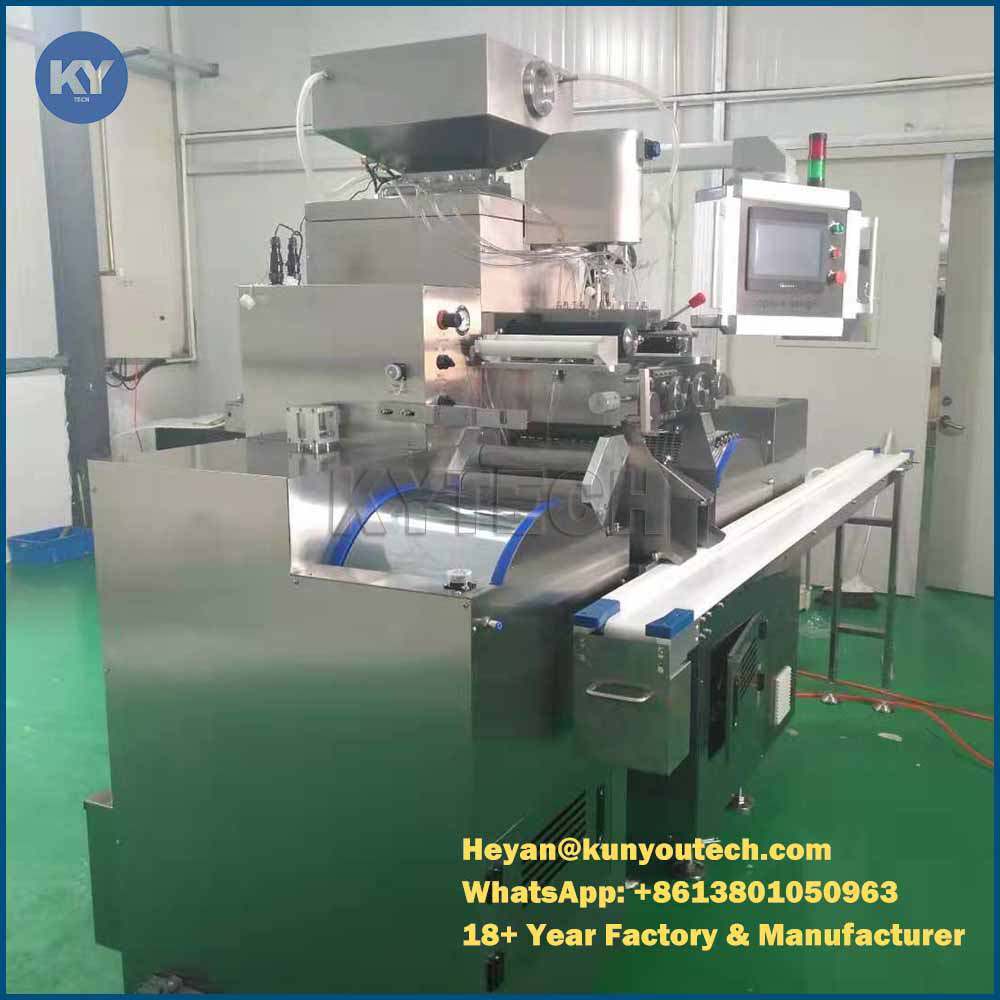

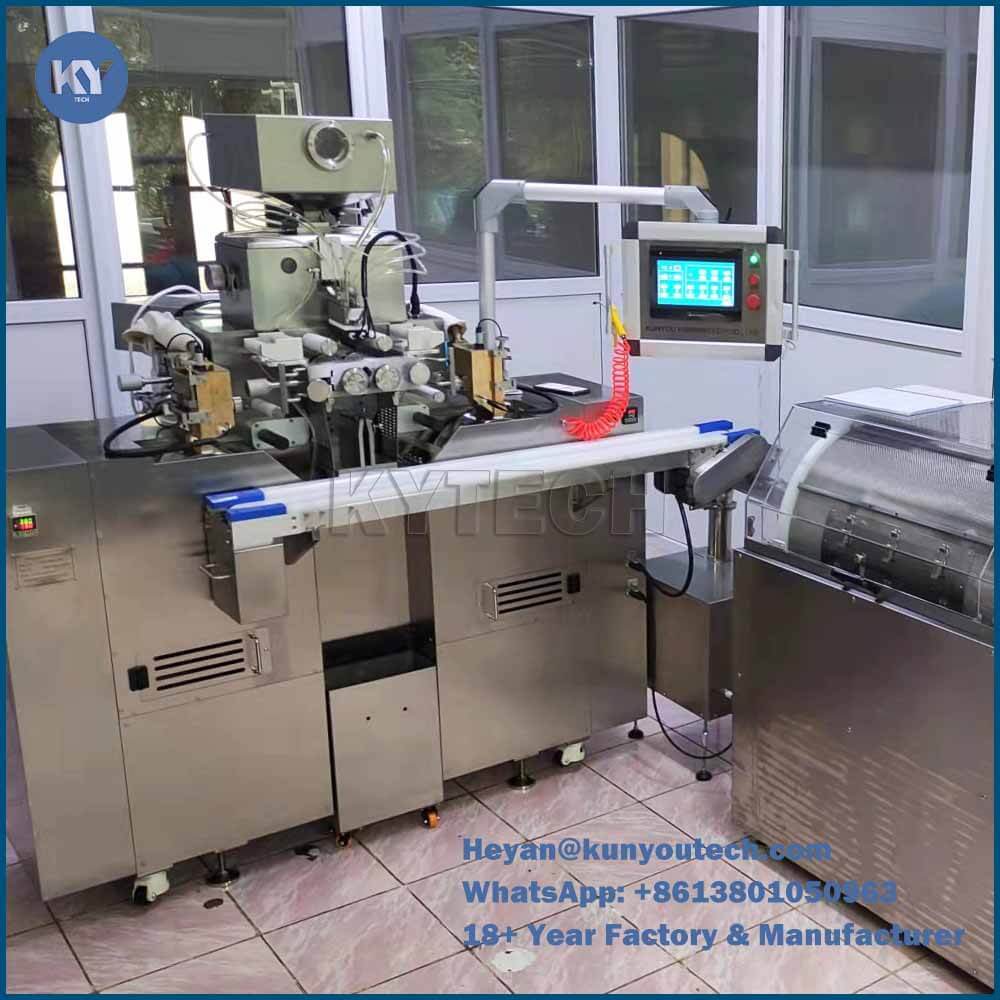

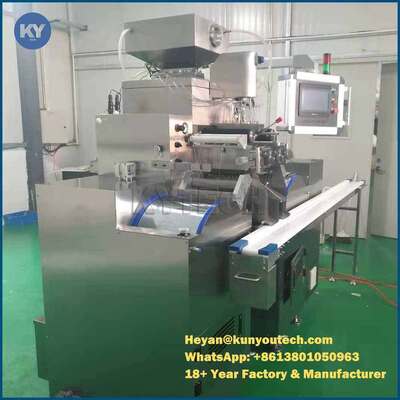

S407 adopts PLC operation, making operation more convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm, so users can choose the most proper rotation rate according to data of different material and techniques. Drying cycle is controlled by PLC unified, so users can regulate the cycle time conveniently. The tumbler dryer is designed with a device to remind operators to prepare well when discharging. S407 can realize the function of statistical statements and printing. The machine drive system’s lubrication pump is droved by motor alone, which greatly improves the lubrication performance when main equipment operating at a very slow speed. At the same time, it can reduce machine vibration, prolong machine overhaul time and save investment for users.



Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and universities.

Specification



Model

S407

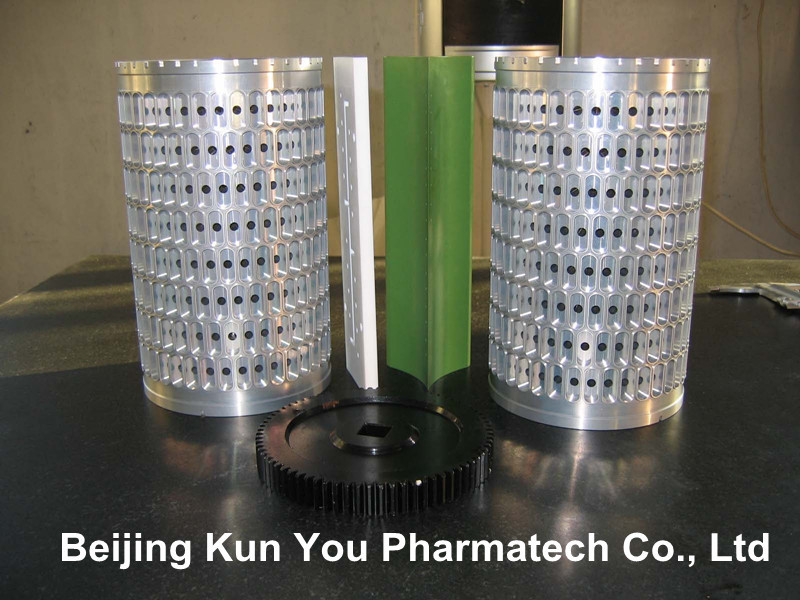

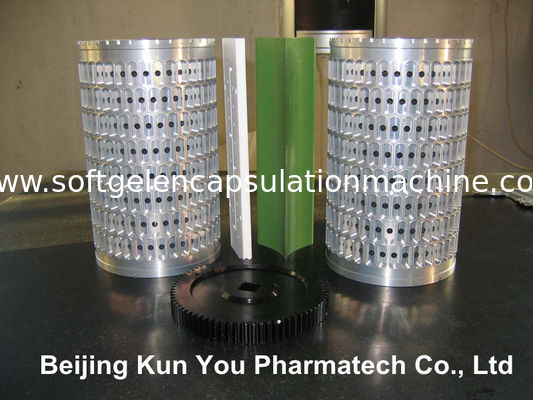

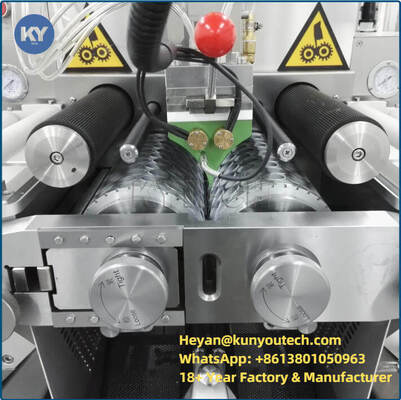

Die roll

Ф103X172mm

Die roll speed

0~7rpm

Plunger numbers

12

Overall dimension

880X2200X2000mm

weight

1200kg

Power consumption

 13 kw

Control mode

PLC+Touch Screen

Output rate

8#OV 50000-70000 pcs/hour



Competitive Advantage



1. PLC operation
2. Improve the efficiency of production largely
3. Adjustable rotation rate during 0-7rpm
4. Compact and beautiful
5. It can be assembled or disassembled with single hand
6. Reduce the oil consumption
7. Adjustable separately or automatically
8. The control system has a counting function to make operators get the number of pills clearly
9. Store and apply operating data
10. Lengthen the life of die roll by using pneumatic
11. Reminding and diagnosing faults function
12. Can realize the function of statistical statements and printing
13. More safety
14. The cable plug has good waterproof and oil proof function

Soft capsule/softgel making machine, paintball making machine, Tumble drying machine, gelatin melting tank
