| Product Name | Large scale Softgel encapsulation machine | Driven Type | Electric |
| Capacity | 120000pcs /hour, 8#OV | Dosage deviation | <±1.5% |
| Application | Food, pharmaceutical,softgel making machine | Control | PLC |

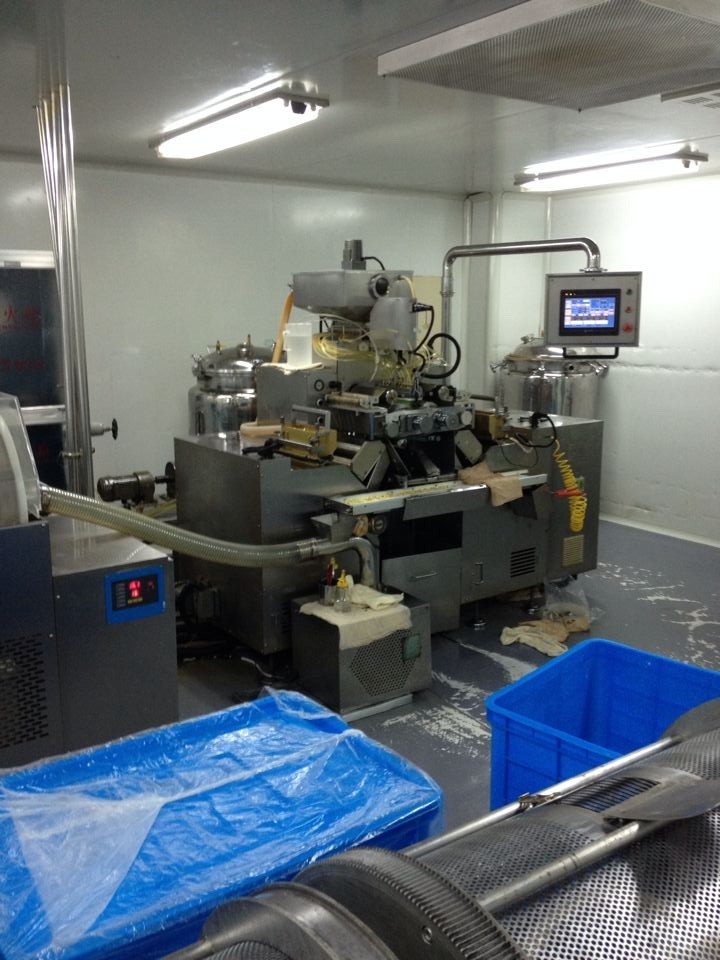

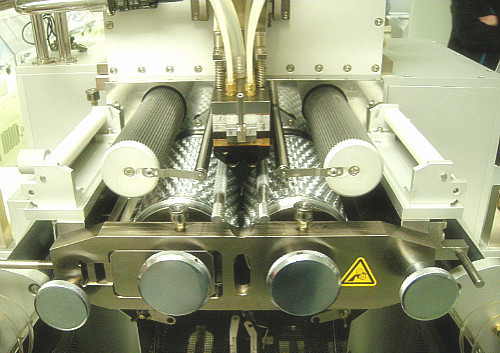

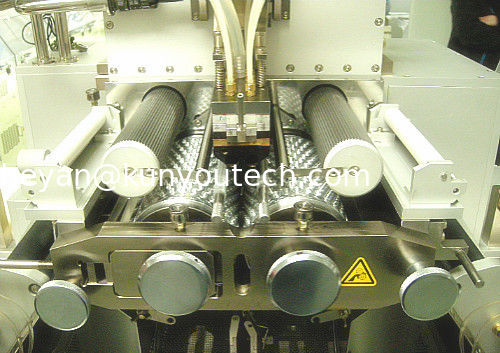

S610 soft capsule encapsulation machine is suitable for lage scale capsule production.Micro lubrication saves much cost for customers. This machine adopts advanced technology and good quality material.
Soft capsule encapsulation machine can be used to make all kinds of soft capsules: Oval, Oblong, Round, Tube,etc.
| Model | S610 |

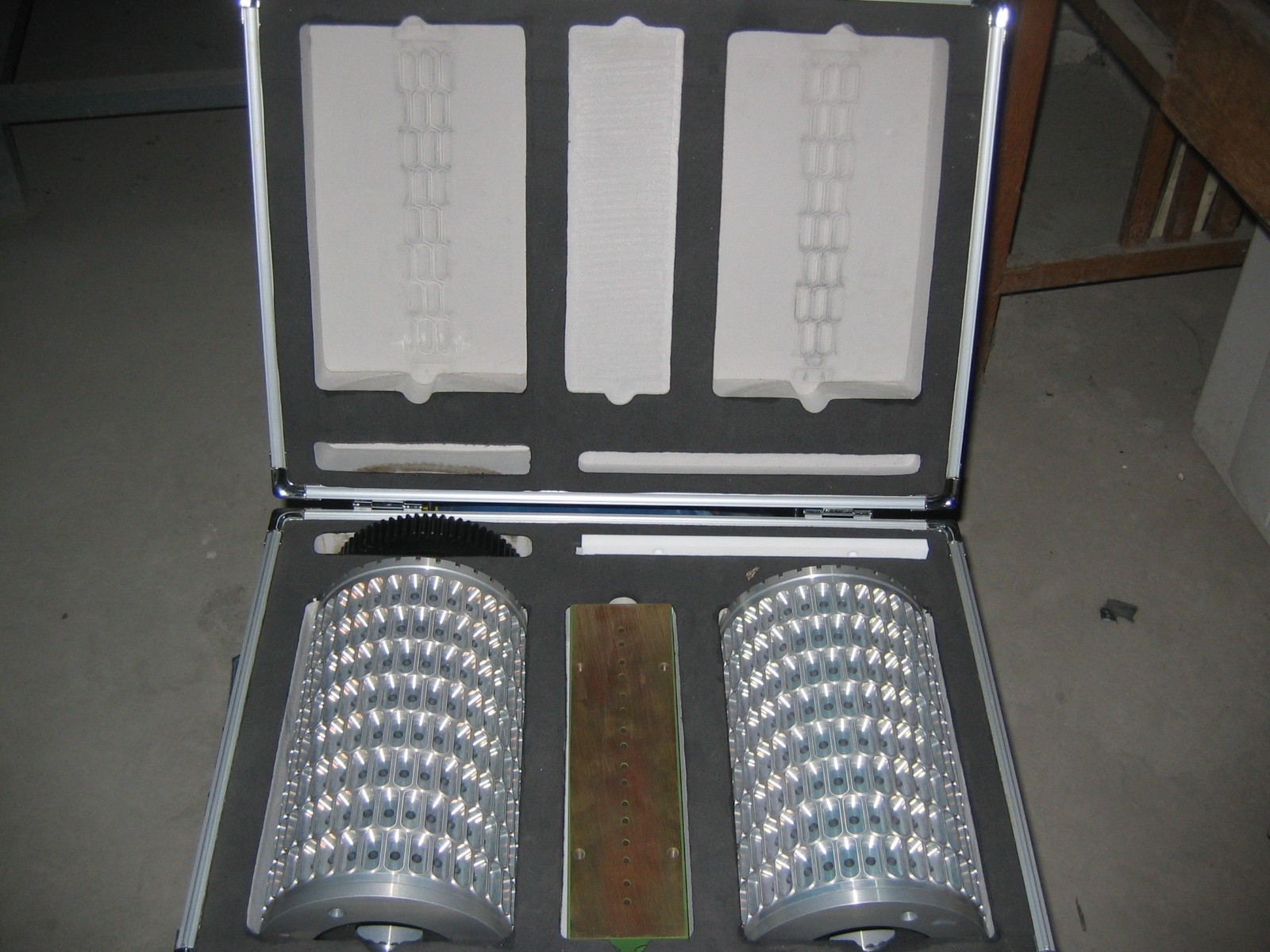

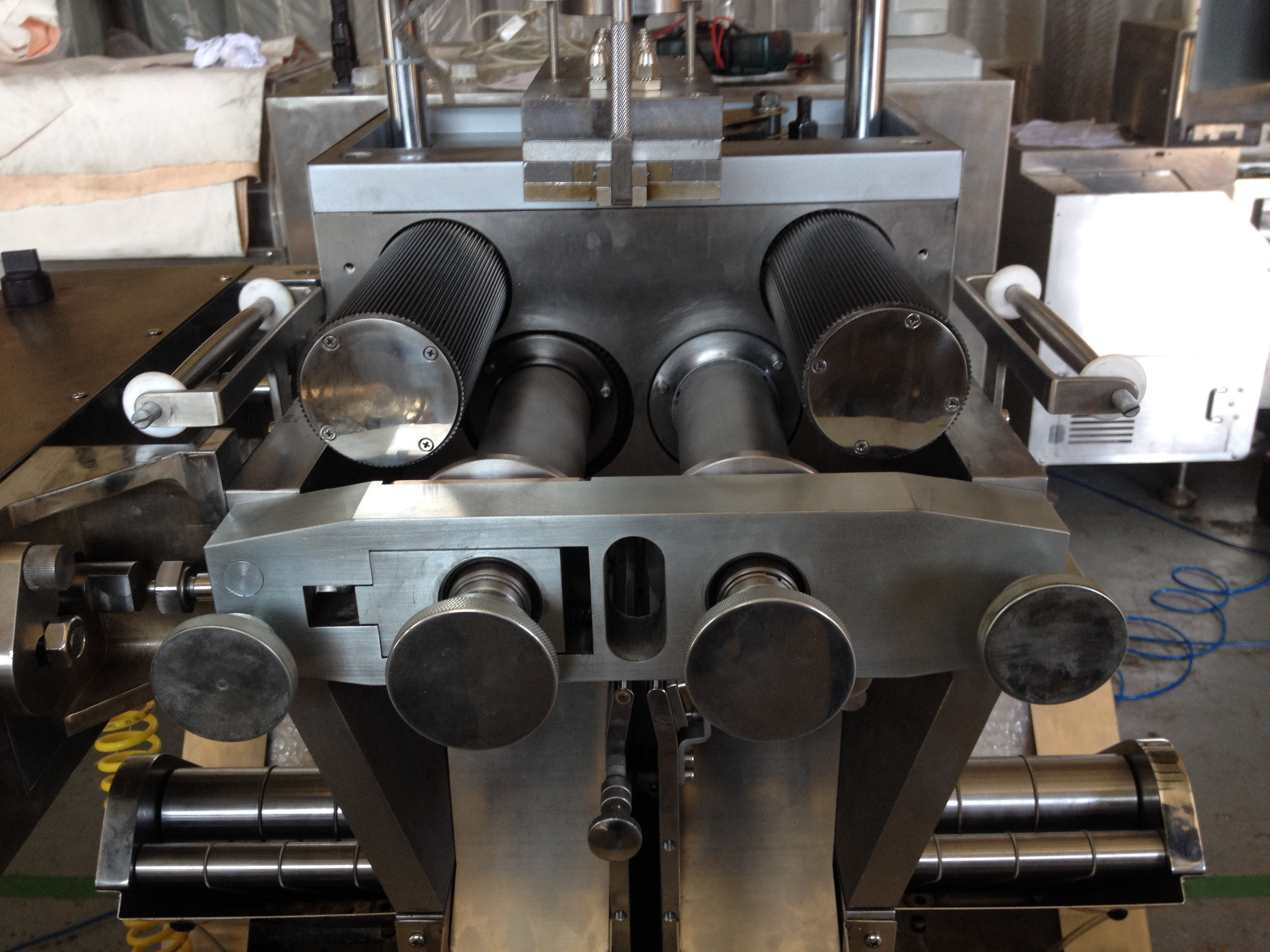

| Die roll size | 150×250mm |
| Die roll speed | 0~5rpm |
| Max plunging volume per stroke | 0~2ml |
| Plunger numbers | 20/24 |
| Overall dimension | 2050×1200×1850 |
| Weight of main machine | 1900kg |
| Power consumption | 20 kw |
| Control mode | PLC+Touch Screen |
| output | 8#OV115,440 pcs/hour |
