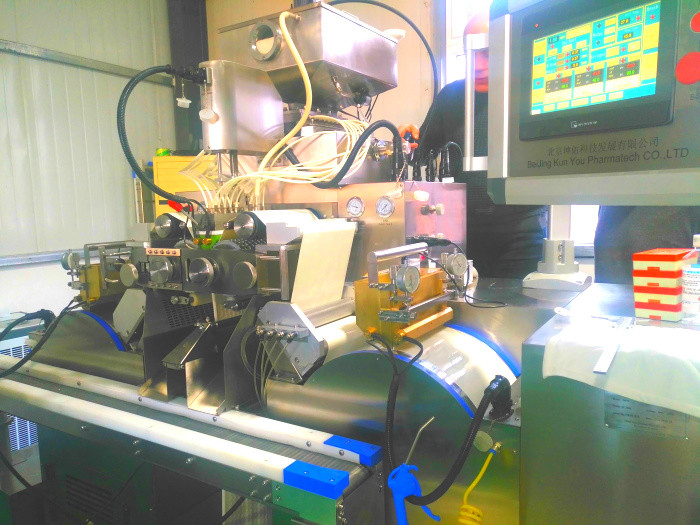

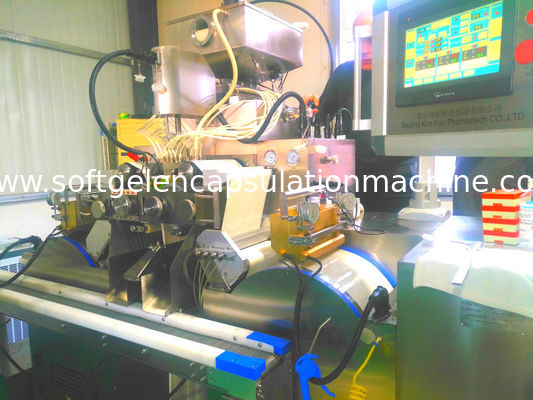

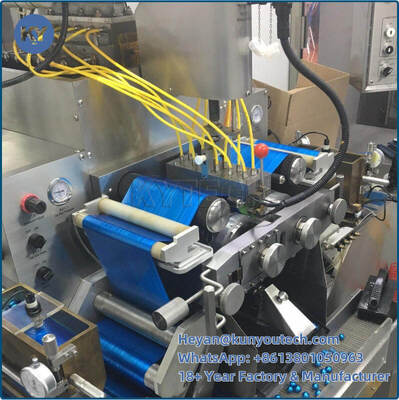

Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H

Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H

Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H
video
Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Payment Terms: T/T, L/C, Western Union, MoneyGram
Contact Now
Detailed Product Description
Application: Paintball Production Type: Paintball Production Line
After-sales Service Provided: Engineers Available To Service Machinery Overseas Warranty: 1 Year
Capacity: 30000/h Material: SUS304/316L
Product Name: Softgel Encapsulation CAPSULE State: New
High Light:

10 inch encapsulation machine

,

paintball softgel machines

,

paintball gel encapsulation machine

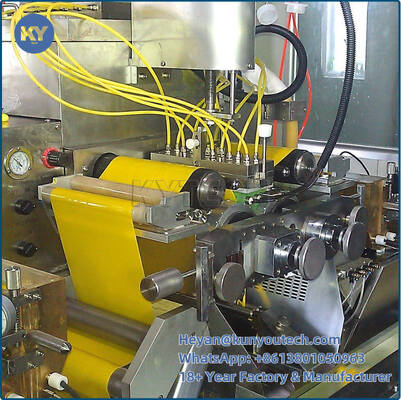

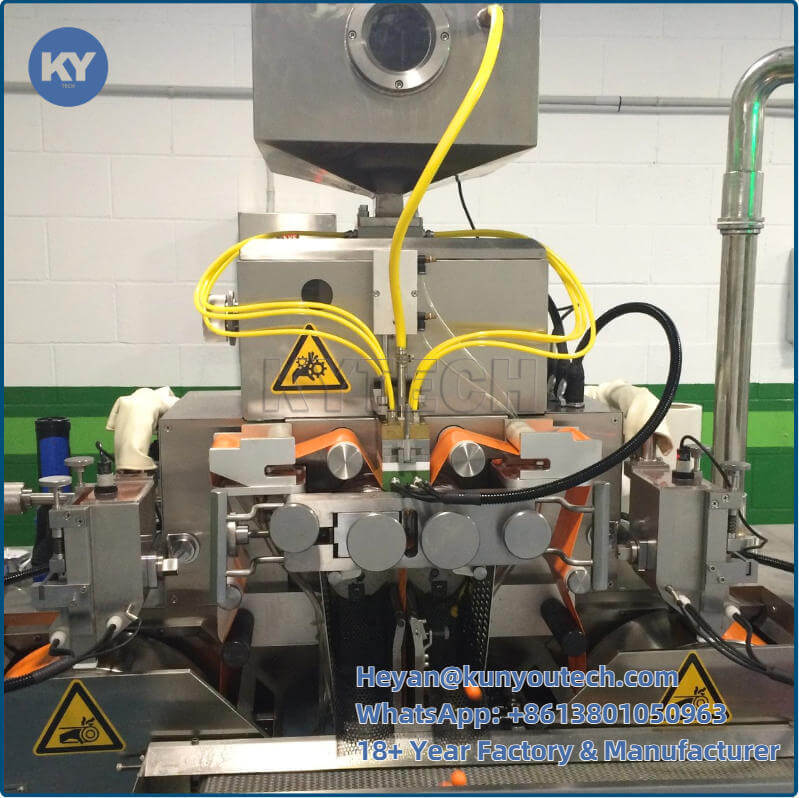

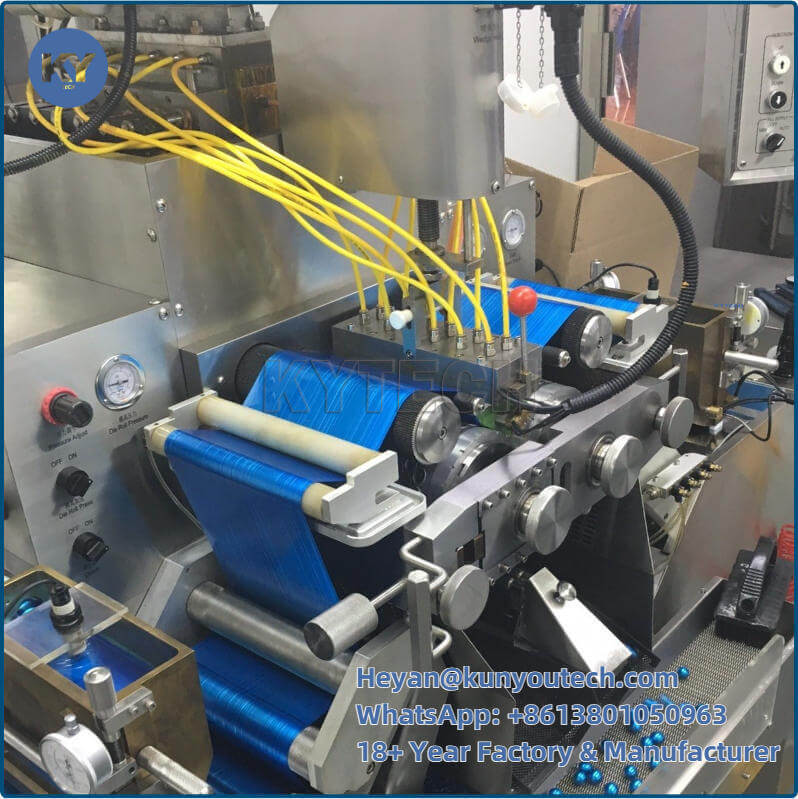

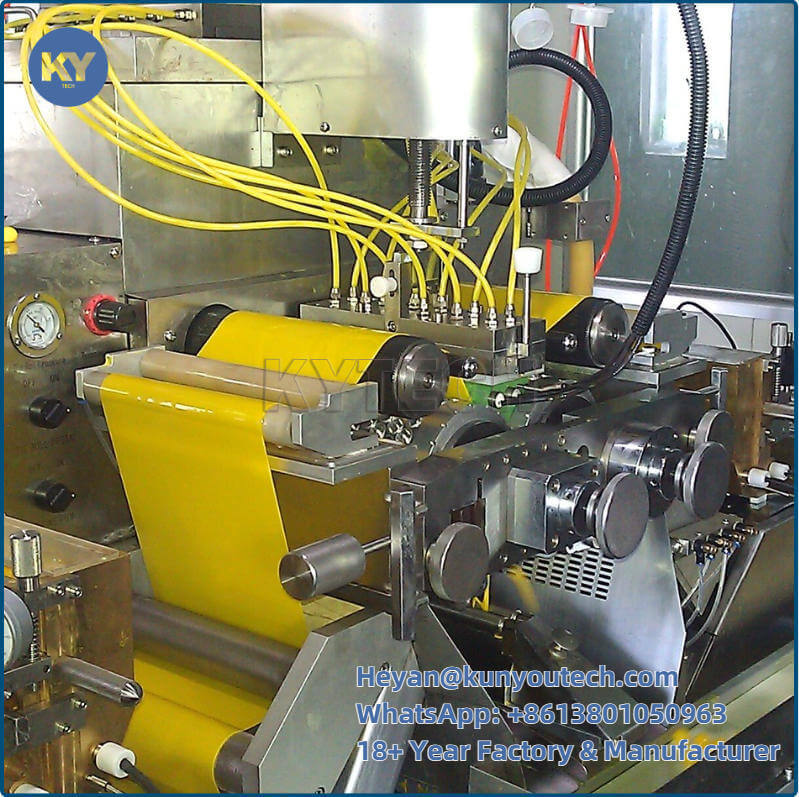

Paintball Encapsulation Machine S610



1. Paintball Encapsulation Machine

> Die Roll Speed 0-5 rpm

> Die Roll Dimension 150(Dia.)× 250(Length)mm

> Number of Plungers 24 (12 on each side) Specially Designed for Paintball

> Diameter Deviation of The 24 Plungers Less than 0.005mm.

> Dosage Deviation <±1.5%

> Dimension L×W×H =2050×1200×1850 mm

> Weight Approx. 2000kg

> Power Consumption 16 kW (Max.) ,

> Power Supply 3 Phase, 220V/380v/440V, 50Hz/60Hz optional

> Pressure Air 0.6MPa

> Gelatin Ribbon Lubrication Paraffin oil or equivalent, less than 1kg in 8 hours.

> Capsule Washing Not neccessary , Solvent Free.

> Major Bearings Made in Germany

> Separate Lubrication System for Medicine Pump and Die Roll Assembly.

> Water Cooled Drum Also Have Air Blowers .

> Automatic Medicine Supply The system can even alarm when the fill material tank is empty.

Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H 0

Large Scale Soft Gelatin Encapsulation Machine For Pharmaceutical Industry Use And Meet GMP Requirement





Large Scale Soft Gelatin Encapsulation Machine For Pharmaceutical Industry Use Meet GMP Requirement

Characteristics



Product Name Large scale Softgel encapsulation machine Driven Type Electric
Capacity

120000pcs /hour, 8#OV

For paintball 30000pcs/H

Dosage deviation <±1.5%
Application Food, pharmaceutical,softgel making machine Control PLC



Product Description



Soft Capsule Making Machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oray, hard to oxygenation, easy to store. So soft capsule making machine is becoming more and more popular for customers. Due to high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufactures and applied in the fields of medicine, health products, sports paintball and cosmetic, etc.


Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H 2

Specification




Model S610
Die roll size 150×250mm
Die roll speed 0~5rpm
Max plunging volume per stroke 0~2ml
Plunger numbers 20/24
Overall dimension 2050×1200×1850
Weight of main machine 1900kg
Power consumption 20 kw
Control mode PLC+Touch Screen
output 8#OV115,440 pcs/hour

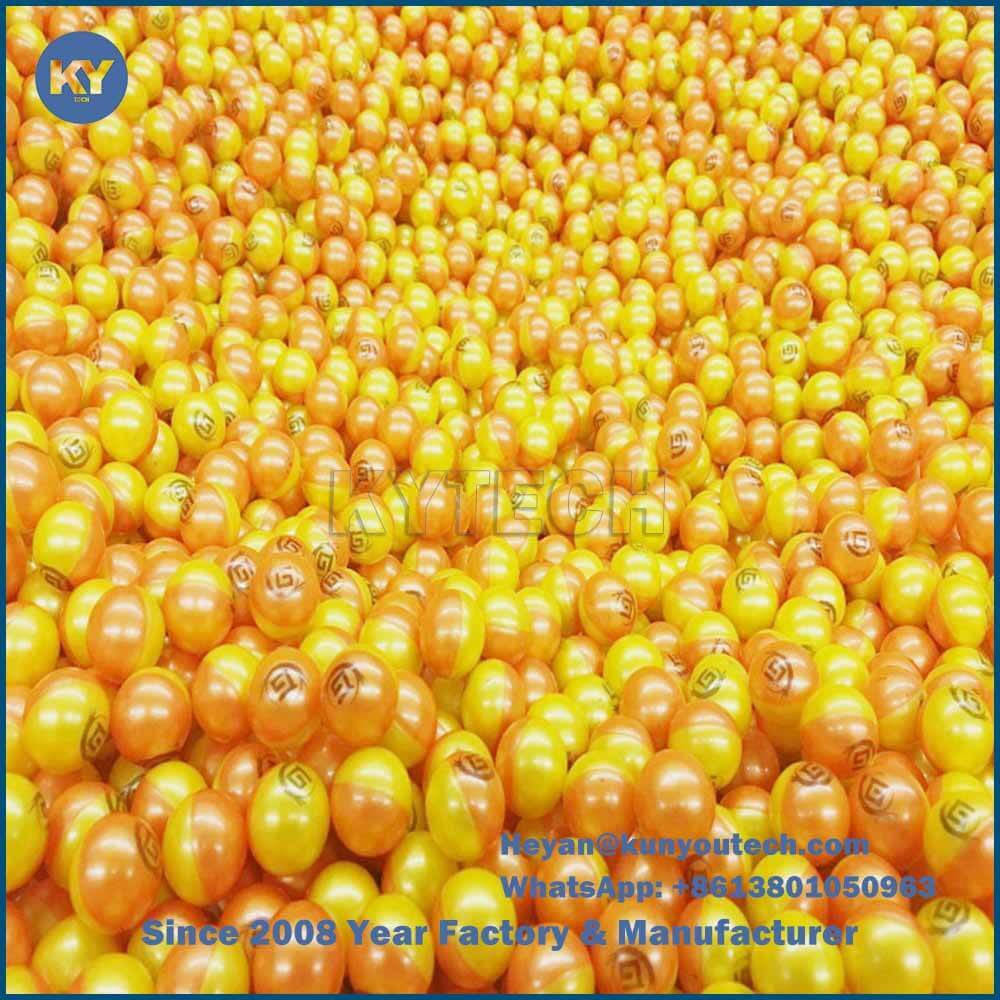

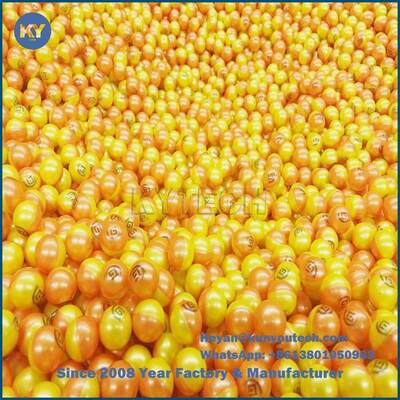

Finished Products



Soft Gelatin 10 Inch Paintball Encapsulation Machine 30000/H 3

Company Information

Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.

We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.

Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
