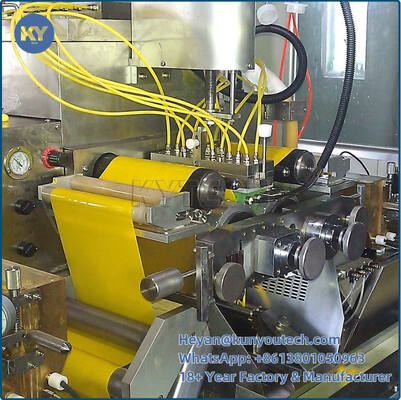

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule
video
SS Paintball Making Soft Gelatin Machine Automated Filling Capsule
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610PB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 15 Set/Sets per year
Contact Now
Detailed Product Description
Material: SS316 Usage: Capsule
Size: 4,6,10inch Electric: Simens, Panasonic
Control: PLC+Touch Screen After Sale Service: Technoion Avaliable
High Light:

paintball making soft gelatin machine

,

automated filling capsule soft gelatin machine

,

softgel filling machine paintball making



Automatic Encapsulation Machine For Making Paintball With Faults Diagnosis Function


Quick Detail


Product Name

Paintball Filling Machine

Control Mode

PLC+Touch Screen

Die roll size

150×250mm

Power Consumption

20 kw

Plunge Numbers

20/24

Capacity

32000pcs/hour


Product Description

S610PB Paintball Encapsulation Machine’s components are mainly from Germany. The whole machine’s mechanical parts adopt independent single adjustable lubrication, reducing mechanical wear and prolonging the time without any mistakes. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is featured by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 more in line with the requirements of GMP.

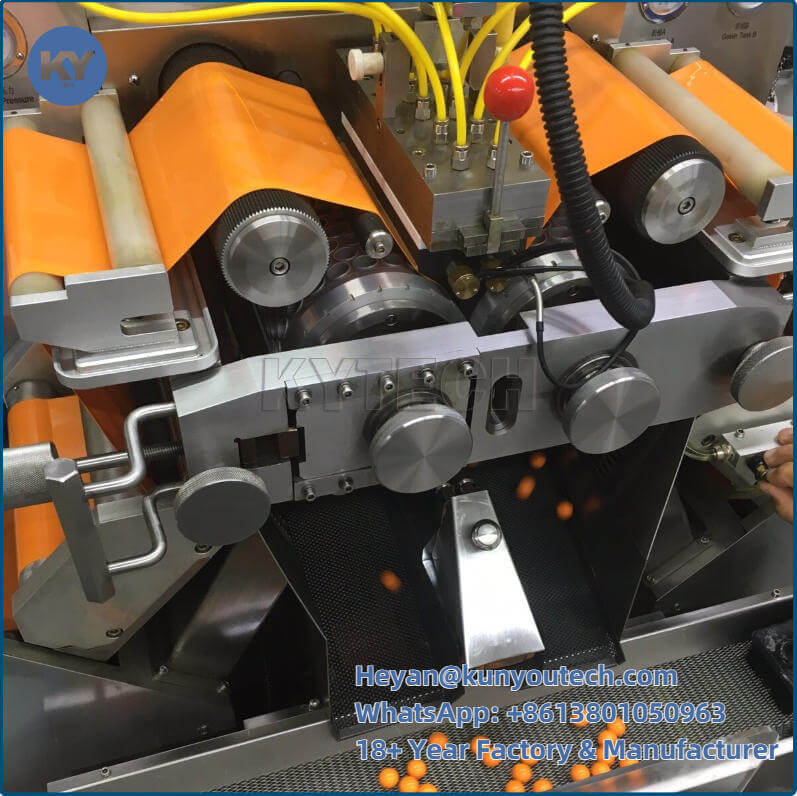

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule 0

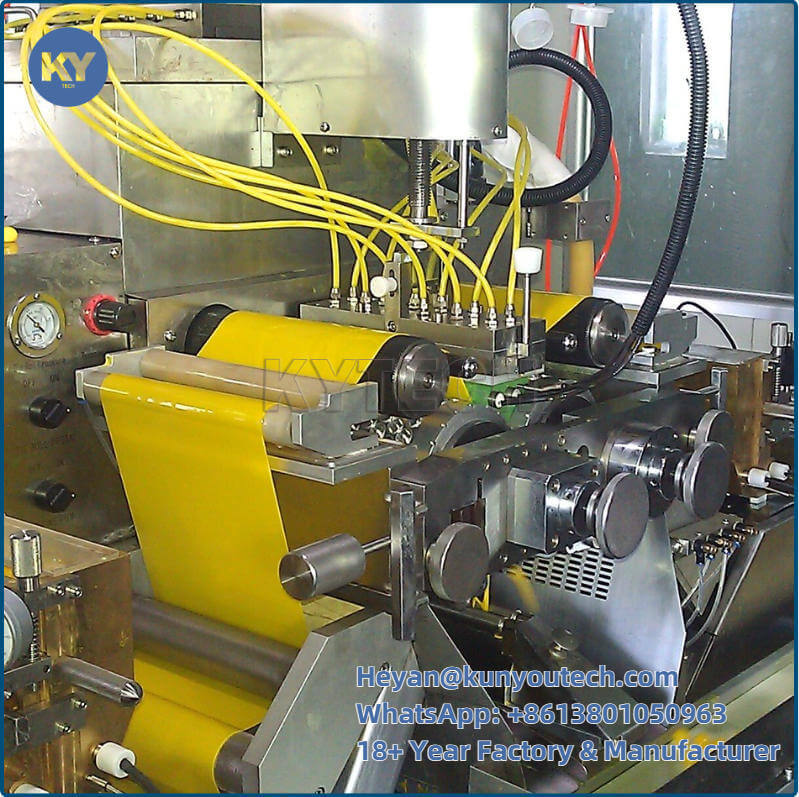

 SS Paintball Making Soft Gelatin Machine Automated Filling Capsule 1
Specification

Model

S610

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~2ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

20kw

Control mode

PLC+Touch Screen


Competitive Advantage

1. Improve the efficiency of production largely
2. Compact and beautiful
3. Reduce the oil consumption
4. Save money for users
5. Low noise, run more smoothly
6. PLC
7 The cable plug has good waterproof and oil proof function
8. High technical loading capacity
9. High precision
10. Easy to move and operate
11. Drum design to prevent gelatin wrinkling and sideship
12. Professional PID temperature control technology is adopted on the machine, temperature of injector
can be adjusted accurately. Improves ratio of finished products of paintball.

Tumble Drying Machine for drying softgel / capsules and paintballs


Model

TD-0

TD-1

TD-2

TD-3

TD-4

Basket diameter(mm)

420

580

580

730

526

Basket length(mm)

620

600

900

1010

282

Drying fan(kw)

0.25

0.32

0.32

0.55

2

Motor Power(kw)

0.2

0.4

0.4

0.75

1.5

Basket per section

1

2

2

1

6

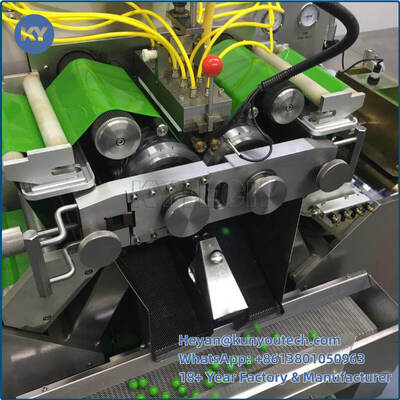

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule 2

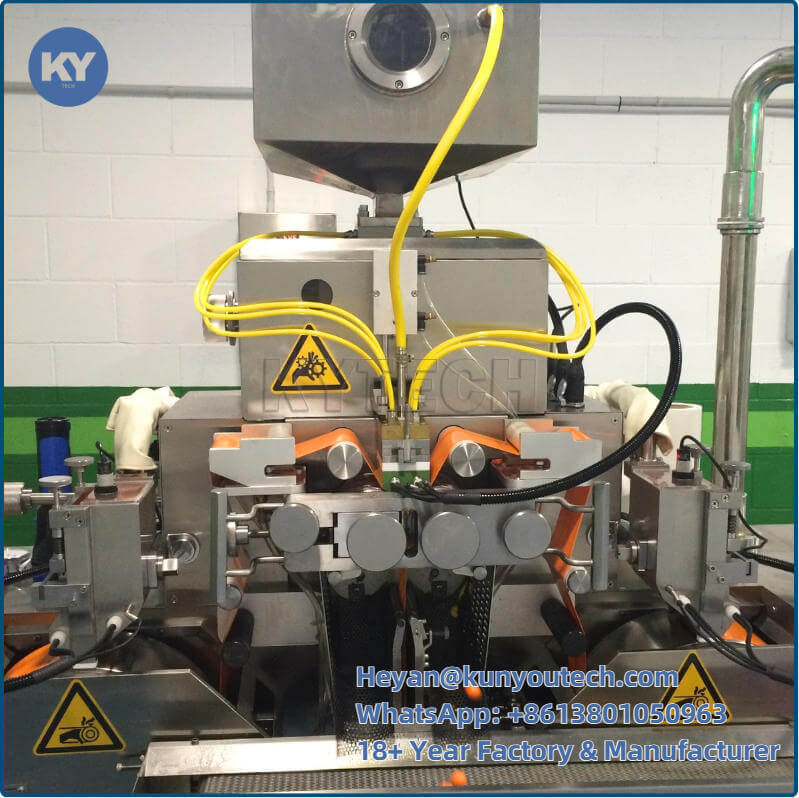

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule 3

SS Paintball Making Soft Gelatin Machine Automated Filling Capsule 4
