Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control

1 set
MOQ
Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control
Features Gallery Product Description Request A Quote
Features
Specifications
High Light:

paintball manufacturing machine

,

paintball production line

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S403PB
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Product Description





Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control



Quick Detail



Overall Dimension

1250×400×2300mm

Material

304 SUS

Application

Paintball Making

Weight

600kg

Scale

Small Scale Production

Capacity

8000pcs/hour



Product Description



Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also precisely improved. The ancillaries are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.

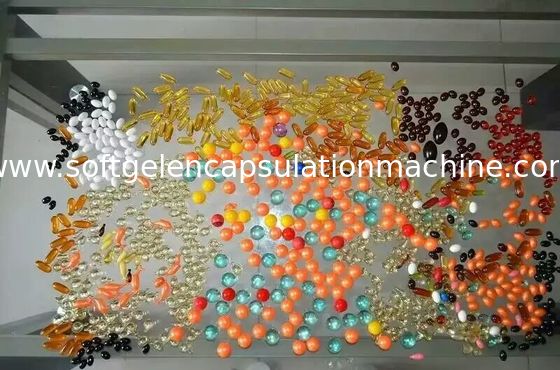

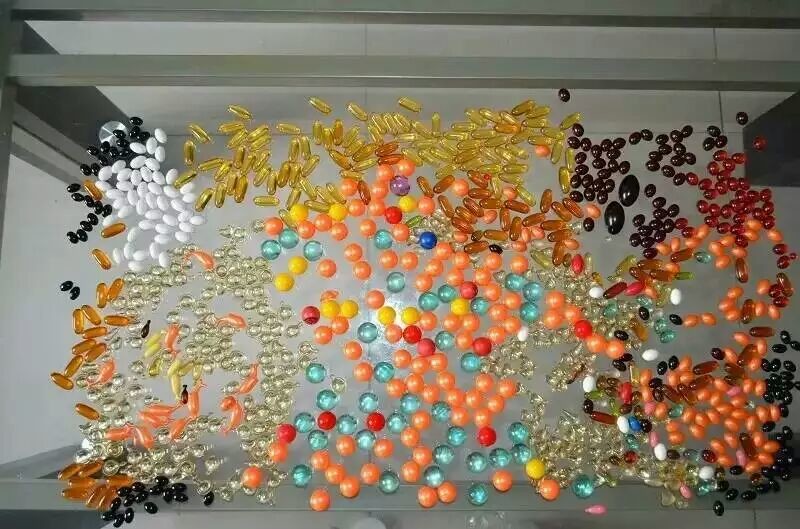

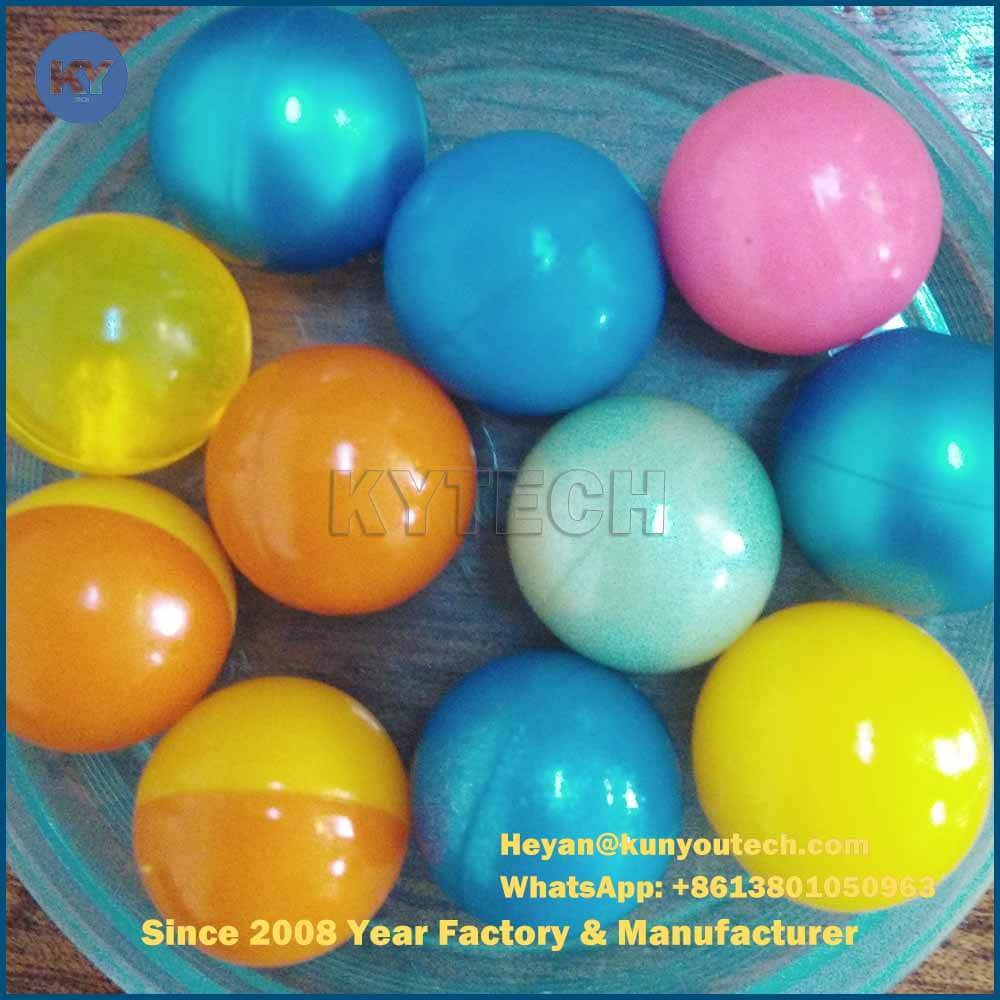

Paintball making machine is used for making different color paintballs for game.


S403PB Paintball making machine is an experimental paintball machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.

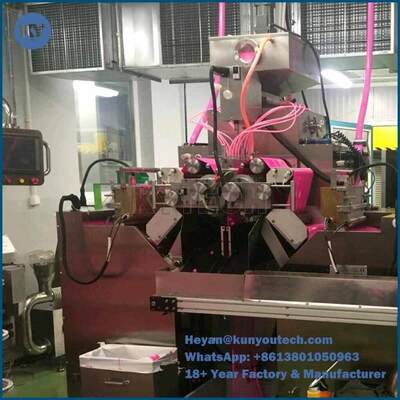

Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control 0



Specification

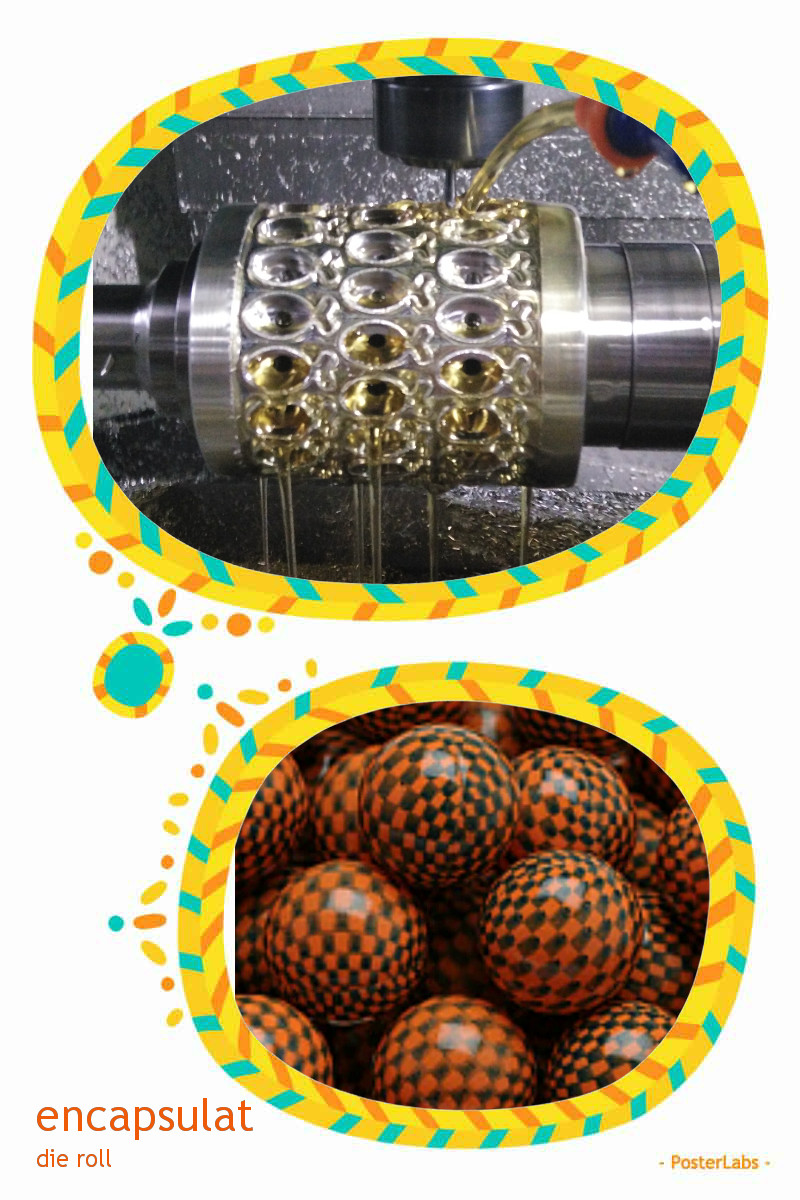

Die roll size

Ф80X100mm

Die roll speed

0~5rpm

Overall dimension

1250×400×2300mm

weight

600kg

Power supply

380V/240V,50/60HZ

Power of the main motor

1.1kw

Power of the main machine

3kw





Competitive Advantages



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load difference

5. Micro lubrication

6. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.

7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing

9.Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.





Paintball Encapsulation Machine, Paintball Making Machine,  Soft capsule and Paintball Encapsulation Machine.



Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control 1
