Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll

1 set
MOQ
Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Copper
Material2: Aluminus Alloy
Manufacture: CNC Center
Heating: Water And Electric
High Light:

herbal capsule maker

,

capsules making machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: 4/6/8/10 inch
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 7-10 days
Payment Terms: T/T, L/C
Supply Ability: 10 Pairs per week
Product Description





High Precision Soft Capsule Mold Aluminium Alloy Paintball Die Roll







Quick Detail



Product Name

Soft capsule/ paintball die roll/ mould

Brand Name

KUN YOU

Place of Origin

Beijing, China(Main land)

Material

Aluminium alloy

Die roll Speed

0~5 rpm







Product Description



Beijing Kun You's soft capsule mould/die roll is specially designed and manufactured for Soft Encapsulation Machine. We can process the cavities for different size and shape.

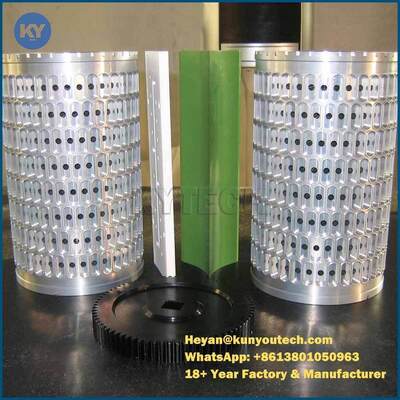

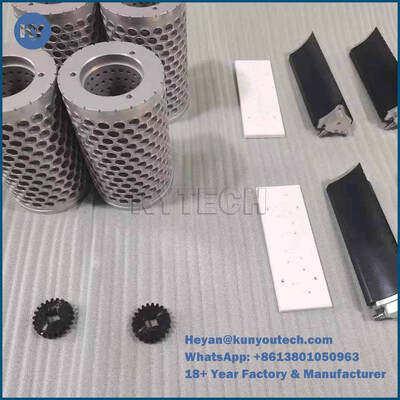

One set of mould/die roll includes : 2 pcs of die rolls, 2 pcs of distribute plate, 1 pcs of gear and 1 pcs of injection wedge.

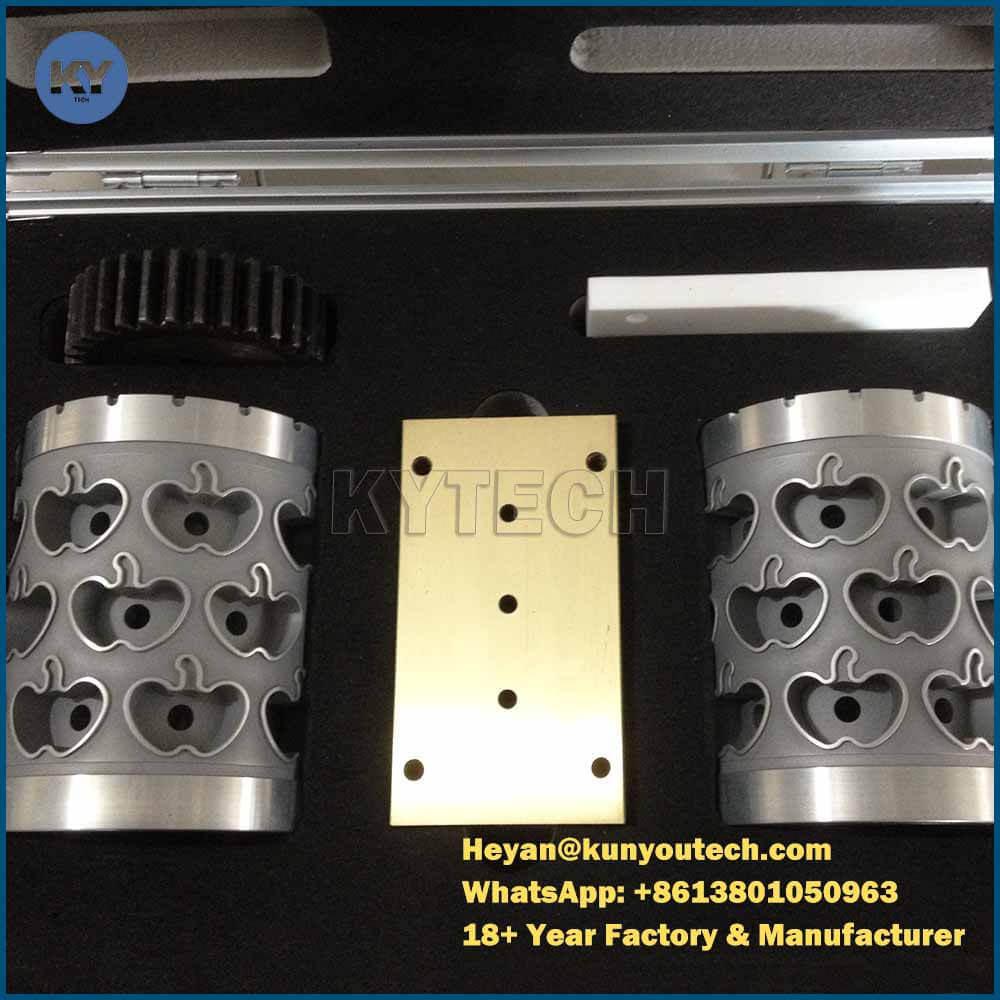

Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll 0

Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll 1

There are professional  technicians and advanced processing center, we not only manufactur and sell the various mould/die roll, but also can repair various kinds / brands of die rolls.



Application



It’s widely used for softgel and paintball making enterprises and pharmaceutical enterprises, including cosmetic manufacturing company and health products manufacturing company and nutrition foods manufacturing.



Competitive Advantage



1. Widely used for softgel and paintball making enterprises and pharmaceutical enterprises

2. The raw material is imported aircraft grade aluminium alloy

3. Various types of softgel and round paintball

4. product: Metal: Aluminium, copper

5. Make different die roll according to customers’ requirements

6. Softgel Capsules Making machine for laborotary and small scale production

Soft capsule die roll, softgel mold, softgel die  roller and paintball die roll, paintball mold.
Welcome to inquire!

Describe


1.The soft capsule die roll and paintball die roll are widely used in soft capsules and paintball making machines for softgel / soft capsules and paintball making enterprises and pharmaceutical enterprises.



2.It can make various types of softgel and round paintball according to customers’ requirements.



3.The raw material of die roll is imported aircraft grade aluminium alloy which has very good strength and tension.

4.The tension degree can get to 570 MPa and 150 Brinell hardness.



5.Using the imported aircraft grade aluminium alloy can significantly prolong the life of die roll. Besides, users can largely reduce the using cost because there are usually four times to repair during its life cycle.



6.After processing these die roll, technologists will make special surface treatment technology so as to further improve the mold surface hardness and corrosion resistance.



7.In designing softgel die rolls, we strongly absorbed much experience from home and abroad to make better die rolls which can reduce the leakage and net rate and improve the stability of the soft capsule and paintball production.



Die Roll Size and Matching Machine Model

Material : Avation Aluminum &Copper



Our Machine Model No. Die Roll Size
S403 80*L100 mm
S406 103*L152 mm
S407 103*L172 mm
S610 150*L250 mm

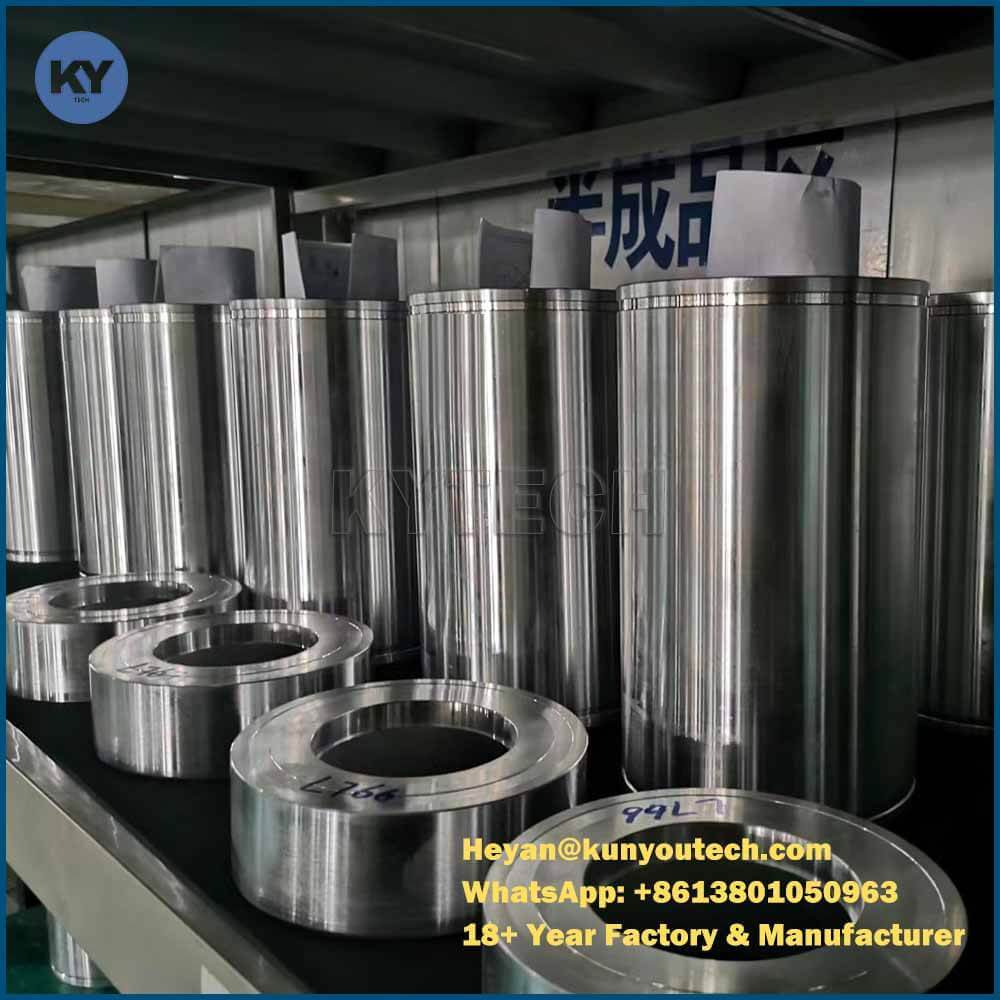

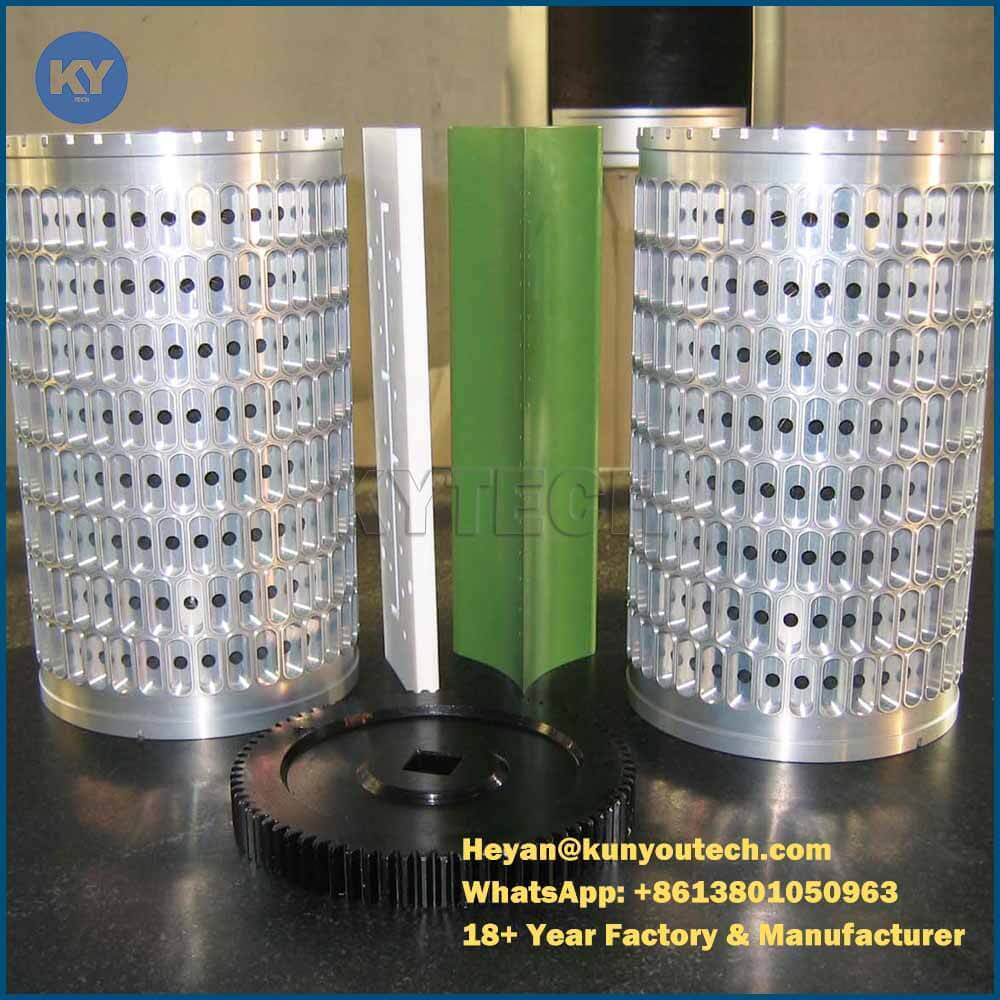

Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll 2Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll 3

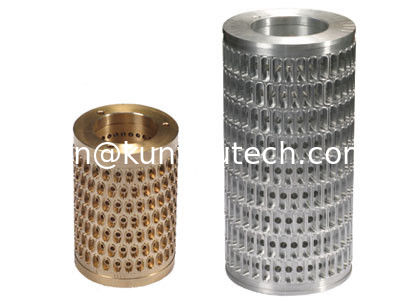

Aluminium Alloy Capsule Mold Softgel Complete Die Roll Set Painball Die Roll 4
