CS Paintball Automatic Encapsulation Machine Precise Control 8000 - 32000 / H

China CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H supplier

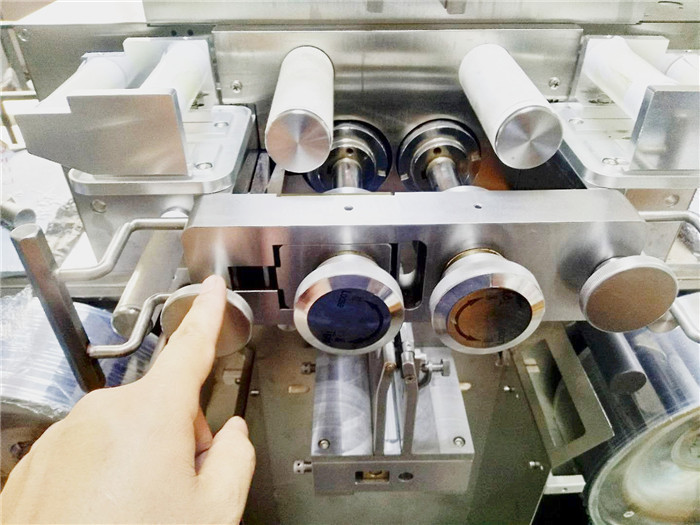

Large Image :  CS Paintball Automatic Encapsulation Machine Precise Control 8000 - 32000 / H

Product Details:

Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Delivery Time: 30-90 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per Year
Contact Now
Detailed Product Description

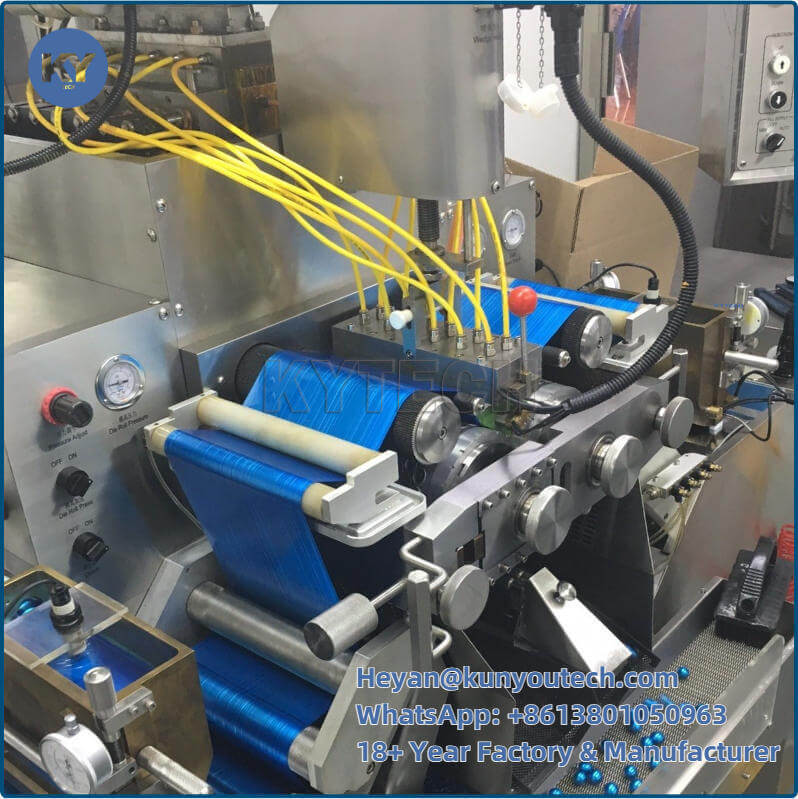

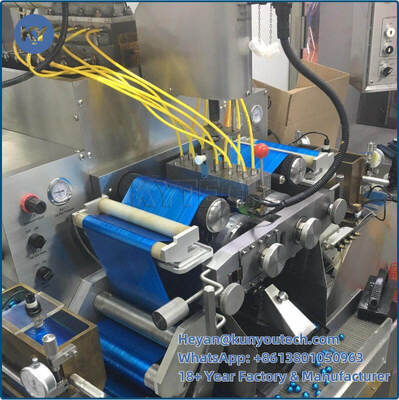

CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H





Quick Detail



Control Mode

PLC+Touch Screen

Material

304 SUS

Application

CS Paintball Making

Certification

CE

Scale

Small/Medium/Large Scale Production

Capacity

32000pcs/hour Max



Product Description



Beijing Kun You Pharmatech Co., Ltd has three model Paintball Making Machine.

Paintball making machine is used for making different color paintballs for CS Real Man game.

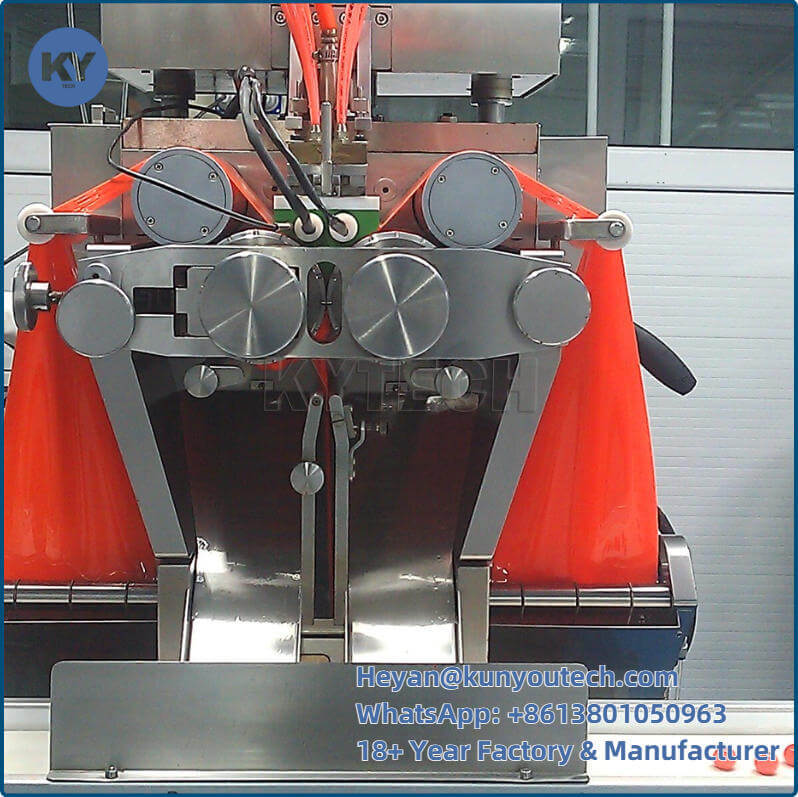

CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H



Specification



Model

S403PB

S406PB

S610PB

Production Rate

8000pcs/hour

18000pcs/hour

32000pcs/hour

Consumption Power

3kw

7kw

20kw

Dimension(mm)

1100*600*800

880*640*1900

2050*1200*1850

Main Machine Weight(kg)

300kg

900kg

1900kg

Control Mode

PLC+Touch screen



Competitive Advantages



1. Small size, low energy consumption

2. Easy to operate and clean

3. High precision

4. Small load difference

5. Micro lubrication

6. High quality and intelligence control system, PLC true color touch screen technology adopted

by the electronic

 control system. All electric parts use world brand parts, such as Siemens, Schneider.

7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing

9.Professional PID temperature control technology is adopted on the machine,

temperature of injector can be

adjusted accurately. Improves ratio of finished products of paintball.

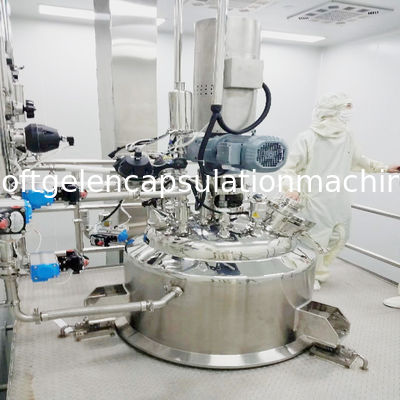

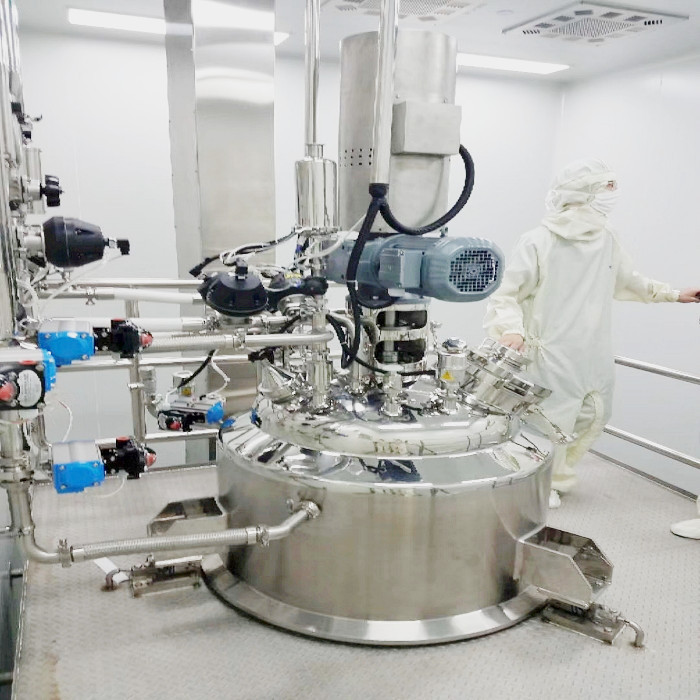

2. Gelatin Melting System



 Model of the gelatin melting tank

450L

600L

800L

1000L

 Capacity(L)

650

900

1120

1370

 Melting gelatin(L)

100-450

150-600

200-800

300-1000

 Heating area(M2)

3.2

4

4.8

5.5

 Max degree of Vacuum(Mpa)

0.09

0.09

0.09

0.09

 Max Temperature(℃)

-100

-100

-100

-100

 Motor Power (KW)

4

5.5

7.5

7.5

 Stirring speed (r/min)

50

50

50

50

 Dimension (mm)

Φ1210X1880

Φ1310X1980

Φ1410X2080

Φ1510X2130

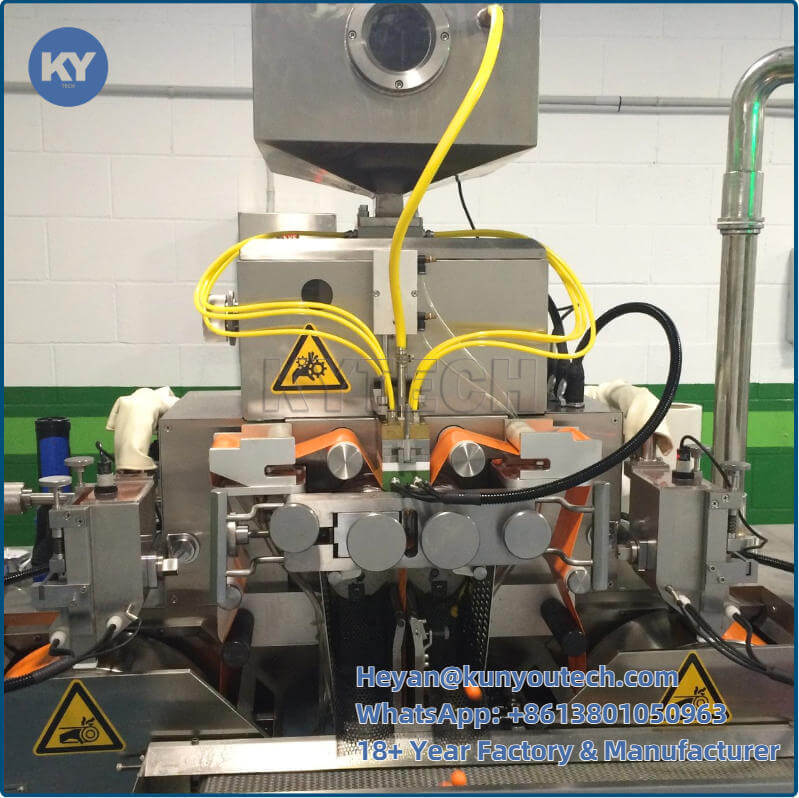

CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H

CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H

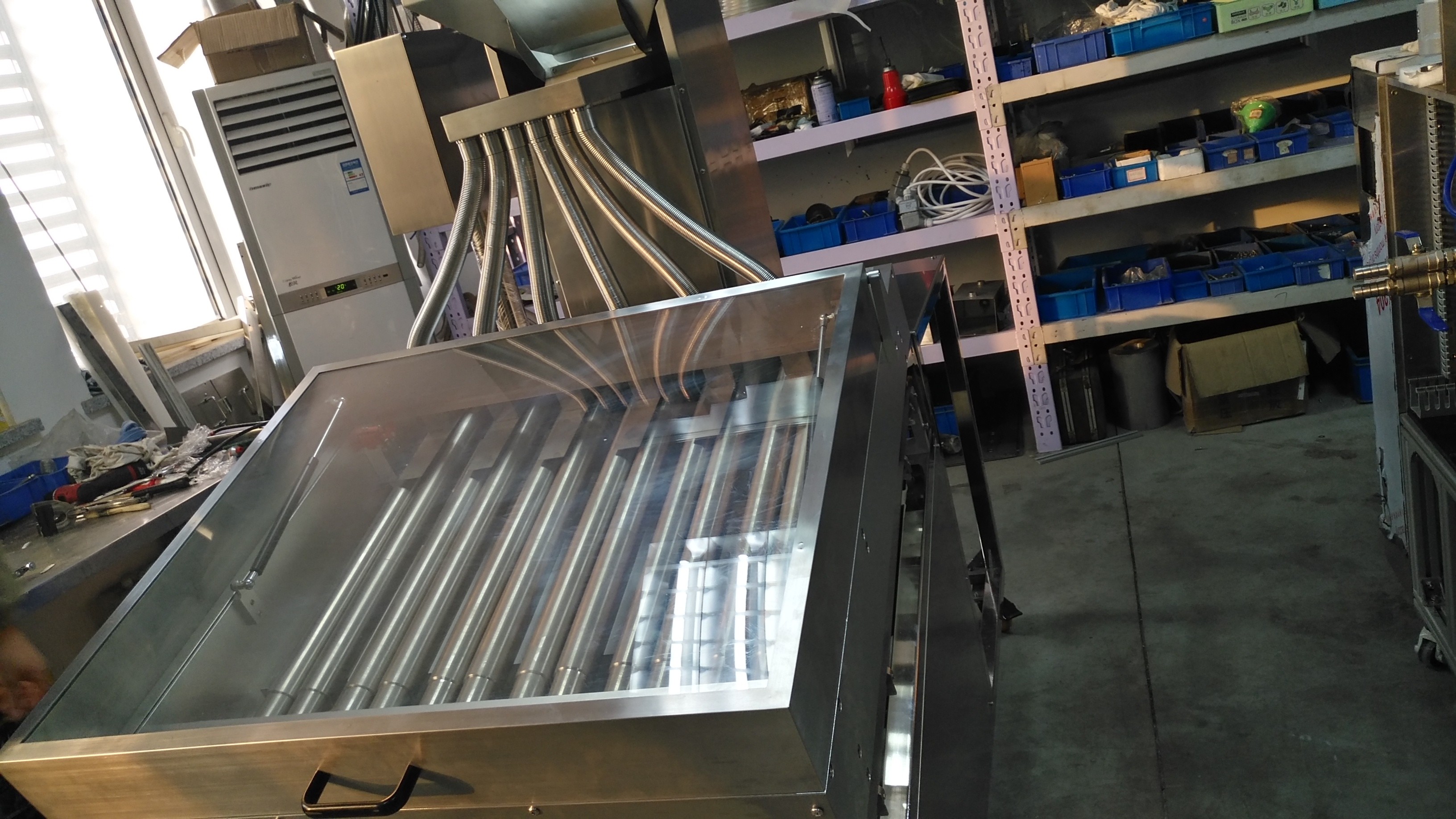

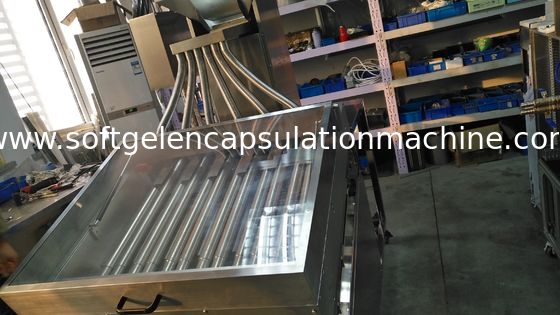

3. Tumble drying machine



Model

TD-0

TD-1

TD-2

TD-3

TD-4

Basket diameter(mm)

420

580

580

730

526

Basket length(mm)

620

600

900

1010

282

Drying fan(kw)

0.25

0.32

0.32

0.55

2

Motor Power(kw)

0.2

0.4

0.4

0.75

1.5

Basket per section

1

2

2

1

6



CS Paintball Automatic Encapsulation Machine Precise Control  8000 - 32000 / H



Paintball Encapsulation Machine, Paintball Making Machine,  Soft capsule and Paintball Encapsulation Machine.
