304 SUS Stainless Steel Storage Tanks Air Press For Pharmaceutical Dairy Foods

1 set
MOQ
304 SUS Stainless Steel Storage Tanks Air Press For Pharmaceutical Dairy Foods
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 304/316
Top: Flat / Nut Lock
Observation Hole: Contain
Vacuum: Contain
The Discharging Method: Air Press
Heatting Preservation: Water Heatting Jacket
High Light:

liquid storage tanks

,

ss storage tanks

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: 100L
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30 days
Payment Terms: T/T, L/C
Supply Ability: 30 Set/Sets Per month
Product Description



304 SUS Stainless Steel Storage Tanks For Pharmaceutical Dairy Foods





Quick Detail



Product Name

Soft capsule Gelatin Storage Tank

Brand Name

KUN YOU

Function

Storing gelatin and keep temperature

Material

304 SUS

Gelatin Supply

Pressure Air / Gravity

Capacity

100L



Product Description



temperature control of water bath, heating three layer jackets stainless steel storage tank.The inside of tank can withstand a certain degree of positive pressure. The tank itself comes with temperature control and display unit, so it has the advantage of simple operation and high control precision. On the top of the tank is provided with the gas joint, pressure gauge and safety valve. The ground material supply can be realized through the pressure control, making work more safe and reliable. The tank body is divided into three layers: the heating water jacket is between the inner layer and the middle layer; high-tech temperature keeping material is between the middle layer and outer layer.The air inlet is installed on the gelatin service tank, and also pressure gauge and safe valve, so the gelatin can be impressed out of the tank by pressed air.



The tank has the following features:

1.This equipment is made of the stainless steel, which strictly comply with the requirement of GMP.
2.The tank is equipped with the temperature control device and precisely control the liquid temperature through water bath heating.
3.There are gas connector, pressure gauge and safety valve on the lid of the gelatin tank.

Thus realizing the medicine supply to the ground through the pressure control, making the operation safe and reliable. The discharge bottom is applied with structure of being convenient to disassemble and clean.

Application

It’s widely used for pharmaceutical, dairy foods and fine chemical industry. It’s usually used together with the paintball or soft capsule encapsulation machine to manufacture beautiful paintballs or soft capsules.

Specification


Model

100L

Dimension  (mm)

∮600×1300

Capacity(L)

100

Motor power  (kw)

4

Temperature control

PID

Gelatin supply

Pressure Air/ Gravity



Competitive Advantage



1.Temperature controlled

2. It’s convenient to open and move

3. Keeping temperature

4. Water heated with precision temperature control.

5. For soft capsule machine and paintball machine

6. Stainless steel storage tank

7. used in pharmaceutical, dairy foods and fine chemical industry

8. Conforming to the requirements of GMP



Gelatin Holding Tank, Gelain Storage Tank, Gelatin Storage  Barrel for Soft capsule and Paintball Making.

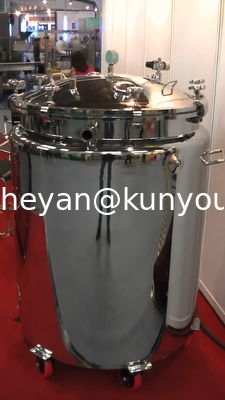

304 SUS Stainless Steel Storage Tanks Air Press For Pharmaceutical Dairy Foods 0304 SUS Stainless Steel Storage Tanks Air Press For Pharmaceutical Dairy Foods 1
