KUN YOU Pharmatech Co.,LTD.
Manufacture the best softgel capsule /paintball machine for you！
|Place of Origin:||China,Beijing|
|Minimum Order Quantity:||1 set|
|Price:||USD 1-200,000 set|
|Packaging Details:||Wood cages|
|Payment Terms:||T/T， L/C, Western Union|

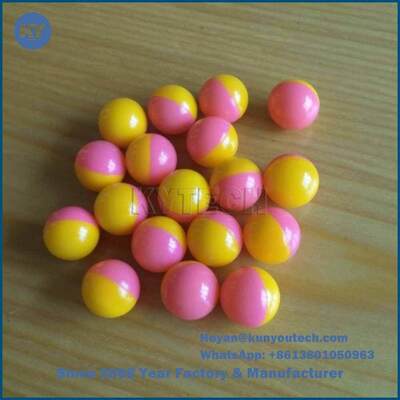

paintball production line,
paintball making machine

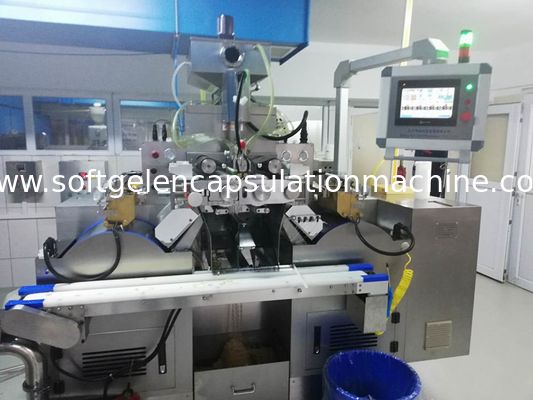

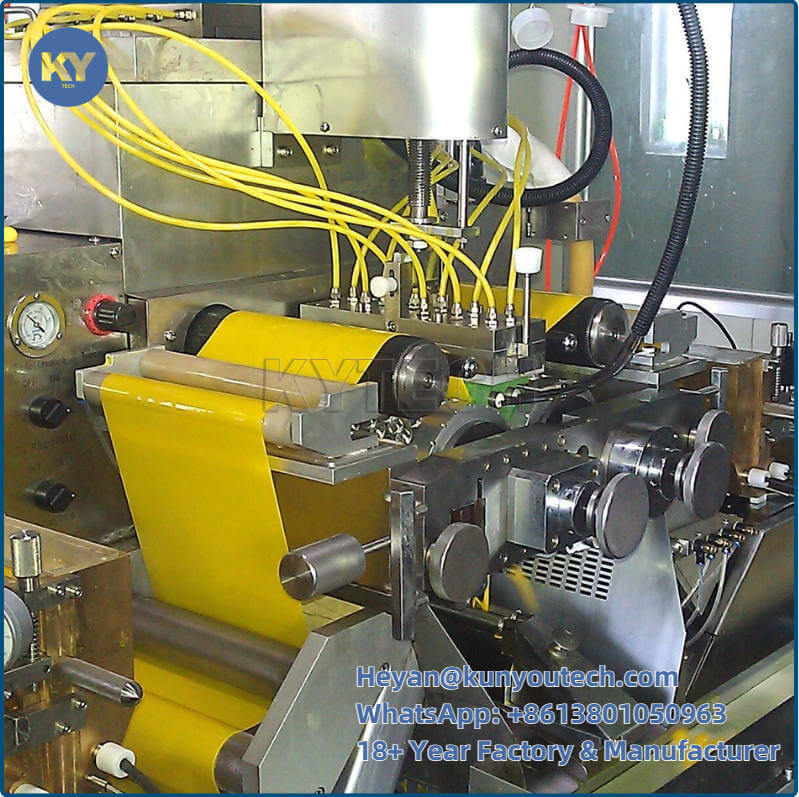

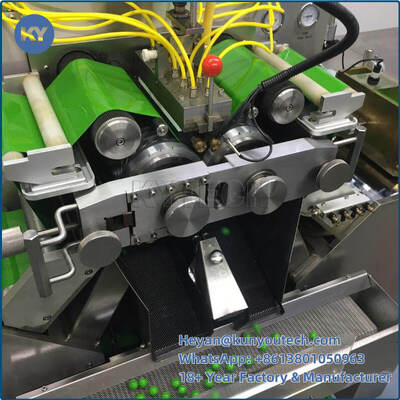

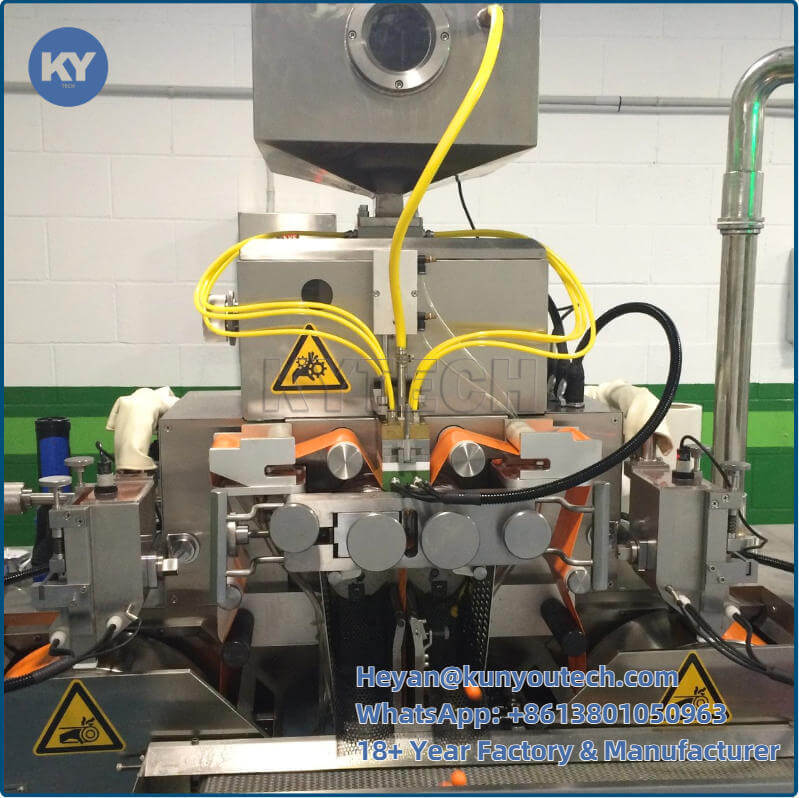

S610 large softgel making machine sale roll type soft capsule’s key parts of the machine select Germany precision bearings. The whole machine’s mechanical parts adopt independent single adjustable lubrication,reducing mechanical wear and prolonging the time without any mistakes. The drug pump can run together with the die roller automatically and synchronously, it’s very convenient to adjust the spraying time.

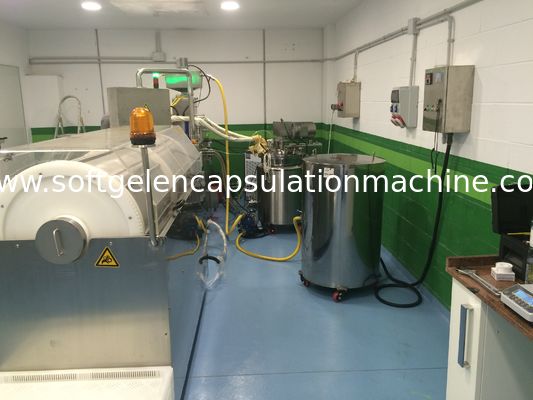

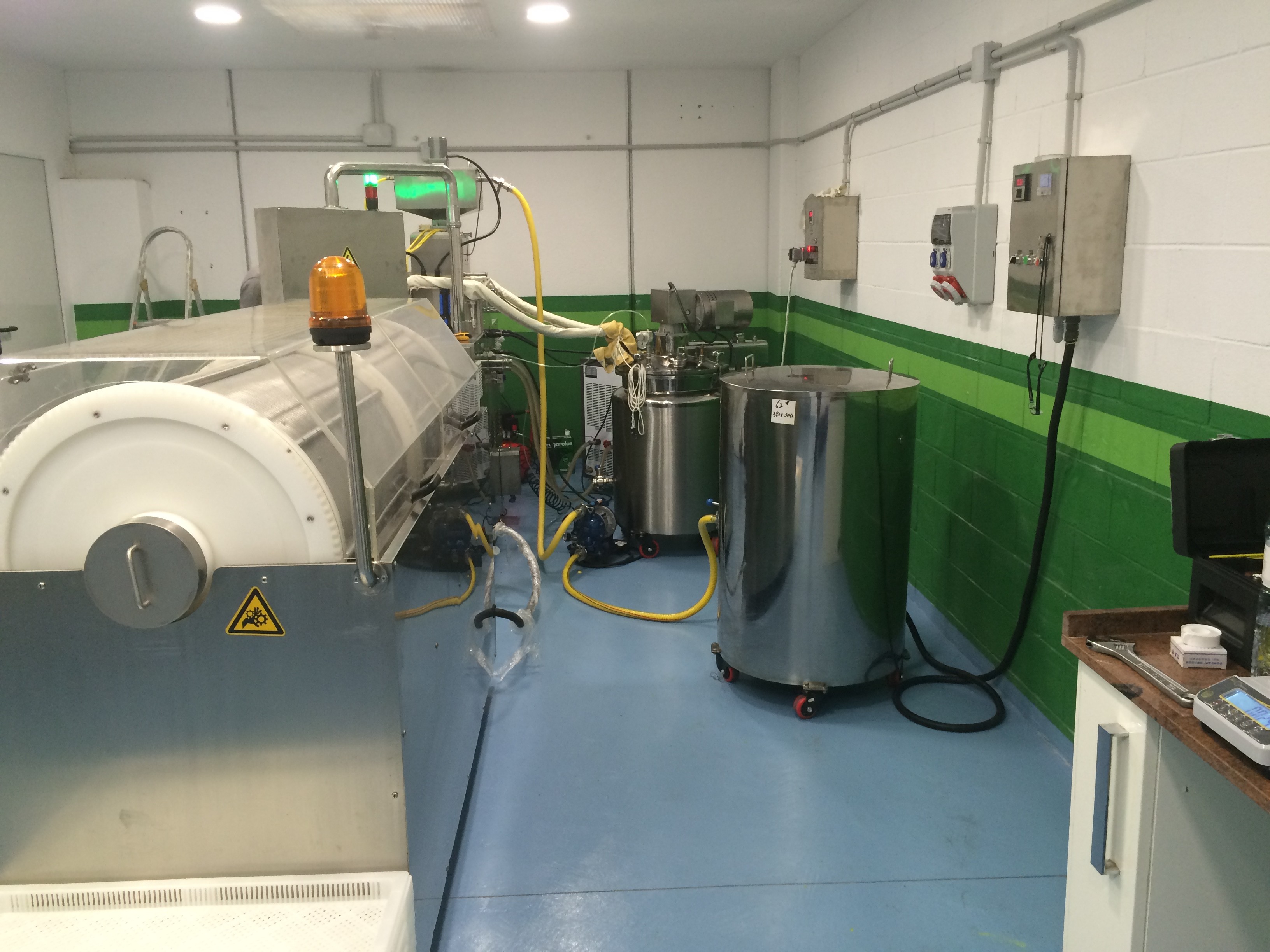

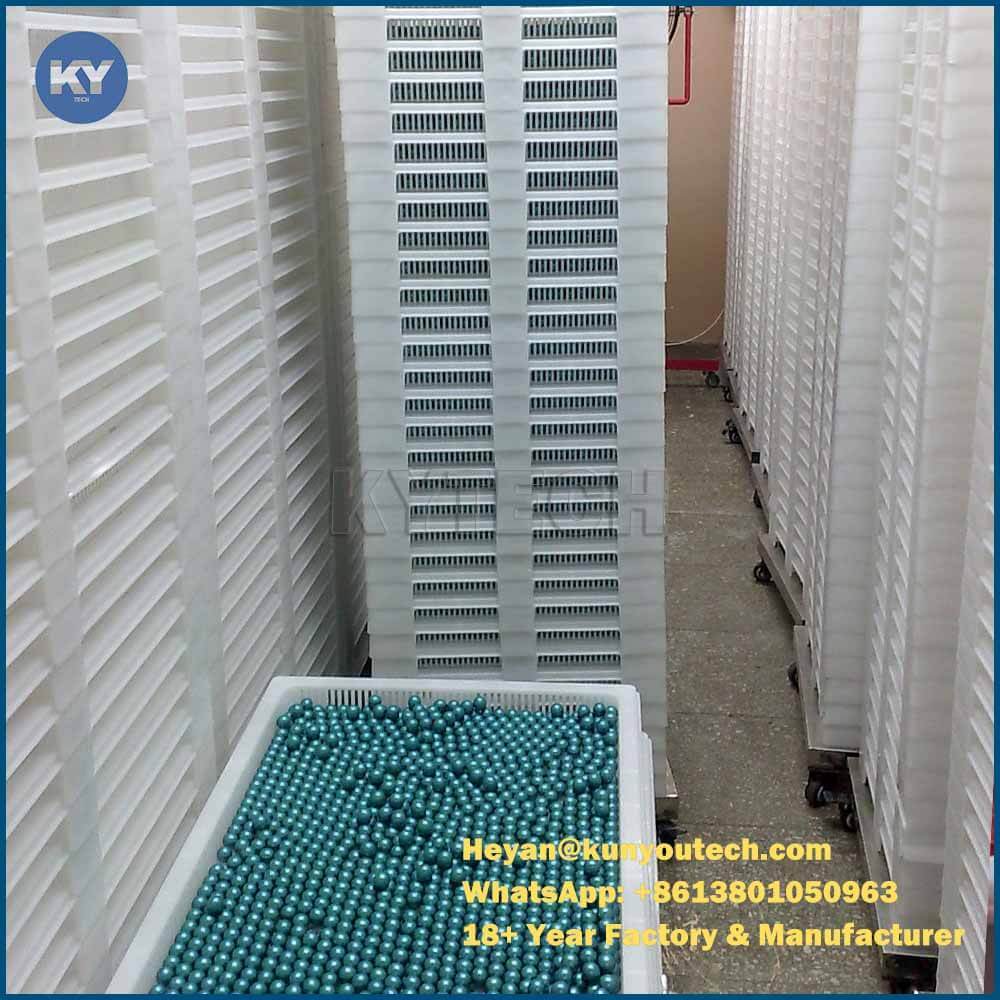

S610 large softgel making machine sale adopts a new cam mechanism, which relieved the reversing board manual synchronization process. There are two ways which use the cantilever to operate, large size touch screen and switch button to choose from. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure. The cage can be disassembled without moving dryer. It’s easy to clean. There are material receiving discs under the roll cage, making S610 large softgel making machine more in line with the requirements of GMP. S610 roll type soft capsule automatic production line is used to press and inject the oil liquid, suspension liquid or paste quantitatively and encapsulated them in the gelatin, then producing different sizes and different shapes of the sealing softgels. The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

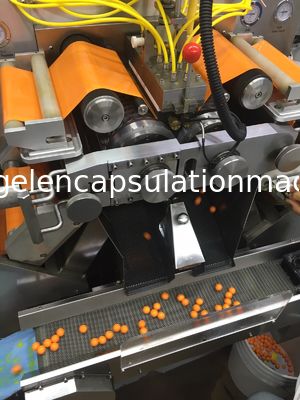

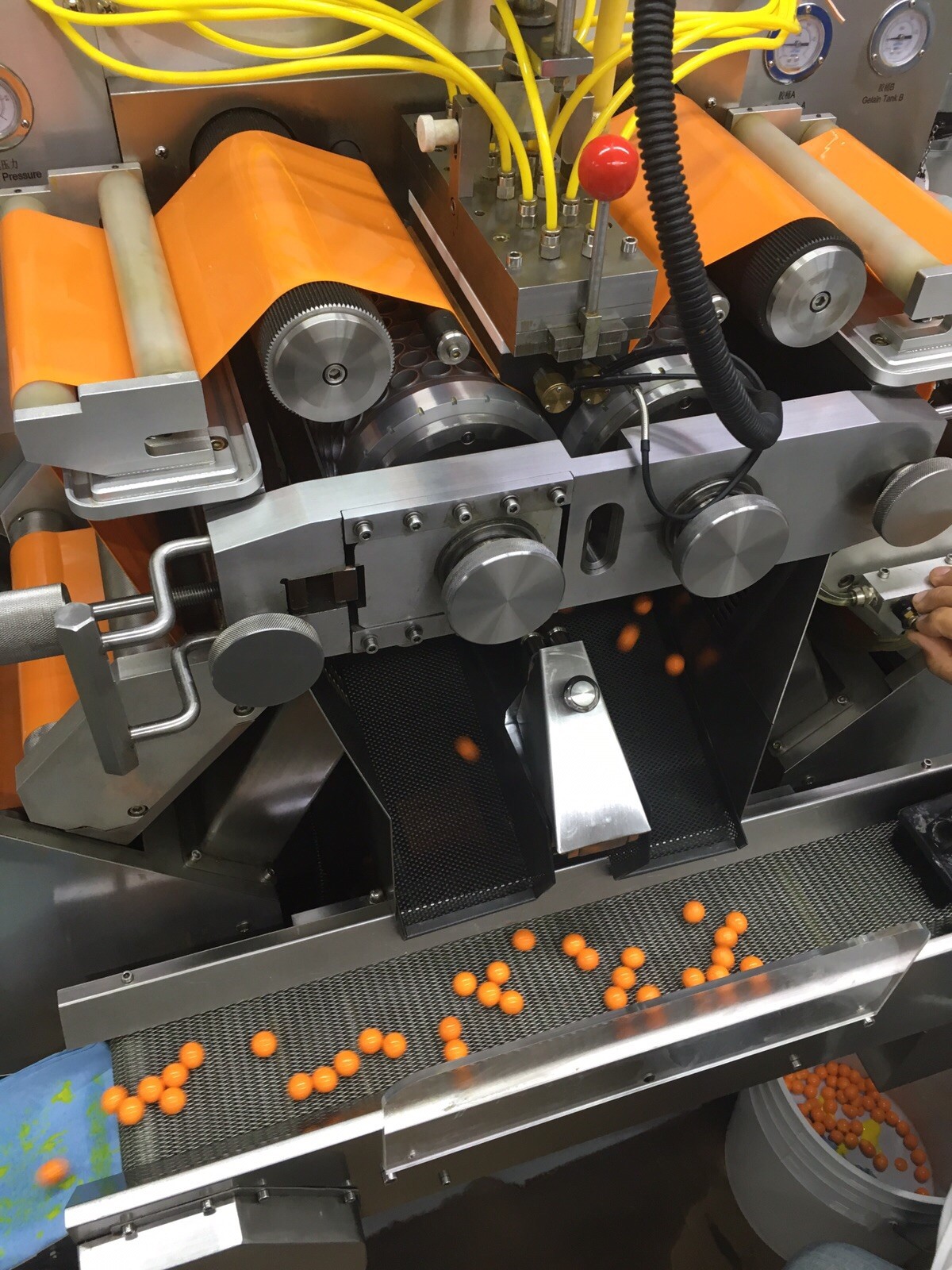

> Die Roll Speed 0-5 rpm
> Die Roll Dimension 150(Dia.)× 250(Length)mm
> Number of Plungers 24 (12 on each side) Specially Designed for Paintball
> Diameter Deviation of The 24 Plungers Less than 0.005mm.
> Dosage Deviation <±1.5%
> Dimension L×W×H =2050×1200×1850 mm
> Weight Approx. 2000kg
> Power Consumption 16 kW (Max.) ,
> Power Supply 3 Phase, 220V/380v/440V, 50Hz/60Hz optional
> Pressure Air 0.6MPa
> Gelatin Ribbon Lubrication Paraffin oil or equivalent, less than 1kg in 8 hours.
> Capsule Washing Not neccessary , Solvent Free.
> Major Bearings Made in Germany
> Separate Lubrication System for Medicine Pump and Die Roll Assembly.
> Water Cooled Drum Also Have Air Blowers .
> Automatic Medicine Supply The system can even alarm when the fill material tank is empty.
Specifically speaking, it has the following characteristics:
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of the 20 plungers are less than 0.005mm.
|Die roll size||150×250mm|
|Die roll speed||0~5rpm|
|Max plunging volume per stroke||0~2ml|
|Weight of main machine||1900kg|
|Control mode||PLC+Touch Screen|
|output||8#OV 120000 pcs/hour|
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 35- 40 working days.
