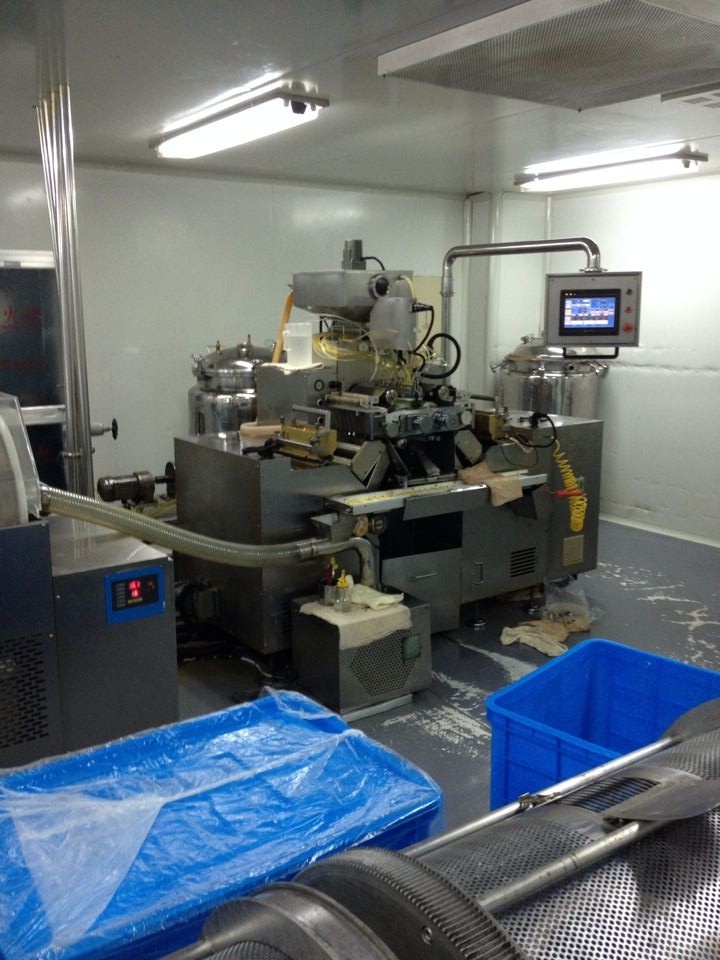

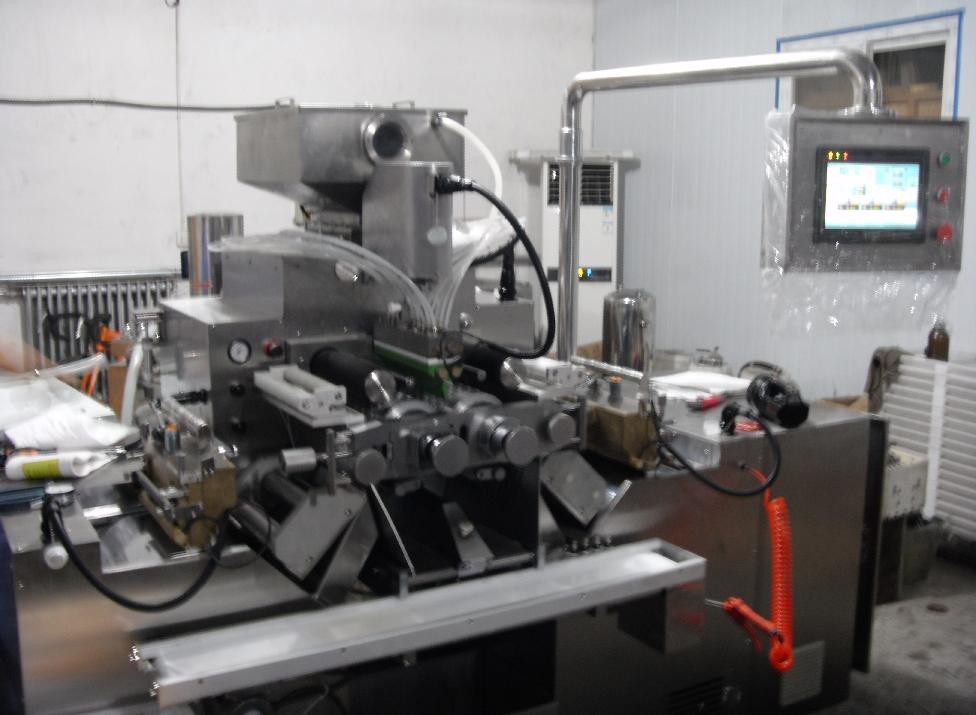

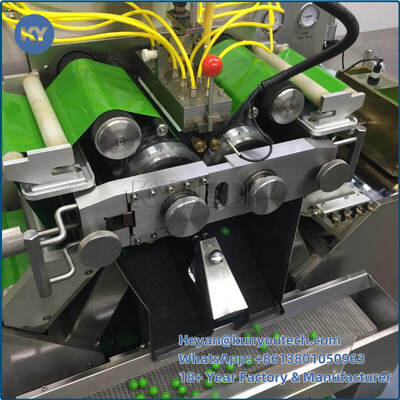

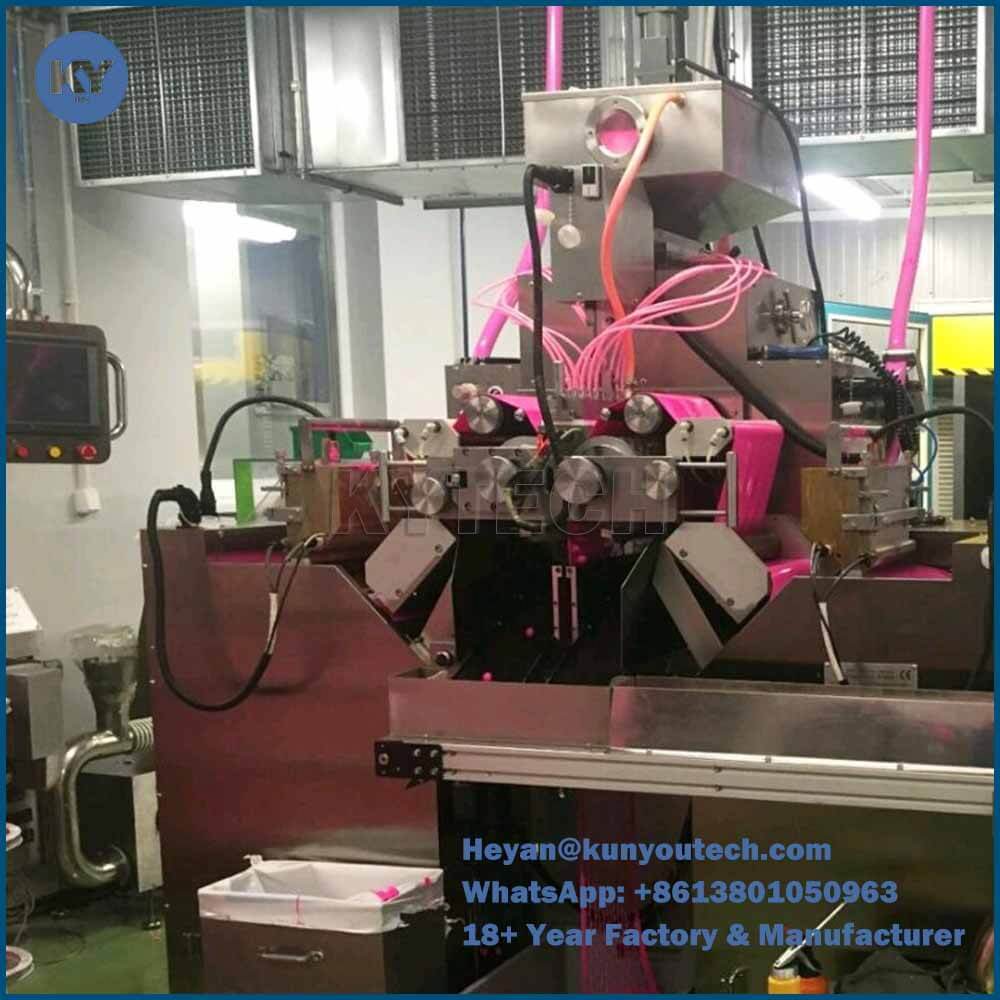

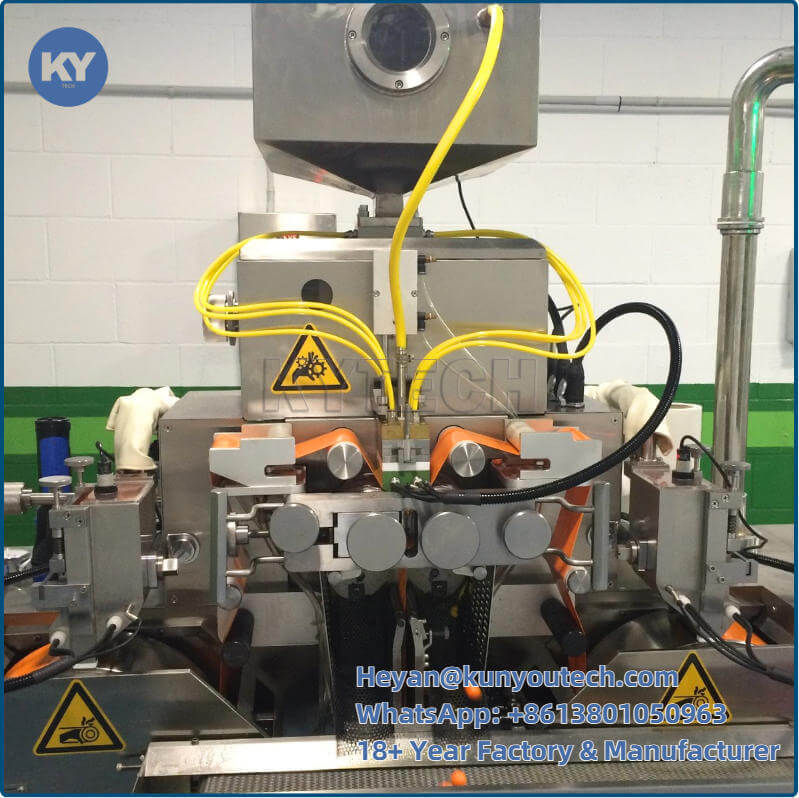

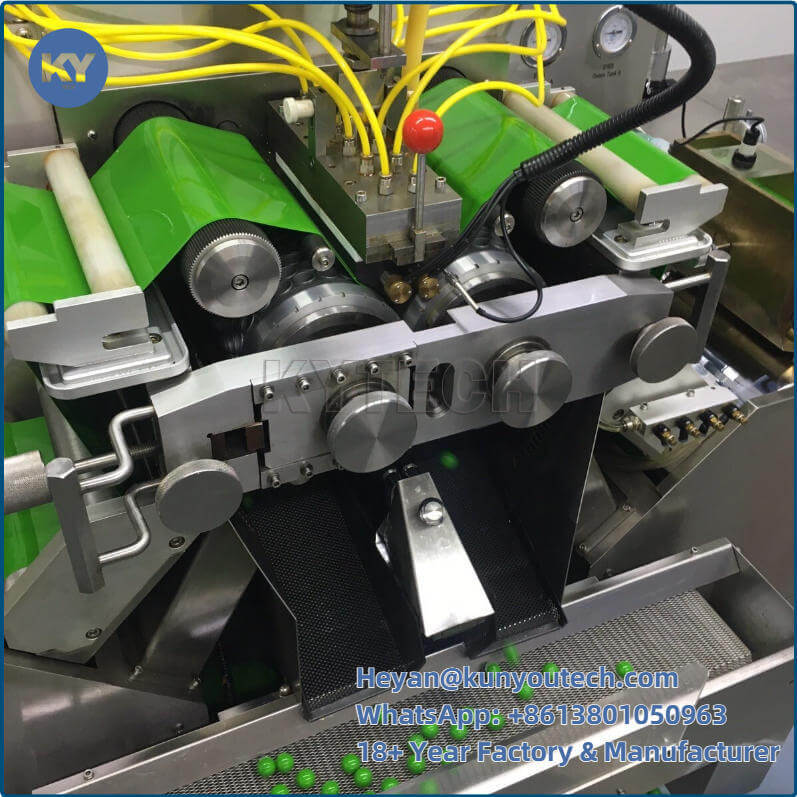

Paintball Encapsulation Machine S610
1. Paintball Encapsulation Machine
> Die Roll Speed 0-5 rpm
> Die Roll Dimension 150(Dia.)× 250(Length)mm
> Number of Plungers 24 (12 on each side) Specially Designed for Paintball
> Diameter Deviation of The 24 Plungers Less than 0.005mm.
> Dosage Deviation <±1.5%
> Dimension L×W×H =2050×1200×1850 mm
> Weight Approx. 2000kg
> Power Consumption 16 kW (Max.) ,
> Power Supply 3 Phase, 220V/380v/440V, 50Hz/60Hz optional
> Pressure Air 0.6MPa
> Gelatin Ribbon Lubrication Paraffin oil or equivalent, less than 1kg in 8 hours.
> Capsule Washing Not neccessary , Solvent Free.
> Major Bearings Made in Germany
> Separate Lubrication System for Medicine Pump and Die Roll Assembly.
> Water Cooled Drum Also Have Air Blowers .
> Automatic Medicine Supply The system can even alarm when the fill material tank is empty.
Large Scale Soft Gelatin Encapsulation Machine For Pharmaceutical Industry Use And Meet GMP Requirement
| Product Name | Large scale Softgel encapsulation machine | Driven Type | Electric |
| Capacity |
120000pcs /hour, 8#OV For paintball 30000pcs/H |
Dosage deviation | <±1.5% |
| Application | Food, pharmaceutical,softgel making machine | Control | PLC |
Soft Capsule Making Machine can quantificationally inject the oil, mixing suspension and pasty mass into the capsule to form all kinds of softgel encapsulation with different size, shape and color. Because of the merits of high speed disintegration, easy to oray, hard to oxygenation, easy to store. So soft capsule making machine is becoming more and more popular for customers. Due to high productivity, charging exactly, quality stabilization, high finished product rate, it is favored by more and more manufactures and applied in the fields of medicine, health products, sports paintball and cosmetic, etc.
| Model | S610 |
| Die roll size | 150×250mm |
| Die roll speed | 0~5rpm |
| Max plunging volume per stroke | 0~2ml |
| Plunger numbers | 20/24 |
| Overall dimension | 2050×1200×1850 |
| Weight of main machine | 1900kg |
| Power consumption | 20 kw |
| Control mode | PLC+Touch Screen |
| output | 8#OV115,440 pcs/hour |
Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.
We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.
Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
