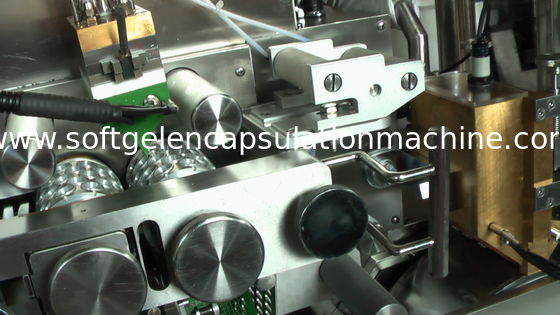

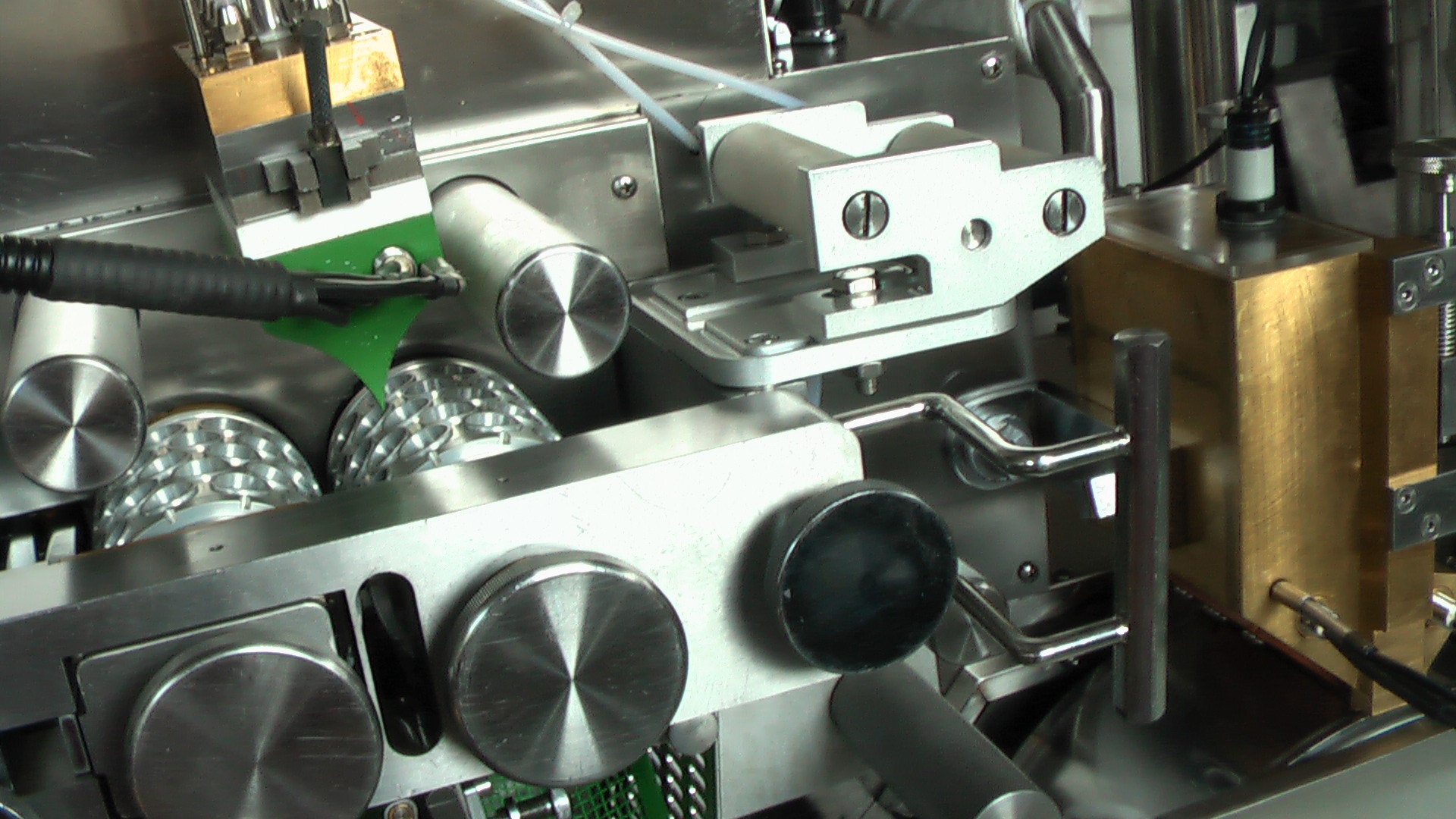

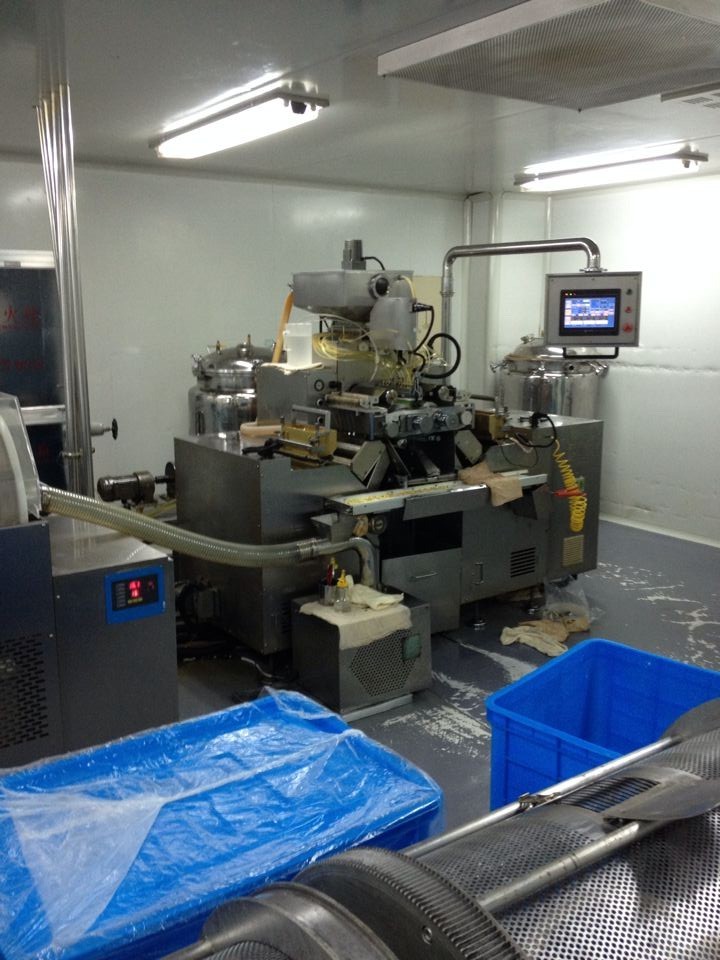

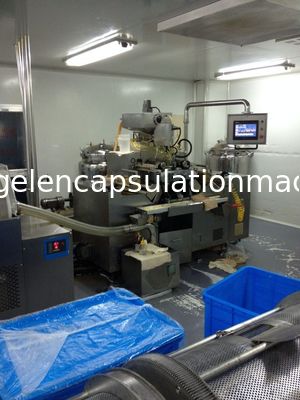

Paintball Encapsulation Machine S610
1. Paintball Encapsulation Machine
> Die Roll Speed 0-5 rpm
> Die Roll Dimension 150(Dia.)× 250(Length)mm
> Number of Plungers 24 (12 on each side) Specially Designed for Paintball
> Diameter Deviation of The 24 Plungers Less than 0.005mm.
> Dosage Deviation <±1.5%
> Dimension L×W×H =2050×1200×1850 mm
> Weight Approx. 2000kg
> Power Consumption 16 kW (Max.) ,
> Power Supply 3 Phase, 220V/380v/440V, 50Hz/60Hz optional
> Pressure Air 0.6MPa
> Gelatin Ribbon Lubrication Paraffin oil or equivalent, less than 1kg in 8 hours.
> Capsule Washing Not neccessary , Solvent Free.
> Major Bearings Made in Germany
> Separate Lubrication System for Medicine Pump and Die Roll Assembly.
> Water Cooled Drum Also Have Air Blowers .
> Automatic Medicine Supply The system can even alarm when the fill material tank is empty.
