Production Introduction
Colloid Mill is suitable for fine processing of liquid materials. It integrates the properties of homogenizer, ball mill, 3-roller grinding machine, cutting machine and mixing machine. It has superior functions of superfine grinding, dispersing, emulsifying, homogenizing and mixing. After processing, the granularity of materials can reach to 2-50μm. It is an ideal processing equipment for ultramicron materials, and applicable for processing of semi fluid or emulsus materials in pharmaceutical, food and cosmetic industries.

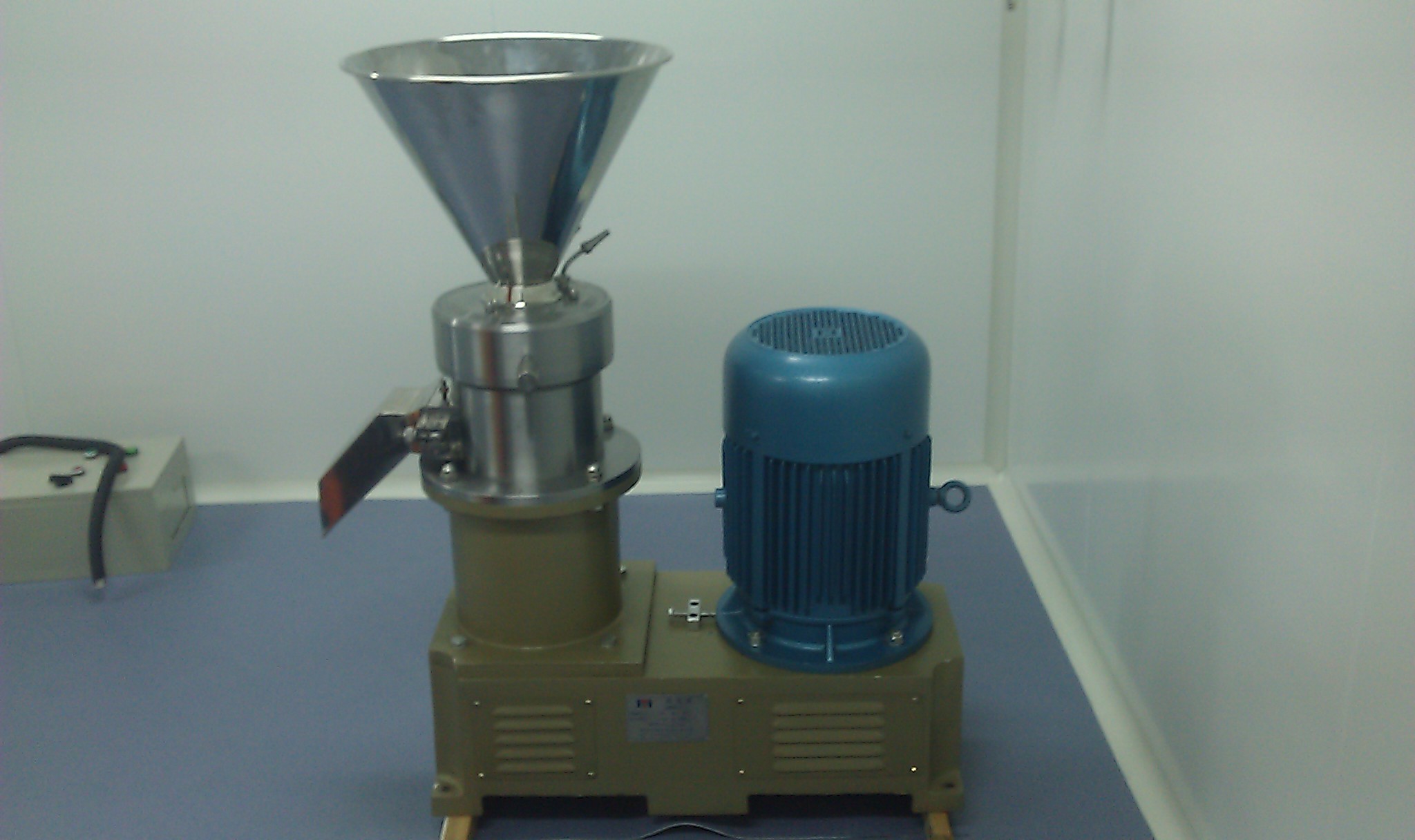

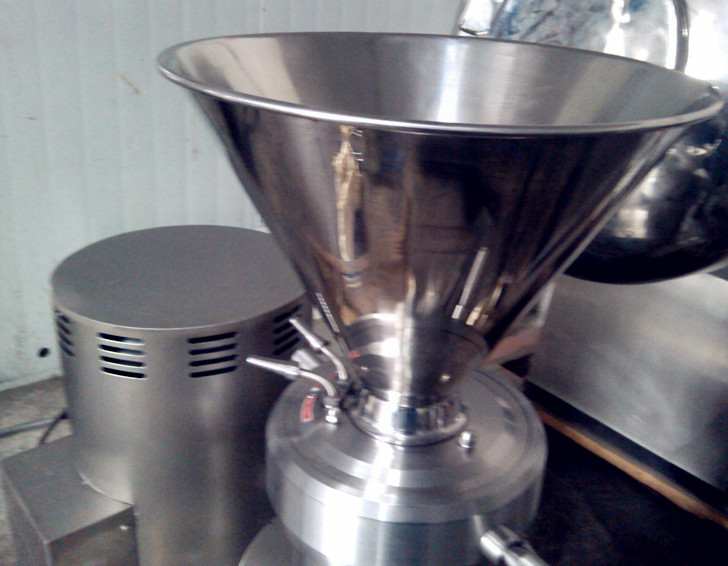

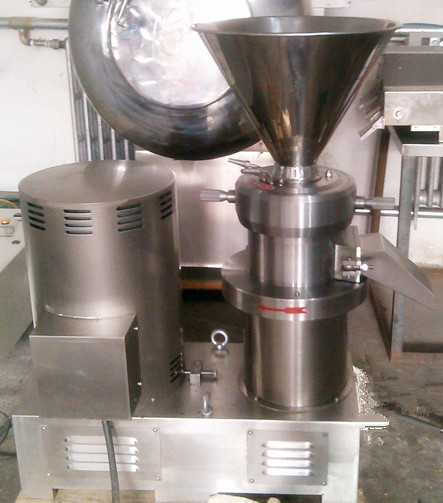

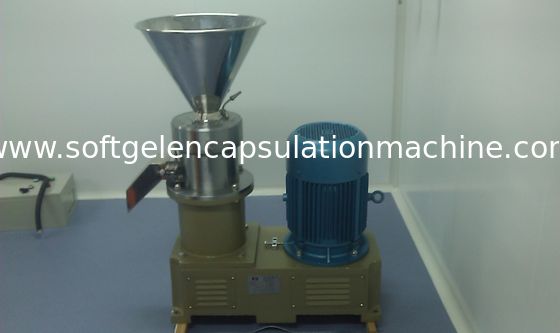

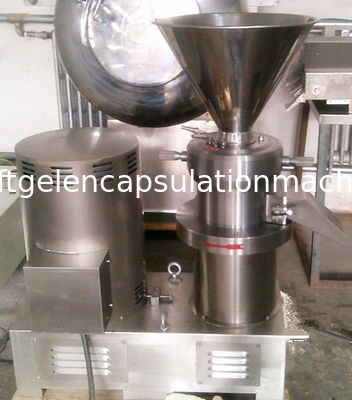

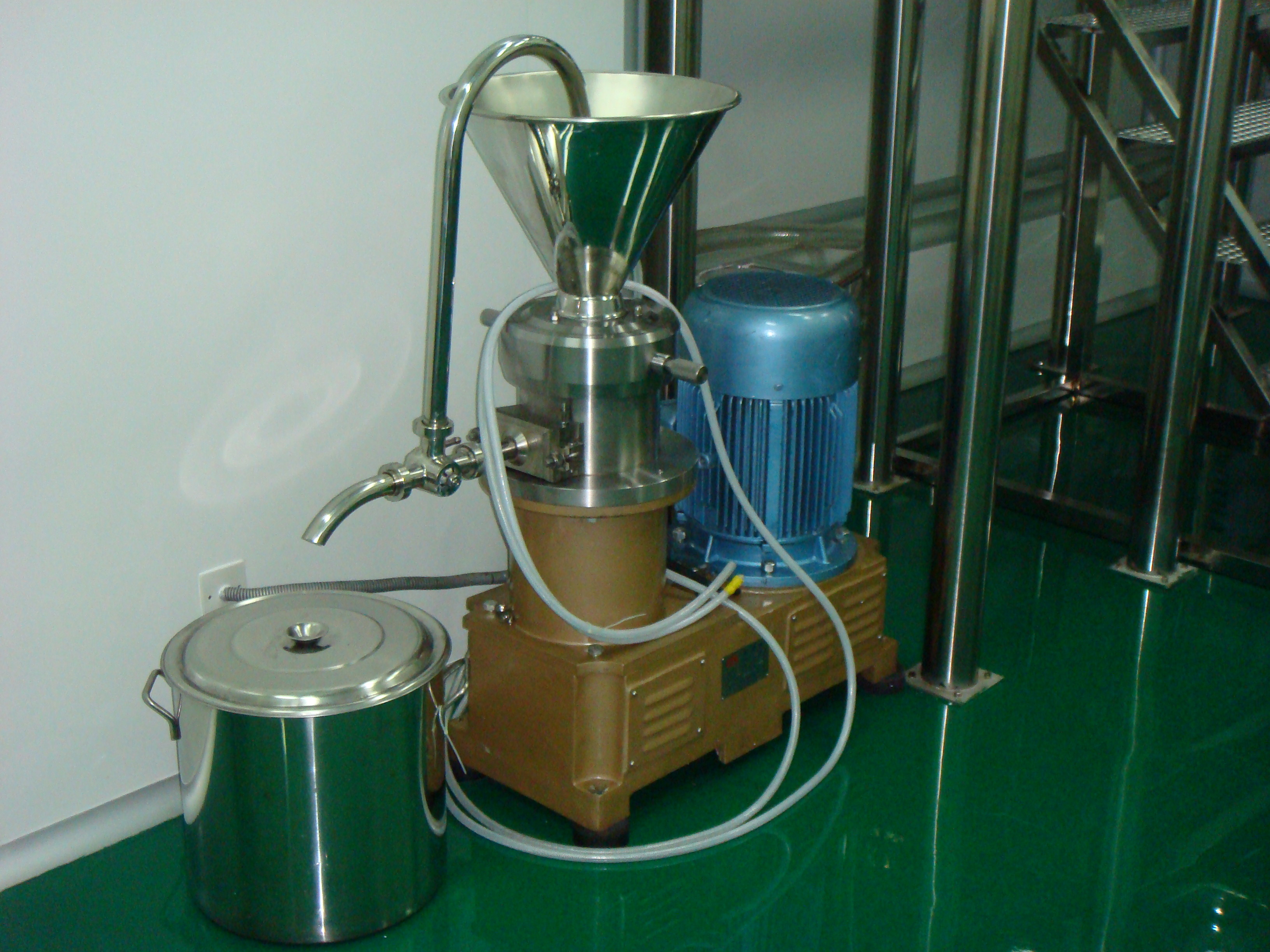

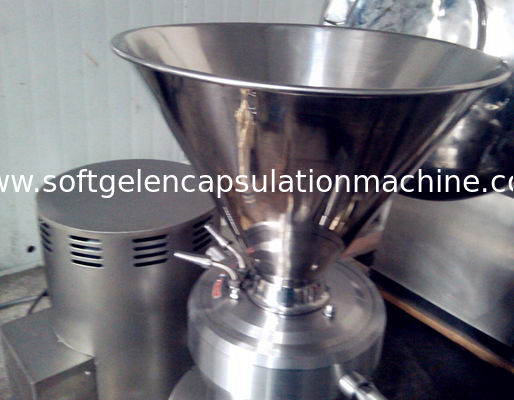

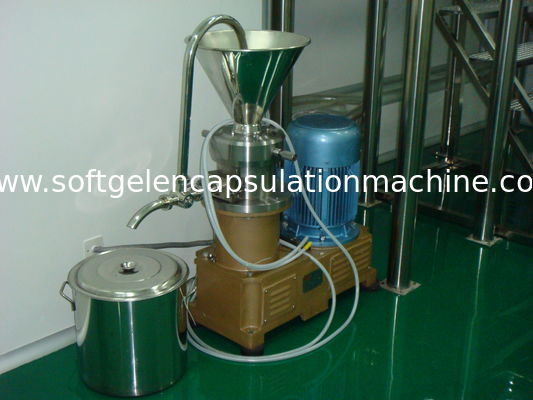

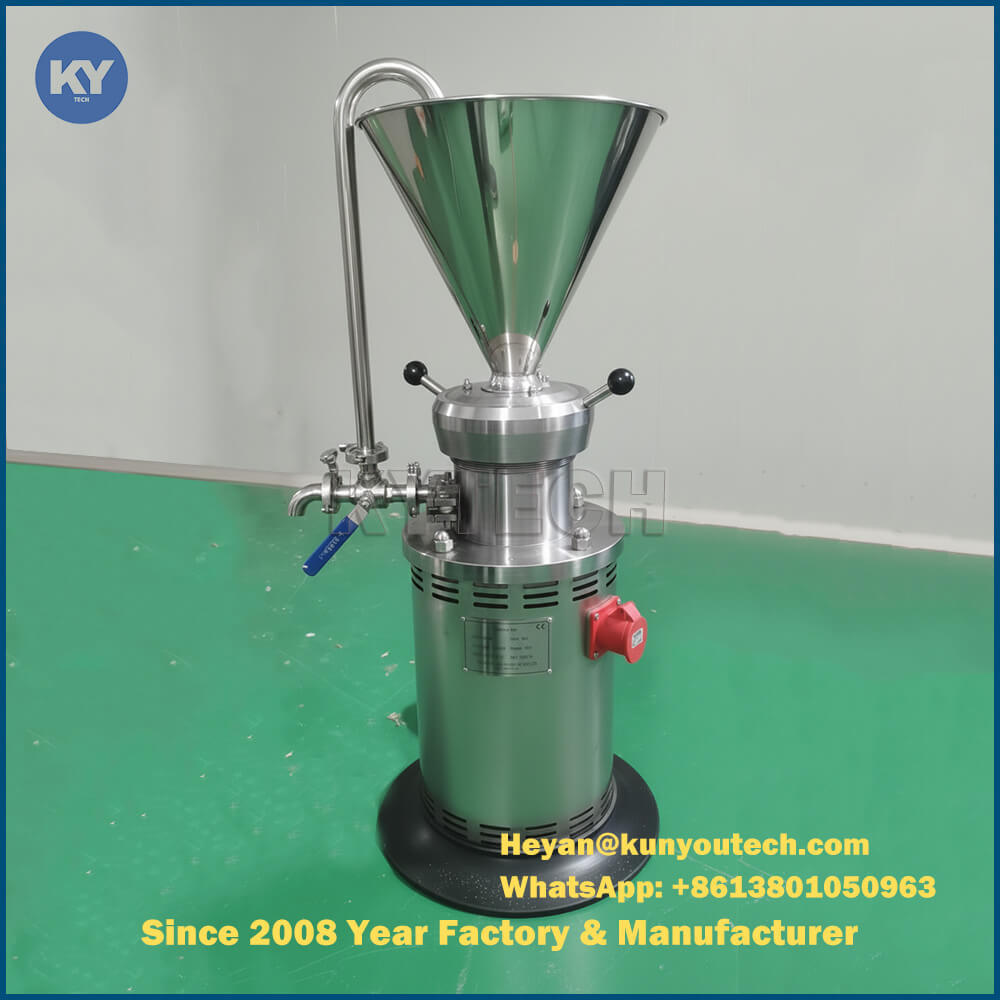

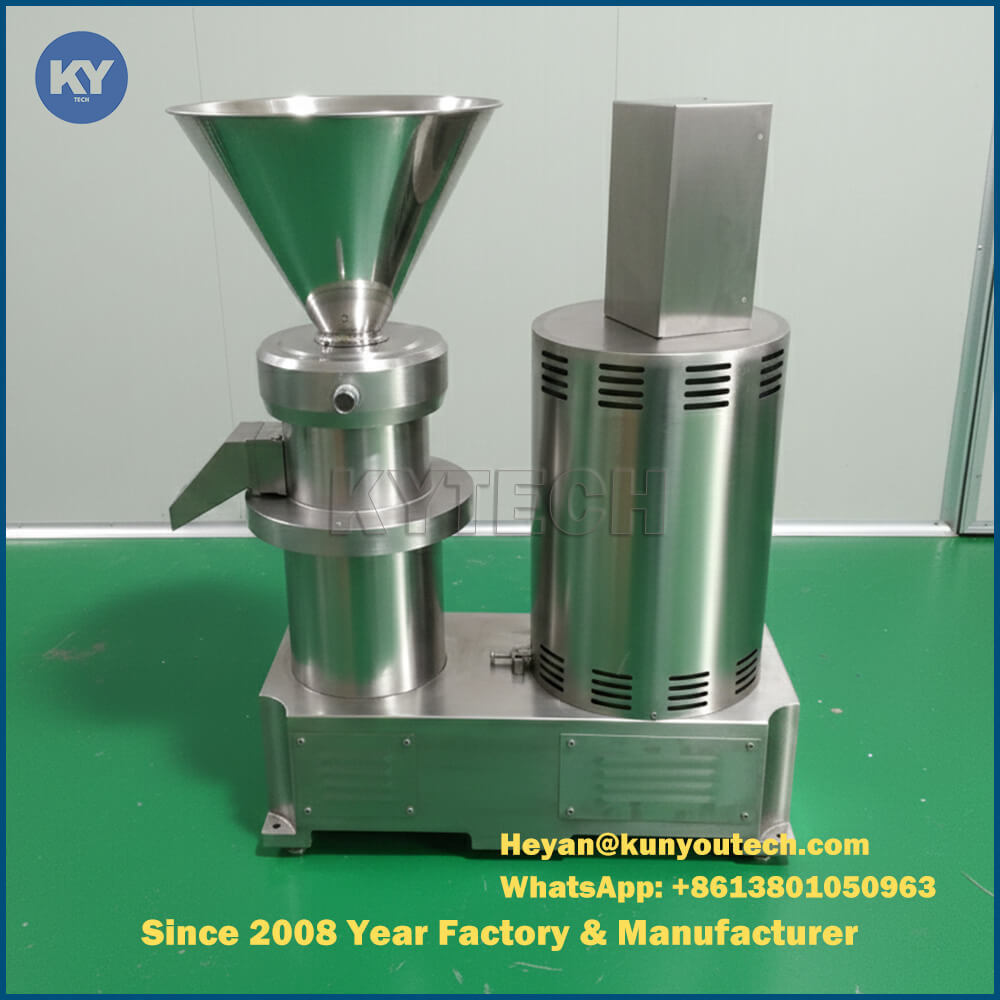

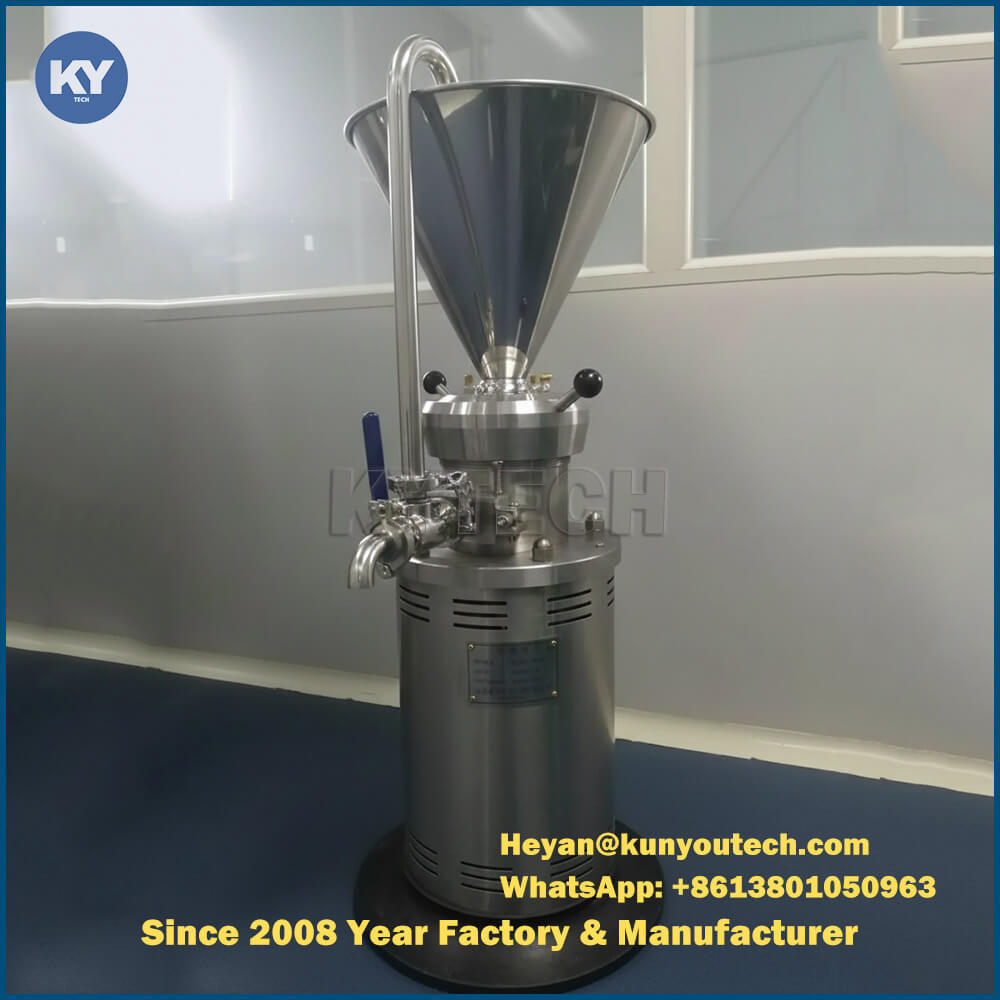

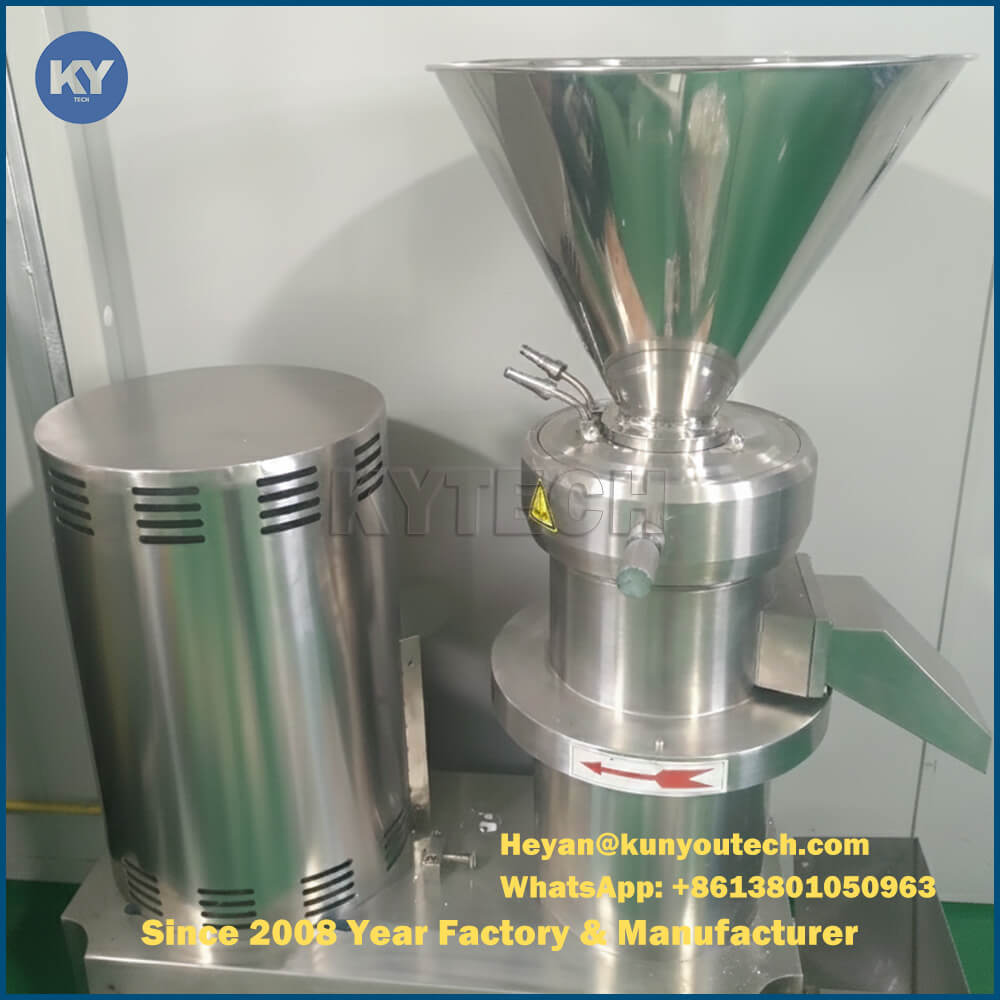

Stainless Steel Colloid Mill Machine
Product Description
Major spare parts of the colloid mill are made of high quality stainless steel and free from corrosion and poison.
|
Name |
Standing colloid mill |
Variable speed colloid mill |
|||
|
Type |
JM-80 |
JM-130 |
JMS-50 |
JMS-80 |
JMS-130 |
|
Material processing size(µm)(single cycle or multi-cycle) |
2-50 |
2-50 |
2-50 |
2-50 |
2-50 |
|
Capacity (t/h)(change with the nature of material |
0.07-0.5 |
0.5-2 |
0.005-0.03 |
0.007-0.5 |
0.5-2 |
|
Power of main electrical motor(kw) |
4 |
11 |
1.1 |
4 |
11 |
|
rpm of electrical motor (r/min.) |
2890 |
2930 |
1750-5000 |
1600-5000 |
1750-5000 |
|
Overall size (L x W x H) mm |
45 |
55 |
53 |
68 |
99 |
|
Gross weight (kg) |
190 |
320 |
70 |
210 |
420 |
