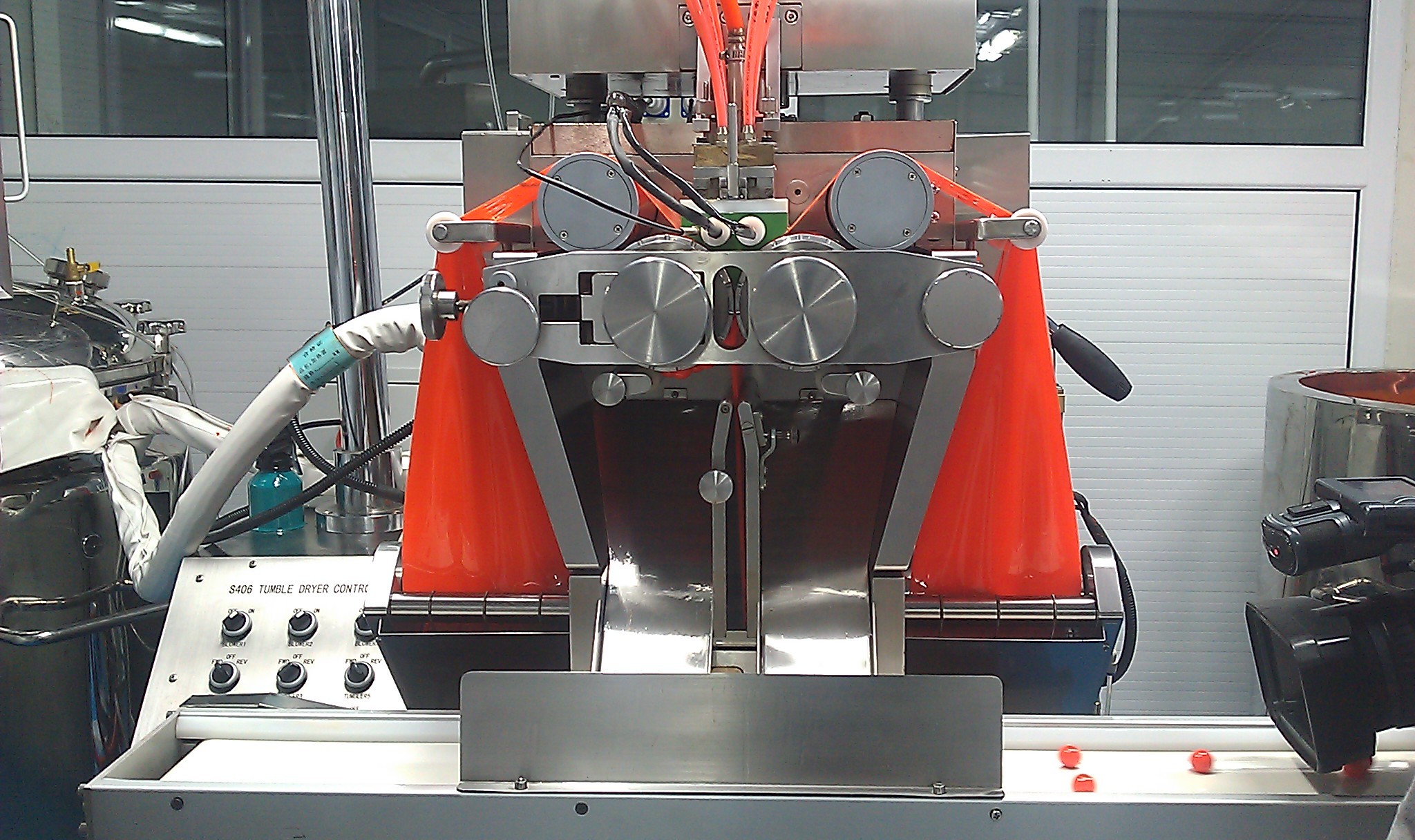

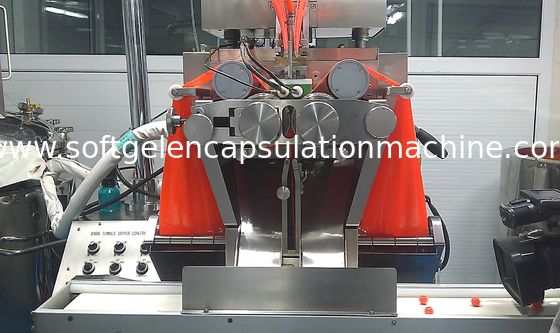

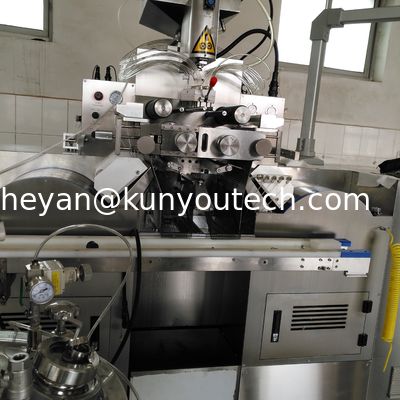

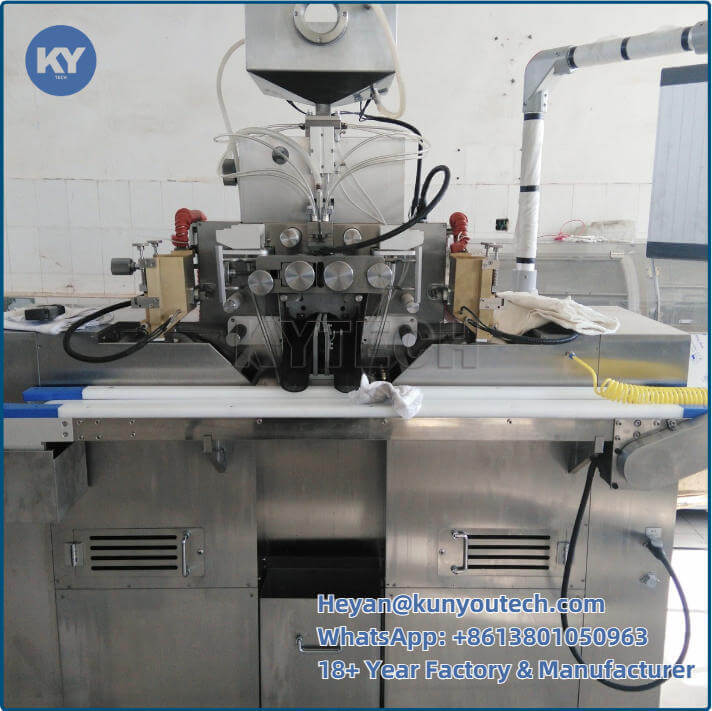

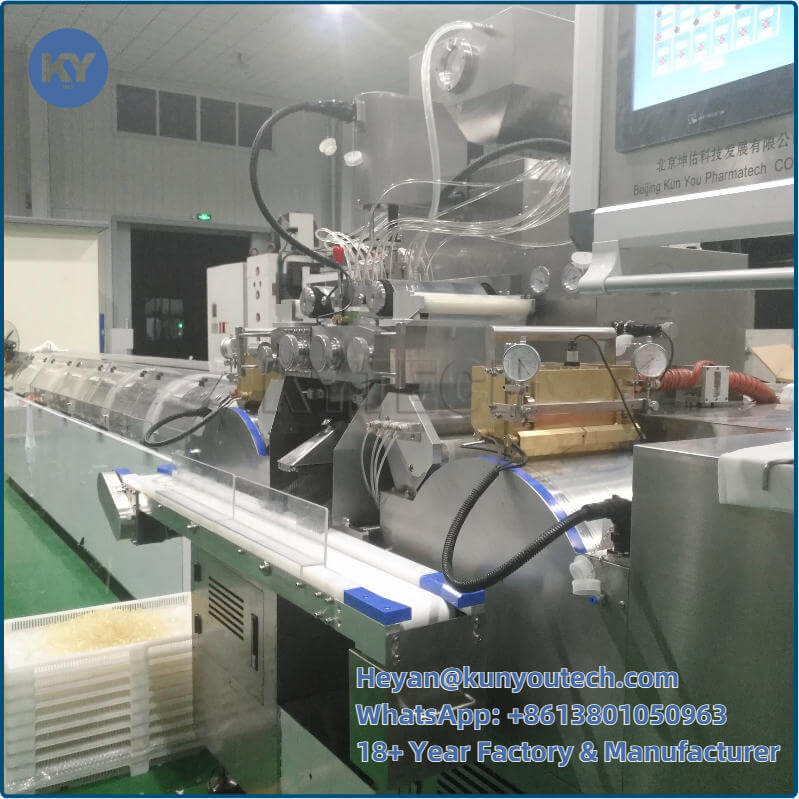

Low Energy Consumption Electric Softgel Encapsulation Machine
Quick Detail
|
Product Name |
Softgel Encapsulation Machine |
Driven Type |
Electric |
|
Brand Name |
KUN YOU |
Material |
Stainless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Production Description
Our company is a professional supplier for softgel making machine and paintball making machine. Our softgel making machine is divided into three models, small model, medium model and large model. For small scale softgel production, our S403 R&D softgel making machine maybe fit for your requirements, it can produce about 20000 pcs softgels per hour. And S406 Softgel Encapsulation Machine is suitable for medium scale production, its production rate can get to 40000 pcs softgels per hour. The largest model, S610 Softgel Encapsulation Machine can produce 120000 pcs softgels per hour. We provide the whole line of softgel making, including the gelatin melting system, fill material system, softgel encapsulation machine and softgel drying machine. All the machine is made of high quality stainless steel and spare parts from famous brands. And we adopt the gelatin ribbon micro lubrication system.
Applications:
It’s mainly for softgel and paintball making enterprises and pharmaceutical enterprises, especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.It also can suitable for cosmetic manufactures, such as bath beads and Collagen capsule.
Specification
|
Model |
S403 |
S406 |
S407 |
S610 |
|
Die roll diameter(mm) |
80 |
103 |
103 |
150 |
|
Die roll length(mm) |
100 |
152 |
172 |
250 |
|
Die roll speed |
0-5 |
0-5 |
0-7 |
0-5 |
|
Plunger Qty. |
6 |
10 |
12 |
20 |
|
Dimension |
1450×600×1350 |
880×640×1900 |
800×2200×2000 |
2050×1200×1850 |
|
Weight(kg) |
600 |
900 |
1200 |
1900 |
|
Power(kw) |
2kw |
7kw |
13kw |
20kw |
|
control |
PLC.touch screen |
|||
Competitive Advantage:
1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment
Big Volume Gelatin Melting Tank
Specification
| Model | 450L | 600L | 800L | 1000L |
| Capacity(L) | 650 | 900 | 1120 | 1370 |
| Melting gelatin(L) | 100-450 | 150-600 | 200-800 | 300-1000 |
| Heating area(M2) | 3.2 | 4 | 4.8 | 5.5 |
| Max degree of Vacuum(Mpa) | 0.09 | 0.09 | 0.09 | 0.09 |
| Max Temperature(°C) | -100 | -100 | -100 | -100 |
| Motor Power (KW) | 4 | 5.5 | 7.5 | 7.5 |
| Stirring speed (r/min) | 50 | 50 | 50 | 50 |
| Dimension (mm) | Φ1210X1880 | Φ1310X1980 | Φ1410X2080 | Φ1510X2130 |
Our company can also provide the complete line for softgel making and paintball making, softgel die roll and paintball die roll, plastic drying trays and trolley.
FAQ
Q1:Are you factory or trading company?
A: We are factory and manufacture.
Q2: Where is your factory located? How can I visit your factory?
A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!
Q3:How to place my order?
A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.
Q4 : What is the payment term?
A: 30% T/T deposit and 70% T/T balance payment before shipping.
Q5:How long is the delivery time?
A: About 3-7 working days.
