7 Inch Softgel Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil

7 Inch Softgel Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil

  • 7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
  • 7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
  • 7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
  • 7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
  • 7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
7 Inch Softgel 	Automatic Vgel Encapsulation Machine For CBD Oil / Grape Seeds Oil
Product Details:
Place of Origin: China
Brand Name: Kunyou
Certification: CE
Model Number: S407
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 50000-60000USD
Packaging Details: wooden cages
Delivery Time: 45days
Payment Terms: L/C, T/T
Supply Ability: 5set per mon
Contact Now
Detailed Product Description
Die Roll: 7inch Warantee: 1 Year
Service: Technion Avaliable Certificate: Iso9001
Mateial: SS304/316 Veg Material: Avaliable
High Light:

soft gel capsule machine


soft gelatin capsule machine


Product Description


The drug pump can run together with the die roller automatically and synchronously, it’s very convenient to adjust the spraying time. S407 large softgel making machine sale adopts a new cam mechanism, which relieved the reversing board manual synchronization process. The control system has faults diagnosis function. It can realize remote diagnosis after the upgrade. New 8 type amorphous drying roll cage is charactered by variable frequency speed regulation and more reasonable structure.

With the development of our advanced technology, our softgel making machine can not only produce soft gelatin capsule, but also the vegetable gelatin capsule which can meet special requirements for special clients.

The production line is mainly composed of main machine, tumbler dryer, fill material system and pneumatic theroms plastic barrels, etc.

Specifically speaking, it has the following characteristics:


Dosage deviation:<+1.5%
Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
Major bearing made in Germany.
Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
Separate lubrication system for medicine pump and die roll assembly.
Water cooled drum also have air blowers
PLC and touch screen control with self-trouble diagnostic.
Automatic medicine supply. The system can even alarm when the fill material tank is empty.
High accuracy medicine pump. The diameter tolerance of the 12 plungers are less than 0.005mm.



S406 PB_


S407 softgel capsule making machine


Model S407 softgel capsule making machine
1.Stainless steel Softgel Making Machine
2.CE Softgel Making Machine


Machine Description:

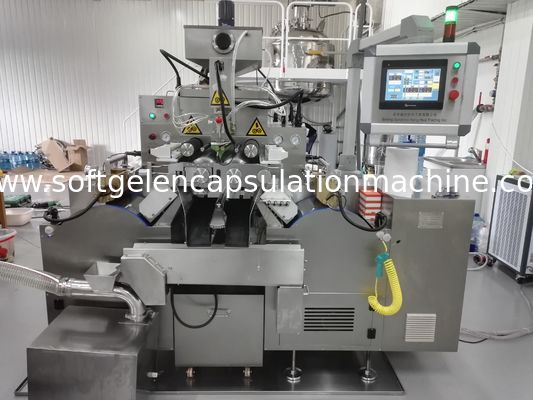

Our S softgel capsule making machine is a new generation of roller die type water cooling type soft gelatin encapsulation machine that optimized designed and precise manufactured on the basis of foreign latest technology. The main technical index meets the international advanced level and conforms with the GMP standard.

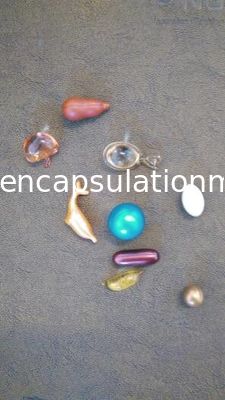

It consists of main machine, gelatin melting tank, insulated gelatin storage tank, electric control cabinet, conveyor, shape/drying rotary cage, colloid mill etc. The working principles: put the oil, gelatin-insoluble liquid, paste, plaster (e.g. extract plaster) inject into between two gelatin skin quantificational, through the two roller dies and press and cutting into various shape soft capsules, such as egg shape, fish shape, cylinder, ball shape, calabash shape. The product is widely used in pharmaceutical, cosmetic, health food and pesticide etc.

It has two models, model A adopts button to control machine start or stop, and model B to replace the button with PLC.



1. Comparing with air cooling that cause dust contamination, water cooling of this machine will ensure clean environment.

2. Optimization the design of the roller die, increase the output of 30--40% than the model S406(6 inch roller dies), meanwhile enhance the utilization ratio of gelatin.

3. Adopting air pressure ensure gelatin storage tank conveys gelatin on the ground, ensure better production environment.

4. The capsule conveyance belt adopt food-grade conveyance belt (FDA approved) which is non-toxic, non-sticky, and easy to wash.

5. The shaping and drying rotary cage is made of stainless steel mesh panel with no dead corners and easy to clean. An oil basin under the rotary cage ensures no oil dropping during the production.

6. All the electric components adopt well-known brand in the world, the performances is stable.

7. The 10-station and 14-station injection rod equipped with the machine, ensure full use of roller dies when producing the small dosage products, enhances the utilization ratio of gelatin and output.

8. It is convenient and prompt that adjusting the clearance of two roller dies by air pressure.

9. The improved capsule-peeling unit minimizes the probability that the waste gelatin skin enwind onto the gelatin-peeling rod.

10. The injector, gelatin spreading box and the roller die are made of special material, material contact part are made of 316L S.S and other parts are made of 304# S.S which conforms with GMP standard completely.



Beijing kunyou Pharmatech Co Ltd is famous group and apply itself to R&D,manufacture machinery for Pharmaceutical,Chenical,food and so etc fields.


Our Main Products are: Mixer,Gelatin Tank ,material tank ,Dryer,Packing machine,Filling Machine,Colloid Miller and paintball counting machine ,sorting machine,We also supply punch die sets and spare parts in standard or not.


The Headquarter is located in The beautiful,historical and cultural City-Beijing

Our production,examinaton and supervision are strictly following the ISO9001 International Quality System and have CE Certification.


A. To pick up machine more easy & correct.

First, We need client to provide below information about their product:


1) The requirement of raw material: we require oil or paste and suspend liquid, can fall down from cone charging barrel.

2) We need know the size, shape of capsule. Yield(capacity) in your request.

So we can figure out if our machine can compress and which models will meeting with your requirement.


B. We can design, customize and make die roll for customers.





Model S407
Die roll size 103×172mm
Die roll speed 0~7rpm
Max plunging volume per stroke 0~2ml
Plunger numbers 12
Overall dimension 1600×1200×2250
Weight of main machine 1900kg
Power consumption 13.5kw
Control mode PLC+Touch Screen
output 8#OV 50000 pcs/hour



S406 Softgel


Q1:Are you factory or trading company?

A: We are factory and manufacture.


Q2: Where is your factory located? How can I visit your factory?

A: We are located in Beijing, you can fly to Beijing airport or Nanyuan airport. Wecan pick you up from the airport or your hotel.Welcome to visit us!


Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.


Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.


Q5:How long is the delivery time?

A: About 35- 40 working days.


Looking forward to working with you!
