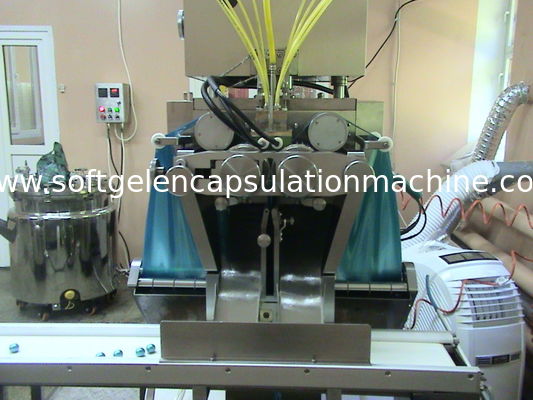

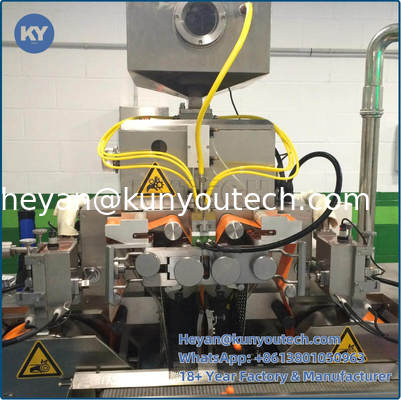

CS Paintball Automatic Capsule Machine , capsule making machines Precise Control 8000 - 32000 / H
Quick Detail
|
Control Mode |
PLC+Touch Screen |
Material |
304 SUS |
|
Application |
CS Paintball Making |
Certification |
CE |
|
Scale |
Small/Medium/Large Scale Production |
Capacity |
32000pcs/hour Max |
Product Description

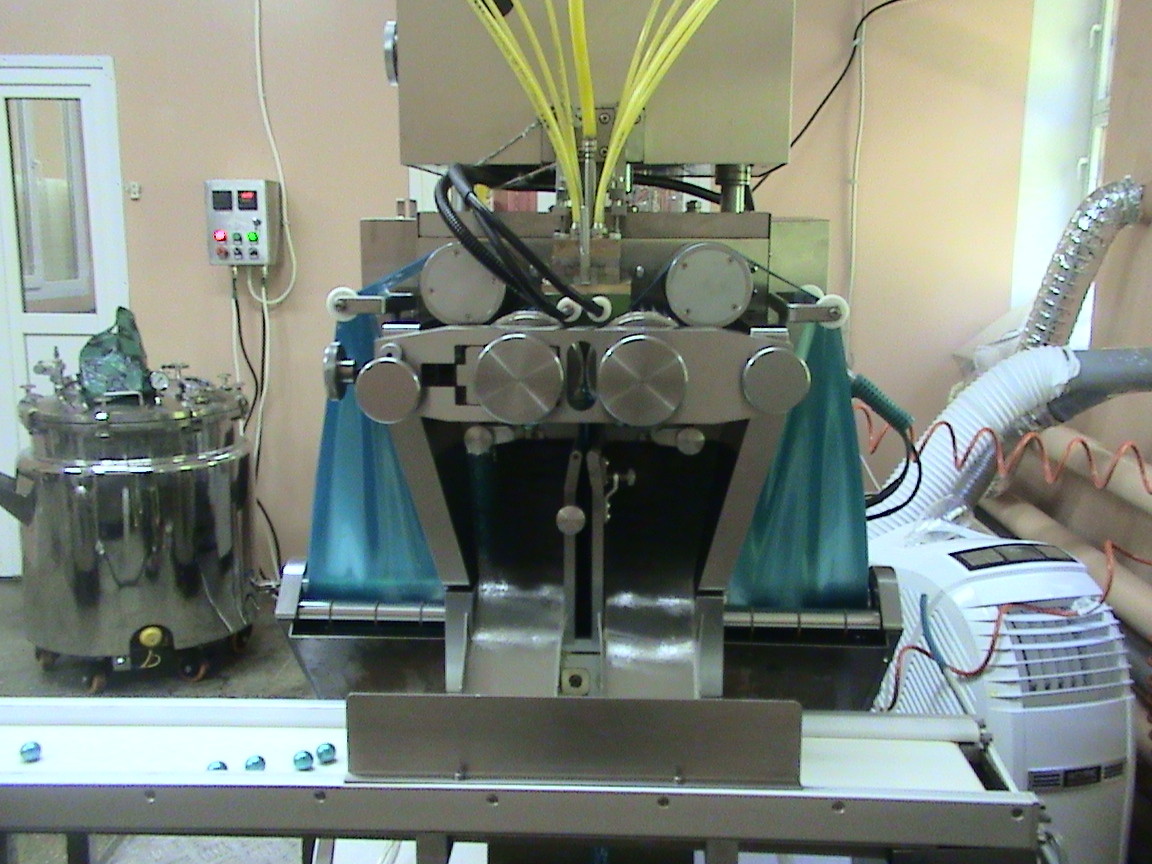

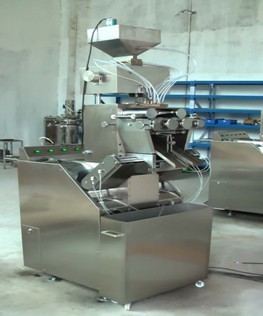

Beijing Kun You Pharmatech Co., Ltd has three model Paintball Making Machine.

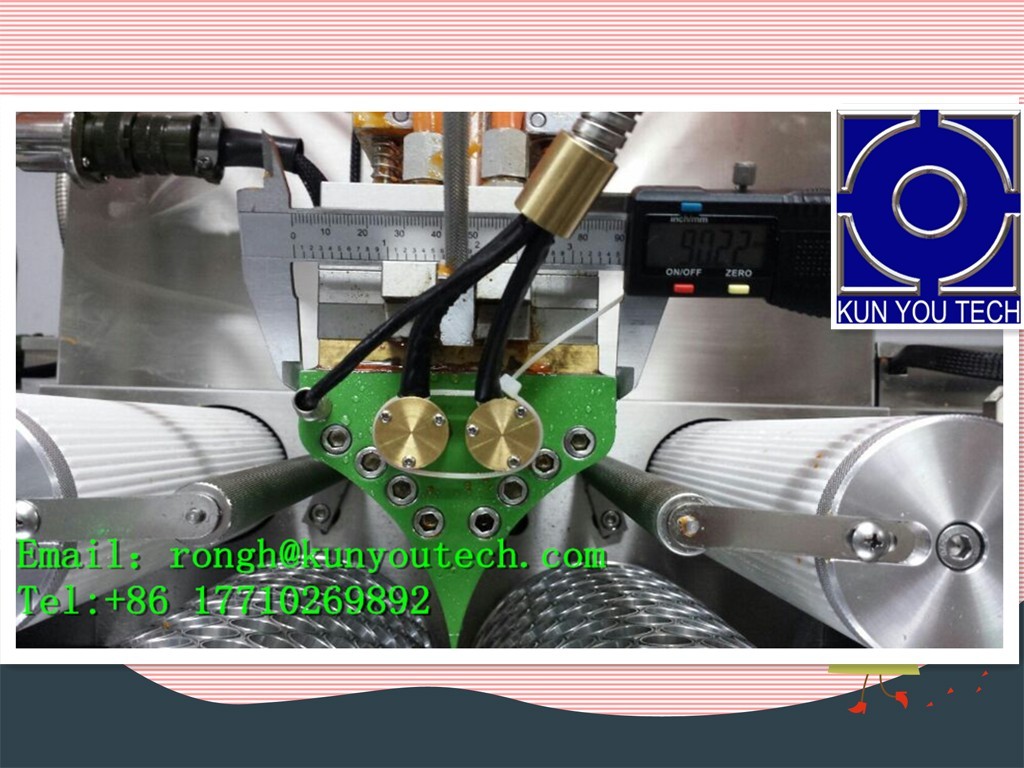

1.Mould with mould shaft machine design, to prevent the damage during the moulds installation.
2.Special use wedge installation device, prevent the damage of wedge during the installation.
Reduce the working strength of the operators.
3.We use the simplified design for all the daily maintenance parts, easy and fast.
Specification
|
Model |
S403PB |
S406PB |
S610PB |
|
Production Rate |
8000pcs/hour |
18000pcs/hour |
32000pcs/hour |
|
Consumption Power |
3kw |
7kw |
20kw |
|
Dimension(mm) |
1100*600*800 |
880*640*1900 |
2050*1200*1850 |
|
Main Machine Weight(kg) |
300kg |
900kg |
1900kg |
|
Control Mode |
PLC+Touch screen |
||
Competitive Advantages
1. Small size, low energy consumption
2. Easy to operate and clean
3. High quality and intelligence control system, PLC true color touch screen technology adopted
by the electronic
4. High precision
5. Small load difference
6. Micro lubrication
control system. All electric parts use world brand parts, such as Siemens, Schneider.
7. The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.

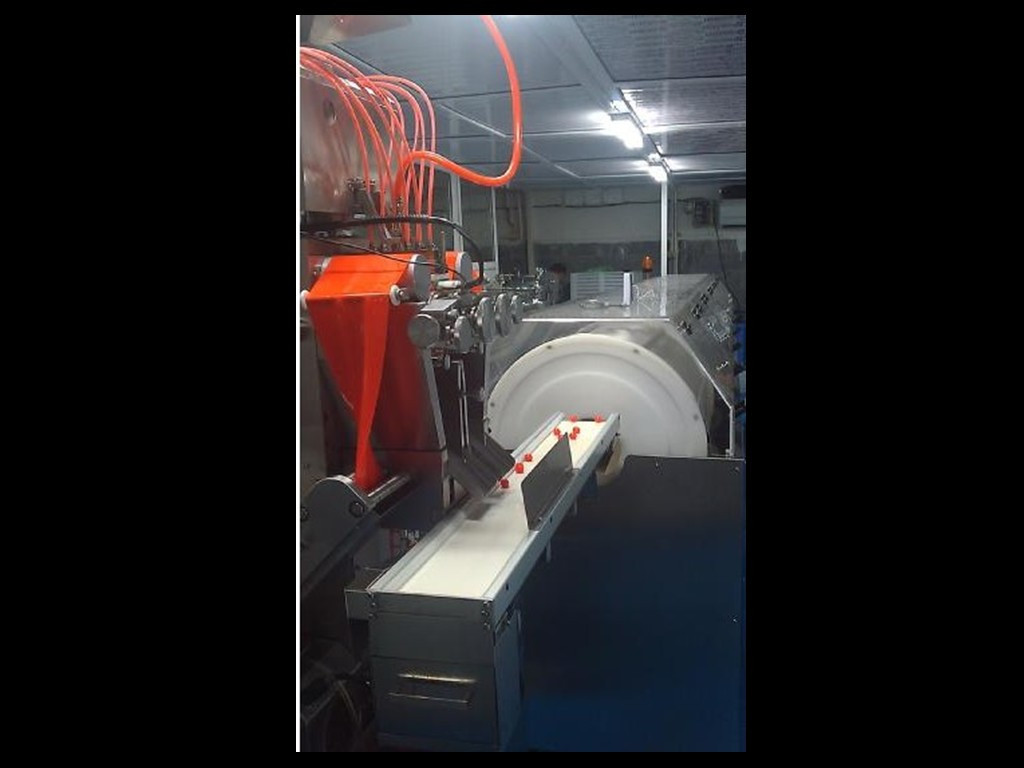

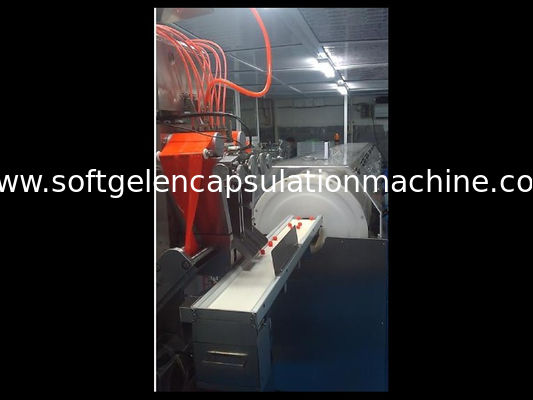

8. Air-cooling system is adopted at the output of paintball, that make paintballs amazing
9.Professional PID temperature control technology is adopted on the machine,
temperature of injector can be
adjusted accurately. Improves ratio of finished products of paintball.

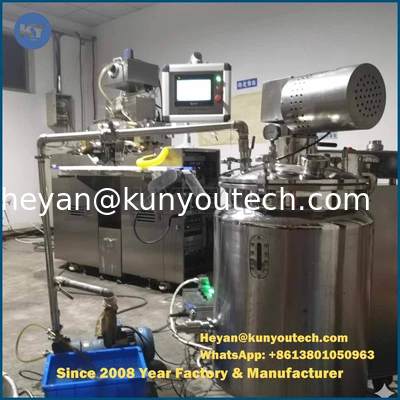

2. Gelatin Melting System
|
Model of the gelatin melting tank |
450L |
600L |
800L |
1000L |
|
Capacity(L) |
650 |
900 |
1120 |
1370 |
|
Melting gelatin(L) |
100-450 |
150-600 |
200-800 |
300-1000 |
|
Heating area(M2) |
3.2 |
4 |
4.8 |
5.5 |
|
Max degree of Vacuum(Mpa) |
0.09 |
0.09 |
0.09 |
0.09 |
|
Max Temperature(℃) |
-100 |
-100 |
-100 |
-100 |
|
Motor Power (KW) |
4 |
5.5 |
7.5 |
7.5 |
|
Stirring speed (r/min) |
50 |
50 |
50 |
50 |
|
Dimension (mm) |
Φ1210X1880 |
Φ1310X1980 |
Φ1410X2080 |
Φ1510X2130 |
3. Tumble drying machine
|
Model |
TD-0 |
TD-1 |
TD-2 |
TD-3 |
TD-4 |
|
Basket diameter(mm) |
420 |
580 |
580 |
730 |
526 |
|
Basket length(mm) |
620 |
600 |
900 |
1010 |
282 |
|
Drying fan(kw) |
0.25 |
0.32 |
0.32 |
0.55 |
2 |
|
Motor Power(kw) |
0.2 |
0.4 |
0.4 |
0.75 |
1.5 |
|
Basket per section |
1 |
2 |
2 |
1 |
6 |
Paintball Encapsulation Machine, Paintball Making Machine, Soft capsule and Paintball Encapsulation Machine.
Our company major in encapsulation project,if need more detailed information please contact us.
