0.68" SS304 Paintball Making Machine With Check Gauge , Capacity 30,000 Paintball/H

1 set
MOQ
35000 per set
Price
0.68" SS304 Paintball Making Machine With Check Gauge , Capacity 30,000 Paintball/H
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Paintball Making Machine
Material: SS304
Service: After Sales Avaliable
Technical Support: Formula
Capacity: 30,000 Paintball/h
Print Device: Avaliable
High Light:

paintball production line

,

paintball making machine

Basic Infomation
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: S610PB
Payment & Shipping Terms
Packaging Details: Wood cages
Delivery Time: 30-40 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 Set/Sets Per Year
Product Description



CE Certificated Full Auotmatic High Efficient Paintball Making Machine





Quick Detail



Product Name

Large scale paintball making machine

Driven Type

Electric

Capacity

32000pcs /hour

shape

round

Application

Food, pharmaceutical, paintballl making machine

Control

PLC



Product Description

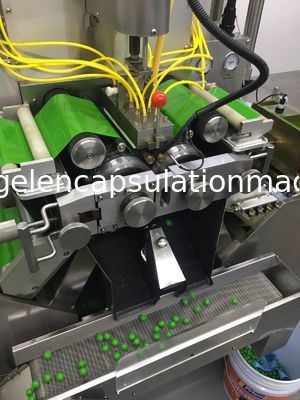

S610PB Paintball making machine is suitable for large scale paintball production. The machine adopts independent lubrication single adjustable lubrication, saving production cost for customers,





Specifically speaking, it has the following characteristics:



1.Dosage deviation:<+1.5%
2.Gelatin ribbon lubrication: paraffin oil or fractionated coconut oil, less than 1kg in 8 hours. Solvent free.
4.Major bearing made in Germany.
3.Capsule brushes are driven by independent motor to prevent the gelatin stuck into the die roll cavity.
5.Separate lubrication system for medicine pump and die roll assembly.
6.Water cooled drum also have air blowers
7.PLC and touch screen control with self-trouble diagnostic.
8.Automatic medicine supply. The system can even alarm when the fill material tank is empty.
8.High accuracy medicine pump. The diameter tolerance of  the 20 plungers are less than 0.005mm.


Specification


Model

S610PB

Die roll size

150×250mm

Die roll speed

0~5rpm

Max plunging volume per stroke

0~3ml

Plunger numbers

20/24

Overall dimension

2050×1200×1850

Weight of main machine

1900kg

Power consumption

13.5kw

Control mode

PLC+Touch Screen

output

32000 pcs/hour

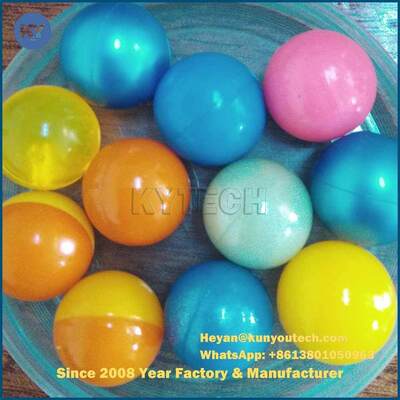

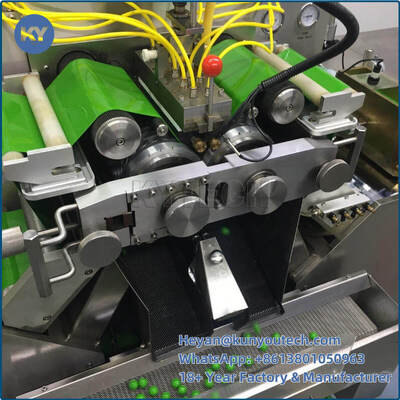

0.68" SS304 Paintball Making Machine With Check Gauge , Capacity 30,000 Paintball/H 0

Competitive Advantages

1. Improve the efficiency of production largely
2. Compact and beautiful
3. Reduce the oil consumption
4. Save money for users
5. Low noise, run more smoothly
6. PLC+touch screen

Fully Automatic paintball making machine, Paintball Encapsulation Machine

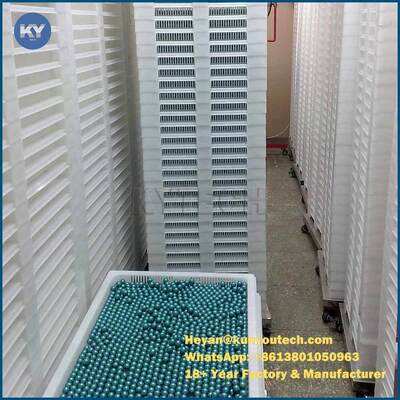

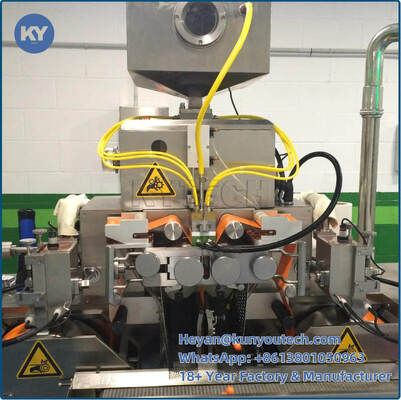

0.68" SS304 Paintball Making Machine With Check Gauge , Capacity 30,000 Paintball/H 1
