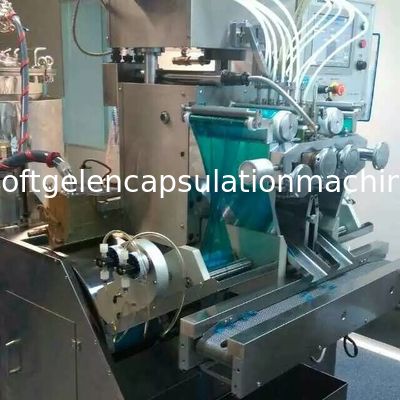

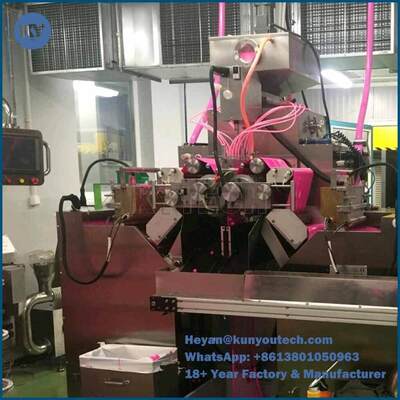

Custom 50 / 60HZ Paintball Encapsulation Machine With PID Control
Quick Detail
|
Overall Dimension
|
1250×400×2300mm
|
Material
|
304 SUS
|
|
Application
|
Paintball Making
|
Weight
|
600kg
|
|
Scale
|
Small Scale Production
|
Capacity
|
8000pcs/hour
|
Product Description
Our company is the first in China to export paintball equipment to North America which is capable of making tournament grade paintball, still the biggest paintball machine maker in China. Compared with the softgel machine, the paintball making need better machine accuracy, the drive transmission system is also precisely improved. The ancillaries are also modified correspondingly. The hopper and spreader box adopt level switch, making the level control more precise. Besides, the injection wedge, spreader box and hopper adopt the design of precise PID temperature control . The micro lubrication system largely reduce the consumption of paraffin oil.
Paintball making machine is used for making different color paintballs for game.
S403PB Paintball making machine is an experimental paintball machine designed especially for R&D department of laboratories, pharmaceutical factories in the universities and plant health products and Research Institutes.
Specification
|
Die roll size
|
Ф80X100mm
|
|
Die roll speed
|
0~5rpm
|
|
Overall dimension
|
1250×400×2300mm
|
|
weight
|
600kg
|
|
Power supply
|
380V/240V,50/60HZ
|
|
Power of the main motor
|
1.1kw
|
|
Power of the main machine
|
3kw
|
Paintball Encapsulation Machine, Paintball Making Machine, Soft capsule and Paintball Encapsulation Machine.
Detail;
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine
What is the specifications of Automatic paintball encapsulation machine ?
1)According to client's sepcial requirements, provides the special design such as oxgency pretection;
2)So many optional devices for clients to choose from R&D to big scale production.
3)Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
4)Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
5)Automatic checking: with servo motor ,the machine can run at 7rpm
6)Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
7)Main shaft parallelism is in 0.02mm
8)The die roll adjust and changment with clitch control ,save gelatin and time, easily operate
8)Use the Germany bearing; .
9)The shaft of the 2 rollers for die roll deviation is in 1.5%.
10)With Worm gear, the gear and shaft adopt special material with high accurary and long service life
11) Medicine hopper adopts thermial insulation design
12) Local language input in machine avaliable.
13)Micro lubrication
14). High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider.
15) The hopper can keep medicine temperature steady, more suit to fill suspension into the paintball.
16) Air-cooling system is adopted at the output of paintball, that make paintballs amazing
17).Professional PID temperature control technology is adopted on the machine, temperature of injector can be adjusted accurately. Improves ratio of finished products of paintball.
