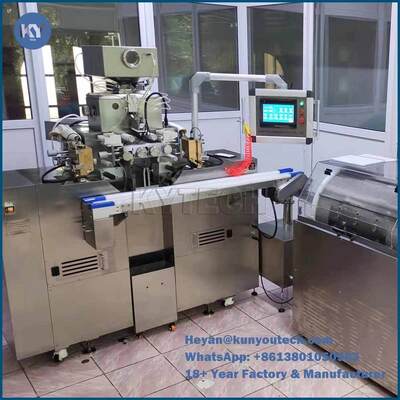

3 Kw Small Batch Electric Soft Capsule Making Machine Automatic For Laboratory

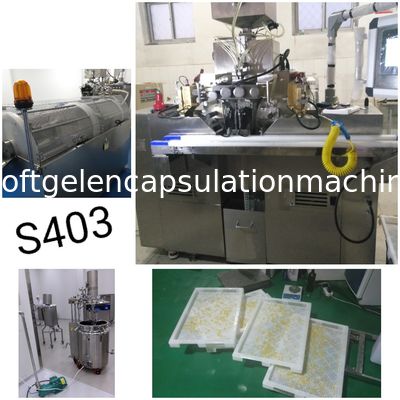

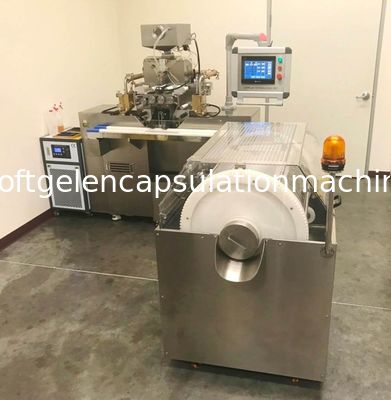

S403 soft capsule making machine is specially for laborotary and small scale production. It's elaborately designed strictly according to the requirements of GMP. The whole set of the manufacturing line is simple but efficient with a small space. In the manufacturing line, including a main machine, control system, water cooling system, lubrication oil saving system, a set of tumble dryer, one set of die roll and KUN YOU gelatin reactor. All the spare parts or other material are selected according to the requirements of GMP.

Thus making it applicable for pharmaceutical, nutrition food and cosmetic industries.

1. Small size, low energy consumption
2. Easy to operate and clean
3. High precision ,die roll shaft viberation in 0.02mm
4. Small load difference
5. Gelatin ribbon micro lubrication system
6. Important parts use aviation grade high wear-resisting material
7. Famous brand of Simens and Schanider
8. Franquency motor for spped adjustable
9. Food grade filling pump for material
10. Double layer hopper with circle water in jacket

• Pneumatic die press system, pneumatic wedge up and down, independent driven capsule stripper.
• Important parts use aviation grade high wear-resisting material
• Main shaft run out and parellelism within 0.02mm
• All bearing use well know brand
• Medicine pump dosing deviation less than 1.5%
• Worm gear, gear and shaft adopt special material with high accuracy and long service life
• Gelatin ribbon micro lubrication system
• Main shaft, mangle roller, colling drum driven by independent motor, speed controlled viafrequency inverter.
• Precision PID temperature control of the medicine hopper, injection wedge and spreader box.
• Medicine hopper adopts thermal insulation design.
• PLC and touch screen control, with functions of failure diagnosis.

It's widely used in pharmaceutical industries, cosmetic and food industries.
