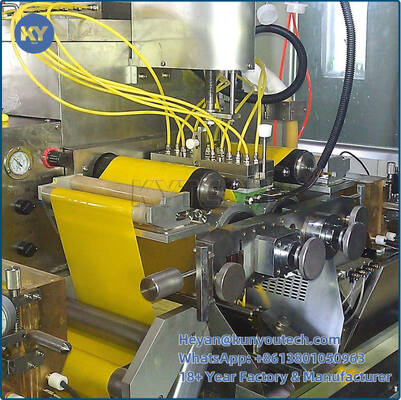

Soft Gelatin Capsules Soft Capsule Making Machine WITH Stinless Steel
Quick Detail
|
Overall Dimension |
1250×400×2300mm |
Driven Type |
Electric |
|
Capacity |
22800 pcs/hour, 4r/min |
Material |
Stinless Steel |
|
Application |
Food, pharmaceutical,softgel making machine |
Capsule shape |
OV, OB,etc |
Product Description
S403 R&D soft capsule making machine conform to the requirements of GMP standard. It is simple and efficient laboratory machine especially for R&D or small scale soft capsule production in laboratories and pharmaceutical researcging institutes.
The whole set of the equipment is simple and efficient with small occupation. It includes the gelatin melting system, fill material system, soft capsule encapsulation machine and tumbler drying machine. All the material for the whole set of the equipment are well selected to meet the requirements of GMP, making it applicable for medical, food and cosmetic industries.
Applications:
It's widely used in pharmaceutical industries, cosmetic and food industries.
Specification
|
Model |
S403 |
|
Die roll size |
Ф80X100mm |
|
Die roll speed |
0~5rpm |
|
Overall dimension |
1250×400×2300mm |
|
weight |
600kg |
|
Power supply |
380V/240V,50/60HZ |
|
Power of the main motor |
1.1kw |
|
Power of the main machine |
3kw |
|
S403 R&D softgel encapsulation machine |
|||
|
Shape |
Capsules/hour |
||
|
2r/min |
3r/min |
4r/min |
|
|
5#OV |
12600 |
18900 |
25200 |
|
8#OV |
11400 |
17100 |
22800 |
|
10#OV |
8640 |
12960 |
17280 |
|
11#OB |
7200 |
10800 |
14400 |
|
16#OB |
6840 |
10260 |
13680 |
|
20#OB |
6480 |
9720 |
12960 |
|
24#OB |
6120 |
9180 |
12240 |
|
Paintball |
7200 |
10800 |
14400 |
|
6#round |
14280 |
21420 |
28560 |
Competitive Advantage:
1. Filling Tolerance<±1.5%
2. Easy to operate and clean
3. Die roll speed:0~5rpm, steplessly adjustable
4. Small load difference
5. Gelatin ribbon micro lubrication system
Softgel making machine,Soft capsule making machine,Soft capsule encapsulation machine,Softgel machine,Soft capsule manufacturing machine,Softgel manufacturing machine,Softgel making equipment
Large Scale Soft Gelatin Encapsulation Machine For Pharmaceutical Industry Use And Meet GMP Requirement
Finished Products
Beijing Kun You Pharmatech Co., Ltd. devotes itself to manufacture softgel encapsulation line, tumble dryer, softgel mould, softgel sorting machine, softgel auxiliary equipment, paintball production line, and related technique R&D.
We also accumulated rich experience of softgel encapsulation technique. We have many sets of high-precision CNC and auxiliary equipments, and our professional design, technology, production and service personnel, enable us to produce high performance equipment, mould and top quality service. We are not only a equipment and mould supplier, but also a turn-key solution and formula provider.Easpcially in veggie gel capsule.
Kun You is keeping good cooperation relationship with companies from USA,Swissland, Germany, Canada, Russia, Mexcio, Vietnam, Turkey, Brasil, India, etc., in the meantime, our products and service have been exported to those regions too.
