Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw

Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw

  • Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
  • Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
  • Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
  • Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
  • Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw
Product Details:
Place of Origin: China,Beijing
Brand Name: Kunyou
Certification: CE,ISO9001
Model Number: GCM-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Wood cages
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
High Light:

soft gelatin encapsulation machine

,

pharma packaging machinery





13.5 kw Gelatin Color Mixing Machine With High Speed / No Bubbles





Product Description

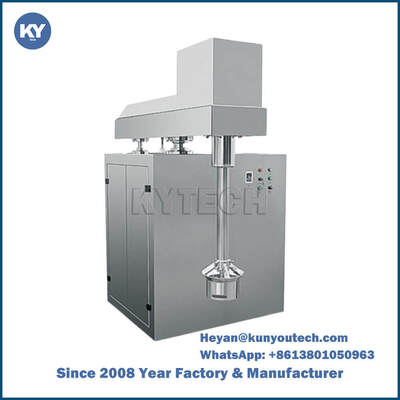

Model GCM-1 color mix is used for mixing the color with the gelatin. It consists of hydraulic lifting system, mixing system and electrical control system.

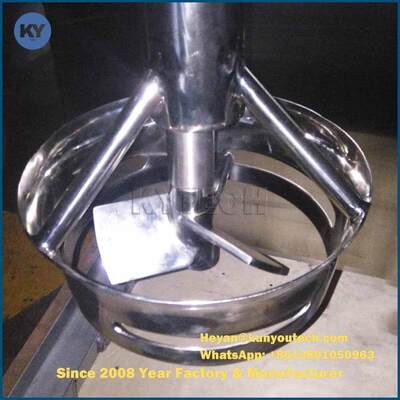

Principle: Insert the mixer vertically into the vessel with position of centre, the stirrer head depth is 1/3 from the bottom to the liquid, thus keeps enough space to let the materials flow freely at the bottom. By special design and the form, bubbles are decreased during the mixing process as the mixer works in the special groove. The mixer is put into the tank by means of hydraulic system, which can be put in any position of the tank by hydraulic system.
Configuration: ABB Motor, Panasonic Inverter, Fuji buttons, Siemens electrical components, contacting parts with the materials is SS316L and the machine is coated by SS304.
Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw 0
Specification


Mode

GCM-1

Dimension(mm)

1590*1200*2050(2950

Weight(kg)

600

rpm

0~1400 (speed variable)

Total power (KW)

13.5


Competitive Advantage

1. High speed color mixing for soft capsule encapsulation
2. No bubbles.
3. Easy to operate and easy to clean, the color becomes even by mixing, high efficiency.


Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw 1

What is the advantages of color mixer ?

1)We are factory, direct sales with competive price;

2)More than 20 years experience;

3)Professional designer and worker to serve you;

4)This machine with a strict inspection before out of storage;

5)This machine use SS316 or SS304;

6)Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.

Packing&Shipping



We pack the whole machine with wooden case and pack the softgel die roll and paintball die roll with standard boxes.

Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw 2

We ship the whole line of macine by ocean through the freight agent.



Our services



We not only provide the whole paintball & softgel making machine line, but also can provide the factory design for you. In terms of the after-service, we will be responsible for such services as belows: maintenance, parts supplying, technical support.



If you are interested in our products, please feel free to contact us. Welcome!



Product samples.



Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw 3Gelatin Color Mixing Machine With High Speed / No Bubbles 13.5 kw 4
