Medical Softgel Encapsulation Machine With PLC
Quick Detail
|
Pump Type
|
20/24 Plungers
|
Driven Type
|
Electric
|
|
Capacity
|
120000pcs /hour, 8#OV
|
Dosage deviation
|
<±1.5%
|
|
Application
|
Medical,Food, Pharmaceutical
|
Control
|
PLC
|
Product Description

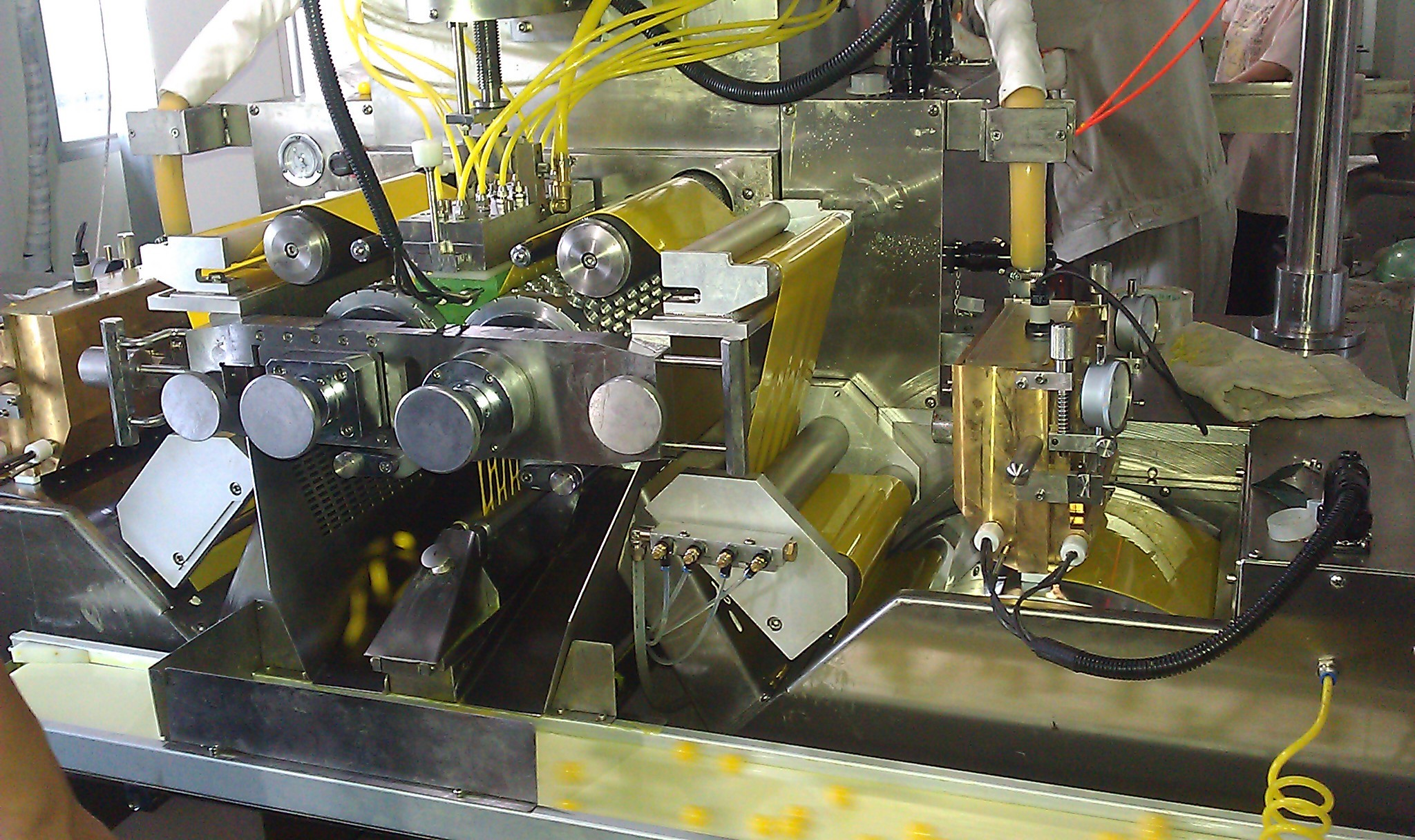

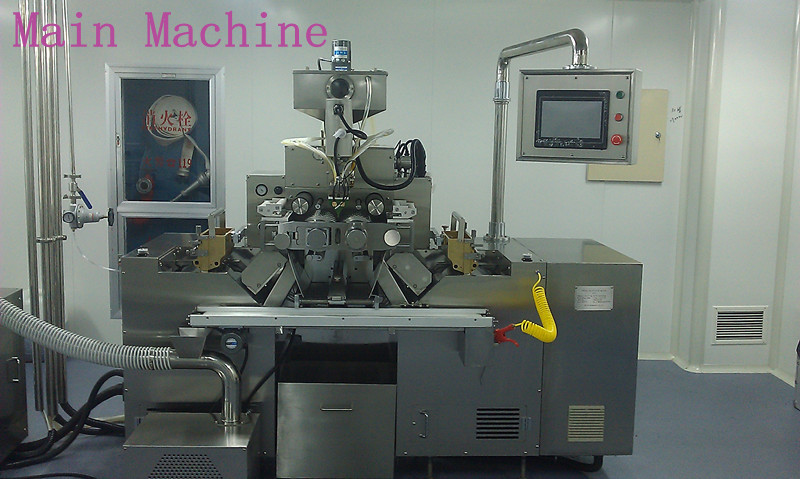

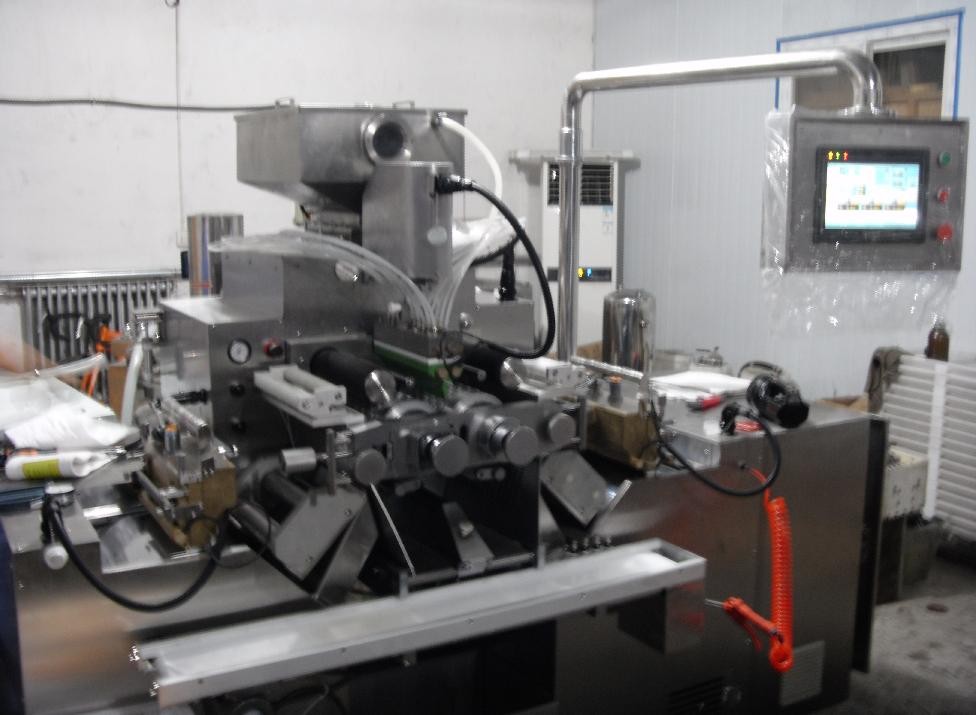

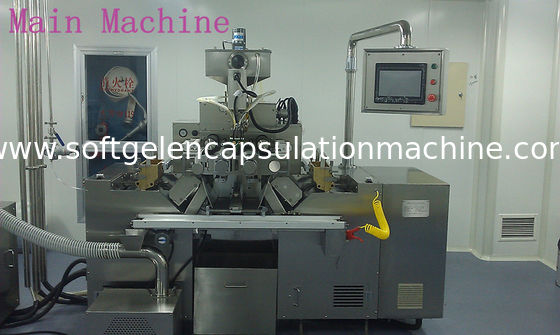

KUN YOU S610 fully automatic softgel making machine is a new generation of soft gelatin encapsulation machine. The machine is integrated the latest global encapsulation technology and our gelatin encapsulation experience. The new softgel encapsulation manufacturing facility features leading technology, simple but beautiful appearance. Advanced technology and reliable performance provide high effective operation and save user's operational cost.
It includes the following features:
1. Computer control the plunger pump, improve the precision of medicine injection volume, and save more medicine and material cost.
2. Bigger cam drive plunger pump, can provide stronger to plunger pump. That make the machine can inject widely high viscosity of raw material, such as Suspension, Propolis (Bee glue), Soft phospholipids, Liquid calcium and Herbal suspension.
3. Friendly human-computer interface, easy to operated. The simulated running of machine. The data can be set via touch screem, and easy to realizes network monitoring, statistics and reports output.
4. High quality and intelligence control system, PLC true color touch screen technology adopted by the electronic control system. All electric parts use world brand parts, such as Siemens, Schneider
5. Speed of each gelatin film drum and main axis can be adjusted respectively by respectively invertor; that is controlled by operator according to actually requirement.
6. The opening of gelatin box is controlled accurately, the gauge showed gelatin film thickness. Easy to control the thickness.
7. Automatic controlled water-cooling system is adopted for the cooling of gelatin film, which is more safety and more reliable.
8. Air-cooling system is adopted at the output of softgelcapsule, that make softgel capsule more beautiful.
9. Insulation hopper, can keep medicine temperature steady, more suit to fill suspension into the softgel capsules.
Specification
|
Model
|
S610
|
|

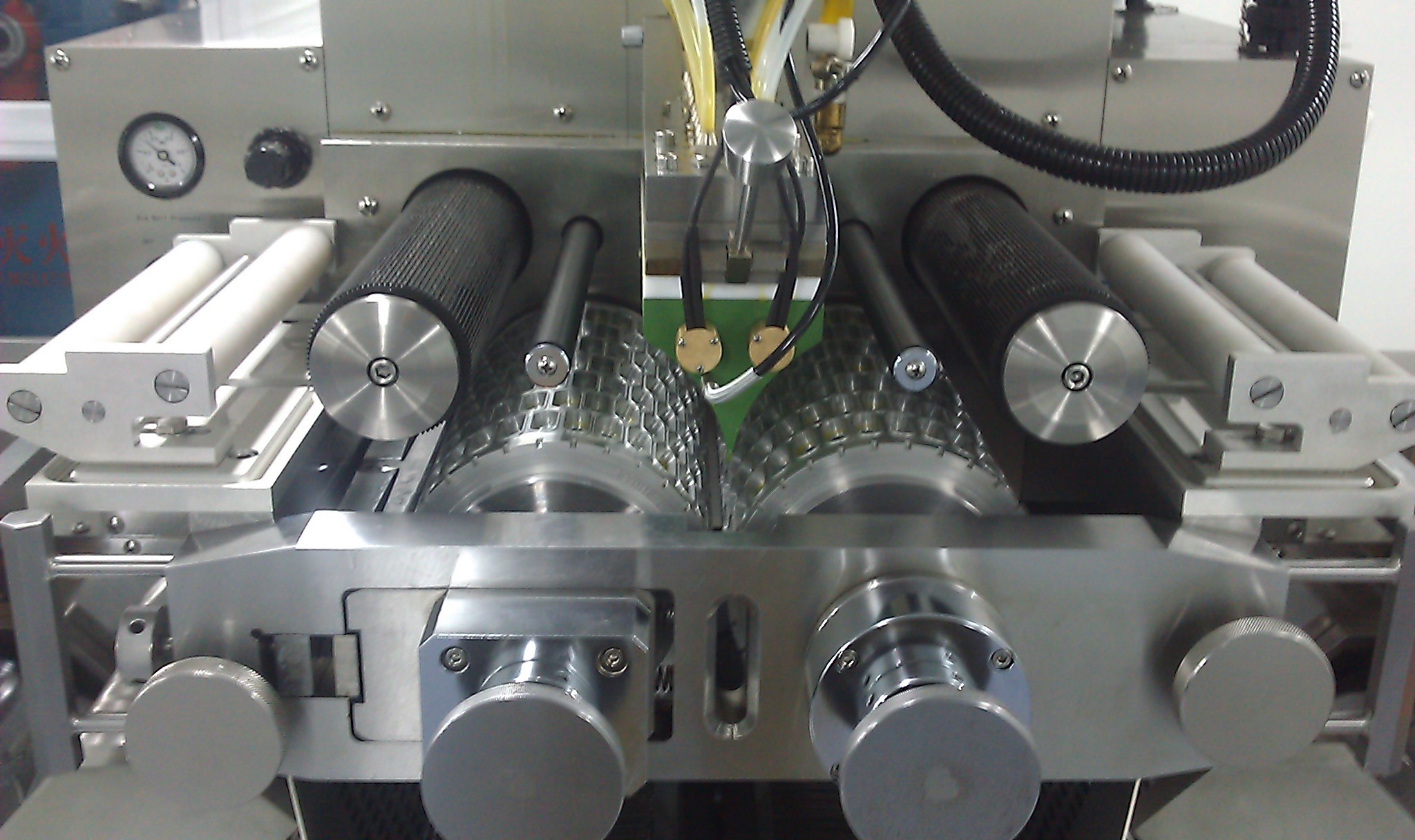

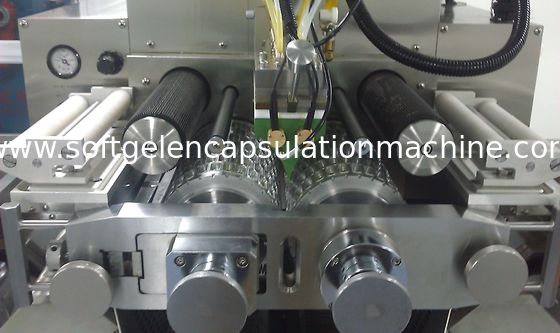

Die roll size
|
150×250mm
|
|
Die roll speed
|
0~5rpm
|
|
Max plunging volume per stroke
|
0~2ml
|
|
Plunger numbers
|
20/24
|
|
Overall dimension
|
2050×1200×1850
|
|
Weight of main machine
|
1900kg
|
|
Power consumption
|
20 kw
|
|
Control mode
|
PLC+Touch Screen
|
|
output
|
8#OV115,440 pcs/hour
|
Automatic Softgel Making Machine, Soft capsule Encapsulation Machine, Paintball Encapsulation Machine
Service
A. To pick up machine more easy & correct.
First, We need client to provide below information about their product:
1) The requirement of raw material: we require powder or grains with good fluidity & dry, can fall down from cone charging barrel.
2) We need know the size, shape of capsule. Yield(capacity) in your request.
So we can figure out if our machine can compress and which models will meeting with your requirement.
B. We can design, customize and make die roll for customers.
